PST-24VC vertical multiband antenna for 20 and 40 m ProSisTel

Specifications

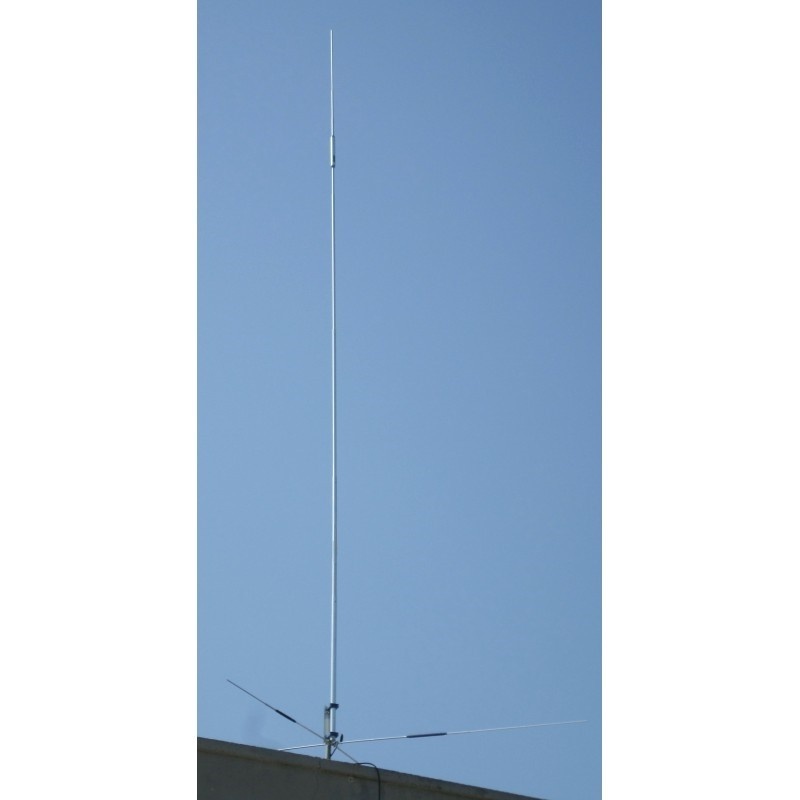

• 2-band vertical antenna (20 - 40m) with loaded rigid radials.
• Max. radial length = 2m
• Coverage: 250kc in 20m, 110Kc in 40m.

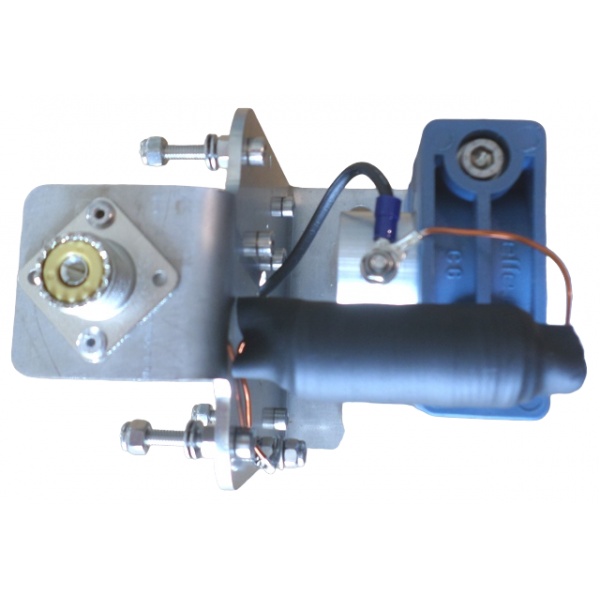

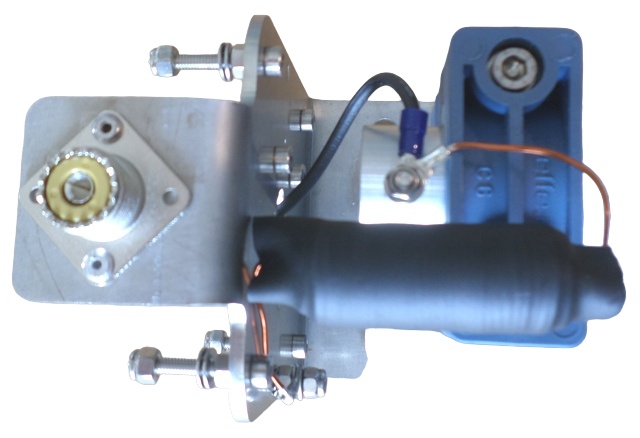

• RF shock for electrostatic protection.
• Connector: SO239
• Maximum power: 5KW
• SWR: <=1:1.5
• Shipping weight = 8Kg approx.
• Height : 8.1m approx.
• Weight = 6Kg
• Wind surface = 0.15m2
• Maximum wind speed = 130km/h
• Accepts a 40-50mm mast (60mm on request)

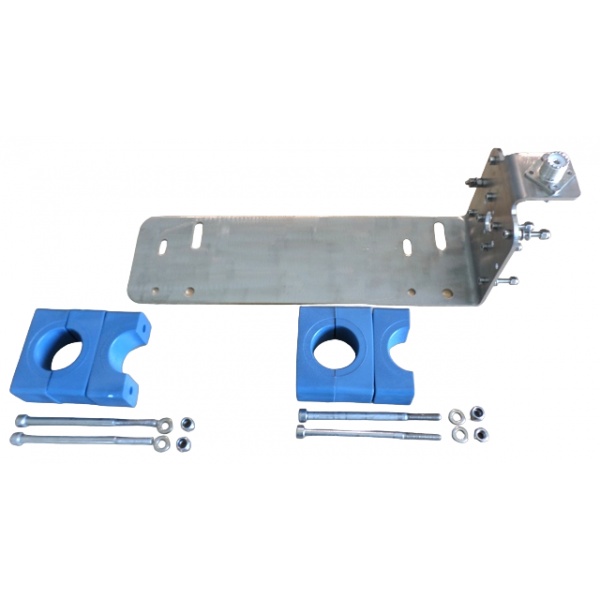

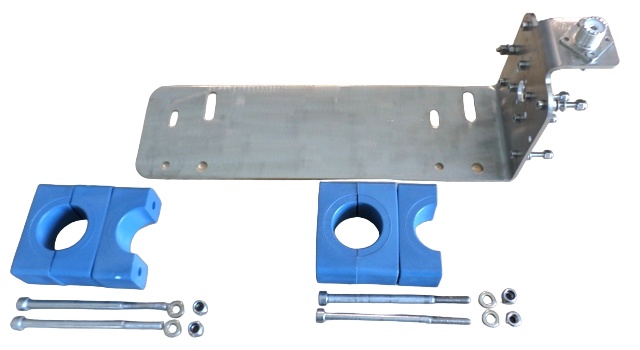

• Aluminium 6060T6, stainless steel bracket and hardware.
