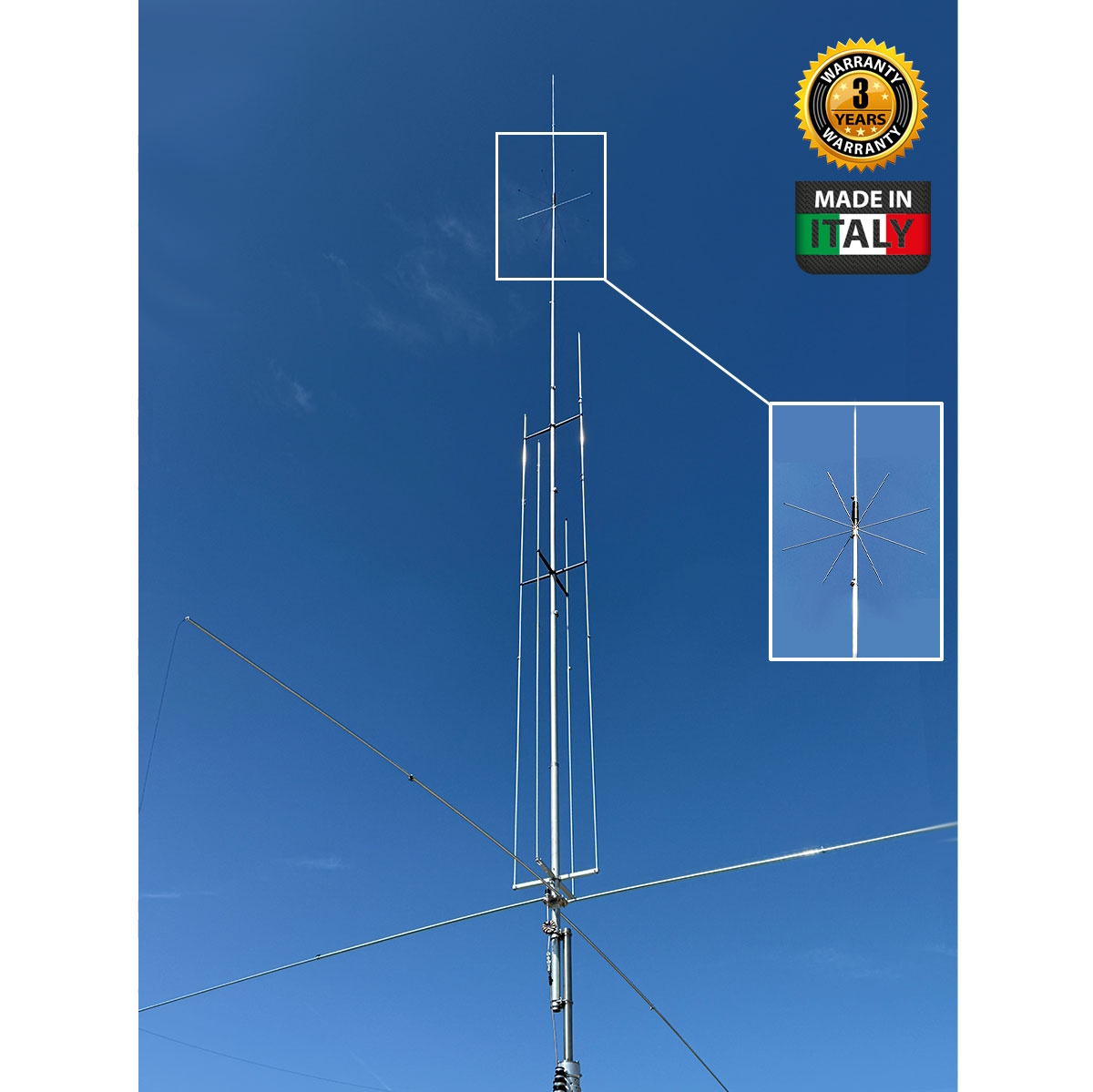

Grazioli MV7 vertical 7 band HF 40-10m + 6m 3kW antenna

rating No review at the moment

Grazioli MV7 aluminium multiband vertical antenna, 7 HF bands + 6 m (40/20/17/15/12/10/6 m).

Designed for a compact, high-performance base station: 1/4λ, patented DBFC counterweight for 40 m, high wind resistance and power up to 3 kW (1.5 kW SSB at 40 m).

  • 7 preset bands: 40, 20, 17, 15, 12, 10 and 6 m
  • 1/4 λ architecture with parallel stubs (high efficiency, no impedance transformer)
  • DBFC system: 40 m without long, cumbersome wired radials
  • CMC choke supplied (FT240-43 FAIR-RITE toroid) for reduced noise
  • Premium mechanics: AW6063-T66 tubes, AISI-304/316 stainless steel screws, SO-239/PTFE connector, gold pin

Delivered with: antenna elements and radials, mast hardware/clamps, FAIR-RITE FT240-43 toroid, assembly manual.

Delivery info: This antenna is considered a large parcel and carriers apply an additional surcharge for shipping. Package height 150cm.

More details

675,00 € tax excl.

Out of stock, available in 3-4 weeks

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

  • Ranges covered : HF 40/20/17/15/12/10m + VHF 6m (preset)
  • Type: vertical Ground-Plane 1/4 λ with parallel stubs; DBFC counterweight for 40 m (without wired radials)
  • Impedance: 50 Ω unbalanced - Direct supply, DC-Ground
  • Polarisation / pattern: vertical, omnidirectional - Gain 0 dBd (≈ 2.15 dBi)
  • VSWR: ≤ 1.5:1 at resonance; bandwidth (VSWR ≤ 2:1): 40/20/17/15/12/10 m full band, 6 m > 1.5 MHz
  • Power handling: 1,500 W SSB at 40 m, 3 kW in other bands
  • Connector: UHF female (SO-239), PTFE insulation, gold-plated centre pin
  • Materials: aluminium AW6063-T66 (drawn/tempered tubes), fibreglass, brass, PTFE; stainless steel screws AISI-304/316
  • Total height: 8.97 m
  • Strand length: 8.4 m - Radial length: 2.7 m - Wind-surface area: 0.42 m²
  • Wind resistance: 130 km/h (braced)
  • Net weight: 8.5 kg
  • Mast attachment: Ø 40-54 mm (brackets supplied) - Pack size: 14 × 14 × 145 cm, 9.95 kg
  • Accessory supplied: FAIR-RITE FT240-43 to create a choke (manufacturer's instructions)

The Grazioli MV7 is an evolution of the MV6, from which it takes its robust mechanics, with a major innovation: a double-band central needle (40 + 20 m).

This solution uses a coil with a capacitive cap to decouple the lower part of the 20m and ensure an inductive load suitable for the 40m.

Above the coil, a radiating element of around 2.2 m made up of two adjustable telescopic tubes ensures precise calibration of the entire 40m band while reducing wind resistance.

DBFC system (Dual Band Folded Counterpoise)

Innovative, patented ground plan, specific to the MV7.

An AISI316 stainless steel cable (19 strands, Ø 1 mm) is fixed to the end of a Ø 10 mm aluminium radial.

The difference in diameter creates a high impedance: the cable only lets through the low band (40m).

The other bands (20m and more) operate in the same way as the MV6.

The cable + radial combination forms a counterweight ≈ 1/4 wave over 40 m, folded over 2 radials to limit space requirements and eliminate the need for long wire radials.

Wind resistance

When installing in very windy areas, it is advisable to use non-conductive cables with the harness supplied to secure the antenna.

Choke supplied

The MV7 is supplied with a FAIR-RITE FT240-43 toroid (Made in USA) enabling an effective choke to be built against common mode currents on 1.8-30 MHz.

Additional equipment to be provided by the user:

2 PL-259 connectors (or 1 PL-259 + 1 SO-239 with plastic box),

≈ 1.2 m of quality coaxial cable (RG58 for ≤ 300 W @30 MHz or RG142BU Teflon for ≤ 1500 W @30 MHz).

Caution: FOAM cables proscribed (spongy dielectric degrades on winding).

Grazioli specific UHF connector

Not a standard SO-239, but a real 50 Ω in-house connector, usable up to 500 MHz.

Supports 5 kW CW continuous @30 MHz and >3 kW @50 MHz.

CW614N nickel-plated brass body, 24K gold-plated pin with 4-fin insulator (better centring/contact).

PTFE insulation (-100° to +260°), protected by an elastomer cover against humidity.

Anchoring support

Stainless steel AISI304, thickness 2.5 mm.

Attached to the antenna tube by a clamp collar, providing a very robust mechanical lock.

Mast attachment by AISI304 U-bolts (V-Bolt M6) and column nuts for easy tightening.
