ICOM BP-263 battery box 6 x LR6 AA for IC-V80E walkie talkie
23,81 € -10% 26,46 €

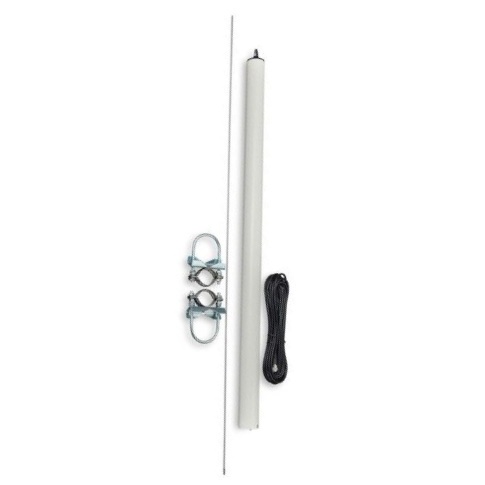

X1-HF Moonraker 1-50 MHz SO239 vertical antenna with 10m cable
Read the 2 reviewsX1-HF 1-50 MHz vertical receiving antenna complete with PL259-SMA male 10m cable.
This antenna features internally charged wire traps that provide an excellent alternative to a long wire. Ideal for short-wave listening with limited space - easy to assemble and use.
- Type: vertical HF with helical loading
- Receive frequency: 1-50MHz
- Length: 200cm
- Radiation-free
- Mast: Up to 37mm
- Connection: SO239
- Cable: Supplied complete with 10m RG58 PL259 (UHF male) to SMA male
Data sheet
The SPX100 antenna covers all bands including the WARC bands from 80 to 6m with 5W guaranteed and 25W max. When fully extended, it measures approximately 1.54m. It has a 3/8 connector and is supplied with two adapters: 3/8 to PL-259 and 3/8 to BNC Male.
Tape changes are made by plugging the banana plug into the appropriate socket on the base reel and fine adjustments are made using the 10-section telescopic whip for the best VSWR.
The whip unscrews from the base matching coil so that it measures only 30cm when folded.
Frequency adjustment
The telescopic lengths listed below are for the lowest frequency in the band and with a counterweight wire connected to the radio.
The best length for the counterpoise is a quarter (1/4) wavelength in the transmit band.
The formula for calculating wavelength in metres as a function of frequency is: 300 / frequency in MHz
80m band
No jumper connected - Approximate telescopic length 124.5cm
60m band
No jumper connected - Approximate telescopic length 38cm
40m band
No1 connected to No2 - Approximate telescopic length 110.5cm
30m band
No1 connected to No2 - Approximate telescopic length 38cm
Band 20m
No1 connected to No3 - Approximate telescopic length 90cm
Band 17m
No1 connected to No3 - Approximate telescopic length 51.5cm
15m strip
No1 connected to No3 - Approximate telescopic length 104cm
Band 12m
No1 Connected to No4 - Approximate telescopic length 67cm
Band 10m
No1 connected to No5 - Approximate telescopic length 81cm
6m band
No1 connected to No6 - Approximate telescopic length 75cm
The use of a tuner may be necessary on certain HF bands, particularly bands below 14 MHz.
