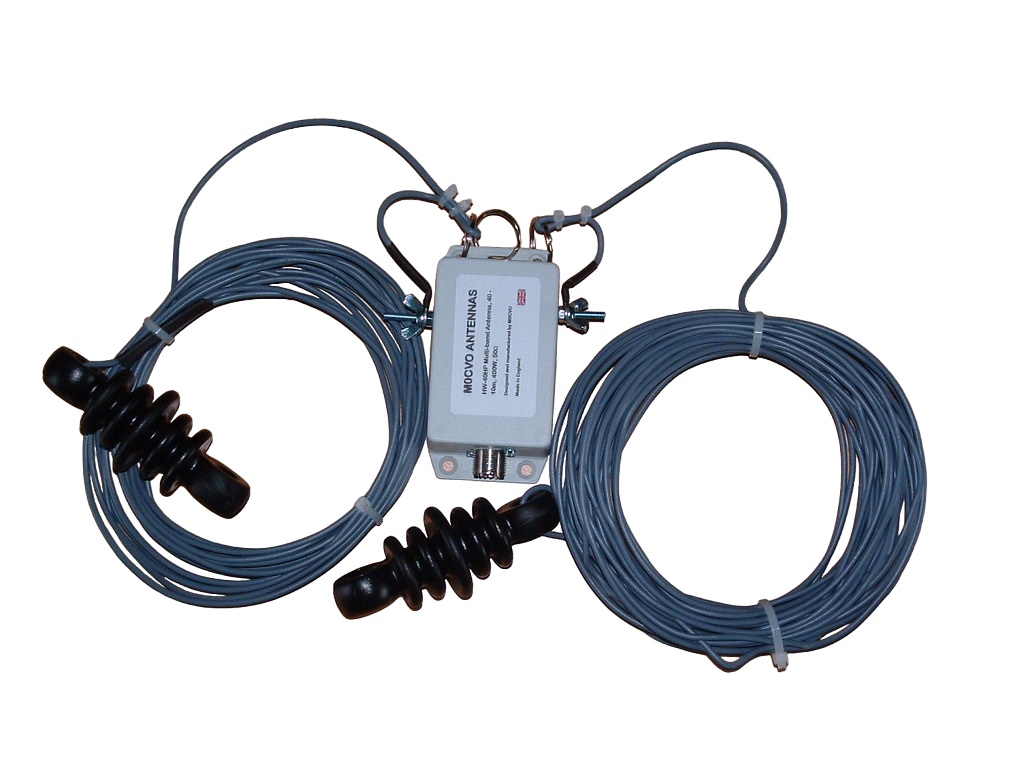

HW-40HP M0CVO dipole HF multiband antenna 80/60/40/20/15/10 and 6m 400W View larger
M0CVO Antennas

M0CVO-HW40HP-1874

New product

HW-40HP M0CVO dipole HF multiband antenna 80/60/40/20/15/10m and 6m 400W

rating Read the 5 reviews
Average rating: 5/5 Number of reviews: 5

The M0CVO HW-40HP is a dipole antenna that incorporates the M0CVO 4:1 balun at the feed point, allowing direct feeding with 50 ohm coaxial cable.

The M0CVO HW-40HP is just 20.28m long, and can be mounted horizontally, like a sloper. If space is limited, it can also be 'folded' like an inverted V, to fit without loss of performance.

It covers the 40, 20 and 10m bands without the need for a tuner, offering high performance without loss.

It also works on the 60m, 15m, 6m and WARC bands with an external tuner.

The lengths of the 2 strands are 6.76m and 13.52m respectively.

Supplied with: 1 M0CVO HW-40HP antenna.

More details

66,02 € tax excl.

In stock

   More than 10 Items

Download

Data sheet

  • Frequency band: 60*,40,20,15*,10m and 6m* + WARC* bands
  • Type: OFCD multiband HF dipole
  • Power: 400W
  • Impedance: 200 Ω **
  • Length : 20,28m
  • Connector: SO-239 (UHF female)
  • Max power : 400W

* With an external tuner

** A 4:1 current balun is added to the feed point to change the impedance to the required 50Ω. This then allows the antenna to be fed using a standard 50Ω coaxial cable such as RG8 or RG213.

Best performance is achieved when mounted at least a quarter wave above the ground at the lowest frequency (about 10m).

The antenna can be mounted lower if necessary, but due to the varying nature of the ground below, the overall impedance and performance may be affected.

Reviews

Click here to leave a review

rating 3
HW-40HP
Moins performante que le long fil, ou verticale avec balun de 1/9
rating 5
SWL
tres bon materielboutique Bon choix sur
rating 5
Antenne HW-40HP
Tout ce qu’il faut la station fixe ou en portable, léger et facile à mettre en place. Merci
rating 5
Fonctionne très bien
Idéal pour une première antenne ou pour une antenne portable
rating 5
Qualité fabrication.

Antenne de bonne fabrication, non installée à ce jour, je reviendrai pour en dire les performances.
