Active Loop antenna MLA-30 Plus MegaLoop 100 Khz - 30 Mhz HF 0-30 Mhz ANT-MEGALOOP-MLA30-968 View larger
Active Loop antenna MLA-30 Plus MegaLoop 100 Khz - 30 Mhz HF 0-30 Mhz ANT-MEGALOOP-MLA30-968

CONNECTRF-ANT-MLA30-968

New product

Active Loop antenna MLA-30 Plus MegaLoop 500 Khz - 30 Mhz

rating Read the 19 reviews
Average rating: 5/5 Number of reviews: 19

MLA-30 Plus magnetic loop active antenna for receiving HF bands from 500 kHz to 30 MHz.

The MLA-30+ antenna can be used with the RTL-SDR V3 stick in direct conversion mode, with the Ham it up converter, or with a traditional HF receiver.

This antenna is particularly recommended for the reception of short waves in AM or amateur radio bands HF in SSB and in conditions of limited space, in apartment for example.

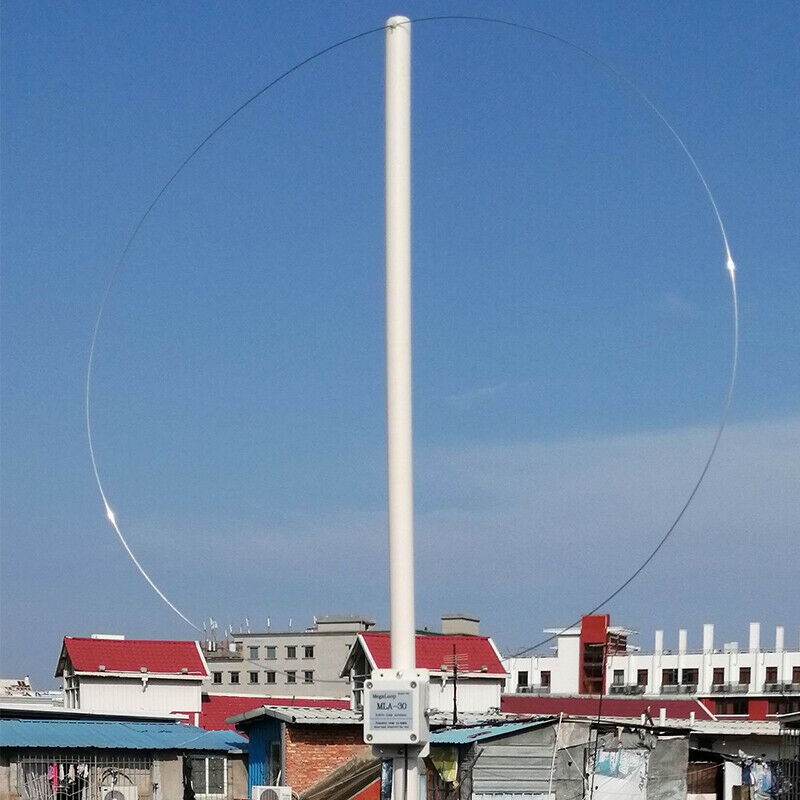

The Megaloop MLA30 Plus antenna is compact and easy to install on a balcony or discreetly on a roof.

Like all magnetic loop type antennas, the Mega-Loop is directional and by pivoting the loop improves reception in a defined direction, or conversely reduces noise on a signal to be listened to.

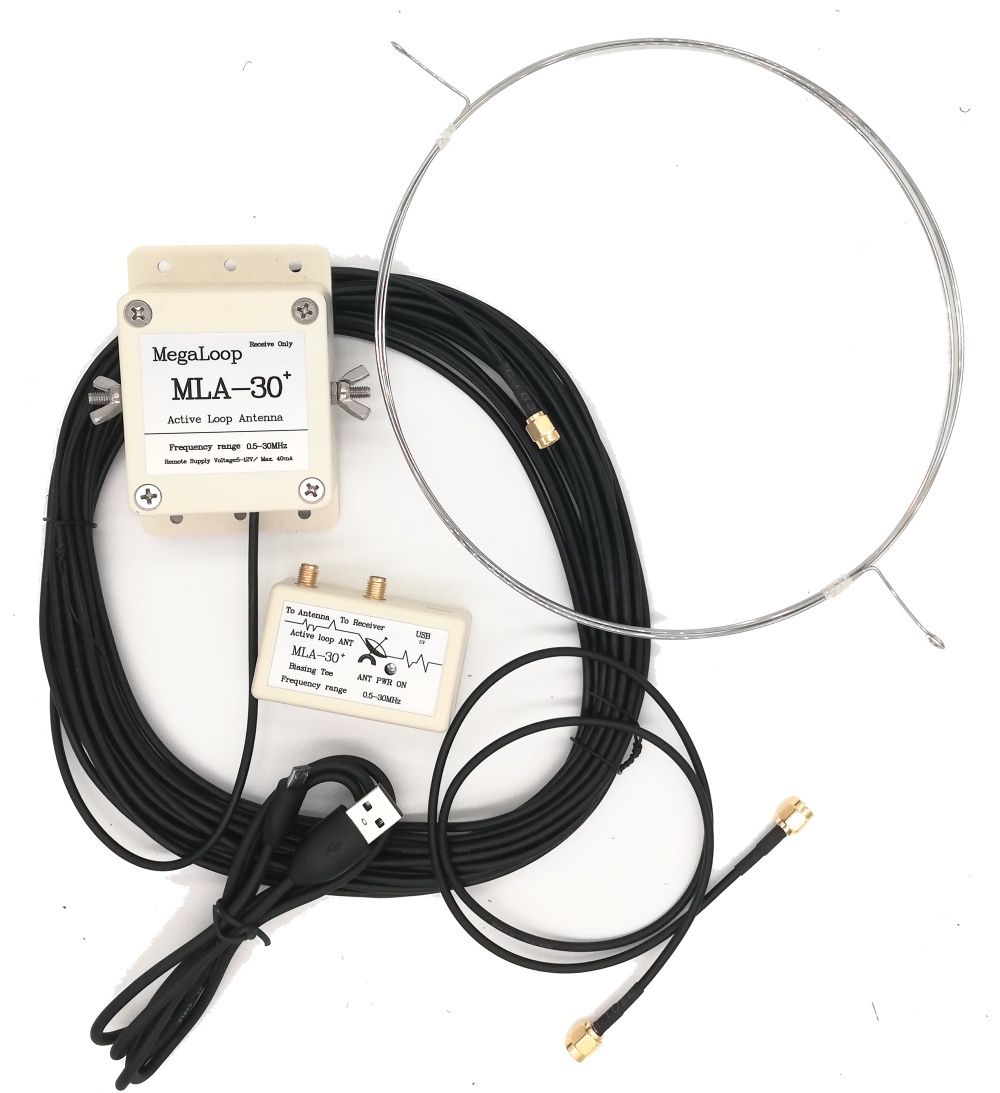

Supplied with: 1 MLA-30 preamplifier with 10m cable, 1 stainless steel loop, 1 0.8m USB cable, 1 SMA cable of 60cm, stainless steel fixing screw. Not included and necessary for assembly: 1 PVC tube.

More details

41,58 € tax excl.

In stock

   More than 10 Items

Download

Manual MLA-30 (FR)

Installation guide and manual in French for the MLA-30 antenna 811.31k

Manual MLA-30 (EN)

Installation guide and manual in English for the MLA-30 antenna 665.27k

Data sheet

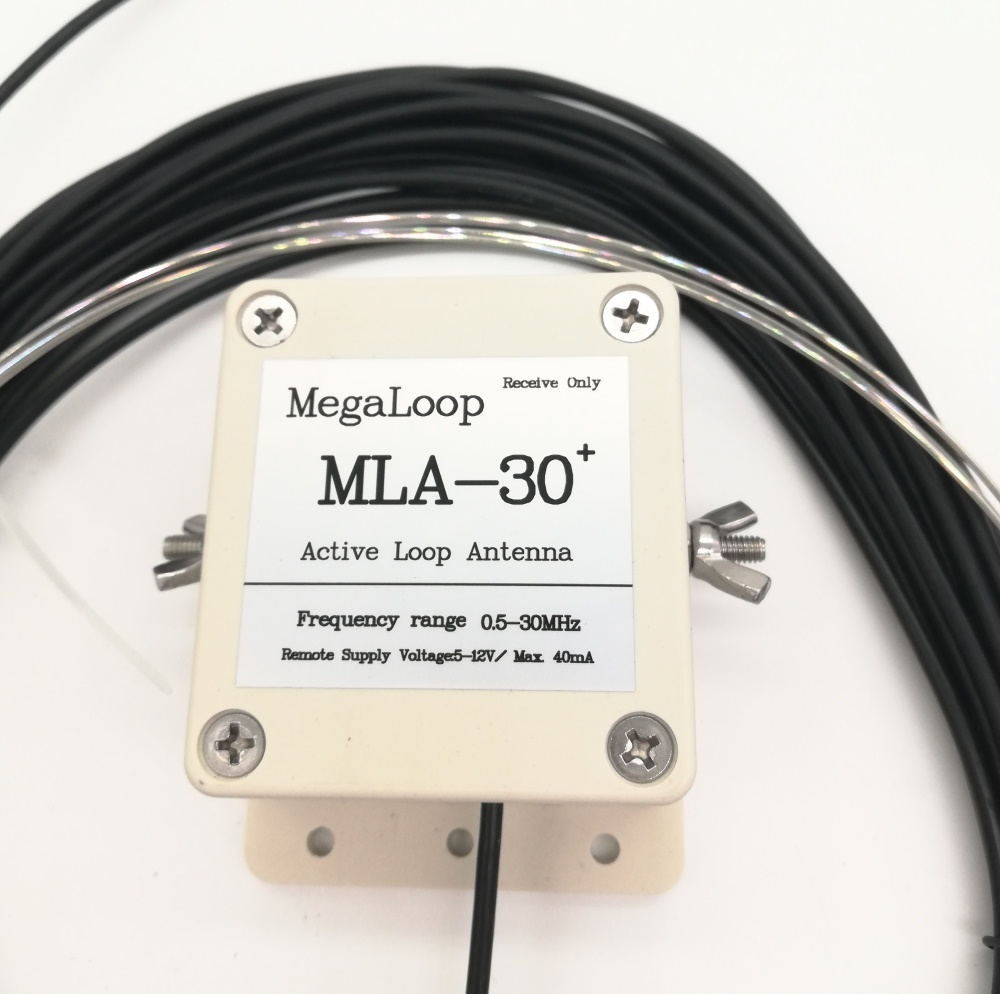

MegaLoop active antenna MLA-30+ specifications

Reception frequency: 500 kHz to 30 MHz
Preamplifier included
Bias-T power supply via supplied USB cable
Power supply: 5V via USB
Coaxial cable length: 10 meters
Antenna connector: SMA male
No adjustments required
Waterproof external case
2 years warranty

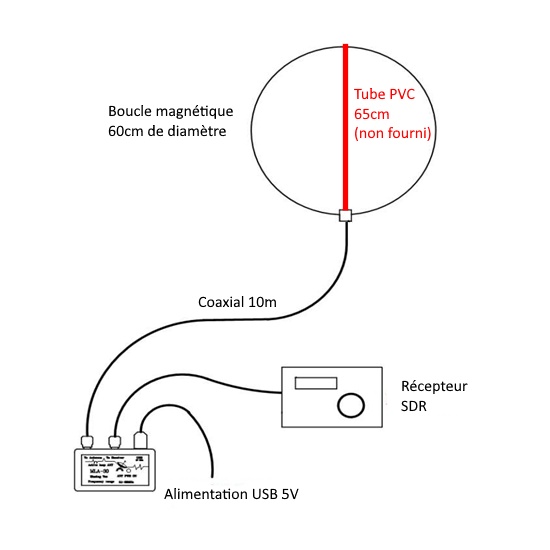

Not included and necessary for installation: 1 PVC tube.

Optimization Tip: To further improve the reception performance with this antenna, you can replace the 1mm steel wire (supplied with the antenna), by a 3mm or more rigid copper wire with a slightly larger diameter.
