NE592 active HF mini loop antenna for portable use with 9V battery

No review at the moment

Mini-antenna active magnetic loop NE592, for reception only, HF bands from 500 kHz to 30 MHz and a possible use in portable thanks to its power supply by 9V battery (battery not included).

This antenna can be used with the RTL-SDR V3 stick in direct conversion mode, with the Ham it up converter, traditional HF receiver or shortwave or with the RSP1A.

The magnetic loop of 30-40cm is directional and allows by orienting it to improve the reception in a precise direction, or conversely to reduce the parasites coming from a certain direction.

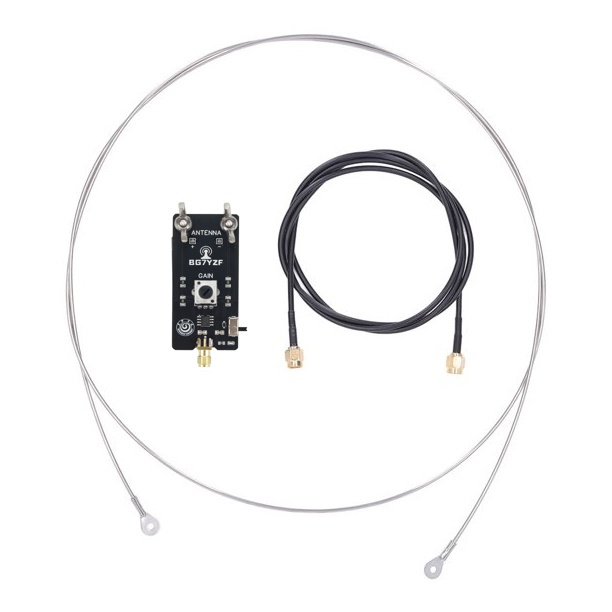

Delivered with : 1 box NE592 of BG7YZF, 1 stainless steel loop, 1 SMA Male cable of 1m.

More details

Data sheet

Frequency: 500 kHz to 30 MHz (receive only)
Amplifier chip: NE592
Power supply: 9V (battery not included)
Battery life: 20-50 hours (depending on battery capacity)
Power consumption: 14-16mA
Operating voltage: 6-10V
Coaxial cable length: 1 meter
Loop diameter: 30-40cm
Antenna connector: SMA female
2 years warranty
