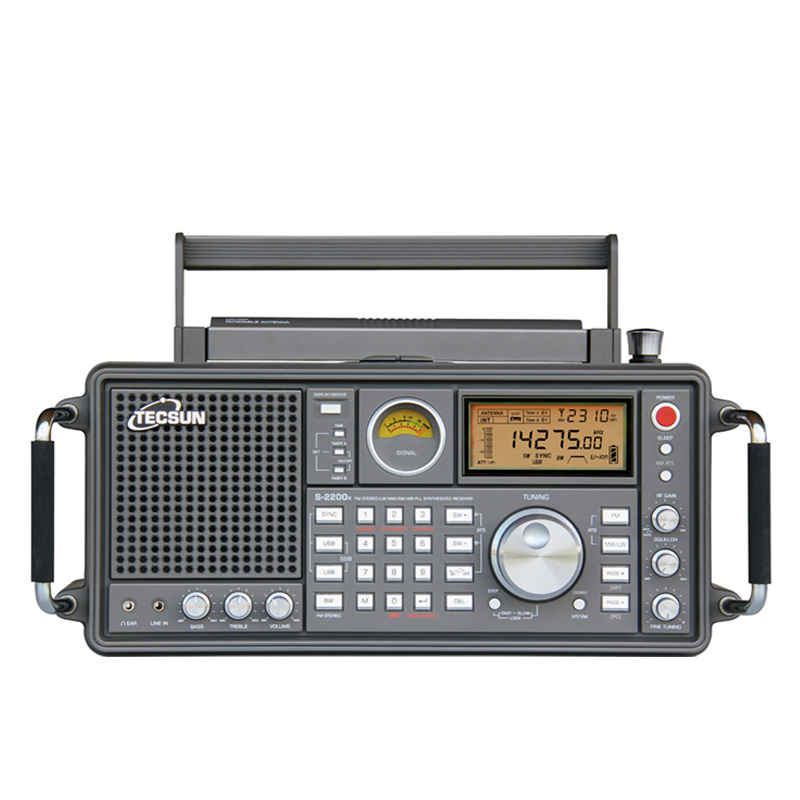

The Tecsun S-2200x radio receiver is the new replacement for the famous S2000 / Grundig Satellite 750, covering all shortwave, mediumwave, longwave and amateur radio bands, in multimode AM, FM, SSB and with aviation band reception.

Frequency bands covered:

  • FM: 88-108 MHz
  • LW: 50-522 kHz
  • MW (AM): 520-1710 kHz
  • SW: 1621-29999 kHz
  • Aviation: 118-137 MHz

The S2200x is supplied with two 18650 Li-ion batteries, a USB-C charging cable, 2 BNC connectors and a manual.

More details

459,00 € tax excl.

In stock

   3 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Manual S2200x (EN)

17.23M

Manual S2200x (FR)

3.73M

Data sheet

  • HF analogue circuit for amplitude modulation, triple conversion IF and DSP digital demodulation that significantly improves reception sensitivity, selectivity and interference suppression
  • Synchronous detection to suppress interference from adjacent signals
  • Antenna signal attenuation and RF gain control
  • Control to suppress background noise when listening to AM broadcasts (LW, MW and SW) and control of Aviation band signals
  • External antenna sockets for high and low impedance antennas
  • Independent fast/slow and fine frequency adjustment knobs
  • Automatic paging (AP) to create and recall time-specific memories
  • Automated and manual tuning functions to easily set and/or store frequencies
  • Single sideband (SSB) with USB and LSB
  • Auto scan, manual tuning or direct frequency entry function
  • Auto tune memory function (ATS) for FM / MW / SW
  • 9150 station memories in 25 banks
  • 24-hour clock and dual alarm via buzzer or radio transmission
  • Sleep function
  • Telescopic antenna for FM, SW and aviation
  • Built-in MW antenna, rotates 360 degrees
  • External or internal FM / MW antenna switch

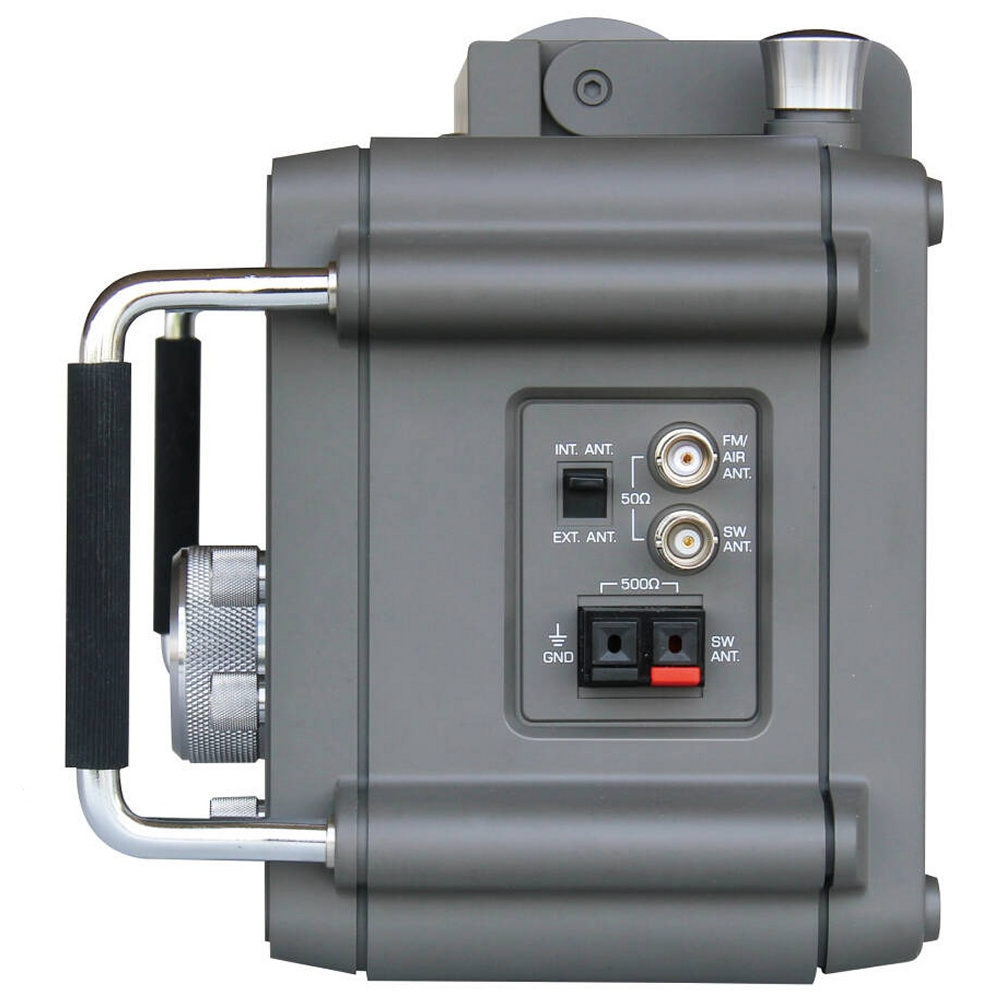

  • 2 BNC female external antenna connectors
  • Antenna attenuation for improved reception
  • Squelch control for quality FM and air band listening
  • Wide/narrow bandwidth selection
  • Independent audio controls for treble and bass
  • Headphone output jack (3.5 mm) suitable for FM stereo listening
  • Built-in 4" high quality speakers with excellent sound quality
  • Line input socket (works like a loudspeaker)

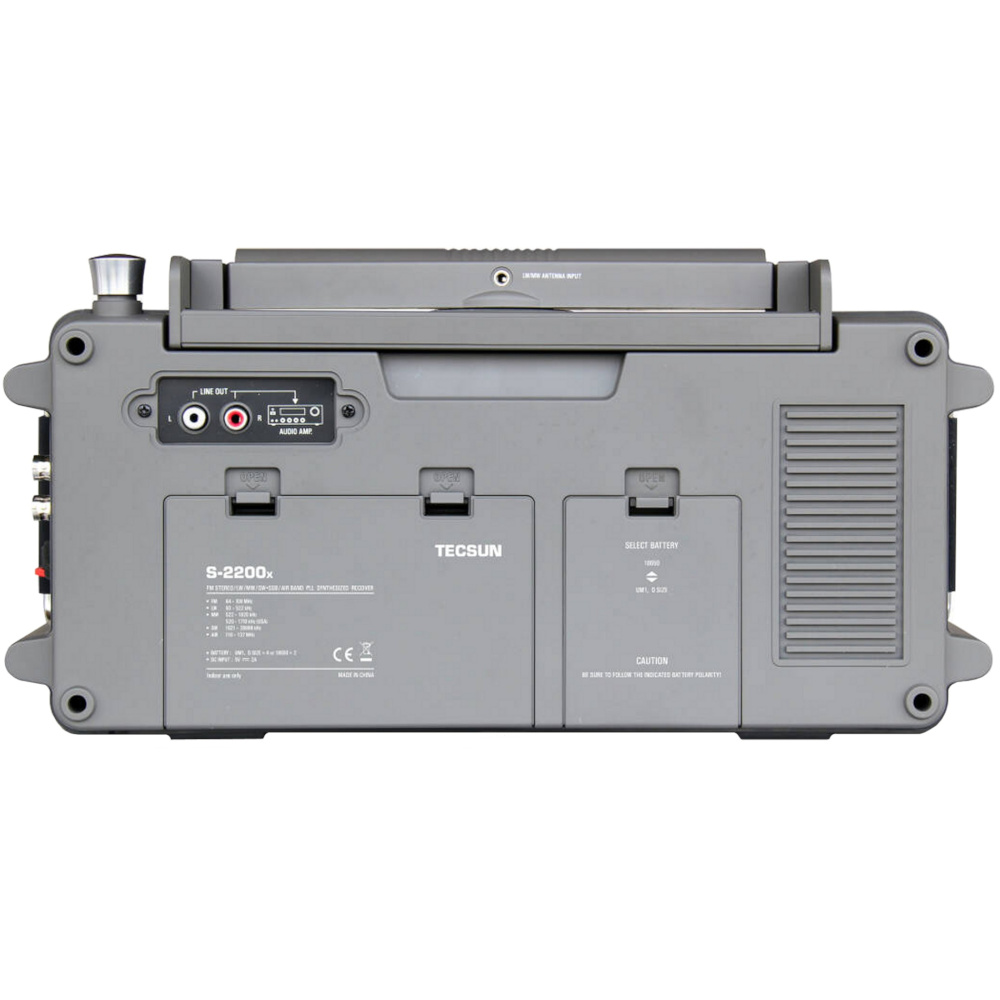

  • Line out socket (radio transmission can be transferred to another device)
  • Power sources: 2 removable 18650 Li-ion batteries (included) or 4 UM1 (R20 / D size) batteries (not included)

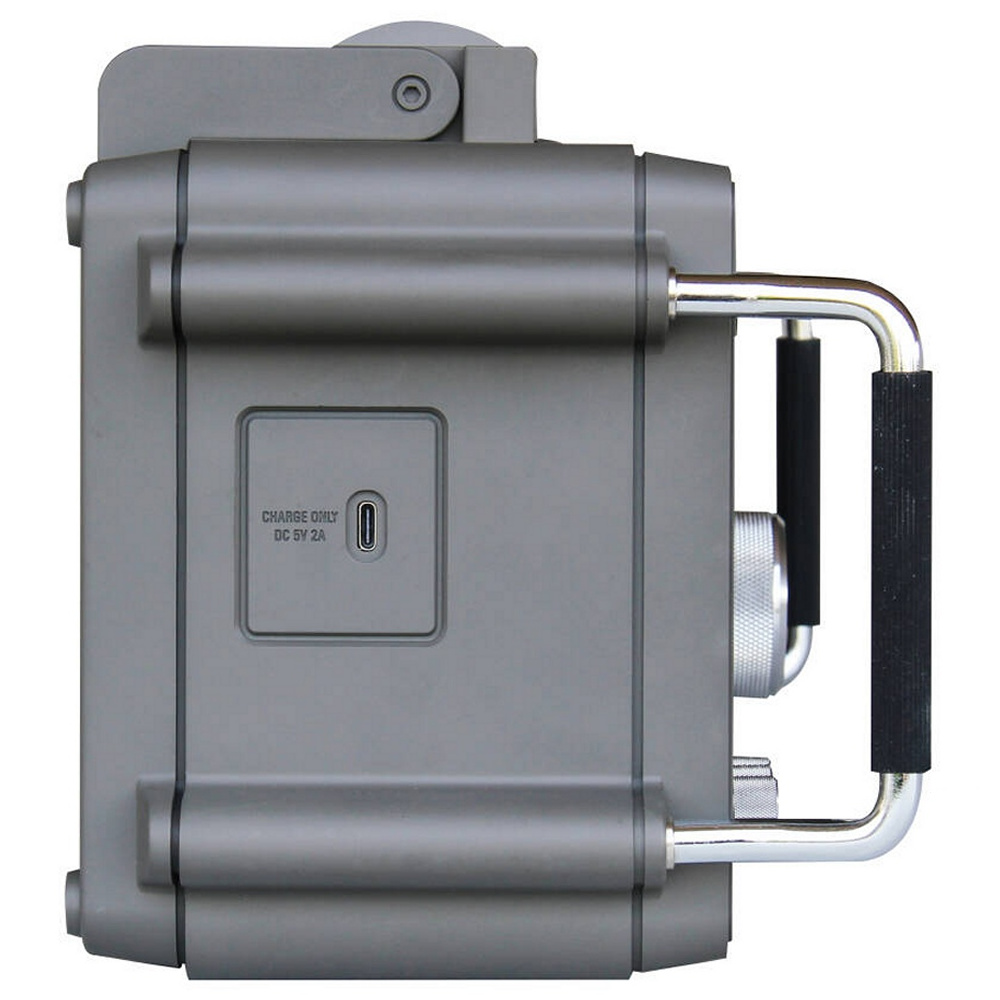

  • Charging via USB-C port
  • Weight: approx. 2430g
  • Dimensions: 372 x 183 x 153 mm
  • CE mark and 2-year warranty
