50MHz 6 elements 11.55dBi Antenna 6m6DX6 for DX and Contest Magic band

rating No review at the moment

Low Noise High Gain 6m 6elements Magic Band Antenna 6m6DX6 will make sure you can hear weak signals and give you the extra edge you need in contests or just enjoy the Ham Radio Hobby. 6 Elements 50 MHz Yagi provides stunning performance across the DX band: 50 – 50.5 MHz.

  • Frequency Range: 50 – 50.5 MHz
  • Free Space Forward Gain: 11.55 dBi
  • Front-to-Back Ratio: 32 dB
  • 3 dB Horizontal Beamwidth: 46.6°
  • Polarization: Horizontal
  • Nominal Input Impedance: 50 Ohm
  • SWR Across Entire Band: < 1.2
  • Maximum Power Input: 1000 W
  • Matching Method: Direct feedthrough common mode choke (current balun)
  • Connector: N

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

298,20 € tax excl.

In stock

   1 Item

Data sheet

What does 6m6DX6 mean?

6m – Magic band antenna 50MHz
6 – Elements
DX – Intended for use in DX part of band 50-50.5MHz with excellent SWR
6 – 6m boom with extremely strong construction.

Major step forward in Ham Radio communication.

The antenna has been calculated with the latest full 3D Electromagnetic Simulation Software, with included the influence of the boom, brackets, and connectors.

Performances of such way designed antennae are extraordinarily better than antennas “designed” with just wire programs like EZNEC Pro/4 – NEC v5.0, 4NEC2, MMANA, AO, or YO that can’t calculate the influence of any metallic structure near the antenna elements.

That will lead to wrong predicted antenna performance like gain (about -0.2 to -0.5 dB), SWR (when tuned often very sharp resonance), and specially F/B (up to -20 dB worse than predicted) and accordingly absolute wrong G/T. Much worse than predicted. Just excellent on paper or web pages but not in reality.

Calculating with full 3D EM Software gives an opportunity for uncompromised performance. Much better than any other world competition. High gain, heavy suppression of all side lobes. Solid construction that can withstand strong gusts of wind of more than 160 km/h!

Guy rope support is specially made for high winds, heavy rains, or strong Sun. Designed tapered elements reduce wind load, as well as vibrations in the wind.

Pre-tuned antenna:

Before dispatch, we assemble each and every antenna and test antenna characteristics. That means you can expect exceptionally good electrical and mechanical characteristics including low SWR across the designed range immediately after assembling.
No need to move, cut, tune or use rasp for any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.

That lead also to another very important detail. When assemble and test each antenna is complete with all washers, nuts, bolts guy rope supports, etc.
When packing all parts are already on the antenna without the possibility of “forgetting” important parts to put in the box. So you will always receive the complete antenna that we tested just before dispatching.

The antenna does not have a power limit, the only limitations are in the used balun and antenna connector.

The default maximum power input is 1000W.

Power options on request:

6m6DX6 1000W
6m6DX6P 1500W
6m6DX6E 2500W with 7/16 DIN input connector and SF250 7mm Teflon cable
6m6DX6EX 8000W with 7/16 DIN Input connector and RG115 10mm Teflon balun cable

Like all Antennas Amplifiers, 6m6DX6 come complete, everything is included in the antenna box. The antenna, balun with the connector, and the bracket with the clamps. Designed to last.

50 – 50.5 MHz 6m 6el Magic band low noise DX and EME Yagi for serious DX-ing 6m6DX6

6meter 6elements Sturdy Construction Magic Band Yagi Antenna 6m6DX6

The 6m6DX6 antenna SWR measurement

50MHz 6m 6elements Yagi Antenna 6m6DX6 Measured SWR

Electrical and Mechanical specifications of 6m6DX6

Electrical Specifications
Frequency Range: 50 – 50.5 MHz
Free Space Forward Gain: 11.55 dBi
Front-to-Back Ratio: 32 dB
3 dB Horizontal Beamwidth: 46.6°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohm
SWR Across Entire Band: < 1.2
Maximum Power Input: 1000 W
Matching Method: Direct feedthrough common mode choke (current balun)
Connector: N

Mechanical specifications of 50 MHz 6element antenna 6m6DX6:

Number of Elements: 6
Elements Diameter: 12 mm, extensions 10 mm and 8 mm
Dipole Diameter: 12 mm, extensions 10 mm and 8 mm
Longest Element: 3.1 meter
Element Mounting Position: Below the boom
Balun and Connector: Included
Boom Length: 5.94 meter
Boom Size: Tapered boom: 40 x 40 mm, 30 x 30 mm, 20 x 20 mm
Turning Radius: 3.3 meter
Number of Boom Pieces: 5
Guy rope support: Yes, Included
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Clamp: M8 Stainless Steel
Survival Wind Speed: 160 km/h
Net Weight: 8 kg
Gross Weight: 9.5 kg
Transportation Length: 1.49 meter

Stacking distance for 6m6DX6 antenna:

Horizontal Stacking distance for 6m6DX6

5.65 m Gain 14.0 dBi (+2.5dB)
6.0 m Gain 14.1 dBi (+2.6dB)
6.3 m Gain 14.2 dBi (+2.7dB)
6.65 m Gain 14.3 dBi (+2.8dB)
7.1 m Gain 14.4 dBi (+2.9dB)
7.7 m Gain 14.5 dBi (+3.0dB)

Vertical Stacking distance for 6m6DX6

5.4 m Gain 14.0 dBi (+2.5dB)
5.6 m Gain 14.1 dBi (+2.6dB)
5.8 m Gain 14.2 dBi (+2.7dB)
6.0 m Gain 14.3 dBi (+2.8dB)
6.2 m Gain 14.4 dBi (+2.9dB)
6.4 m Gain 14.5 dBi (+3.0dB)

Stacking in “H” configuration for 4 x 6m6DX6 antennas:

6.7m/6m for gain 17.3 dBi

Azimuth Radiation Pattern of 6m6DX6 antenna.

Extreme suppression of the side lobes, and excellent front-to-back:



6m 6elements Magic Band Antenna 6m6DX6 Azimuth Radiation Pattern

Pictures of the 6m6DX6 antenna:

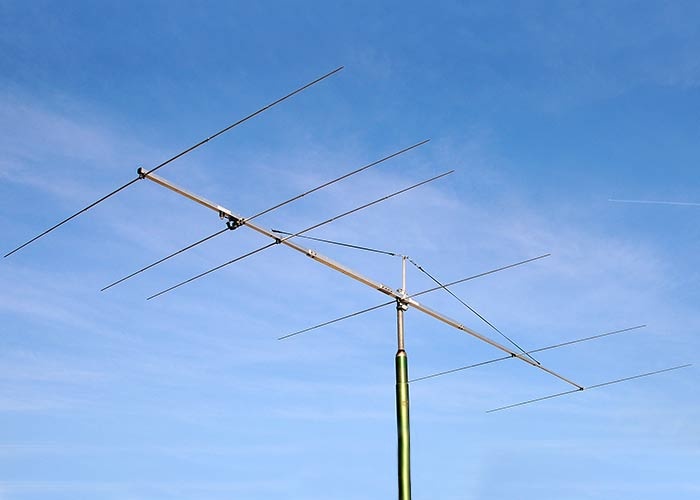

6 meter Low Noise Magic Band Yagi Antenna 6m6DX6

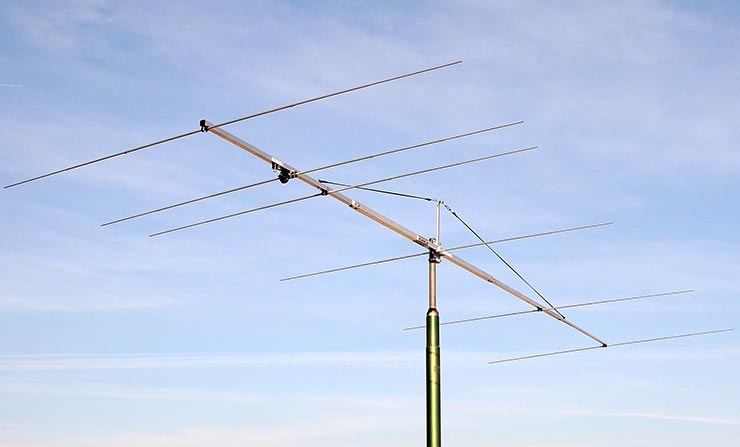

50 MHz 6-meter Low noise Magic Band Yagi 6m6DX6 standard 1000 W balun, dipole, and connector view:

50MHz 6elements Antenna 6m6DX6 1000W Balun

Low noise Magic Band Yagi antenna 6m6DX6 optional 1500 W balun, dipole, and connector view:

6m 6elements Portable Yagi Antenna 6m6DX6 1500W Balun

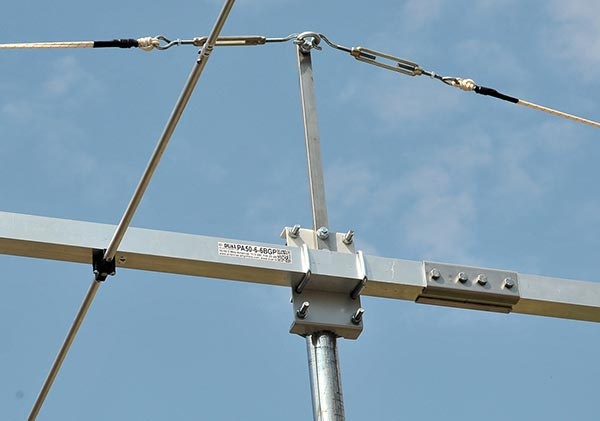

6m6DX6 antenna. Bracket and guy rope support view:

6m 6elements Magic Band Yagi Antenna 6m6DX6 Bracket Guy Rope Support View

Sturdy Construction of Low Noise Yagi Antenna 6 elements 6m6DX6:

6m Sturdy Construction Low Noise Antenna 6m6DX6
