IP67 waterproof case for Helium HNT Nebra and Raspeberry Pi RF hotspot View larger
Nebra

NEBRA-BOITIER2-PIS1295-1530

New product

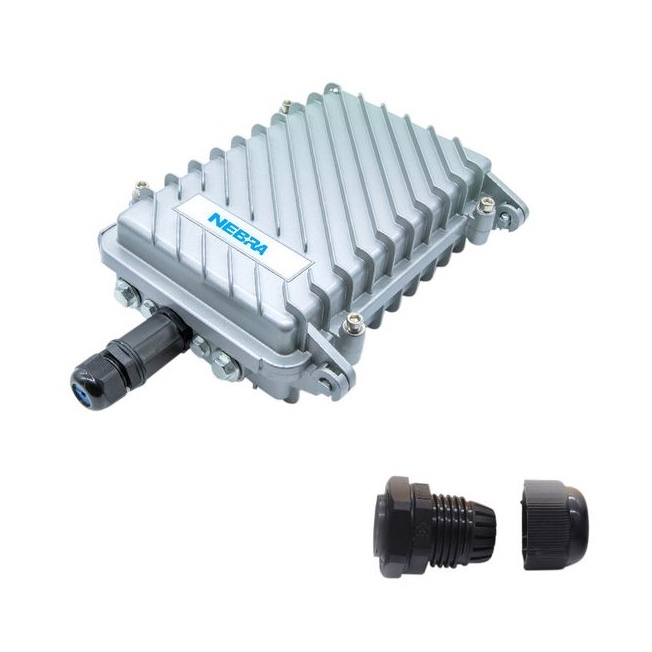

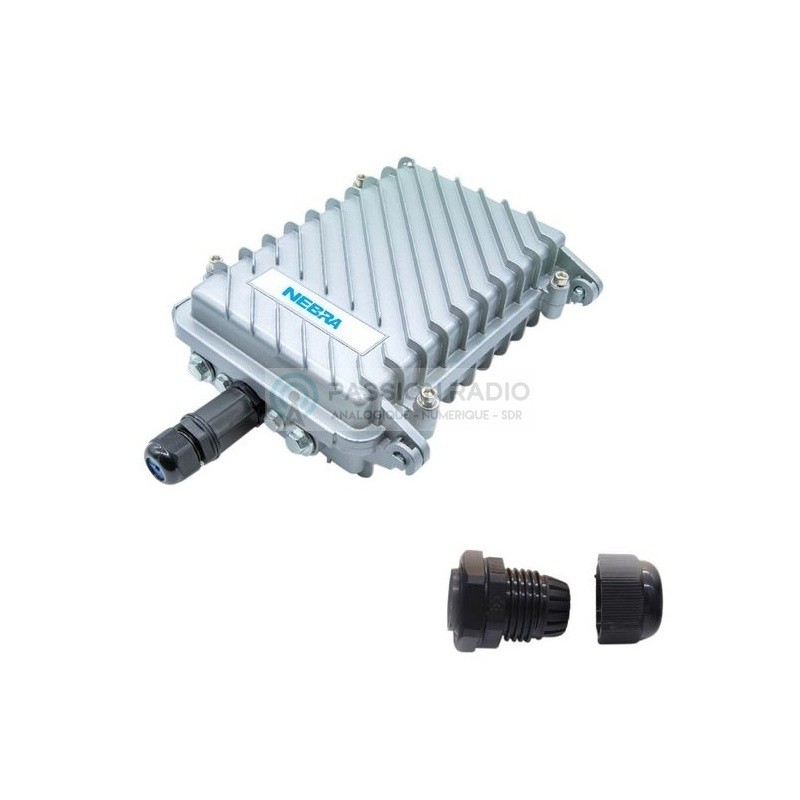

IP67 waterproof case with cable gland for Nebra Helium HNT & Raspberry Pi miner

rating No review at the moment

Nebra IP67 waterproof case with weatherproof cable gland for outdoor use, compatible with HNT helium Nebra minor hotspot and IoT LoRa HAT gateways for Raspberry Pi for example.

For N type antenna connectors. Heavy duty double hinges with captive screws.

NEMA-67 rated, this Nebra helium HNT miner box offers protection against the ingress of dust and water.

Supplied with: 1 Nebra IP67 box for helium or Raspberry hotspot, with cable gland.

More details

This material is no longer available

Data sheet

  • 1 Ethernet hole and 5 N-type holes
  • Sealing of the housing IP67
  • Operating temperature: -60C to + 230C
  • Heat trap: + 6.5 ° C in full sun (~ 100,000 Lux)
  • Temperature increase using a 5-10Watt heat source: + 5.5 ° C
  • Wall thickness: 5mm
  • With cable gland
  • Supports masts: up to 50mm in diameter
  • Internal dimensions: 210 mm x 130 mm x 50 mm
  • External dimensions (without connectors): 235mm x 155mm x 75mm
  • Weight with mounting brackets: 1.4 Kg
  • Hotspot miner Helium HNT not included
