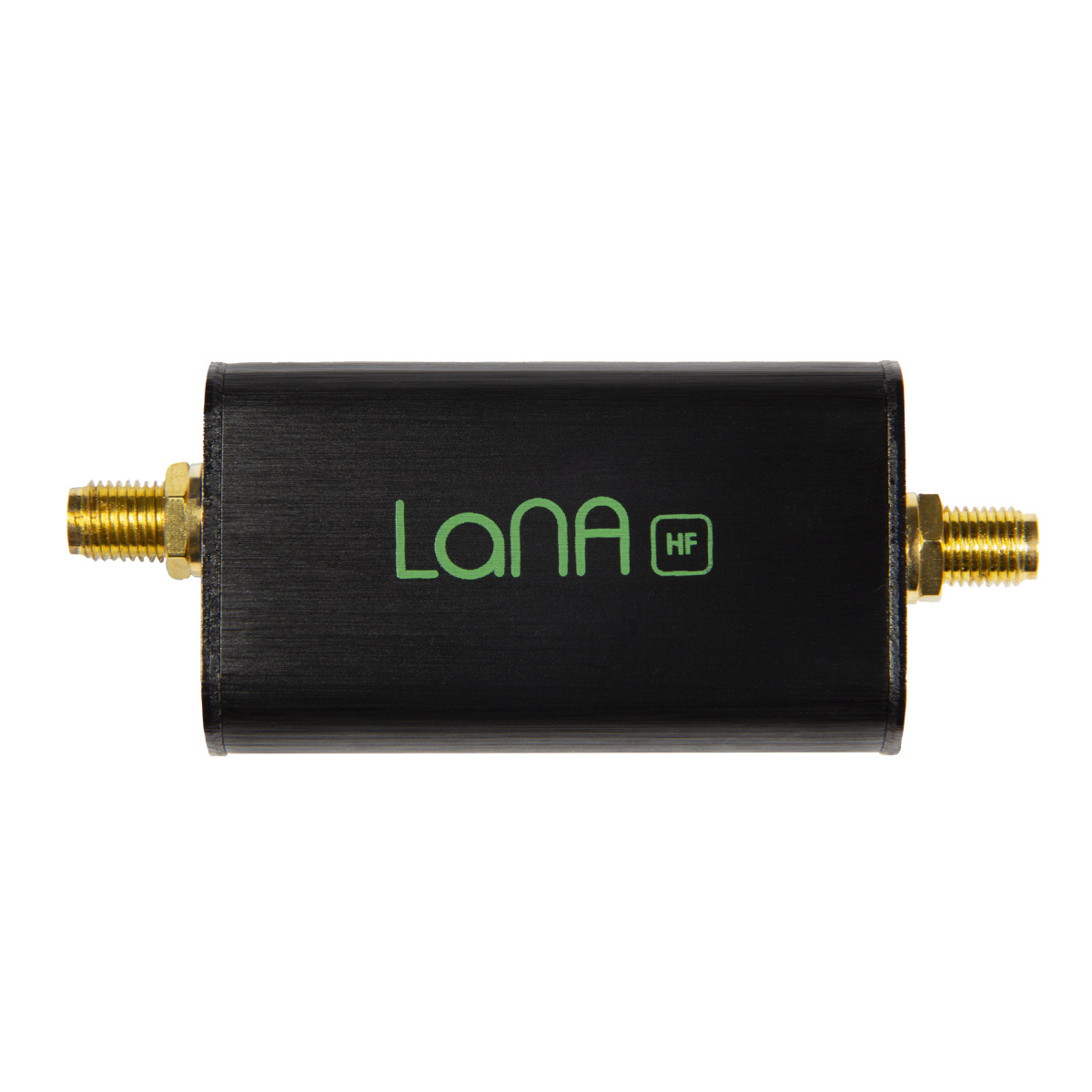

Nooelec LaNA HF LNA HF 50 kHz to 150 MHz ultra low noise + case + USB DC Bias-T power supply
No review at the momentNooelec LaNA HF low-noise amplifier, designed for HF, LF and MF applications, offering a very low noise figure, excellent linearity and a wide frequency range from 50 kHz to 150 MHz. Ideal for improving the sensitivity of SDR receivers, Ham It Up upconverters or any HF receiver. Works with Bias-Tee, micro-USB or DC power supplies.
- Wide frequency range: 50 kHz - 150 MHz
- Very low noise for high gain and sensitivity
- High linearity design to limit distortion
- Very low power consumption: <30 mA
- Compatible with most SDRs and HF sets

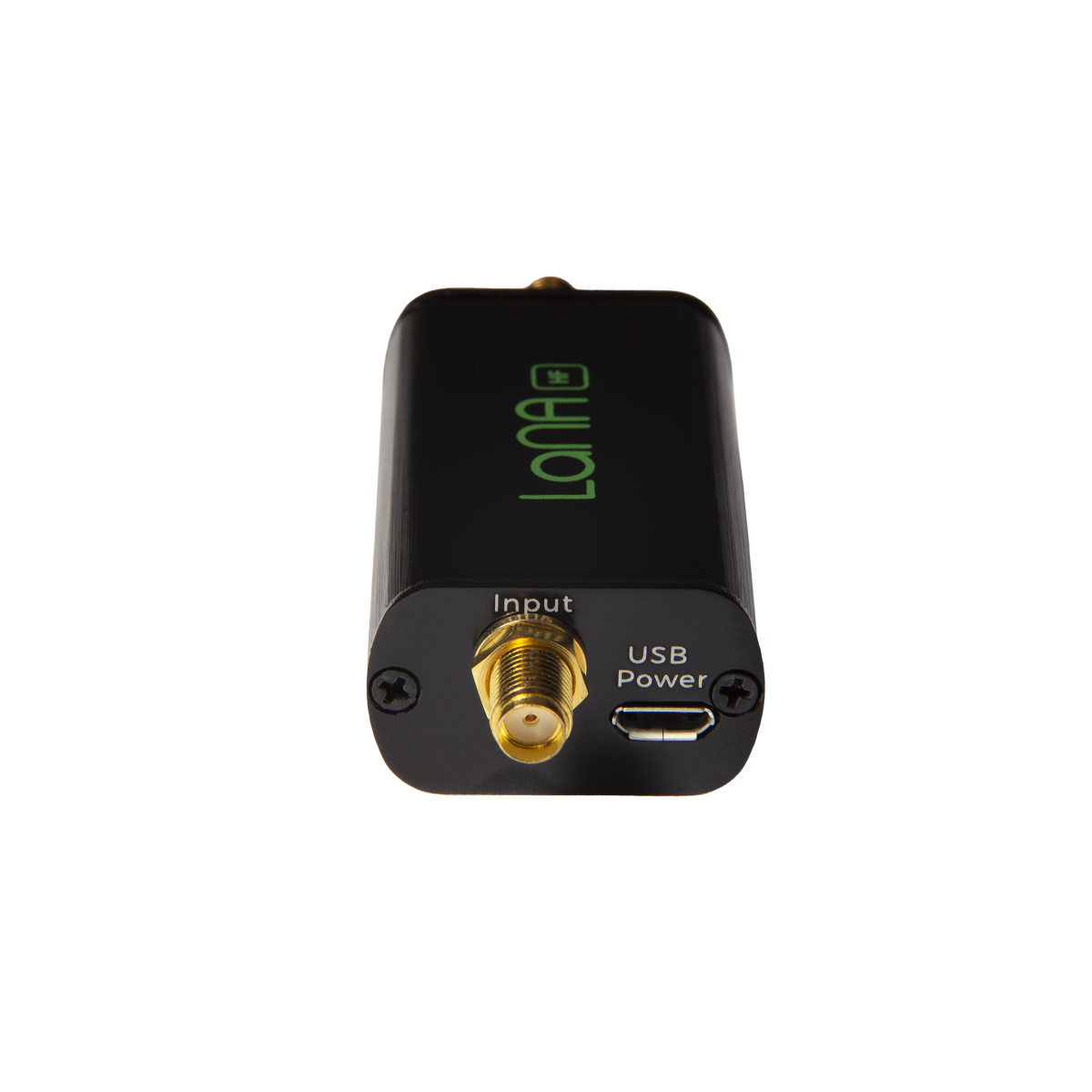

- Versatile power supply: Bias-Tee, microUSB or DC input
- Integrated protection: overvoltage, ESD, RF limiter, EMI shielding

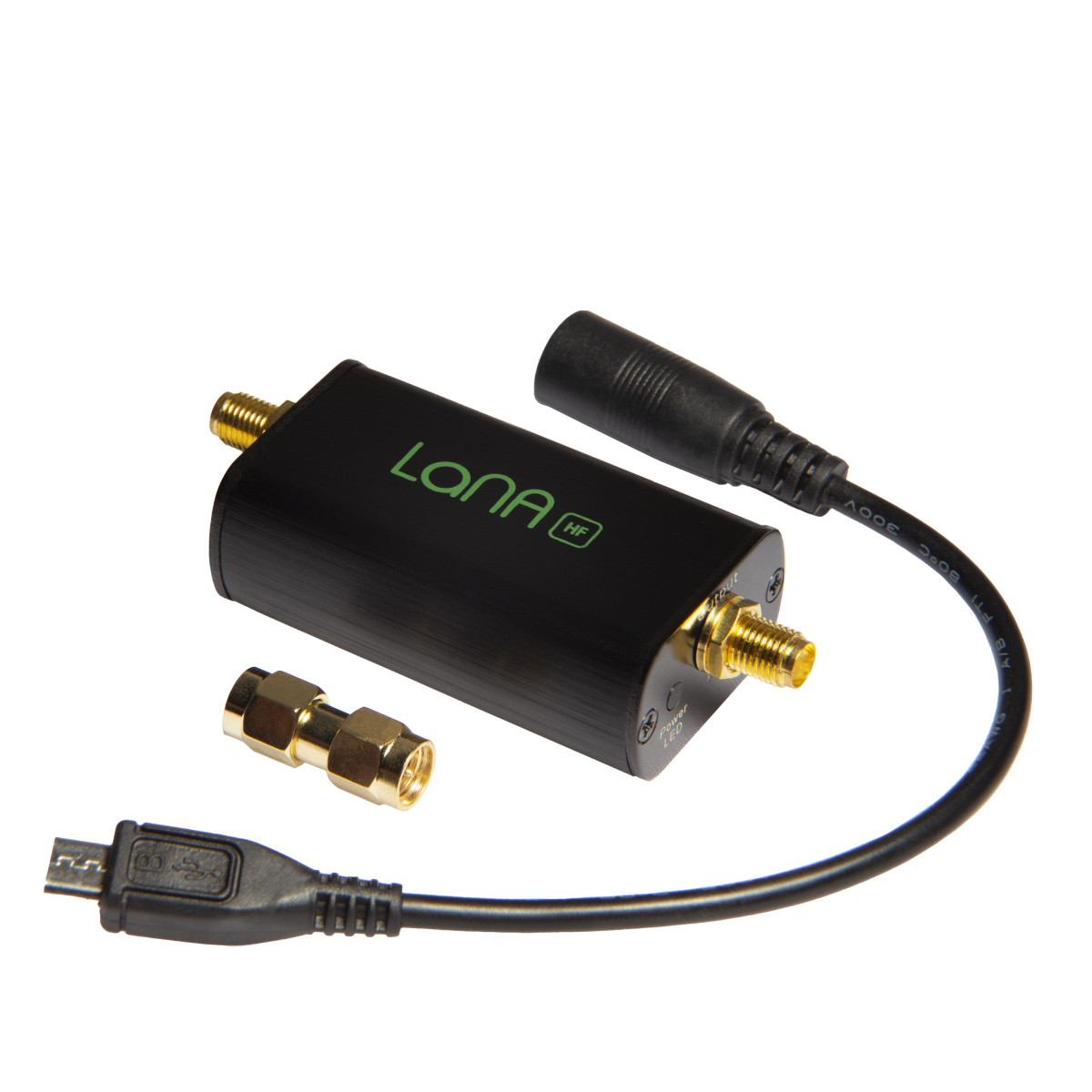

Supplied with: 1x LaNA HF LNA module, integrated EMI shielding, 1 SMA-MALE/SMA-MALE adapter, 1 USB/DC cable.
Data sheet
- Frequency range: 50 kHz to 150 MHz
- Architecture: broadband HF LNA module, high linearity
- Gain: high (typical value not specified by manufacturer but optimised for HF)
- Noise figure: very low (LF/MF/HF optimised)
- Power consumption: <30 mA
- Power supply via Bias-Tee: 4.5 V - 5.0 V DC
- External power supply: microUSB or DC header, 4.0 V - 5.5 V DC recommended
- Overvoltage tolerance: up to 12 V (long-term use not recommended)
- RF connection: SMA (input with integrated RF limiter)
- Full ESD protection
- Integrated EMI shielding
- Compatibility: HF SDR, Ham It Up, HF receivers and radios
