Nooelec LaNA WB LNA broadband 300 MHz to 8 GHz ultra low noise USB-C

rating No review at the moment

Nooelec LaNA WB amplifier, broadband LNA module for RF and SDR applications, covering 300 MHz to 8 GHz. Designed to offer high gain, excellent linearity and a very low noise figure, it improves reception of weak signals while ensuring maximum compatibility with a wide range of receivers. Power supply via Bias-Tee, USB-C or DC connector.

  • Exceptionally wide bandwidth: 300 MHz - 8 GHz
  • High, highly linear gain: 16-20 dB (300 MHz-6 GHz), 10-16 dB (6-8 GHz)
  • Very low nominal noise figure: ~1.5 dB
  • Optimised for S and C bands (superior performance to competing LNAs)
  • Low power consumption: ≤ 65 mA
  • Full protection: ESD, RF overload, overvoltage
  • Internal EMI shielding to reduce interference
  • Triple power option: Bias-Tee, USB-C, DC

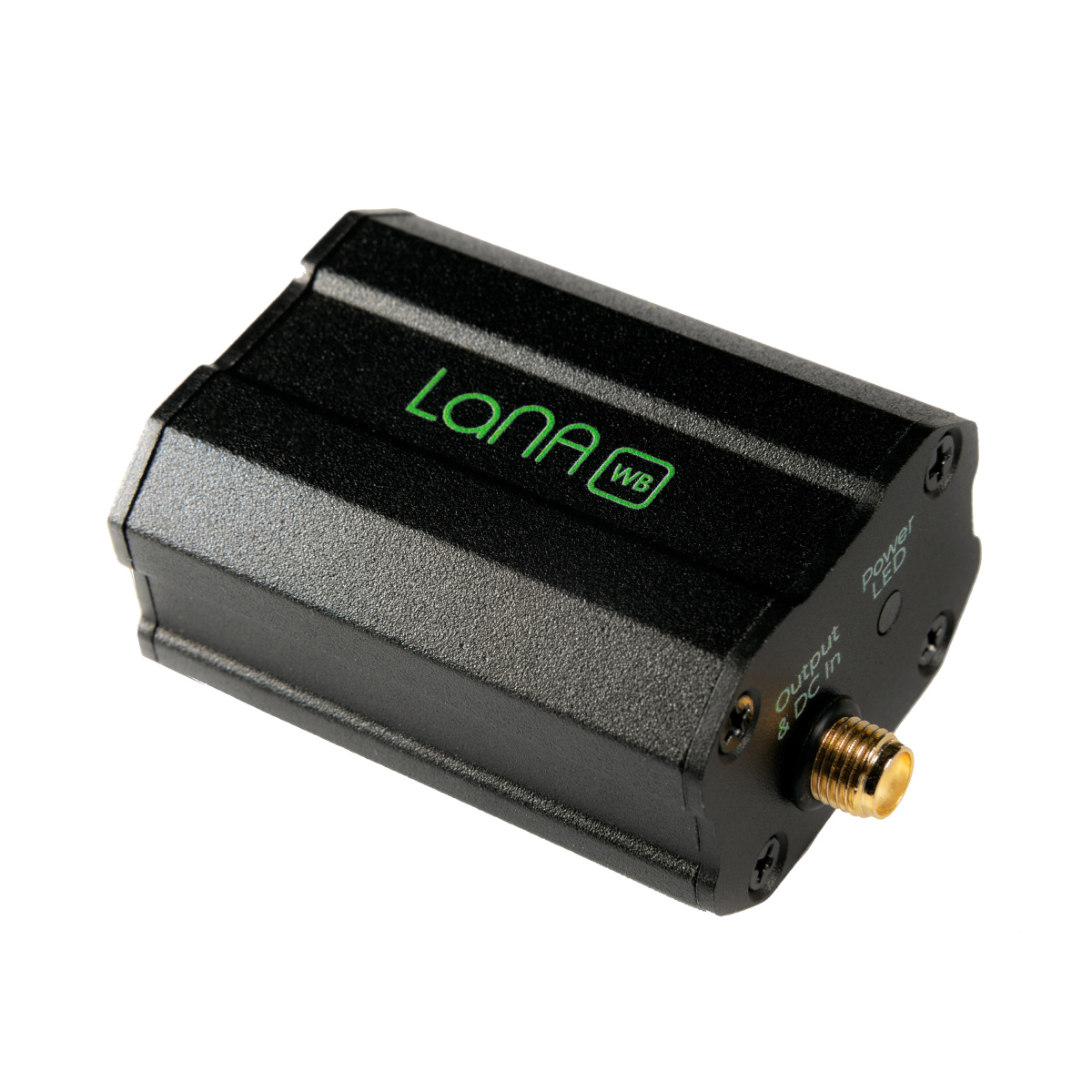

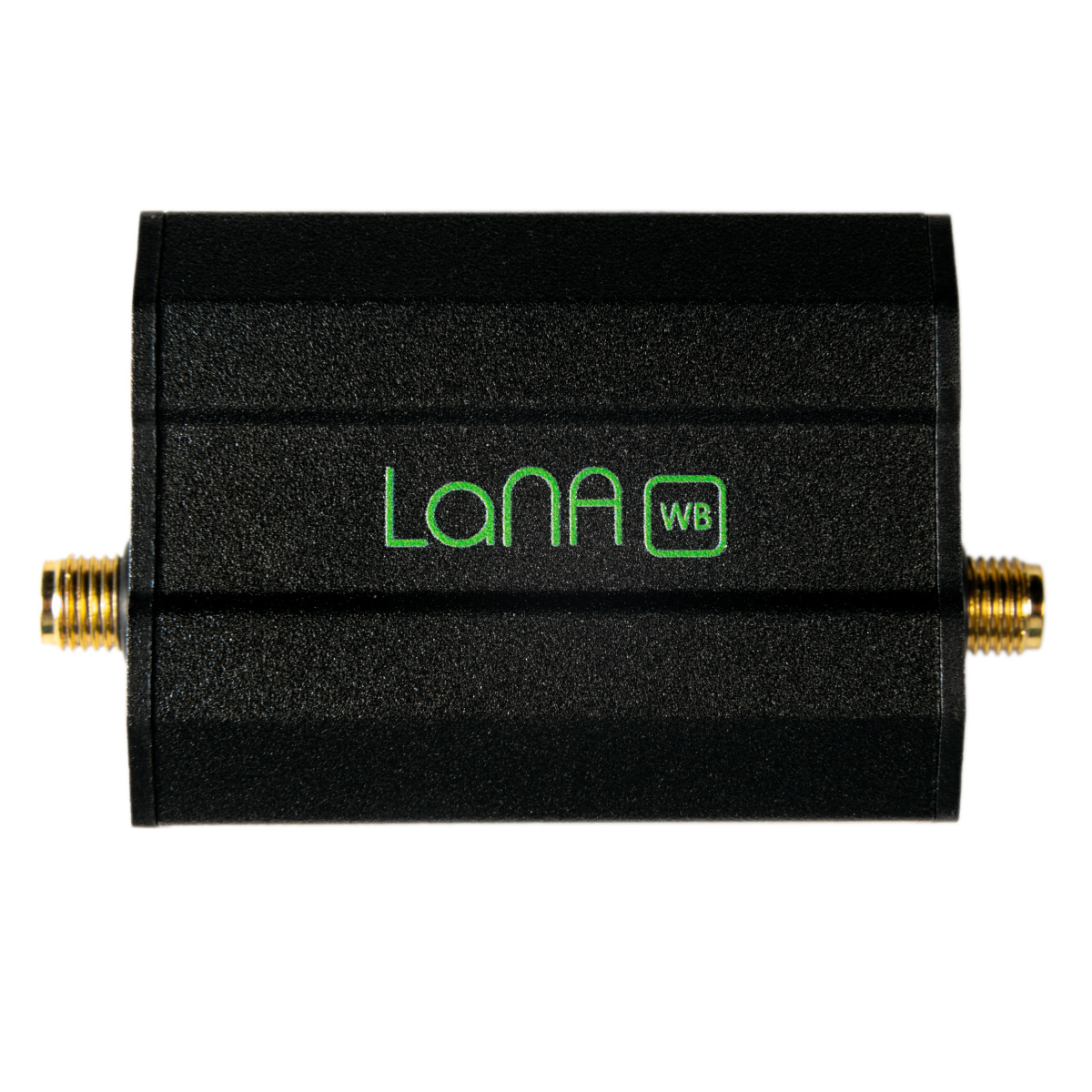

Supplied with : LaNA WB LNA module in aluminium housing.

More details

85,41 € tax excl.

In stock

   5 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

  • Frequency range: 300 MHz to 8 GHz
  • Gain:
    16-20 dB from 300 MHz to 6 GHz
    10-16 dB from 6 GHz to 8 GHz
  • Noise figure : ~1.5 dB nominal
  • Design: RF optimised high linearity LNA, advanced S & C band performance

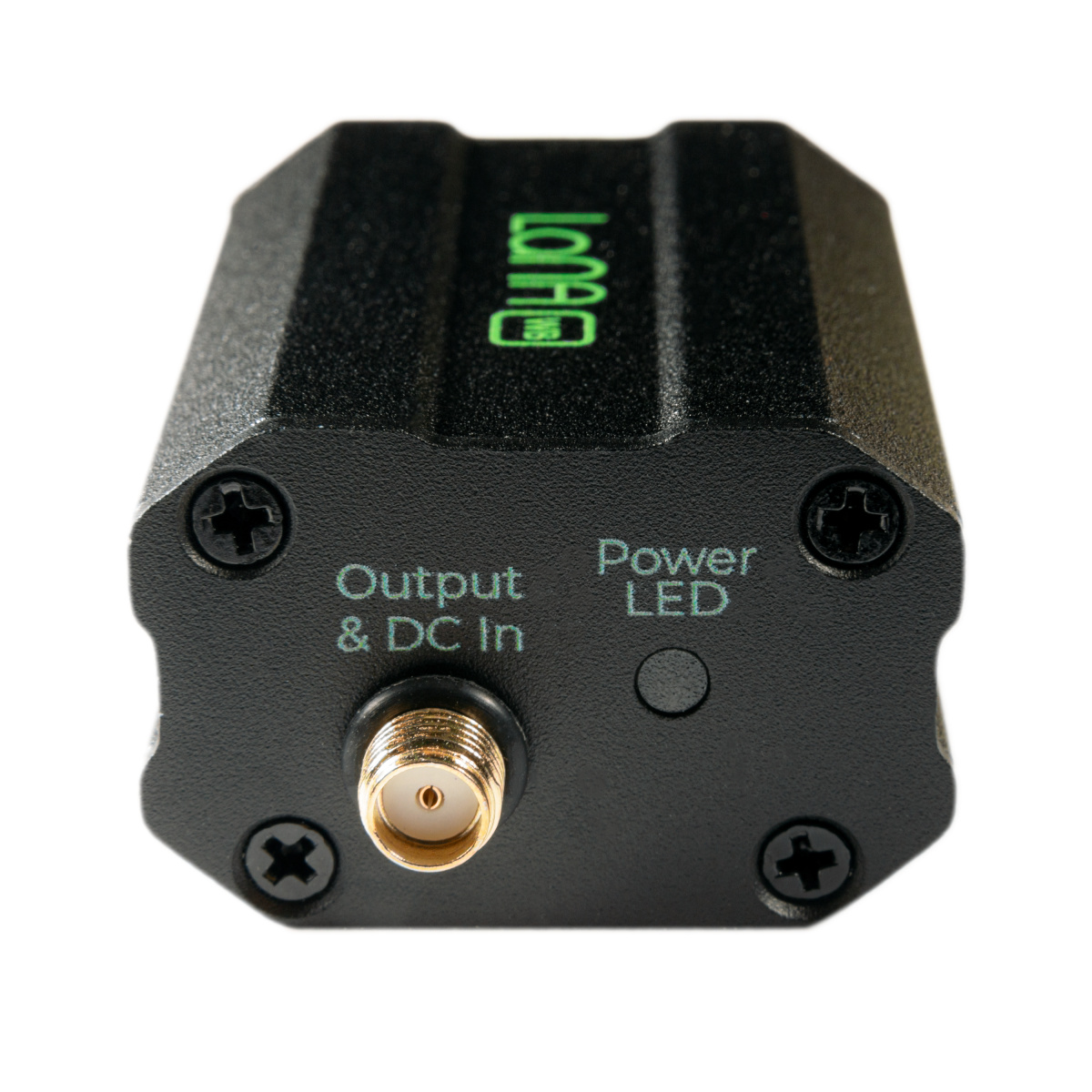

  • Power supply via Bias-Tee (SMA OUT): 3 V - 5 V DC, max 65 mA

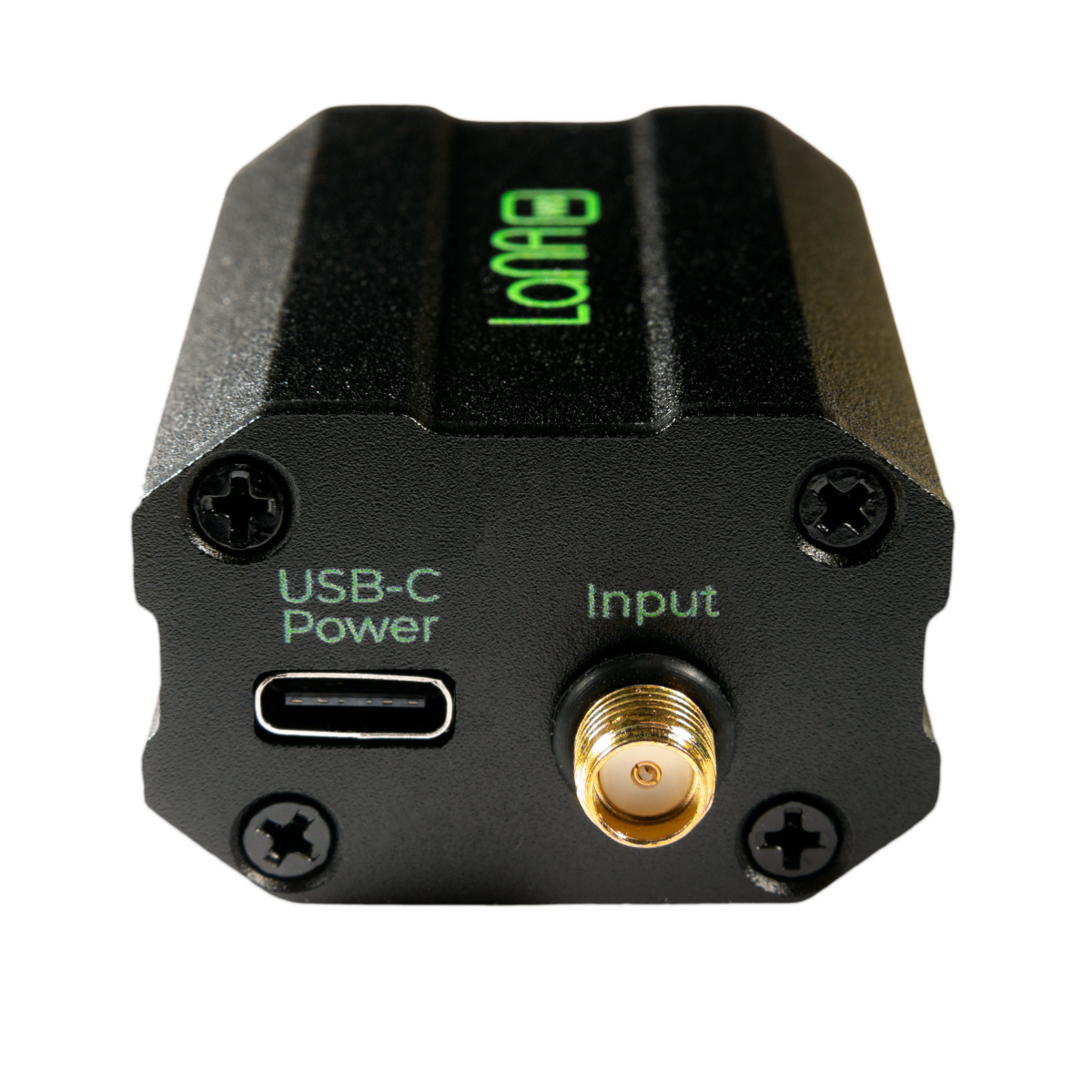

  • External power supply: USB-C or DC connector (via adapter included), 3.3 V - 5.5 V DC
  • Overvoltage tolerance: up to 12 V (continuous use not recommended)
  • Built-in protection: ESD, RF overload, overvoltage protection
  • Shielding: integrated EMI box
  • RF connection: SMA female
  • Compatibility: general SDR, broadband RF applications, microwave reception, RF experiments
