New Coaxial cable 5mm M&P HYPERFLEX5 with N-Male connector View larger

Messi & Paoloni

New product

Italy

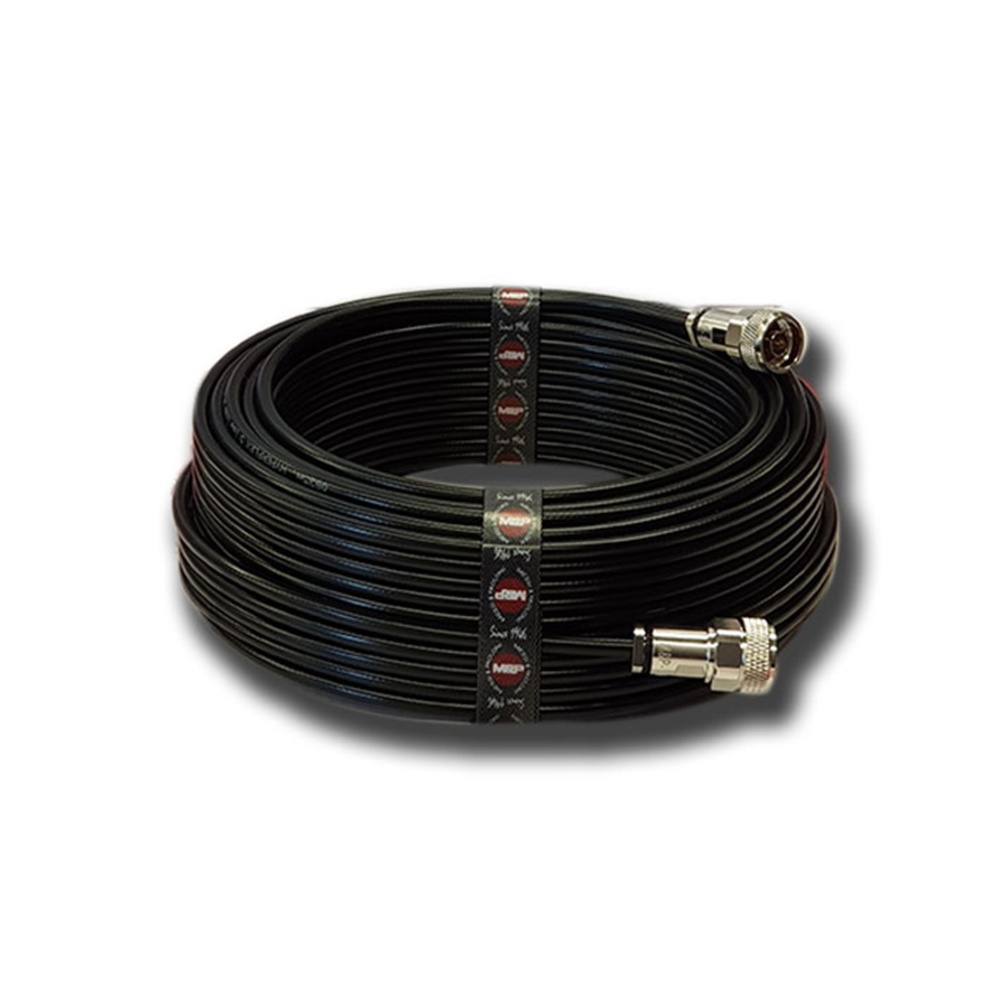

Extension coaxial cable 5mm M&P HYPERFLEX5 with N-Male connector

This coaxial cable extension is ready to use, with N Male connector Messi & Paoloni, with a diameter of 5.4mm with M&P HYPERFLEX 5 cable, hyper flexible and very light and offering very good performance with low attenuation compared to RG58 cable.

This N connectors is designed to provide perfect protection against water infiltration, humidity and condensation.

Available in different sizes: 5m, 10m, 15m, 20m and 30m (to choose below).

Weight in 1m : 0,070 Kg
Weight in 2m : 0,100 Kg
Weight in 5m: 0.220 Kg
Weight in 10m: 0.440 Kg
Weight in 15m: 0.660 Kg
Weight in 20m: 0.880 Kg
Weight in 30m: 1,320 Kg

Cable manufactured and tested by M&P, class: A++, usable from -45°C to + 70°C, CE and RoHS standards.

Packaging changes depending on cable's diameter and meters quantity. Images are for demonstration purpose only.

Supplied with velcro fasteners.

More details

29,90 € tax incl.

In stock

  • 1m
  • 2m
  • 5m
  • 10m
  • 20m
  • 30m

Data sheet

Connector 1: N-Male
Connector 2: N-Male
Impedance at 200Mhz: 50 Ohm
Minimum bending radius: 25 mm
Operating temperature: -45°C to + 70°C
Capacitance: 74 pF / m ± 2
Velocity: 87%
Class: A ++
Internal conductor resistance: 14 Ohm/Km
Resistance of outer conductor: 11 Ohm/Km
Voltage test (spark test): 4 kV
Maximum peak power: 2900W
CE and Rohs standards.

Net weight over 100m: 4.4 Kg

Attenuation at 20°C in dB/100m

1.8 MHz -1.4dB
3.5 MHz -1.9dB
7 MHz -2.3dB
10 MHz -2.6dB
14 MHz -3.0dB
21 MHz -3.6dB
28 MHz -4.1dB
50 MHz -5.5dB
100 MHz -8.0dB
144 MHz -9.6dB
200 MHz -11.4dB
400 MHz -16.3dB
430 MHz -17.0dB
800 MHz -23.4dB
1000 MHz -26.4dB
1296 MHz -30.5dB
2400 MHz -42.5dB
3000 MHz -48.1dB
4000 MHz -56.9dB
5000 MHz -65.2dB
6000 MHz -72.9dB

Maximum power at 40 ° C depending on frequency

1.8 MHz 1274 W
3.5 MHz 987 W
7 MHz 809 W
10 MHz 717 W
14 MHz 620 W
21 MHz 518 W
28 MHz 453 W
50 MHz 338 W
100 MHz 235 W
144 MHz 195 W
200 MHz 165 W
400 MHz 115 W
430 MHz 111 W
800 MHz 80 W
1000 MHz 71 W
1296 MHz 62 W
2400 MHz 44 W
3000 MHz 39 W
4000 MHz 33 W
5000 MHz 29 W
6000 MHz 26 W
