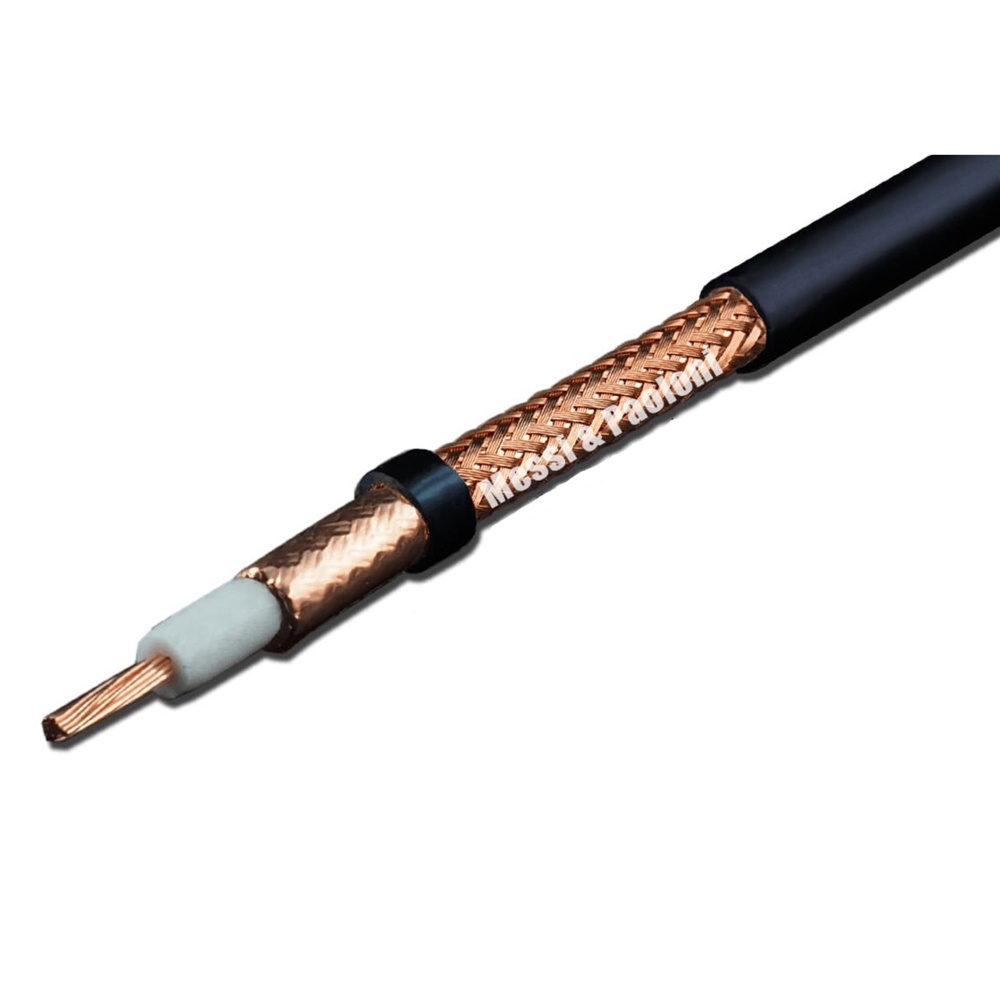

Coaxial cable M&P 5.4mm HYPERFLEX 5 flexible low loss cable

Messi & Paoloni coaxial cable, with a diameter of 5.4 mm, M&P HYPERFLEX 5, hyper flexible, very light and offering better performance and lower attenuation compared to RG58 coaxial cable.

Available in different sizes: 30m, 50m, 100m and 200m (to choose below).

Impedance at 200Mhz: 50 Ohm
Minimum bending radius: 25 mm
Operating temperature: -45°C to + 70°C
Capacitance: 74 pF / m ± 2
Velocity: 87%
Class: A++
Internal conductor resistance: 14 Ohm / Km
Resistance of outer conductor: 11 Ohm / Km
Voltage test (spark test): 4 kV
Maximum peak power: 2900W
CE and Rohs standards.

Net weight over 100m: 4.4 Kg

PL259 (UHF-Male), N-Male, BNC-Male or SMA-Male compatible connector, available as an option, below.

Price per meter: From 1.475 € TTC (1.23 € HT) for 200m.

More details

Download

Datasheet M&P HYPERFLEX 5 (EN)

546.52k

Data sheet

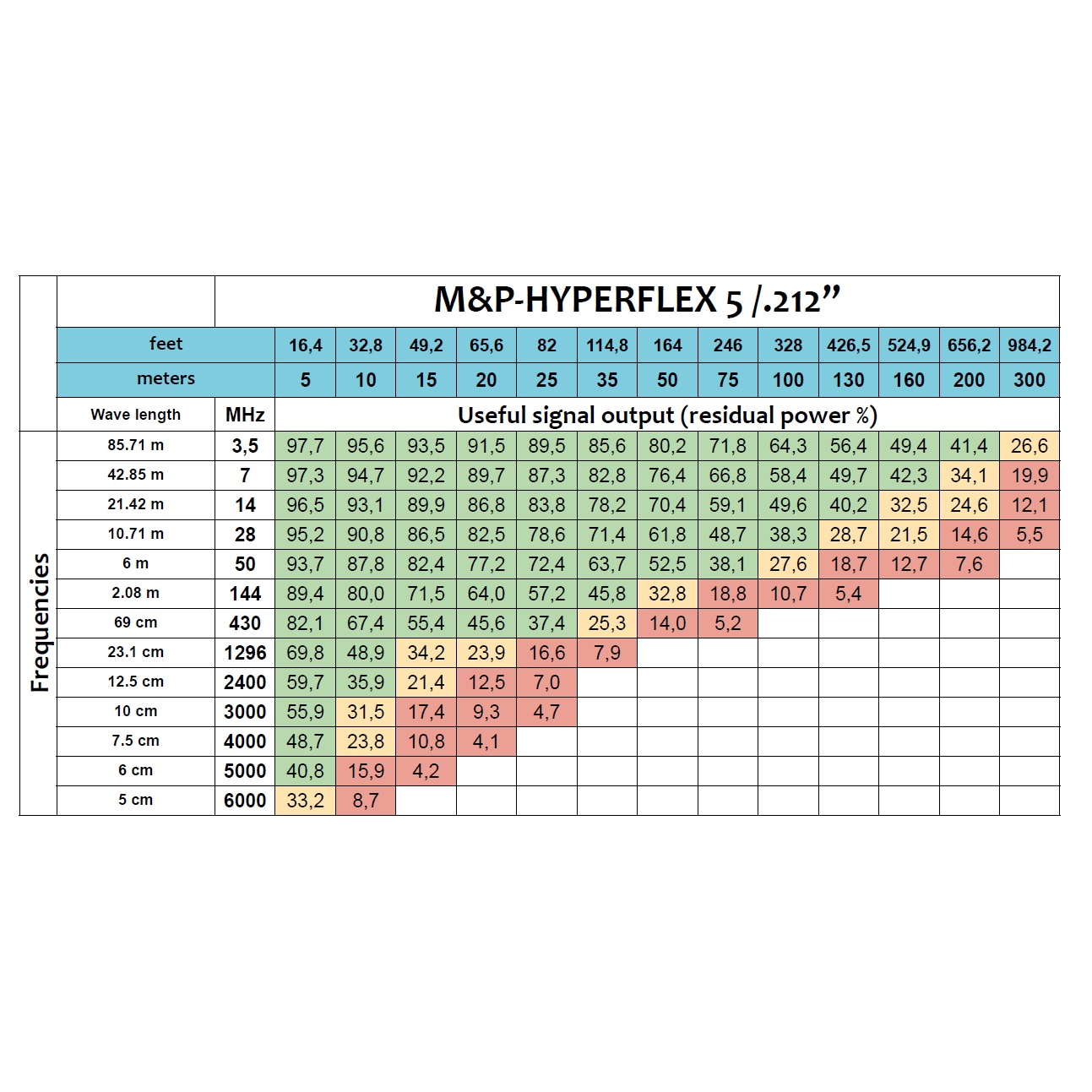

Attenuation at 20°C in dB/100m

1.8 MHz -1.4dB
3.5 MHz -1.9dB
7 MHz -2.3dB
10 MHz -2.6dB
14 MHz -3.0dB
21 MHz -3.6dB
28 MHz -4.1dB
50 MHz -5.5dB
100 MHz -8.0dB
144 MHz -9.6dB
200 MHz -11.4dB
400 MHz -16.3dB
430 MHz -17.0dB
800 MHz -23.4dB
1000 MHz -26.4dB
1296 MHz -30.5dB
2400 MHz -42.5dB
3000 MHz -48.1dB
4000 MHz -56.9dB
5000 MHz -65.2dB
6000 MHz -72.9dB

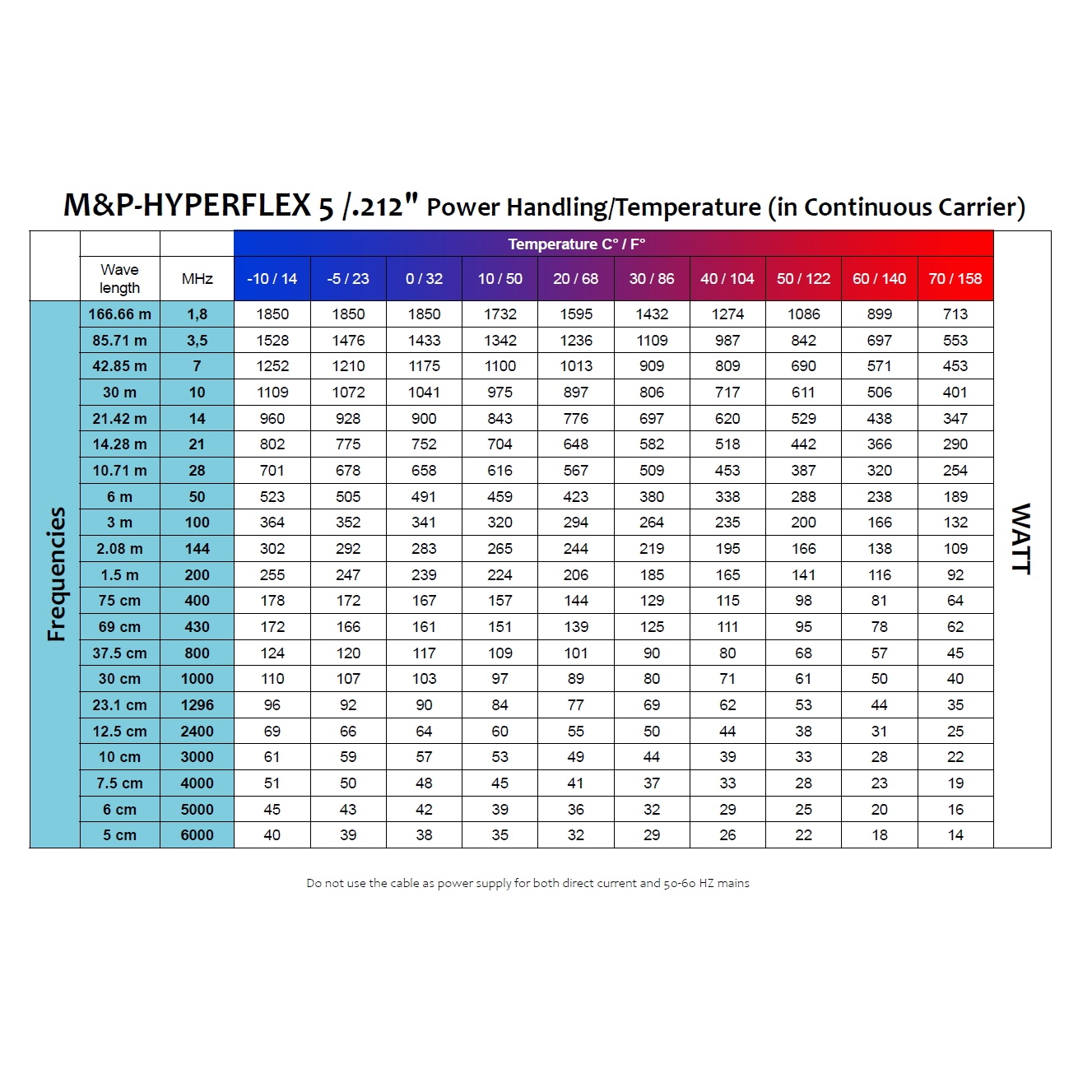

Maximum power at 40 ° C depending on frequency

1.8 MHz 1274 W
3.5 MHz 987 W
7 MHz 809 W
10 MHz 717 W
14 MHz 620 W
21 MHz 518 W
28 MHz 453 W
50 MHz 338 W
100 MHz 235 W
144 MHz 195 W
200 MHz 165 W
400 MHz 115 W
430 MHz 111 W
800 MHz 80 W
1000 MHz 71 W
1296 MHz 62 W
2400 MHz 44 W
3000 MHz 39 W
4000 MHz 33 W
5000 MHz 29 W
6000 MHz 26 W
