ULTRAFLEX 7mm coaxial cable flexible and low loss

rating No review at the moment

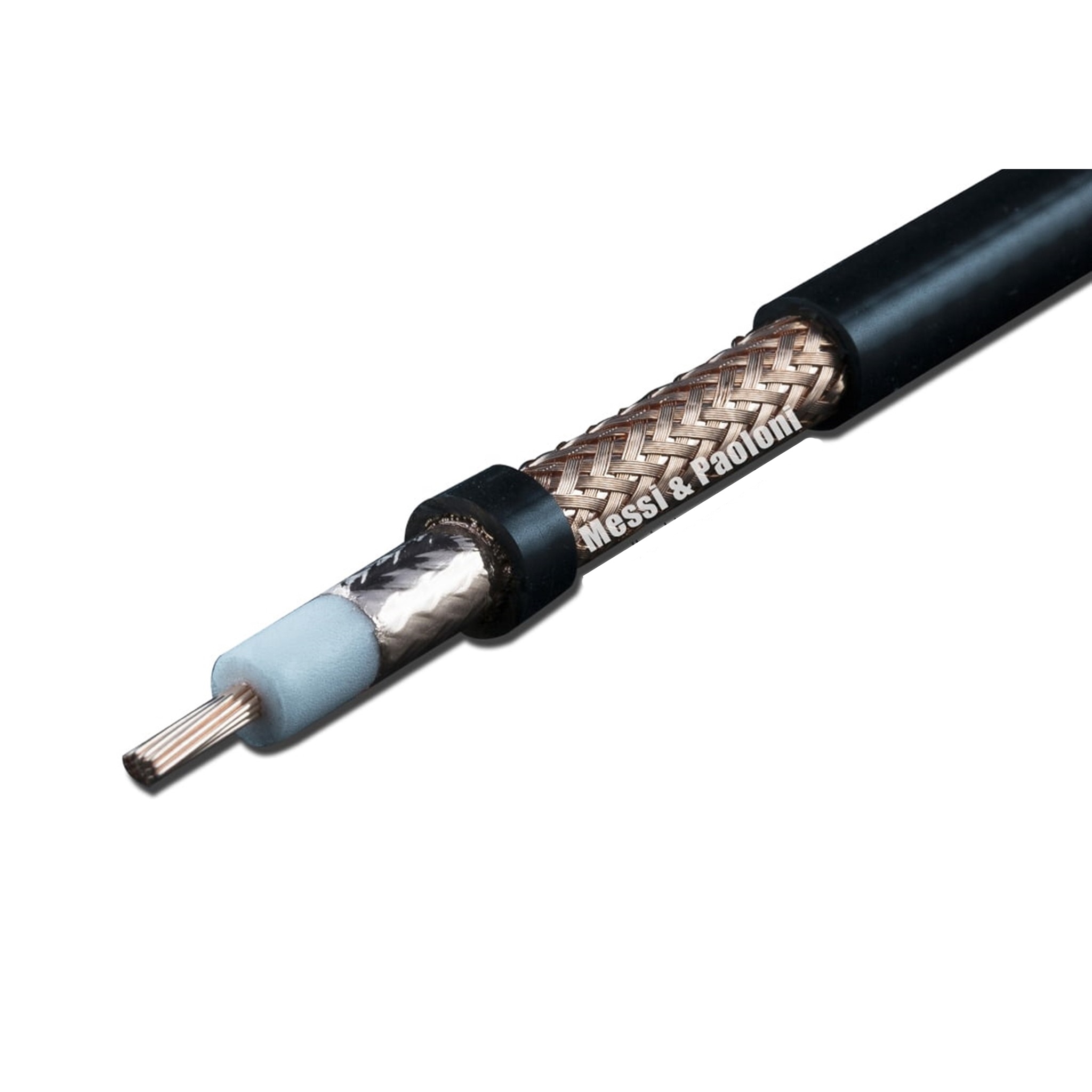

Messi & Paoloni coaxial cable, with a diameter of 7 mm, M&P ULTRAFLEX 7, flexible, lightweight and offering better performance and lower attenuation compared to RG-58 and RG-213 coaxial cable. For frequency use from 0 to 6000Mhz.

Available in different sizes: 30m, 50m, 100m and 200m (to choose below).

Impedance at 200Mhz: 50 Ohm
Minimum bending radius: 34 mm
Operating temperature: -40°C to +60°C
Capacitance: 75 pF / m ± 2
Velocity: 83%
Class: A++
Internal conductor resistance: 7.3 Ohm/Km
Resistance of outer conductor: 9.8 Ohm/Km
Voltage test (spark test): 4 kV
Maximum peak power: 8000W
CE and Rohs standards.

Net weight over 100m: 6.9 Kg

PL259 (UHF-Male), N-Male, BNC-Male or SMA-Male compatible connector, available as an option, below.

Price per meter from: 1.475 € TTC (1.23 € HT) for 200m.

More details

77,50 € tax incl.

64,58 €

tax excl.

In stock

   More than 10 Items

  • 30m
  • 50m
  • 100m
  • 200m

Download

Data sheet

Attenuation at 20°C in dB/100m

1,8 MHz 1,1dB
3,5 MHz 1,3dB
7 MHz 1,7dB
10 MHz 1,9dB
14 MHz 2,2dB
21 MHz 2,6dB
28 MHz 3,0dB
50 MHz 4,0dB
100 MHz 5,8dB
144 MHz 6,9dB
200 MHz 8,2dB
400 MHz 11,8dB
430 MHz 12,3dB
800 MHz 17,1dB
1000 MHz 19,3dB
1296 MHz 22,3dB
2400 MHz 32,3dB
3000 MHz 36,2dB
4000 MHz 42,6dB
5000 MHz 49,3dB
6000 MHz 55,3dB
7000 MHz 61,6dB
8000 MHz 68,4dB

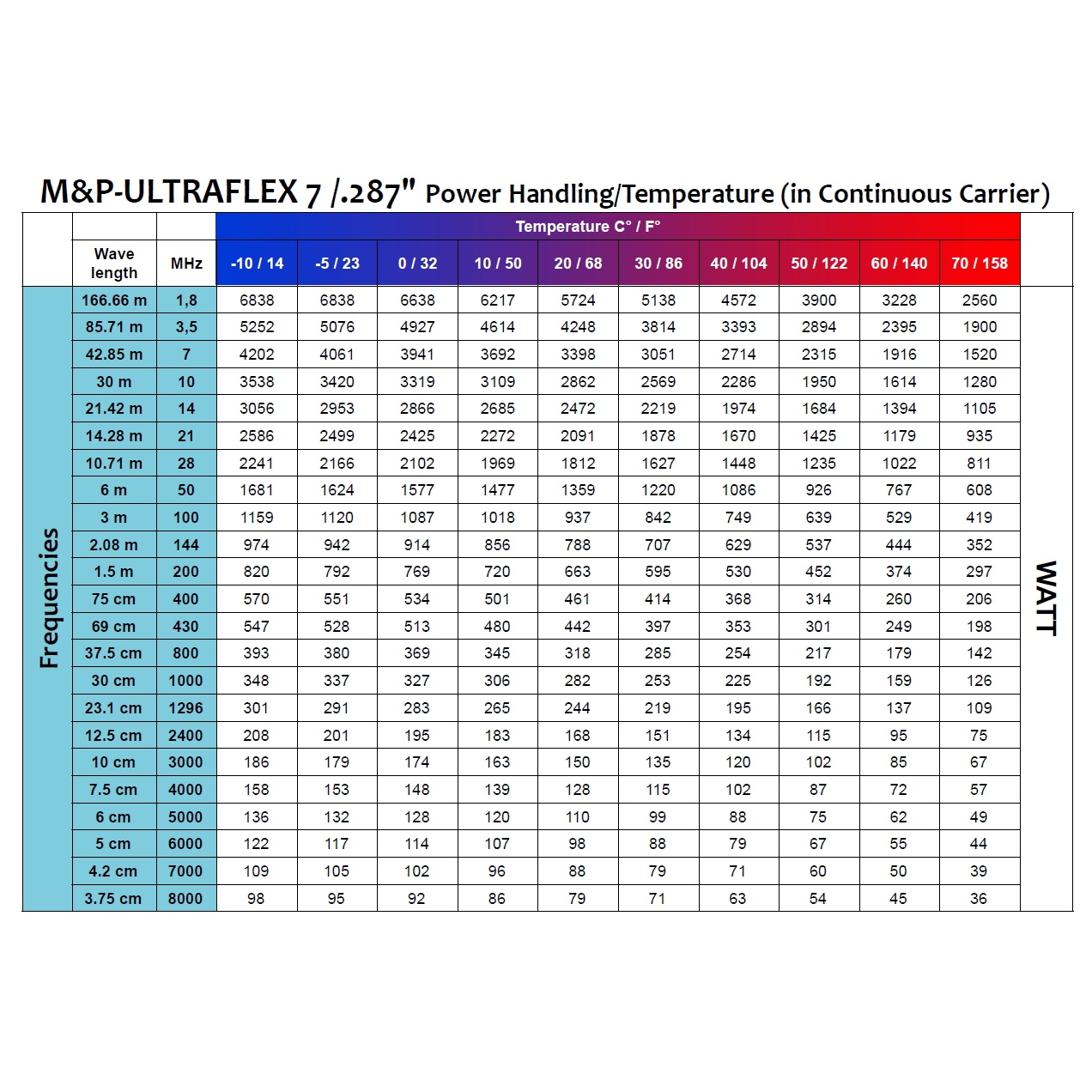

Maximum power at 40°C depending on frequency

1,8 MHz 4572 W
3,5 MHz 3393 W
7 MHz 2714 W
10 MHz 2286 W
14 MHz 1974 W
21 MHz 1670 W
28 MHz 1448 W
50 MHz 1086 W
100 MHz 749 W
144 MHz 629 W
200 MHz 530 W
400 MHz 368 W
430 MHz 353 W
800 MHz 254 W
1000 MHz 225 W
1296 MHz 195 W
2400 MHz 134 W
3000 MHz 120 W
4000 MHz 102 W
5000 MHz 88 W
6000 MHz 79 W
7000 MHz 71 W
8000 MHz 63 W
