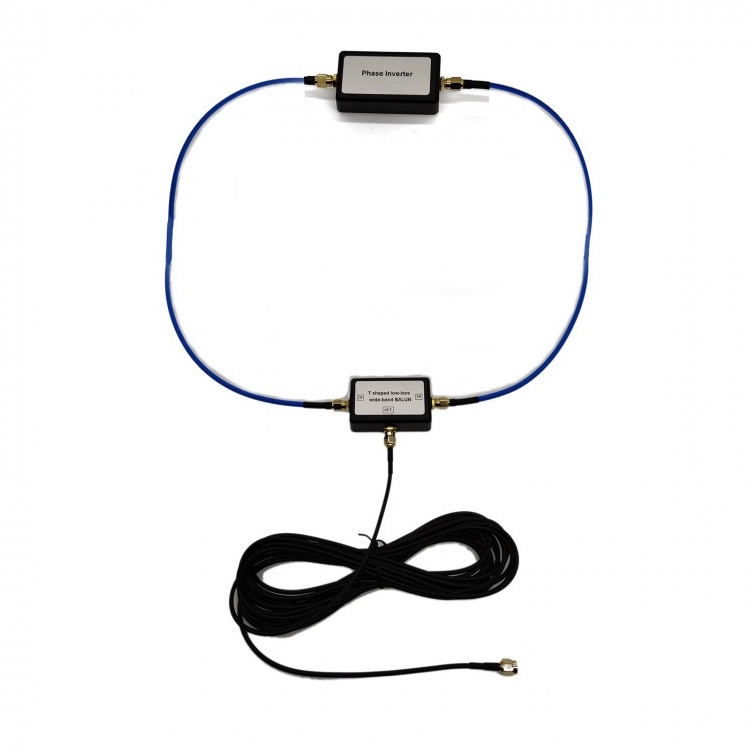

Passive, portable U-Loop antenna (Youloop style) for HF and VHF
No review at the momentTheU-Loop antenna with portable passive T-shaped balun is an ultra-portable solution for HF and VHF reception, optimised for very low noise SDR receivers such as RSP1B, RSPdx, Airspy HF+, Malachite SDR, etc.
Thanks to its wideband passive design, it requires no adjustment and guarantees stable, silent and accurate reception, even in noisy RF environments. This antenna is based on the operating principle of the Youloop antenna.
- HF loop reception antenna 10 kHz - 30 MHz and VHF up to 300 MHz
- Designed for HF SDR receivers
- Compatible with RTL-SDR keys (with AGC RTL mode activated)
- Passive design, no power supply or tuning required
- Low-loss broadband balun (typical loss: 0.28 dB)
- Portable use, fixed installation possible (antenna is not waterproof, protect with weatherproof tape)

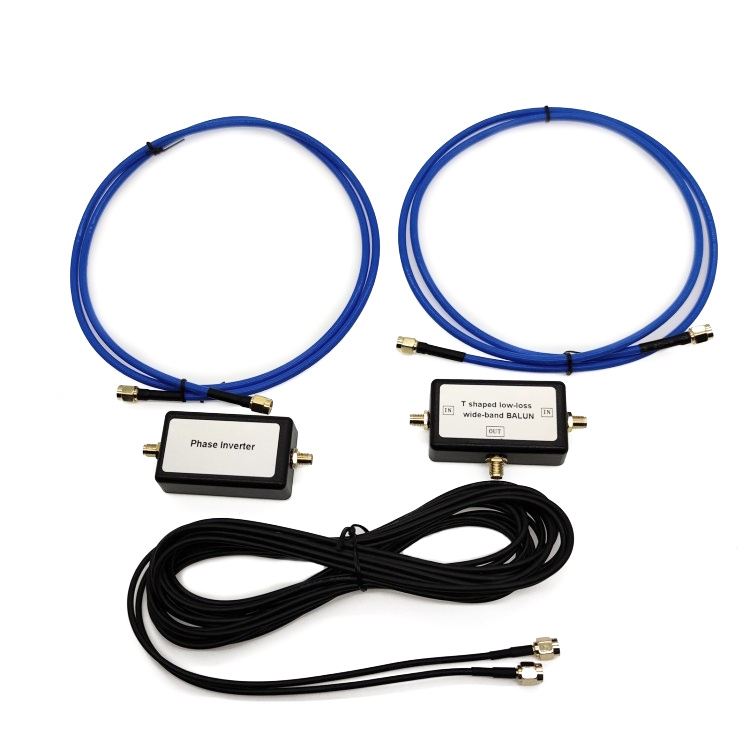

Supplied with: 1 T-balun, 1 phase converter, 2 RG402 coaxial cables (1 m), 1 RG174 coaxial cable with male SMA connector (6 m).
Data sheet
- Antenna type: passive portable loop receiver antenna
- HF band: 10 kHz - 30 MHz
- VHF band: up to 300 MHz
- Design: low-loss broadband balun, 0.28 dB typical
- Compatibility: highly sensitive HF and SDR receivers (Airspy HF+ Discovery), RTL-SDR (AGC RTL enabled), other radio receivers
- Use: portable HF/VHF reception, SWL listening, SDR
- Materials: metal + RG402 rigid coaxials
- Approximate assembled dimensions: 60 × 36 × 20 cm
- Passive design: no adjustment required
- Non-waterproof: can be permanently mounted with weatherproof tape
