Mobile FM Bi-bande 50W TH-7800 + RX AM Aviation

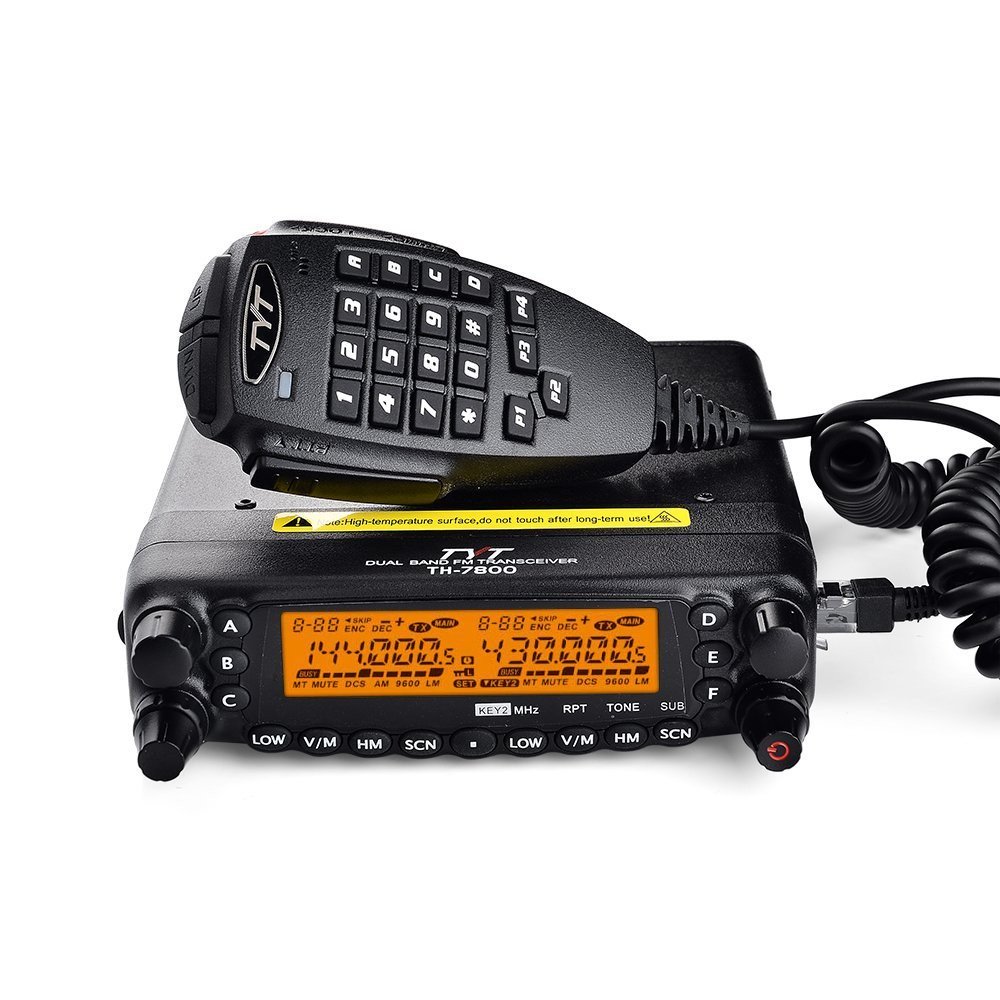

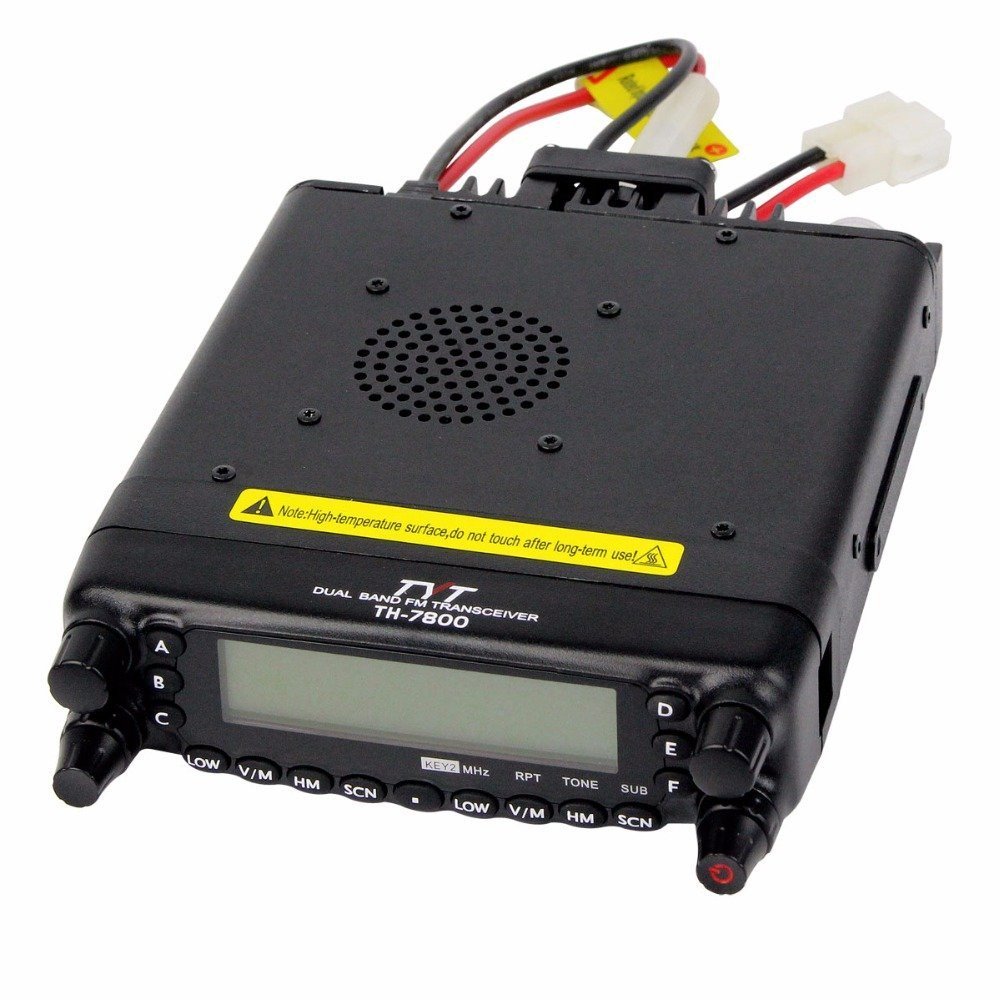

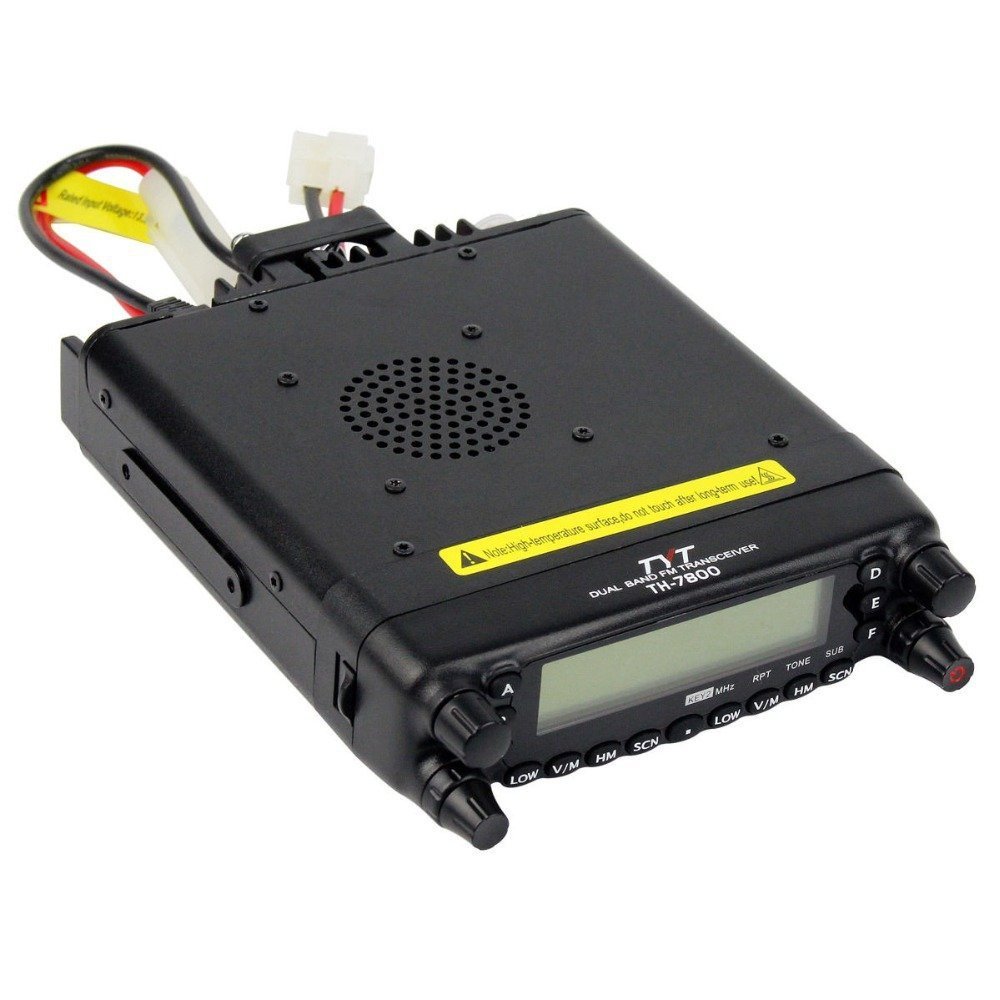

Tytera TH-7800 Dual-band VHF(144Mhz) & UHF (430MHz) with detachable front panel, large LCD display, dual VFO with simultaneous reception + VHF AM air band and radio 88-108MHz (WFM).

- Covers VHF 144Mhz amateur radio bands with 50 watts and UHF 430 MHz band with 35 watts
- RT and TX FM : 136 to 174Mhz and 400 to 480Mhz
- Reception only: Air band 108-136Mhz AM
- RX AM/FM: 108 - 135MHz / 136 - 180MHz / 320 - 512MHz / 700 - 950MHz (GSM frequencies are not available)
- Double VFO, simultaneous reception V V +, V + U, U + U

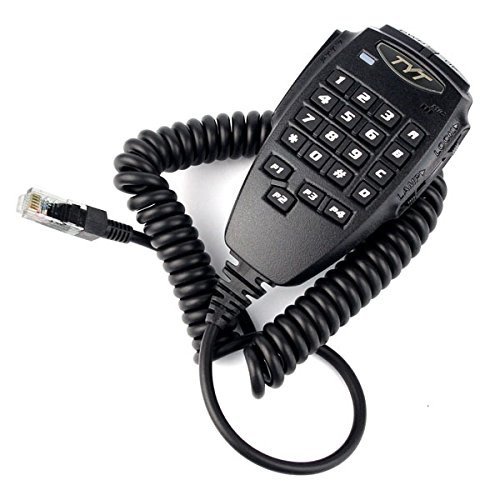

- Micro Multi-function
- Cross band repeater mode
- Full duplex mode
- External speaker jack
- 1750Hz Tone, CTCSS, DTMF and 800 channels

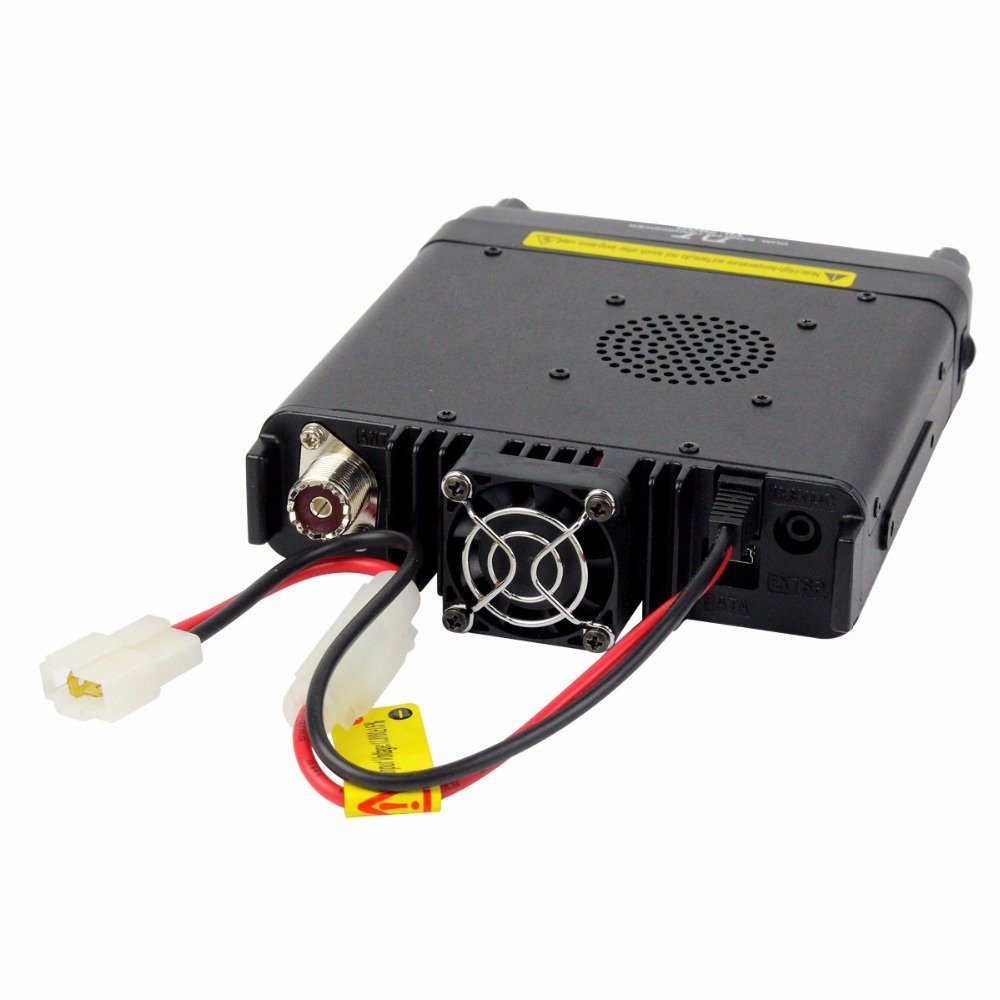

- Connectors Antenna: SO-239 (UHF female).

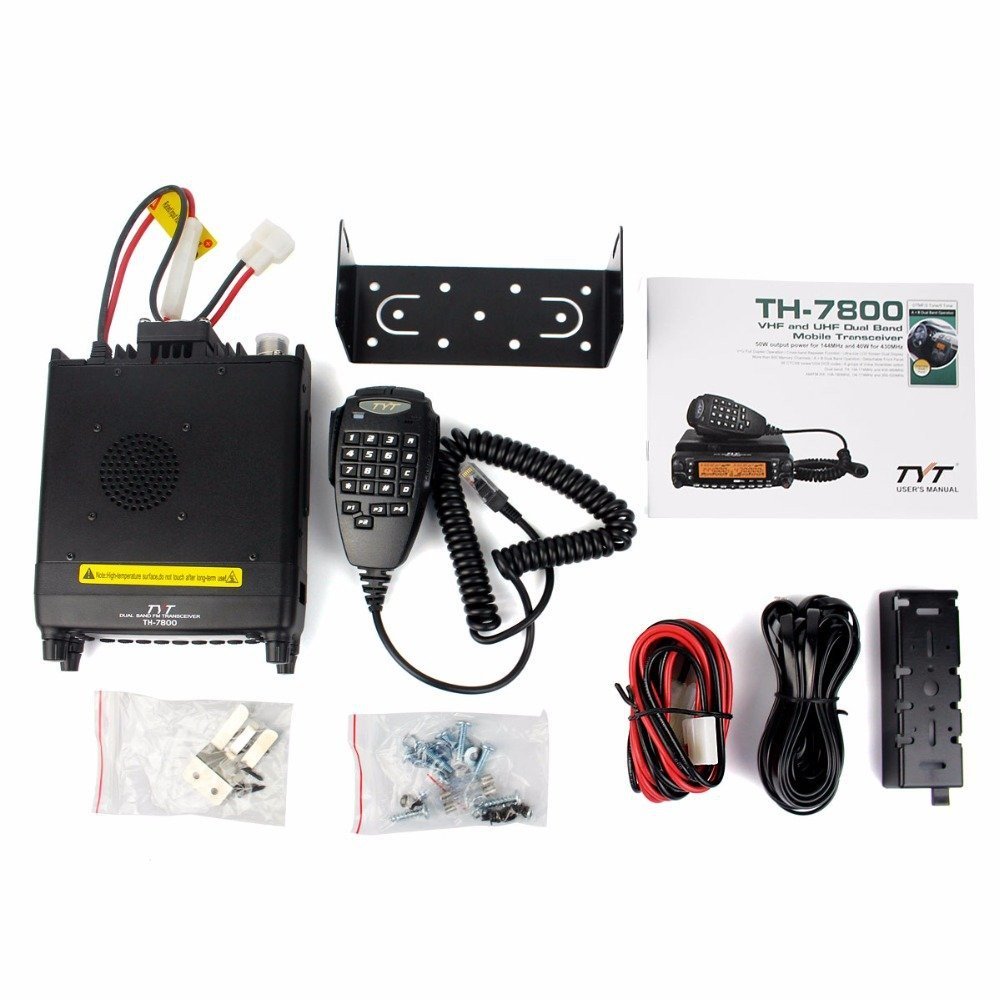

Comes complete with: 1 mobile radio TYT TH-7800, 1 remote support for the panel front, 1 extension cable for the front, 1 microphone clip fastening, 1 mount bracket, 1 DC power cable, screws and fuse, English manual + USB programming cable Tytera included.

More details

Download

Manuel TH-7800

13.09M

Software TH-7800

Windows 2.41M

Data sheet

Features Tytera TH-7800

Frequency range TX and RX: 136-174 and 400-480Mhz
Modulation Mode: FM (RX and TX), AM (RX only)
Output power: 50/20/10/5W (144MHz) and 35W/20/10/5W (430 Mhz)
1750Hz Tone, CTCSS / DCS
Setting VOX
Shift Relay
Scrambler
Radio FM 88 to 108Mhz (Wide FM)
DTMF tones and 2 tones 5
Step VFO: 2.5 / 5 / 6.25 / 10 / 12.5 / 20/25 / 50kHz
1 year warranty and CE standards.

TYTERA TH-7800 specifications

- Frequency Stability: ± 5 PPM
- Antenna Impedance: 50Ω
- Operating Temperature: -20 ° C ~ + 50 ° C
- Connectors Antenna: SO-239 - UHF Female
- Dimensions: 140x42x168 mm
- Weight: 1.5 kgs

Drivers and software Tytera

Download the software and drivers in the "download".

Reminder: The use of any radio transmitting like the TYT TH7800 moble dual band transceiver requires a radio license to be used legally and is subject to the respect by the user of the frequency and law that may applied in the country.
