Signalink-13K pack for Kenwood 13-pin mini-din DATA socket View larger
Tigertronics

SIGNALINK-PACK-SLUSB13K-1518

New product

U.S.A

Signalink-SLUSB-13K pack for Kenwood with 13-pin mini-din DATA socket

rating Read the 3 reviews
Average rating: 5/5 Number of reviews: 3

The Signalink- SLUSB-13K interface pack is compatible with virtually all Kenwood radios equipped with a 13-pin mini-DIN data port such as: Kenwood TS-950, TS-990, TS-2000, TS-2000X, TS-140S, TS-440, TS-440SAT, TS-450, TS-570, TS-590S (list below).

Low noise USB sound card
Quick and easy installation with jumper
RX and TX setting from front panel
Supports ALL digital and digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8, FT4, JS8, ACARS, etc.
Complete RF isolation between the computer and the radio
Transmit Audio output and external speaker jack

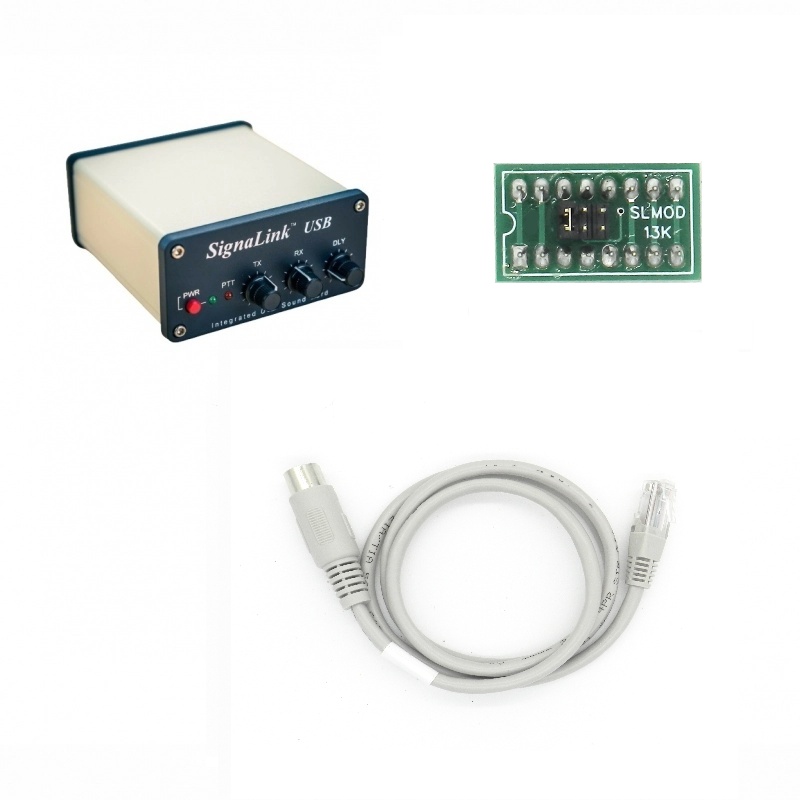

Package includes: Tigertronics Signalink USB interface, SLCAB13K cord to connect the radio to the interface and SLMOD13K jumper to install inside the box, 1 x 2.5m USB cable, 1 x mono jack cable, 6 x 24 AWG pre-cut and stripped wires, 1 x 3/32 "Allen wrench, rubber feet, 1 x English manual

Note: This interface does not allow the control of the frequency (CAT control) on the radio used, it allows to switch to PTT and to send a signal to the radio and to receive it, thanks to the USB peripherals created.

More details

149,63 € tax excl.

157,50 €

Instead of 152,63 €

In stock

   3 Items

Pack content

  • Tigertronics Signalink USB radio interface and sound card
    114,79 € 120,83 € tax excl. -5%tax excl. In stock

    -5%

    Reference: TIGER-SIGNALINK-BOITIER-1455

    1 x Signalink USB from Tigertronics Radio interface & sound card for digital modes

    The Signalink USB radio interface from Tigertronics is a USB sound card that allows you to receive and transmit from a computer to practice digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8,

    114,79 €

    120,83 €

    Reduced price!
  • Signalink SLUSB-13K Mini-DIN 13-pin radio cable for Kenwood
    27,63 € 29,08 € tax excl. -5%tax excl. In stock

    -5%

    Reference: SIGNALINK-CABLE-SLCAB13K-1489

    1 x Signalink SLCAB-13K Mini-DIN 13-pin DATA radio cable for Kenwood

    The Signalink SLCAB13K radio interface cable can be used with the Signalink USB sound card and with almost all Kenwood radios which have a 13-pin mini-DIN data port (DATA socket). This includes, but

    27,63 €

    29,08 €

    Reduced price!
  • Jumper Signalink SLMOD-13K for Kenwood Mini DIN Data 13-pin
    10,21 € 10,75 € tax excl. -5%tax excl. In stock

    -5%

    Reference: SIGNALINK-JUMPER-SLMOD13K-1490

    1 x Jumper Signalink SLMOD-13K for Kenwood Mini DIN Data 13-pin

    The Signalink SLMOD13K Jumper module is compatible for use with the Signalink USB sound card and with virtually all Kenwood radios that have a 13-pin mini-DIN data port (DATA socket). This includes,

    10,21 €

    10,75 €

    Reduced price!

Download

Manual Signalink USB (FR)

French manual and user guide Signalink USB 1.48M

Manual Signalink USB (EN)

English manual and user guide Signalink USB. 745.98k

Data sheet

  • Power supply: USB port compatible with USB 1.1 / 2.0 / 3.0, Male B connector
  • Consumption: ~ 140mA in transmission, ~ 80mA nominal
  • Operating temperature: -30 ° C to + 60 ° C
  • Audio frequency response: 200 Hz - 4000 Hz at 600 ohms
  • Sampling rate: 16 Bits, up to 48Khz
  • Operating System: Windows 98SE, ME, 2000, XP, Vista, Windows 7, 8.x and Windows 10
  • MAC OS 9.1, MAC OS X 10.00
  • Z radio input / output: 600 Ohm
  • Auto-PTT ™ delay: 30 ms to 3 seconds
  • PTT circuit: Relay, rated value - 1A @ 24VDC (max), 0.5A @ 120VAC (max)
  • Radio connection: Audio TX, Audio RX, PTT, GND and RJ-45 female
  • RX audio / speaker: 3.5mm mono jack mono
  • Housing: Extruded aluminum, powder coated
  • Dimensions: 40 x 81 x 91 mm
  • Weight: 187g

Compatible Kenwood transceiver

TS-690
TS-850
TS-870
TS-940
TS-950
TS-990
TS-2000
TS-2000X
TS-140S
TS-440
TS-440SAT
TS-450
TS-570
TS-570D
TS-570DG
TS-570S
TS-570SG
TS-590S
TS-590SG

For the settings below, please refer to the picture below:

Setting # 1 - This setup is the most common and works with early Kenwood radios such as the TS-140, TS-450S, TS-850, TS-870 and TS-950. Some newer radios such as TS-570D, TS-590S, TS-990 and TS-2000 / X also use this setting.

Setting # 2 - This configuration is less common and is used by some recent radios (TS-690 for example), and some older radios like the TS-440.

Setting # 3 - This configuration works only with TS-940.

The SignaLink USB supports virtually ALL digital modes that are available for sound card interfaces including but not limited to, PSK31, MT-63, WSJT/WSJT-X  modes (FT8, JT4, JT9, JT65, QRA64, ISCAT, MSK144, WSPR, JTMS, FSK441, FSK315, ISCAT, and JT6M.), SSTV, APRS ®, Packet (300 and 1200 baud), VARA HF, VARA Narrow, and VARA Wide.

The SignaLink USB also supports virtually ALL Voice modes (VOIP, RoIP, etc.), such as EchoLink®, and Zello.

About the only modes that you can't operate with the SignaLink USB, or any other sound card interface, are Pactor, G-TOR and Clover.

  • SMA Male UHF Female Adapter (SO-239) Passion Radio RF Cables & Adapters ADAPT-SMA-M-UHF-F-67
    3,96 € 4,17 € tax excl. -5%tax excl. In stock

    -5%

    Reference: ADAPT-SMA-M-UHF-F-67

    SMA Male UHF Female Adapter (SO-239)

    SMA Male to UHF Female Adapter (SO-239).

    3,96 €

    4,17 €

    Reduced price!

Reviews

Click here to leave a review

rating 5
Excellent
Je connaissais déjà ce produit pour en avoir déjà un. Il m\'était nécessaire de m\'équiper d\'un deuxième. Donc pas de surprise sur ce produit livré très complet avec le câble de liaison TX / Boitier Signalink, ce qui n\'était pas le cas pour le 1er achat.
rating 5
PACK SIGNALINK-SLUSB-13K POUR KENWOOD AVEC PRISE D
Produit conforme à la description.
Parfait !
rating 5
Platine fragile
La platine qui remplace les fils de connexion est vraiment très très fragile ...
