> Satellite & QO-100>SAT Antennas>Portable Yagi ARROW II (new version) antenna for Satellite 146/437MHz
Portable Yagi ARROW II antenna for Arrow Satellite Antennas 146/437MHz View larger

Arrow Antenna

New product

U.S.A

Portable Yagi ARROW II (new version) antenna for Satellite 146/437MHz

rating Read the 10 reviews
Average rating: 5/5 Number of reviews: 10

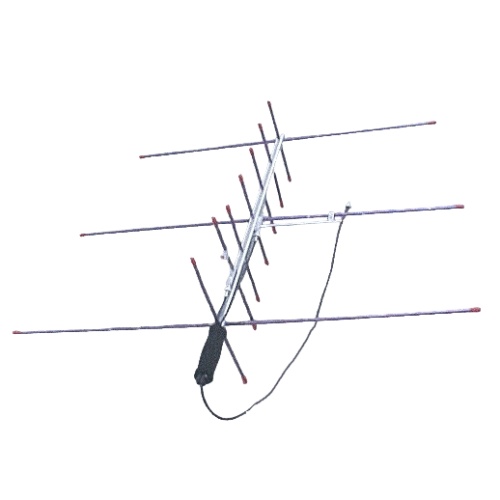

The Arrow II antenna (new version V2) have been designed to provide maximum gain and efficiency in the smallest possible size and weight, especially for walkie-talkie and portable use.

On the old version, the elements were evenly spaced on 70 cm, whereas on the new version, the spacing is irregular, to optimize VSWR on the 70 cm band.

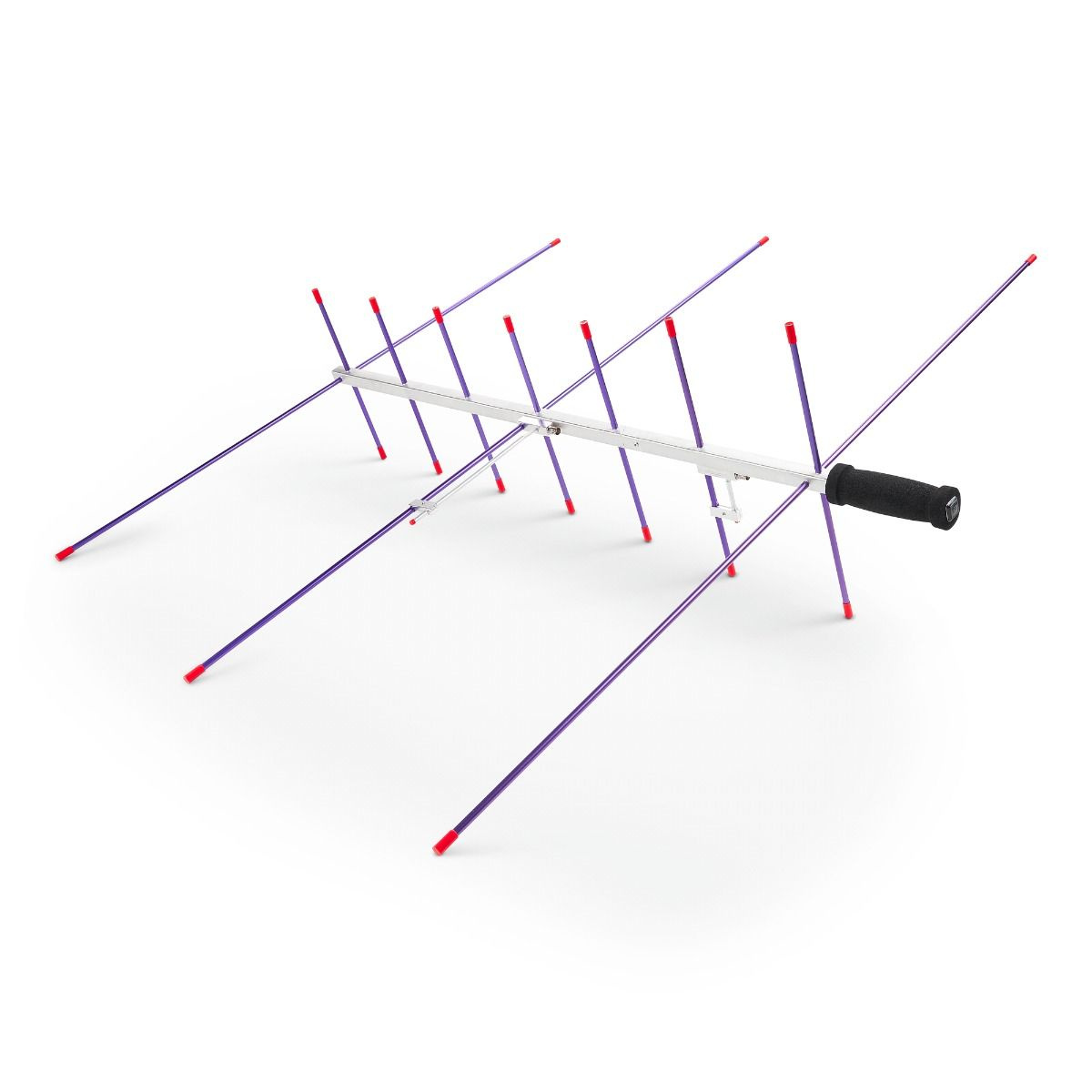

The Arrow II 146/437MHz dual band VHF-UHF directional antenna weighs less than 260g, is made of aluminum and has a foam grip for a comfortable hold.

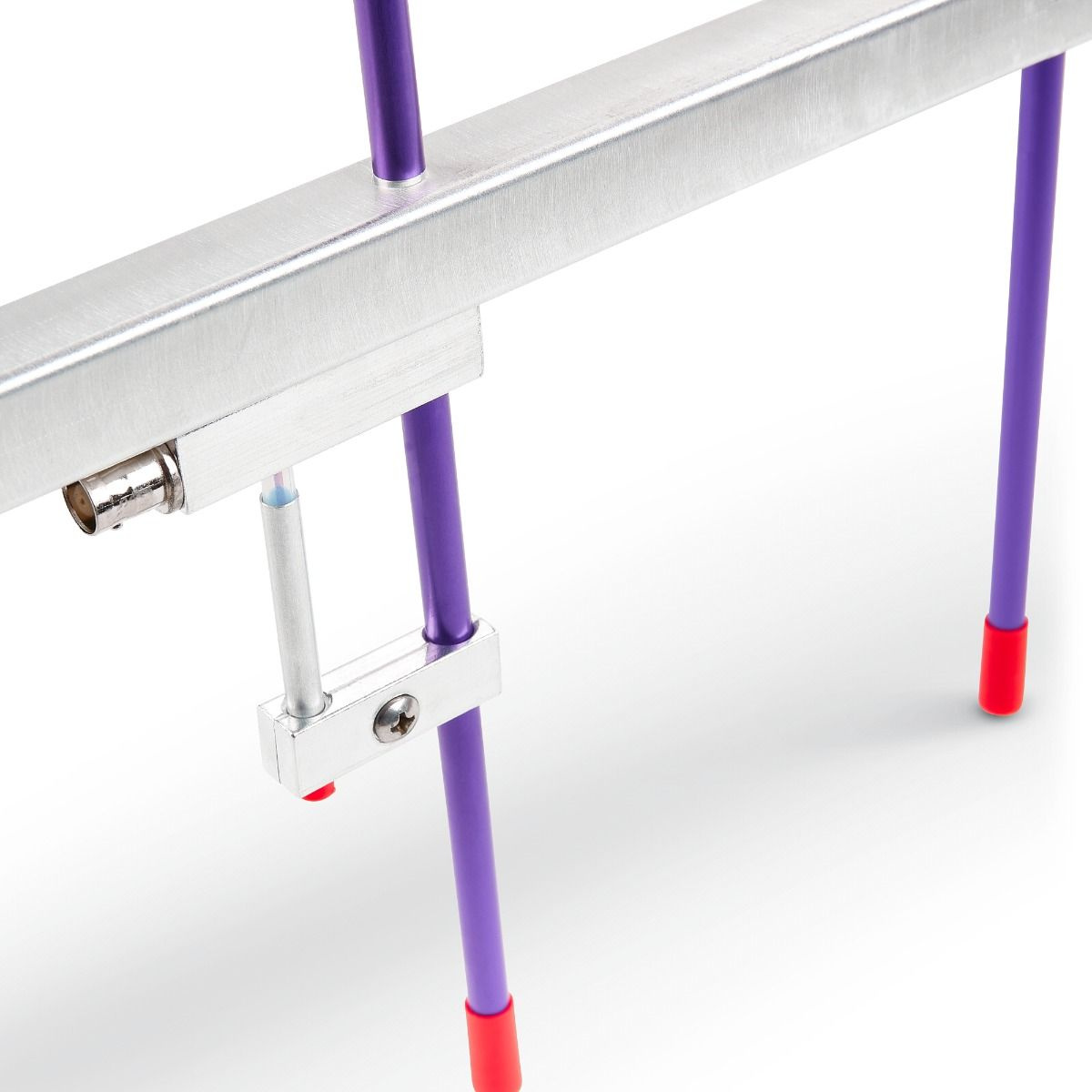

The 2 Gamma Matches are pre-assembled and pre-tuned. With connector for VHF and one for UHF in BNC male.

The boom is 1.9cm square (with rounded corners) and 95.25cm long and can be disassembled into 2 parts.

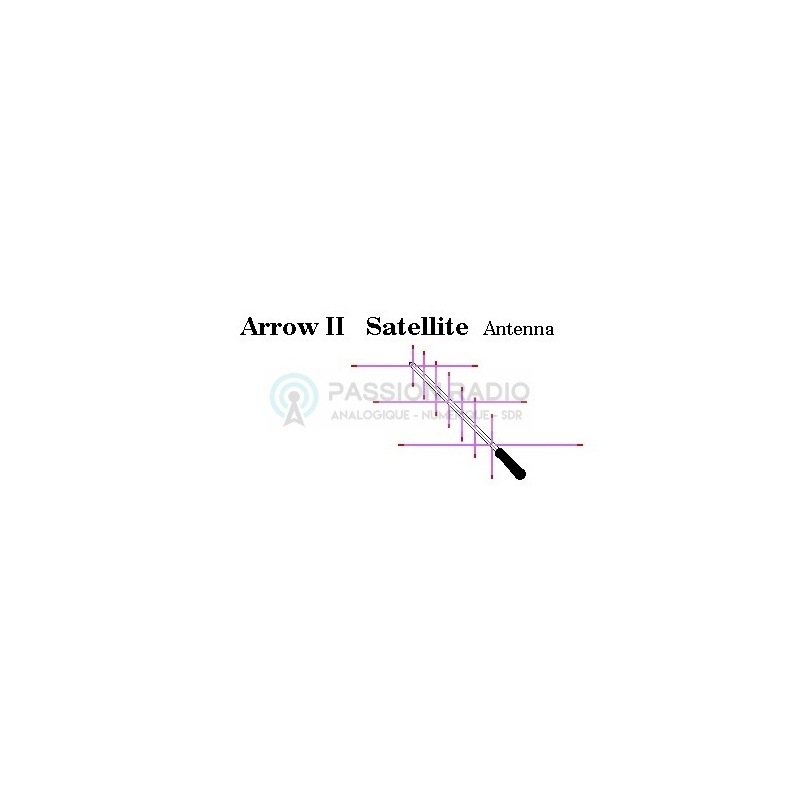

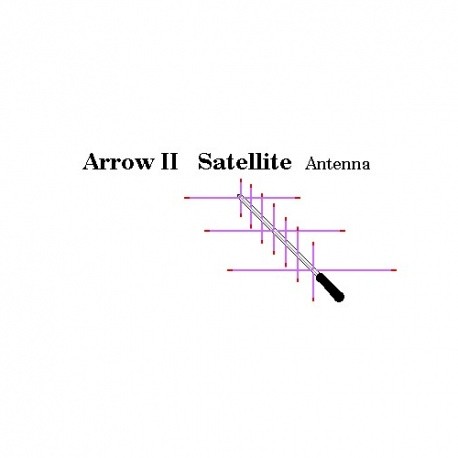

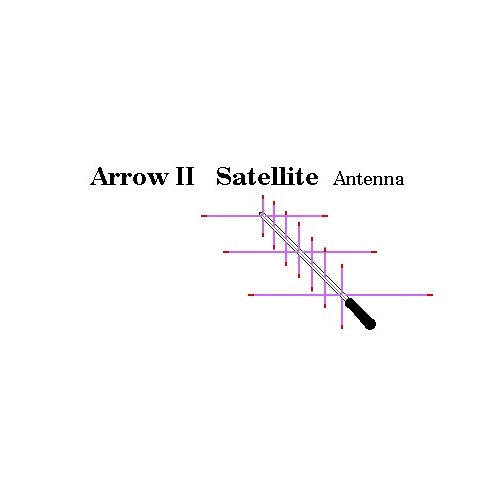

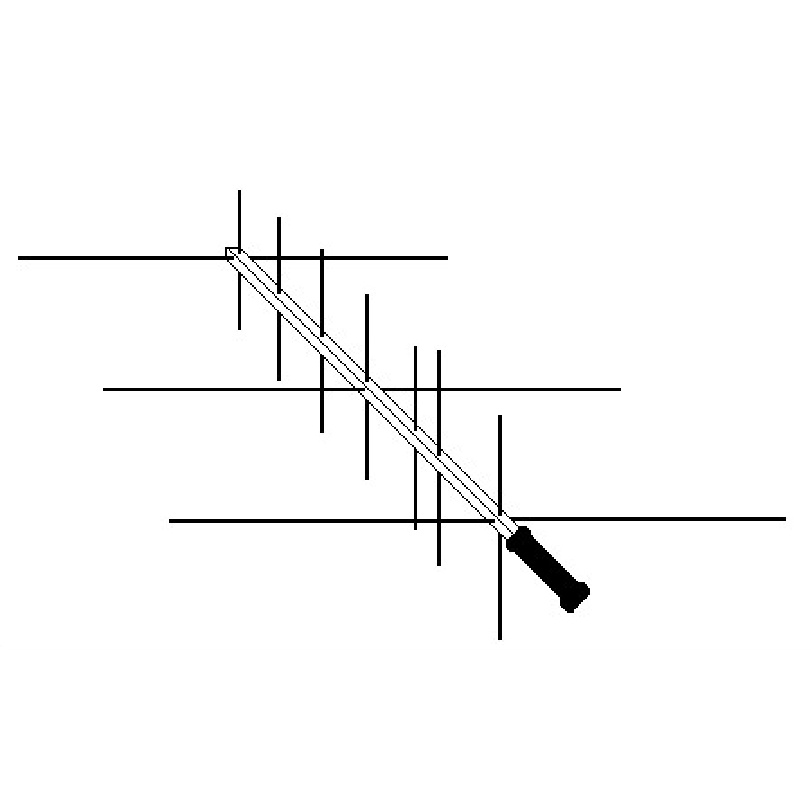

The antenna is a Yagi type with 3 elements for VHF and 7 elements for UHF.

The longest part of the antenna is less than 56cm long.

Under the foam handle the boom is drilled and tapped with a 1/4-20 hole for most camera tripods.

Available in a version with duplexer and cables included, the duplexer allows you to use a single station in simplex instead of having to use 2 stations especially for satellite traffic.

More details

124,17 € tax excl.

Out of stock, available within 1 to 3 months

  • With duplexer
  • Without duplexer

Download

Manual 146-437MHz ARROW II (EN)

417.99k

Manual 146-437MHz ARROW II (FR)

In french. 858.15k

Data sheet

  • Directional antenna: Yagi
  • Polarization: Horizontal or vertical
  • Receiving frequency : 130-160MHz and 400 - 470 Mhz
  • Transmission frequency: 144-148MHz and 430 to 450MHz
  • 3 elements in VHF and 7 elements in UHF
  • Connector : BNC male
  • Impedance: 50 Ohms
  • Boom length : 95,25cm (dismountable in 2 parts)
  • Longest element: 56cm
  • Weight : 260g
  • Optional : With duplexer
  • Version : V2 (2023)
