BIAS-Tee RF power supply module for LNB QO100 and LNA head View larger

CONNECT-RF

QO100-BIAS-T2-1267

New product

China

BIAS-Tee RF power supply module for LNB QO100 and LNA head

rating No review at the moment

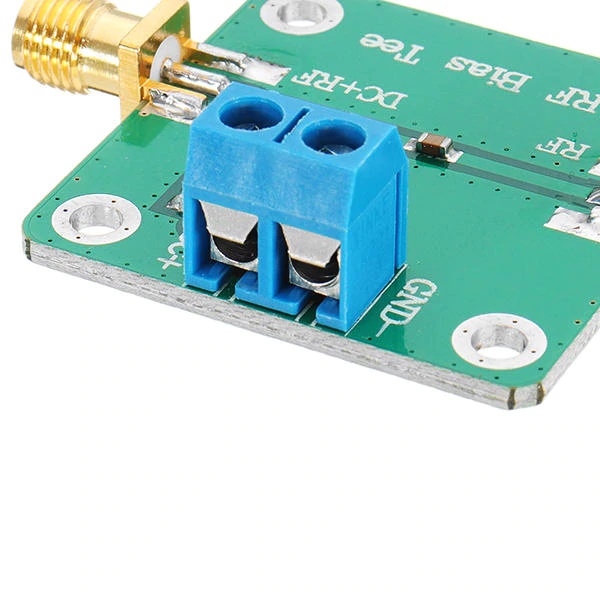

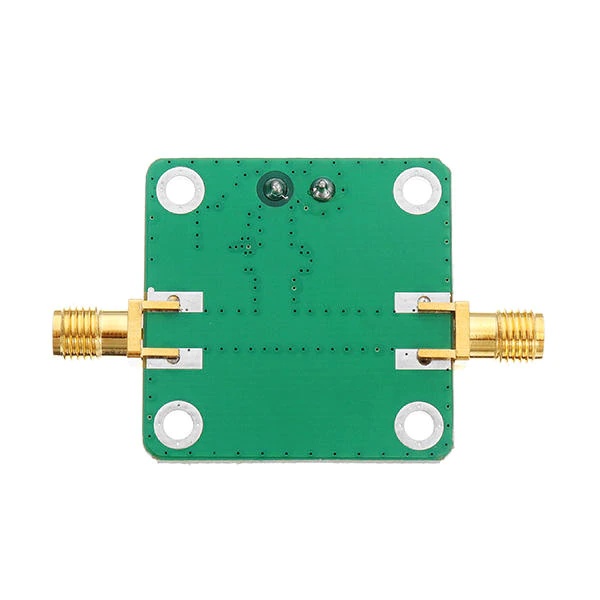

This BIAS-TEE module is used to power an RF accessory such as an LNA preamplifier or an LNB PLL 10Ghz satellite head to receive QO100.

Power is supplied via an external direct current power supply (30V max.) By connecting the + and - power supply lines to the screw terminal block (VCC + and GND-).

Supplied with: 1 Bias-Tee Connect RF.

This equipment is no longer available and replaced by the BIAS-T from F1OPA.

More details

This material is no longer available


To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

Data sheet

Frequency range: 10 MHz - 6000 MHz
Impedance: 50 Ohms
Max power supply voltage: 30V / 500mA (direct current)
Insertion loss: 0.3dB @ 512MHz and 0.45dB @ 1575Mhz
Operating temperature: -20 ° C to + 65 ° C
Dimension: 33 x 33 cm (without connectors)

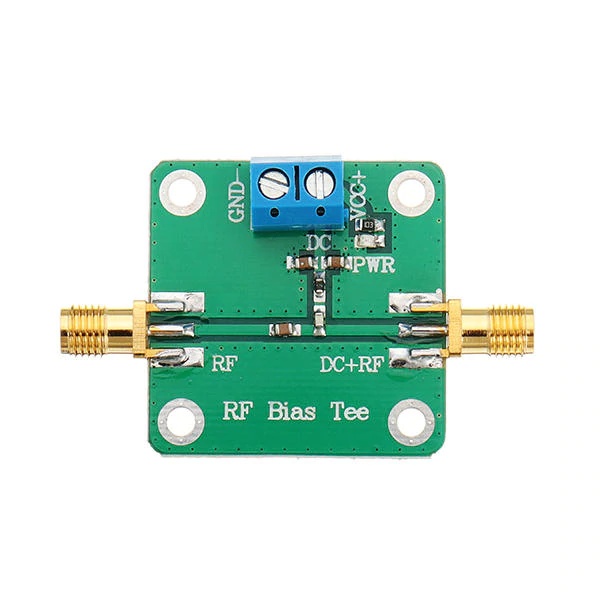

Wiring of the power supply on the terminal block:

VCC +: Power supply (+ red wire)
GND -: Common ground, power supply (- black wire)

RF: SMA female (this port only passes the RF signal and is protected)
RF + DC: SMA female with RF signal and bias-tee power (this port passes the signal and power to the bias-t)
