BIAS-TEE for QO-100 or LNA 30MHz to 4GHz F1OPA

This BT4G-based BIAS-TEE is used to power a LNA or a 10Ghz PLL LNB to receive the QO-100 / Es'Hail2 satellite.

The BT4G covers the frequency bands from 30 MHz to 4 GHz. The +/- supply leads are soldered to the PAD board.

This Bias-T is equipped with a resettable fuse (PTC) and an LED indicator to indicate the flow of current.

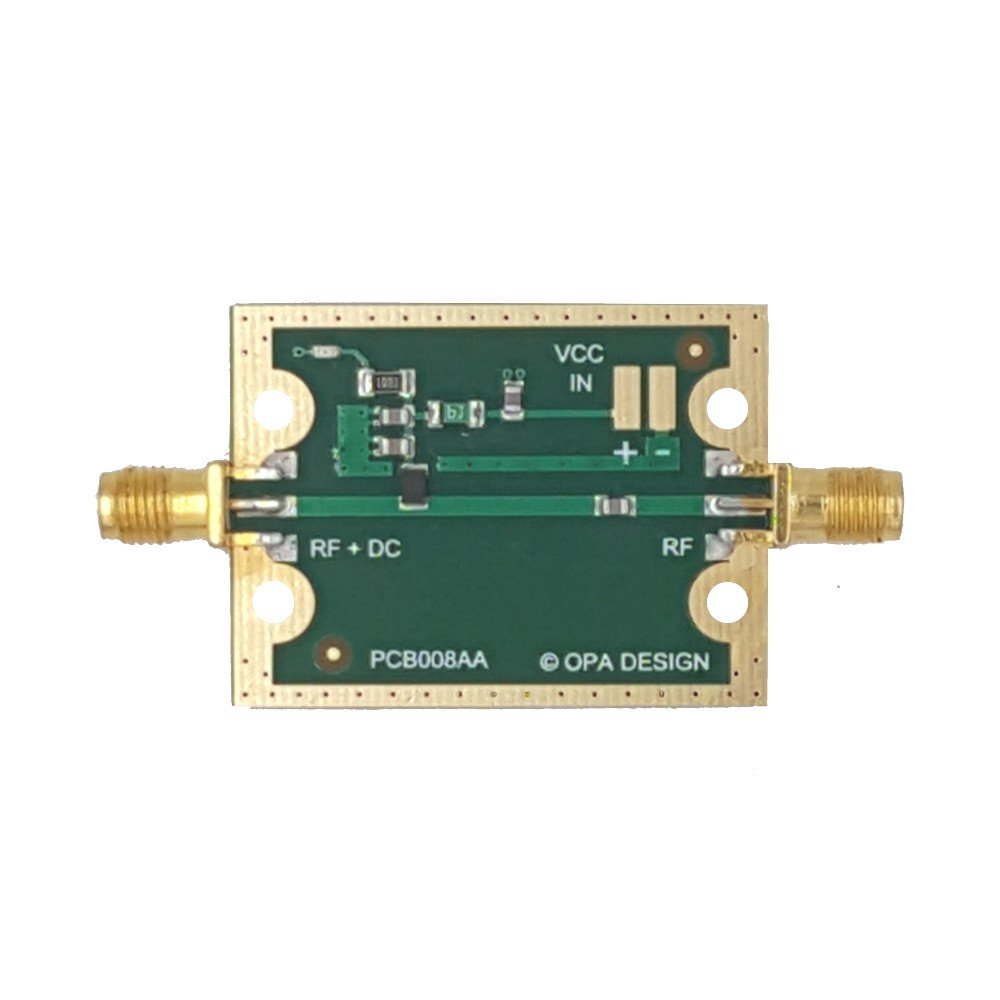

Comes with: 1 Bias-T PCB008AA OPA Design. Assembled en tested in Europe.

More details

16,50 € tax incl.

Out of stock, available in 2 to 3 weeks

Download

Doc Bias-T BT4G OPA

Specification BIAS-T BT4G OPA DESIGN 169.33k

Data sheet

Specification Bias-T BT4G OPA

Frequency range: 30 MHz - 4000 MHz
Max RF power : +33dBm (2W~)
Impedance: 50 Ohms
Max supply voltage: 22V / 350mA
Resettable fuse
Insertion loss: 0.4dB @ 2000 MHz
Operating Temperature: -20°C to +65°C

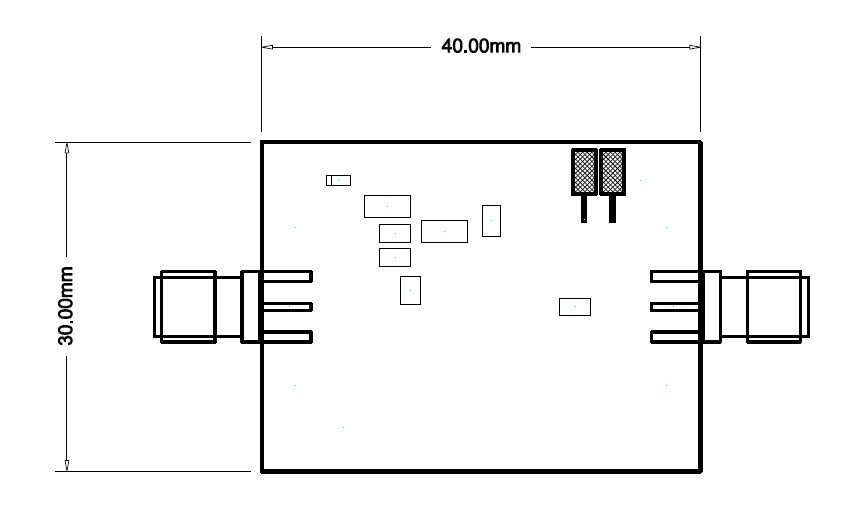

Dimension: 4 x 3 x 0.6 cm
Amateur radio design: F1OPA
