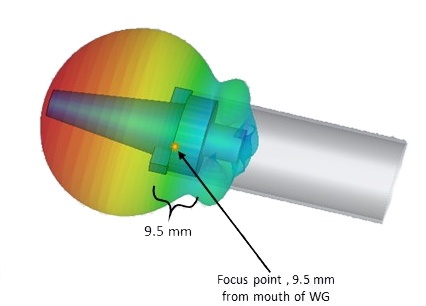

New high-performance version of the POTY antenna lens for optimized reception of the 10 Ghz downlink of the amateur satellite Oscar-100 (QO100) with an offset par f/D of 0.6 and D of 88cm.
Directly mountable on the POTY antenna or any 20mm diameter waveguide.
Amateur design: HB9VQQ

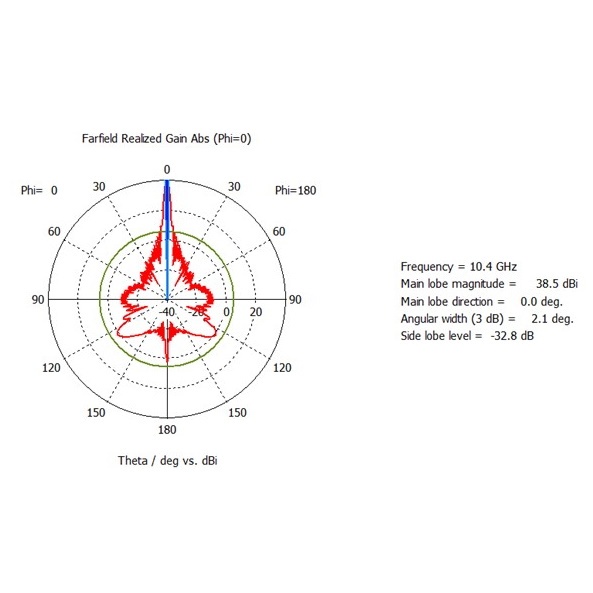

Effective gain: 10.57dBi (theoretical 38.5dBi)
Dielectric loss: 0.2dB

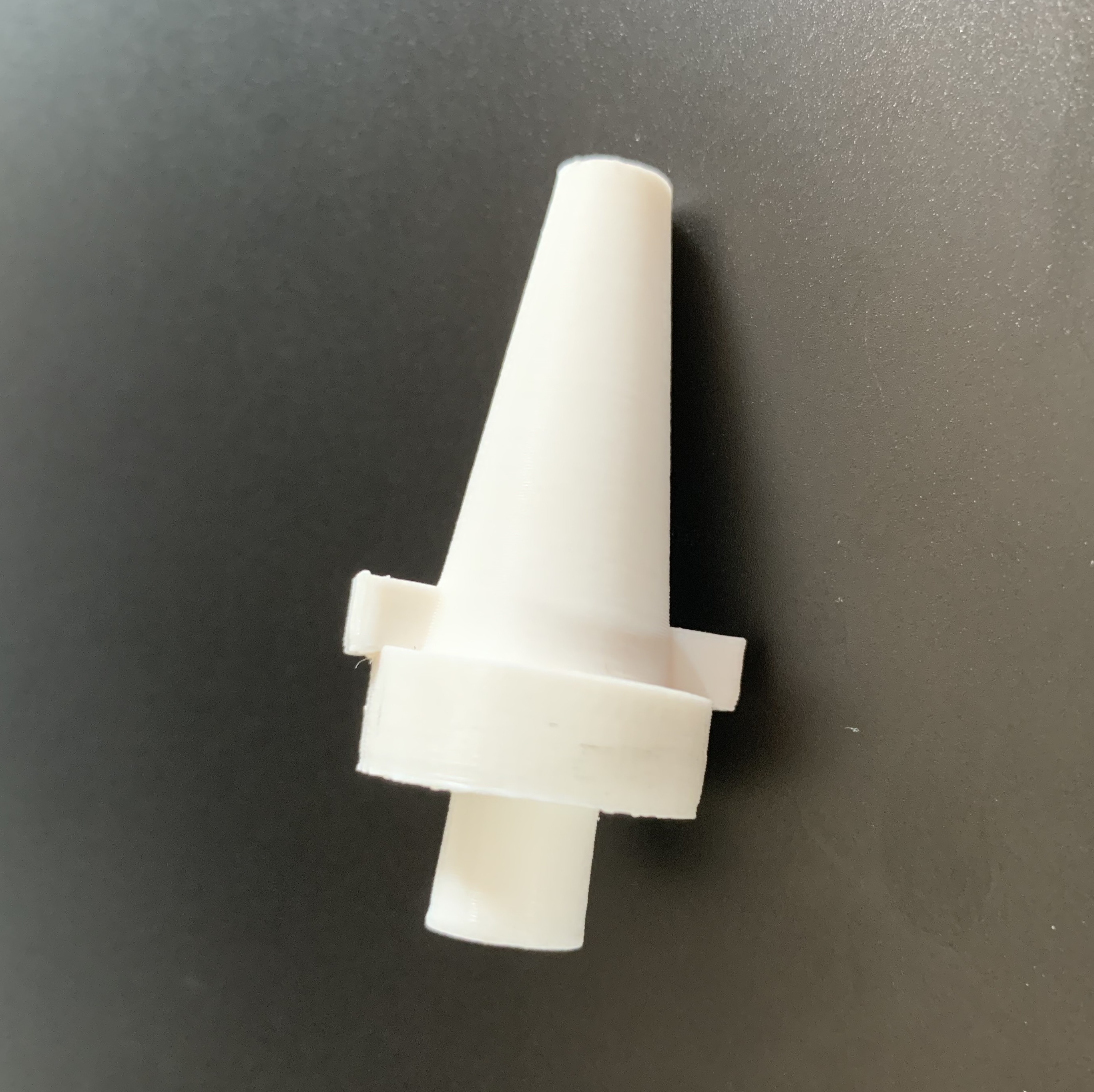

Supplied with: 1 HP dielectric lens HB9VQQ.
High quality Avenger PLL321S-2 Universal Receiver Head, with 1 F-Type output, 55dB gain (60dB conversion), 0.1dB noise factor, and +/- 300Khz stability reception. LNBF for DVB-S2, 4K, HDTV, Ku-Band
