LNA & SAW filter for Inmarsat and Outernet

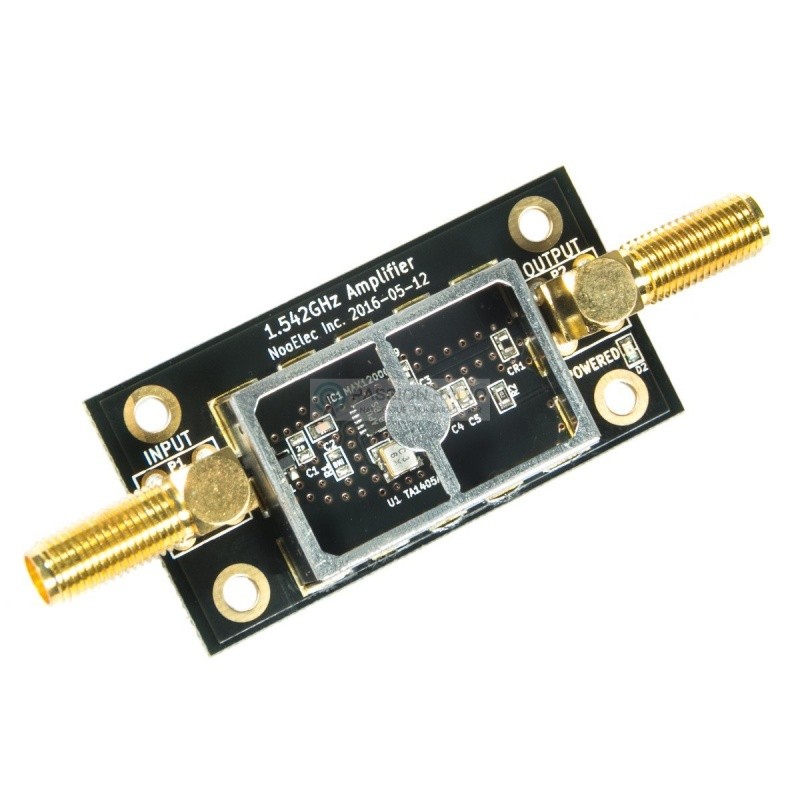

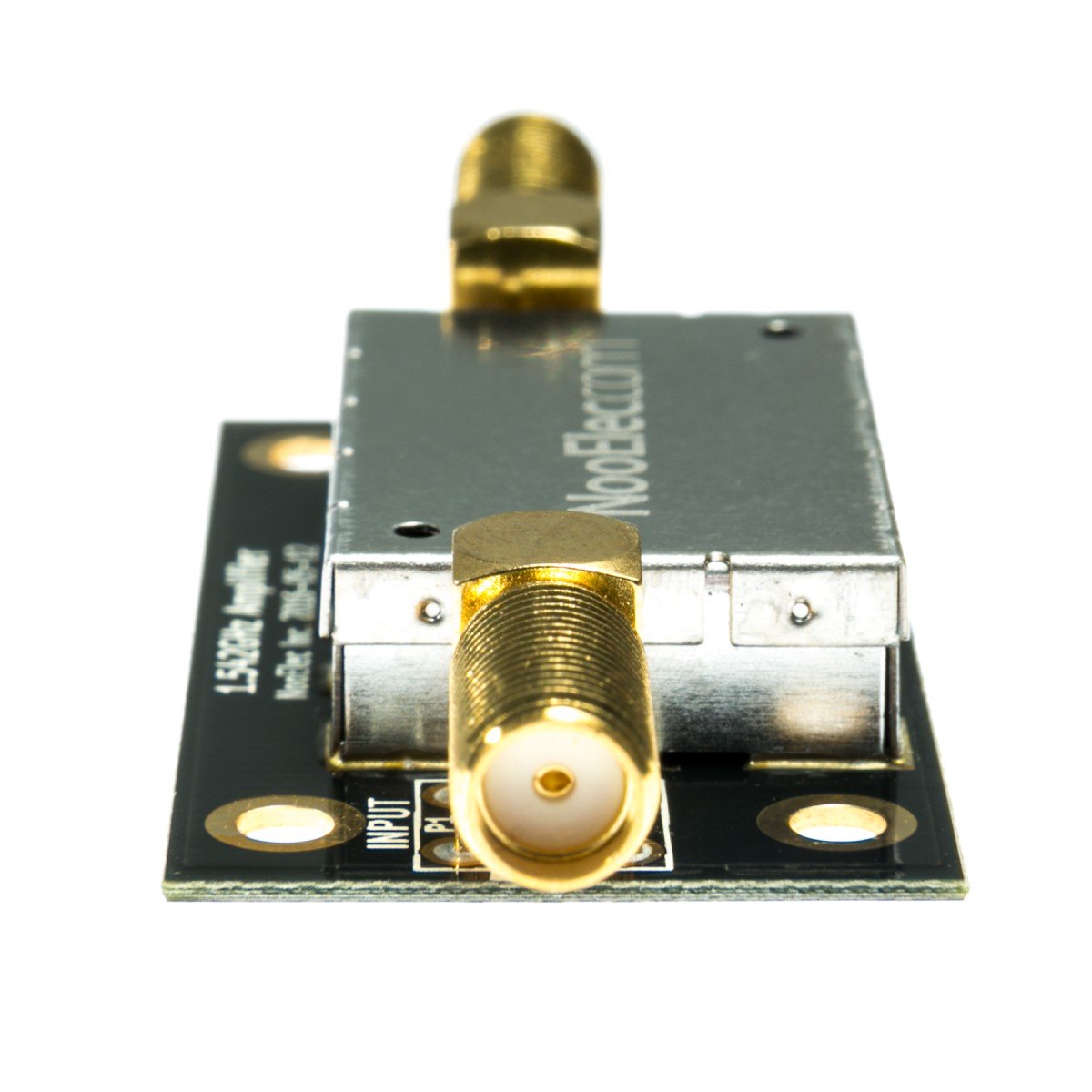

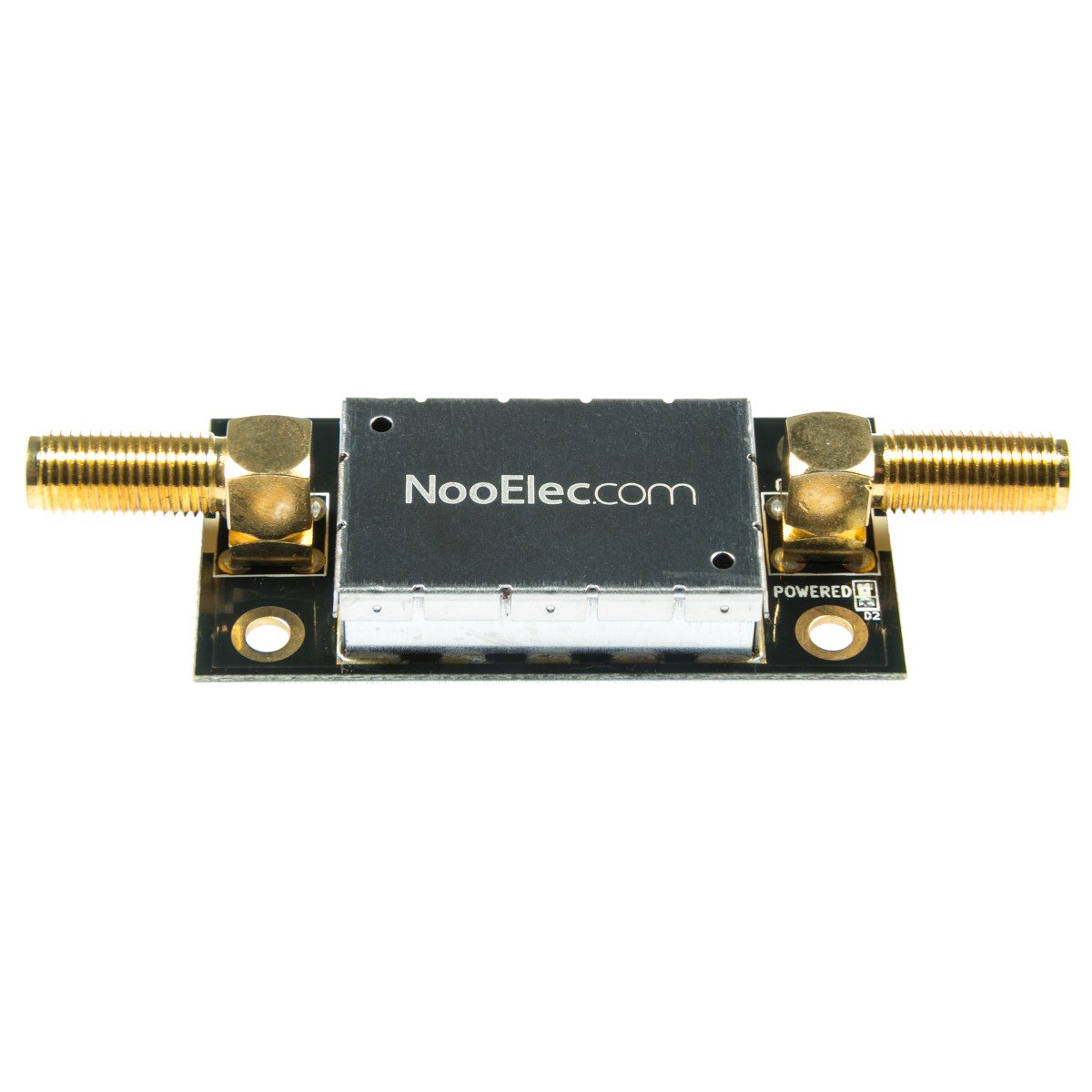

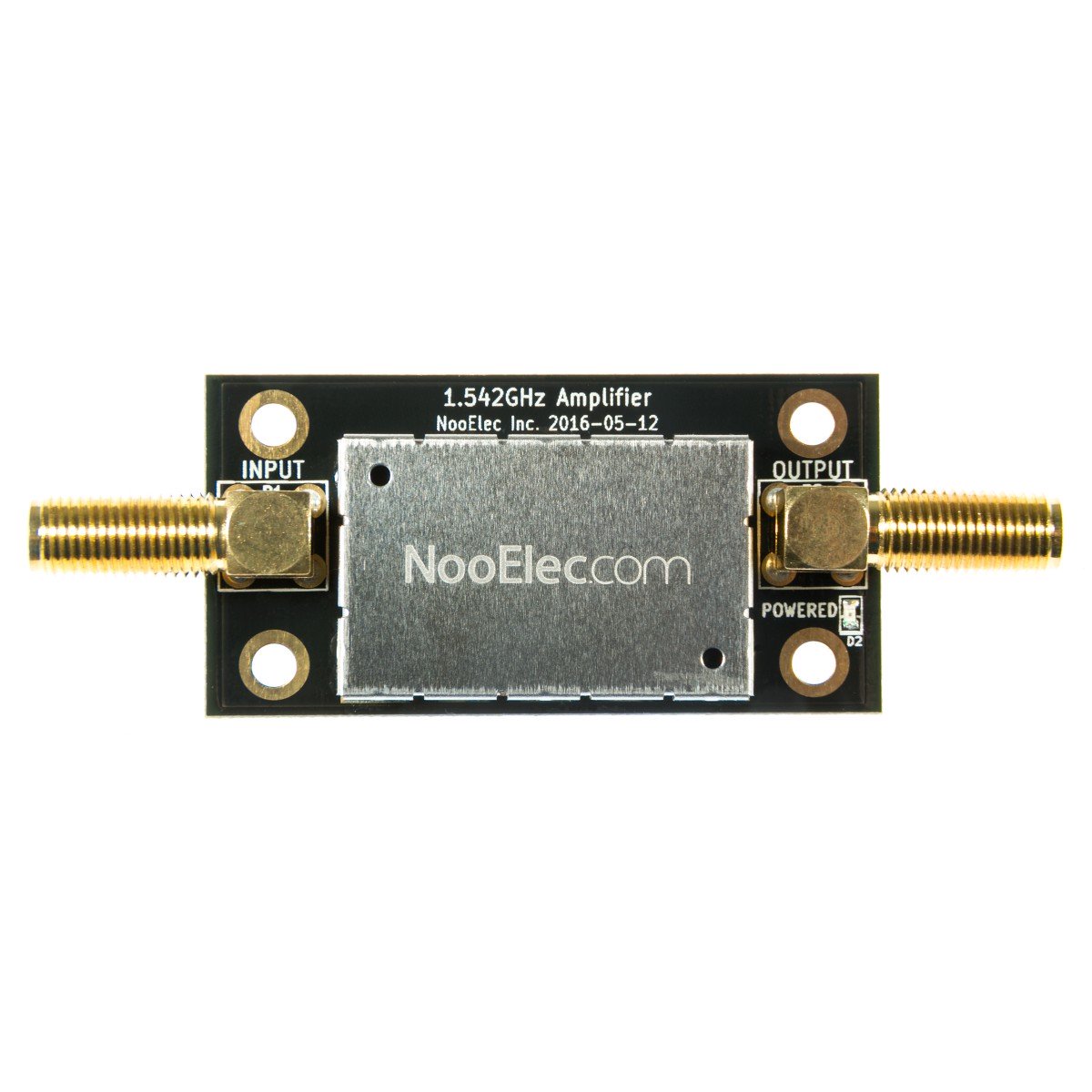

This LNA and SAW filter from Nooelec is specially designed to operate on 1.5Ghz Outernet frequency band and for Inmarsat radio applications, covering from 1.50GHz to 1.58GHz.

It significantly improves the reception performance of the Outernet (ex. Outernet) and Inmarsat signals.

Equipped with SMA Female connectors, the module must be supplied with Bias-Tee between 3.0 V and 5.5 V with a minimum current of 35 mA.

Delivered with: LNA Inmarsat and Othernet nooelec alone, without case.

More details

Data sheet

LNA filter Othernet & Inmarsat specifications

Power Supply: 3.0 to 5.5V
Power Consumption: 35mA
Frequency range: 1.50GHz to 1.58GHz
Central frequency: 1542MHz
Receiving gain: (see diagram)
NF: 1 dB @ 1GHz
Impedance: 50 ohms
Antenna Connector: SMA Female

IMPORTANT

This preamplifier is very powerful and must be used with caution, never to use it near strong signals, or to emit a radio signal in the vicinity (FM radio, amateur radio station, walkie-talkie, etc.) Your SDR receiver.

How to protect the LNA from electrostatic discharges?

Electrostatic discharges can damage the LNA if it is not protected or used properly.

1 - Never leave the LNA connected permanently or place it permanently behind an antenna on the mat
2 - Disconnect the antenna and ensure that the LNA and antenna are properly grounded before reconnecting the antenna, discharging static electricity from the cable

No LNA will be taken back or exchanged for misuse.
