> Software Defined Radio>SDR transceivers>HackRF PRO SDR half-duplex transceiver with FPGA 100 kHz to 6 GHz
New HackRF PRO SDR half-duplex transceiver with FPGA 100 kHz to 6 GHz View larger
Previous Next

Great Scott Gadgets

GSG-HACKRF-PRO-3040

New product

USA

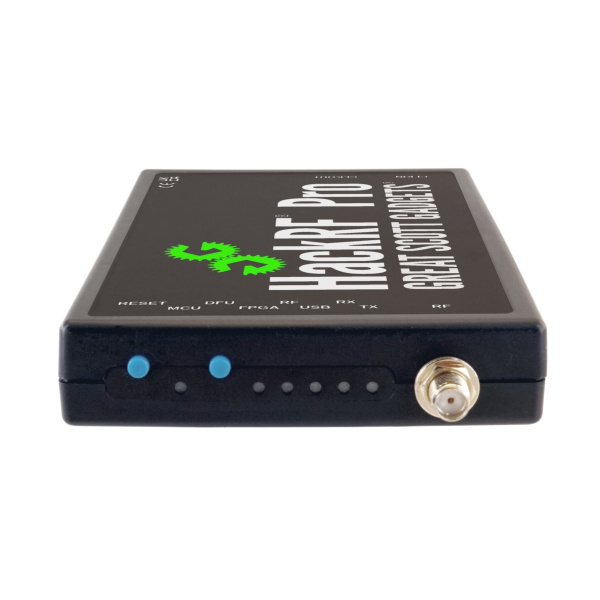

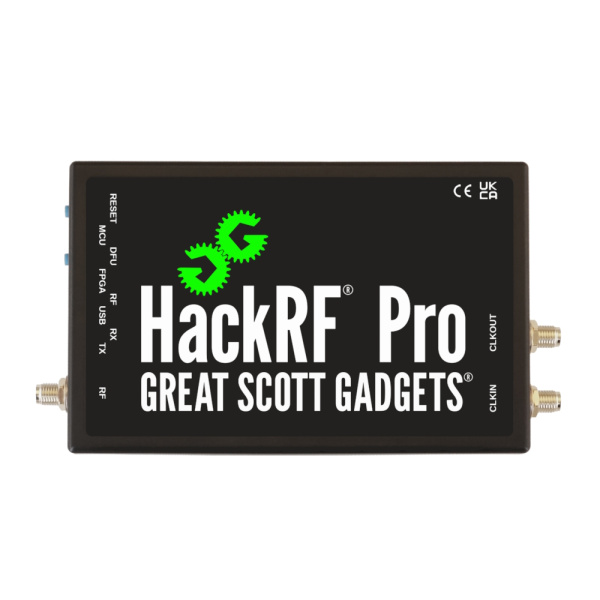

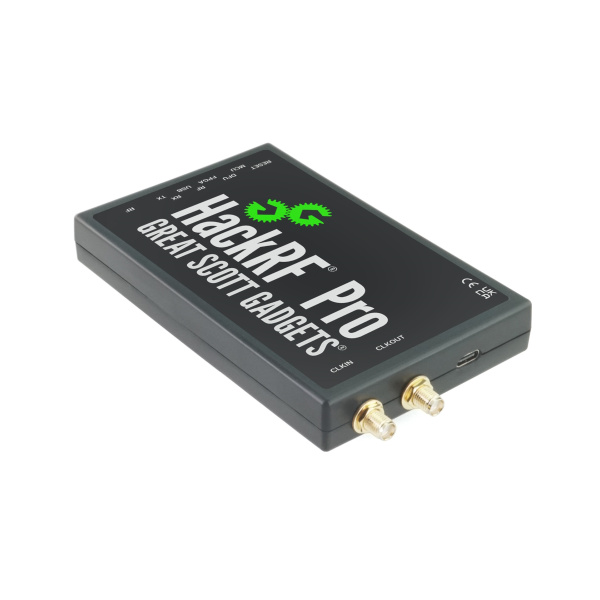

HackRF PRO SDR half-duplex transceiver with FPGA 100 kHz to 6 GHz

rating No review at the moment

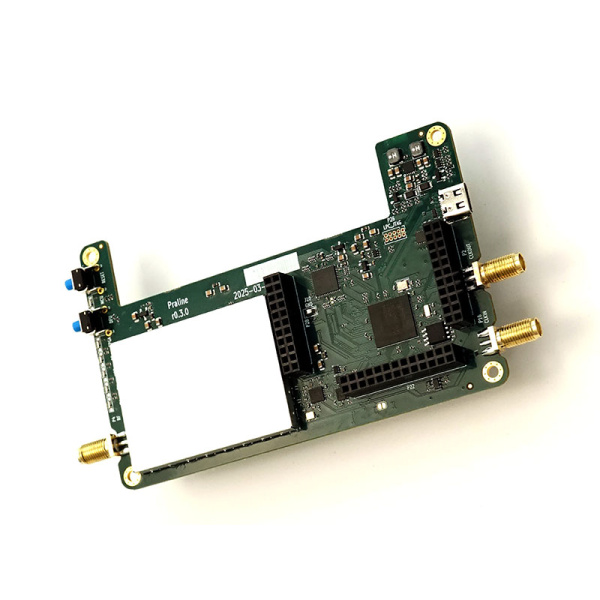

HackRF Pro from Great Scott Gadgets is an open source RF SDR development board with FPGA, capable of transmitting or receiving radio signals from 100 kHz to 6 GHz, without holes.

Designed to enable testing, research and development (R&D) of modern and next-generation RF technologies, it can be used as a USB device or programmed for standalone operation.

  • RX and TX operating frequency: 100 kHz to 6 GHz
  • Tunable from 0 Hz to 7.1 GHz
  • Half-duplex SDR transceiver
  • Up to 20 million samples per second
  • 8-bit quadrature samples (8-bit I and 8-bit Q)
  • Compatible with SDR software GNU Radio, SDR Sharp, SDR Console, SDRangel and others
  • Software-configurable RX and TX gain and baseband filter
  • Software-controlled RF port power supply (50 mA at 3.3 V)
  • SMA RF female connector

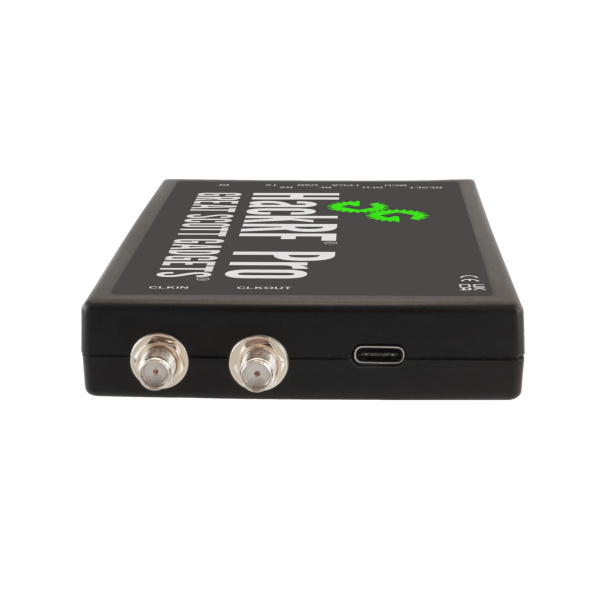

  • SMA clock input and output for synchronisation
  • Buttons for programming
  • Internal pin headers for expansion
  • Hi-Speed USB 2.0 with Type-C connector
  • Powered by USB-C
  • Open source hardware

Supplied with: 1 HackRF PRO with injection-moulded plastic case. USB-C cable and antenna not included.

SMA male compatible antennas : Diamond SRH-789, SRH-779 and ANT500 ANTENNAS.

The first delivery of the HackRF PRO is scheduled for September 2025 in limited quantities.

Pre-order deadline for September delivery: July 31, 2025

Reservations are recommended to ensure that you are among the first to receive your copy.

More details

429,00 € tax excl.

Out of stock, available within 1 to 2 months

Availability date: 2025-09-05

Notify me when available

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

Compared to HackRF One HackRF Pro introduces many new features and updates, including :

  • A wider range of operating frequencies
  • Improved RF performance with flatter frequency response
  • Modern USB Type-C connector
  • Integrated TCXO crystal oscillator for superior temporal stability.
  • Logic upgrade from CPLD to power-efficient FPGA.
  • DC peak elimination
  • Extended precision mode with 16-bit samples for low sampling rates (typical ENOB: 9-11).
  • More RAM and flash memory for custom firmware
  • Installation of shielding around the radio section
  • Trigger input and output accessible via clock connectors
  • PCB cut-out provides space for future additions.
  • Improved power management
  • Enhanced RF port protection
  • Facility to hardware-disable transmit mode
How is RF port protection enhanced on HackRF Pro?
HackRF Pro has the same reverse current protection diode on the RF port bias tee that is present on newer revisions of HackRF One. This has been quite effective in improving amplifier robustness in HackRF One r9 and r10. In addition to over-voltage protection provided by the diode, the bias tee on HackRF Pro features over-current protection. HackRF Pro has new amplifiers, replacing the obsolete part on HackRF One. ESD protection has been enhanced on HackRF Pro, and the RF port is also protected from high RF power by a PIN-Schottky limiter.

HackRF Pro is open source hardware and is compatible with existing plug-ins, including Opera Cake from Great Scott Gadgets, most PortaPacks and some third-party boxes.

SDR software that works with HackRF One is already compatible with HackRF Pro. A migration guide will allow software radio developers to integrate some of the new capabilities of HackRF Pro, which behaves like HackRF One, with superior performance.

You are legally responsible for the use of your HackRF PRO, and the easiest way is to become a radio amateur ;-)
