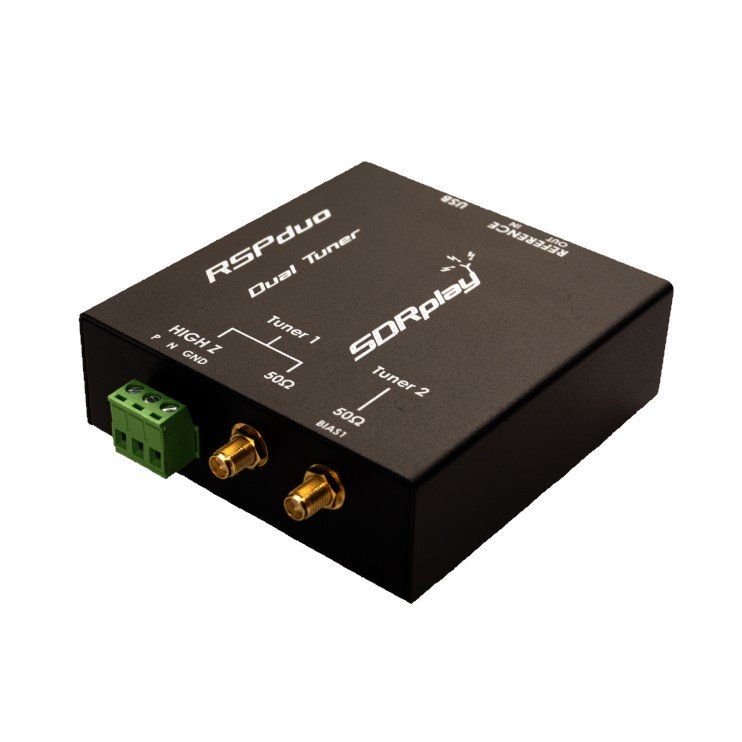

SDRPlay RSPduo 1KHz to 2GHz Double Tuner 14 Bit SDRPlay SDR receivers SDRPLAY-RSP-DUO-594 View larger

SDRPLAY-RSP-DUO-594

New product

SDRPlay RSPduo 1KHz to 2GHz Double Tuner 14 Bit

The new SDRPlay RSPduo is a 14-bit SDR dual receiver that covers from 1kHz to 2GHz (without hole), with dual-tuner (simultaneous reception on 2 different antennas).

The SDRDuo is equipped with a software-adjustable LNA, 11 band filters and 3 antenna connectors, 2 female SMA and 1 Hi-Z input to connect a HF wired antenna (0-30Mhz) with Notch filter and low pass 0-2Mhz, TCXO 0.5PPM, clock function and 4.7V Bias-T power supply via SMA.

The 2 SMA inputs now operate from 1 kHz (instead of 1.5Mhz) with 0-2 MHz low-pass filter to reduce spurious frequencies in LF and MW.

Works on Windows with SDRuno software (free) and on Linux with Gnu Radio Companion, GQRX and CubixSDR.

Delivered with: SDRPlay RSPduo metal case (delivered without USB power cable).

See below the recommendations for use, installation and support request SDRplay.

More details

335,00 € tax incl.

In stock

Order it before 10:00 of aujourd'hui and receive it between demain and Friday 27th November with Chronopost EXPRESS

More info

Specifications RSPduo SDRPlay

Receive from 1kHz to 2GHz (no gap)
Up to 10 Mhz bandwidth in a single tuner
Up to 2Mhz bandwidth in dual tuner
Maximum 14-bit sampling
Software-Adjustable LNA Preamp by software SDRuno
Application development via API

USB 2.0 cable power supply Male A - Male B (cable not included)
Compatible with the software: SDR Uno under Windows

Consumption:
Single tuner: 185mA
Double tuner: 320mA

3 antenna connectors: 2x SMA female (software switchable) and 1 Hi-Z connector for wire antenna
Antenna connector A: 1kHz to 2GHz, 50Ω
Antenna connector B: 1kHz to 2GHz, 50 Ω, output 4.7V DC 100mA max. (Bias-T)
Hi-Z antenna connector: 1 kHz to 30 MHz, 1kΩ, Hi-Z plug-in connector (supplied)
Clock connector: 24Mhz (MCX female)

The 2 SMA antenna inputs now operate from 1 kHz (instead of 1.5Mhz).
The low-pass filter of 0-2 MHz on the two 50Ω inputs, makes it possible to reduce spurious frequencies in LF and MW.
The Hi-Z input of the RSPduo integrates a MW notch filter and a 0-2 MHz low-pass filter, to reduce the disturbances generated by the powerful MW and AM signals.

Weight: 315g
Size: 95mm x 80mm x 30mm
2 years warranty
CE and Rohs standards

Installation SDRUno

You will find a online tutorial for an easy and fast configuration of RSP DUO: http://www.sdrplay.com/start-here/

To download the latest drivers and SDRuno software for Windows: http://www.sdrplay.com/downloads/

Recommendations and support

1 - Do not connect the RSPDUO directly to the same antenna as your transmitter, or to an antenna in the near field of a transmitting antenna as this may cause irreversible damage.

2 - The RSPduo is sensitive to electrostatic discharge which can damage the receiver if not protected or used correctly. It is recommended to disconnect the antenna in case of severe weather and to ensure an earthing of the antenna. Before reconnecting the coaxial cable after a thunderstorm, it is imperative the unloader (braid and core) to the ground.

In these 2 cases of loss of reception and RF damage, the warranty will not apply and the equipment neither repaired, exchanged or refunded. The signs of RF damage are characterized by signs of hot on or around components near the signal input, a burning smell is also an indication of RF damage.

For any support request, SDRPlay offers an online platform to get in touch directly with the technical support team for our customers : Request for official support SDRPlay.

How to connect HI-Z with a coaxial cable

HI-Z with a twin-leed type G5RV

With long wire antenna and Balun 1:9

Download

SDRUno 1.4 software Windows

Download (37.93M)

SDRuno v1.4 for Windows, check last update at www.sdrplay.com/windl2.php

Guide Hi-Z antenna for HF

Download (586.86k)

Connect HF antenna using Hi-Z port for RSP2

Plugin SDRuno Shuttle

Download (479.51k)

Plugin for SDRuno software and support for USB Shuttle Xpress and PRO V2

RSP SDRplay Comparison (FR)

Download (279.41k)

Comparison in French of SDRPlay, RSP1A, RSPdx and RSPduo receivers

RSP SDRplay Comparison (EN)

Download (259.02k)

Comparison in English of SDRPlay, RSP1A, RSPdx and RSPduo receivers
