Yaesu FT-65E Walkie-Talkie Two bands VHF / UHF 5W View larger
YAESU

YAESU-FT-65E-1412

New product

Japan

Yaesu FT-65E Walkie-Talkie Dual Band VHF / UHF 144 / 430MHz 5W

rating Read the 3 reviews
Average rating: 5/5 Number of reviews: 3

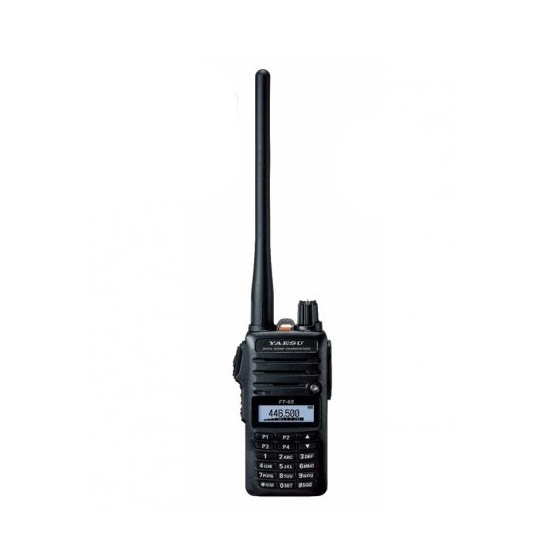

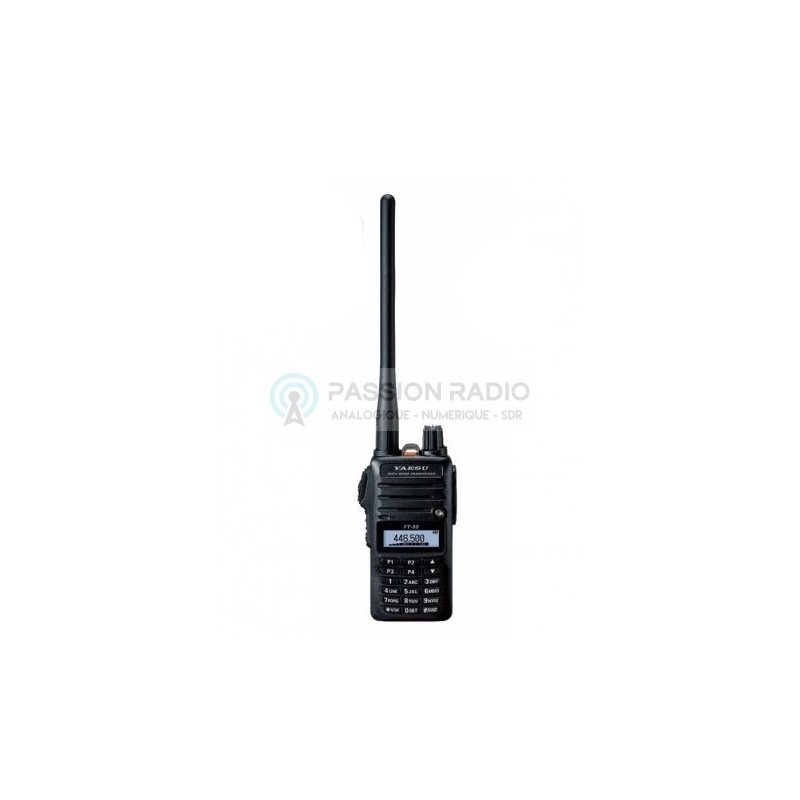

Yaesu FT-65E VHF / UHF 5W dual-band walkie-talkie, for 2m and 70cm (144 / 430MHz) amateur radio bands, has an IP54 degree of protection with MIL-810-C, D and E.

Equipped with included desktop charger and 1950mAh Li-Ion battery capable of operating for over 9 hours.

5 years Yaesu warranty

Max. SAR exposure Body 3.270 W/kg band 430MHz (narrow band 12.5kHz)

More details

99,17 € tax excl.

Out of stock, available within 1-2 months

Download

FT65 Advanced Manual (EN)

FT65 Advanced User Guide in French 6.06M

Data sheet

RX frequency ranges: 136 - 174 MHz and 400 - 480 MHz and FM broadcasting 65-108 MHz
TX frequency ranges: 144 - 146 MHz and 430 - 440 MHz
Frequency steps: 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
Frequency stability: ±5 ppm (-10 °C to +60 °C, +14 °F to +140 °F )
Relay offset: ±600 kHz (144 MHz) - ±1.6 / 5.0 / 7.6 MHz (430 MHz)
Transmission type: F2D, F3E, F2A
Antenna impedance: 50 Ohms
IP54
Supply voltage: Nominal: 7.4 Vdc
Current consumption: 205 mA (Reception) power 200 mW (Approx. at 7.4 V) 100 mA (standby, saver off)
18 mA (standby, economizer on)
4 mA (Auto power off)
1.5 A (5 W Tx , 144 MHz) 7.4 Vdc
1.7 A (5 W Tx , 430 MHz) 7.4 Vdc
Operating temperature: -20°C to + 60°C
Case dimensions: 52 x 104.5 x 30 mm (without button and antenna)
Weight: 260 g with SBR-25LI battery and antenna

Transmitter
RF output power: 5.0 W (high) / 2.5 W (medium) / 0.5 W (low) (at 7.4 V with SBR-25LI)
Modulation type: FM
Maximum deviation: ±5.0 kHz
Spurious emission: At least 60 dB down (at high and medium power)
At least 40 dB down (at low power)
Microphone impedance: 2k: 2 kOhms

Receiver
Circuit type: Direct conversion
Sensitivity: 0.2 μV for 12 dB SINAD (140-150 MHz, NFM)
0.2 μV for 12 dB SINAD (420 - 470 MHz, NFM)
Selectivity: 12 kHz / 35 kHz (-6 dB /-60 dB)
AF output: 0.8 W at 16 ohms for 10% THD (at 7.4 V)
(Max. internal SP power 1 W)
0.8 W at 16 ohms for 10%THD (@ 7.4 V)
(Max power EXT SP jack 1 W)

Specifications are subject to change without notice, and are only guaranteed in the 144 and 430 MHz amateur radio bands.

Reviews

Click here to leave a review

rating 4
Fabriqué en China
Made in China
rating 5
tests faits

très bon matériel

rating 5
Trop tôt pour juger

Pas encore suffisamment utilisé pour fournir un feedback fiable.
La première impression est bonne, belle qualité du produit.
Dommage qu'une dragonne à qql centimes ne soit pas incluse dans le coffret.
