> Ham & radio equipment>HT Handheld>VHF-UHF handheld Wouxun KG-UV8D Plus & repeater
VHF-UHF handheld Wouxun KG-UV8D Plus & repeater Wouxun HT Handheld WOUXUN-KG-UV8D-23 View larger
Wouxun

WOUXUN-KG-UV8D-HAM-23

New product

China

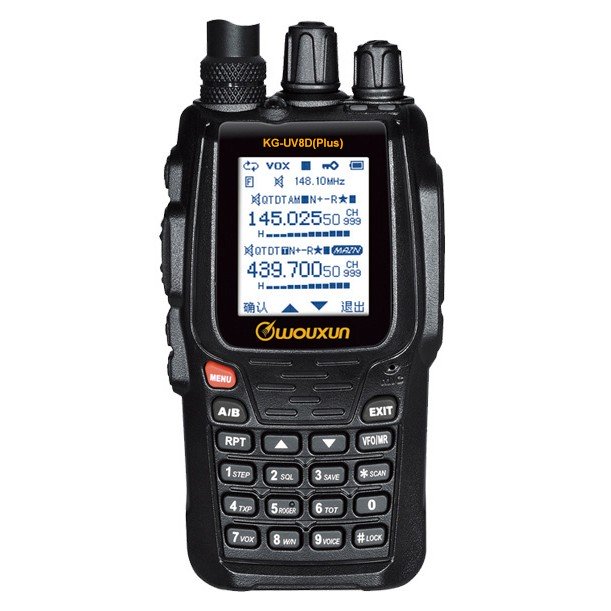

VHF-UHF handheld Wouxun KG-UV8D Plus & repeater

rating Read the review
Average rating: 5/5 Number of reviews: 1

The Wouxun KG-UV8D PLUS is a dualband VHF/UHF handheld which cover VHF amateur band 144-146Mhz and UHF 430-440Mhz in reception and transmission, with a power of 1-5 watts and VHF and 1-4W and UHF.

- Usable with radio license
- FM analog mode
- 999 channels
- Frequency step: 2.5 KHz, 5KHz / 6.25KHz / 10KHz / 12.5KHz / 25KHz / 50KHz / 100KHz
- Relay function and cross-band transponder, dual simultaneous reception
- 88-108Mhz FM radio and voice control
- 1700 mAh battery
- Autonomy: 20-24h approximately
- Programmable by computer with USB cable (optional)
- Range: 3-5 km and up to 10-15 km outdoors depending on clearance and direct view

Comes complete with: 1 Wouxun KG-UV8D Plus, 1 Li-Ion battery 1700mAh, 1 VHF/UHF dual-band antenna, 1 belt clip, 1 lanyard, 1 EU 220V charger, english manual.

More details

This material is no longer available

Download

Drivers USB Wouxun Windows

Drivers CP210x Windows 10, WIN 7 & 8 and Windows XP for any Wouxun workstation. 11.26M

Wouxun CPS for KG-UV8D+

CPS software for Wouxun KG-UV8D PLUS 1.69M

Manual KG-UV8D+ (EN)

Wouxun KG-UV8D Plus Manual in English 25.8M

Manual KG-UV8D FR

1.31M

CE RED certification Wouxun

Declaration of conformity, test report and CE certification RED Wouxun KG 8.94M

Data sheet

Features Wouxun KG-UV8D PLUS

- 999 memories
- dual band amateur version: VHF 144-146Mhz (RX / TX) and UHF 430-440Mhz (RX / TX)
- Repeater and cross-band transponder V/U
- Transmitting power: 1 or 4W in UHF / 1 or 5W in VHF
- 1700 mAh Li-Ion battery
- FM radio 88-108Mhz, LED flashlight
- SOS function, SCAN, Priority scan mode
- Dual standby and dual simultaneous reception
- Voice command
- CTCSS / DCS, 1750hz tone, DTMF
- Large LCD backlit display (adjustable)
- Backlit Keyboard
- Low battery alert, energy saver
- VOX, voice prompts, Scrambler
- Programmable via Windows PC (requires USB cable (optional)
- Programmable side keys
- Stopwatch
- Weight: 490g
- Size (without antenna): 12,5cm × 6,3cm × 3,3cm
- 2 years warranty and CE certified RED
