Handheld CRT 4CF V2 144/430Mhz + Transponder + AM Air Band 8.33Khz CRT France HT Handheld CRT-TALKIE-4CF-552 View larger

CRT France

CRT-TALKIE-4CF-552

New product

France

Handheld CRT 4CF V2 144/430Mhz + Transponder + AM Air Band 8.33Khz

The CRT 4CF (V2) licensed walkie-talkie is a 144/430Mhz dual-band handheld with 6 watts of real VHF and 5 watts of UHF on 2m/70cm amateur radio bands.

The CRT 4CF is equipped with the AM 118-136Mhz aviation band with the new 8.33K frequency step as well as the AM short-wave reception from 0.5 to 30Mhz.

VHF / UHF transponder function, retransmits in UHF a frequency transmitted in VHF and vice versa. Double reception VHF/UHF in same time.

LCD display, 2200 mAh Li-ion battery, computer programmable with optional cable.

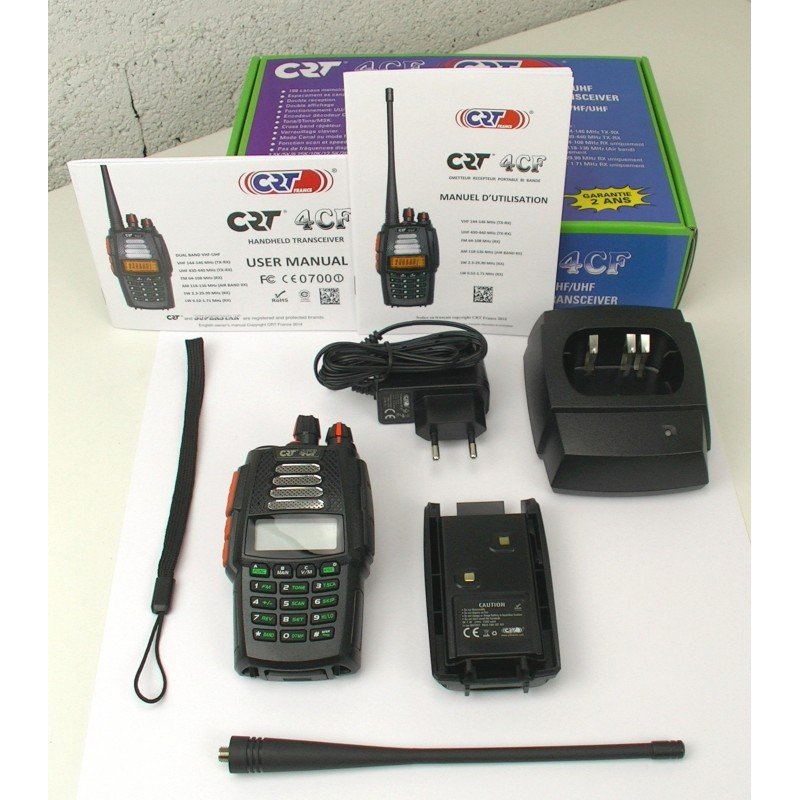

Comes complete with: CRT 4CF walkie-talkie, 220V EU plug charger, belt clip, wrist strap, 144 / 430Mhz antenna, 2200mAh battery and manual in French. 2 years warranty by CRT France.

Enhance the reach of the CRT 4CF walkie talkie with a larger antenna: Diamond Antenna SRJ77CA, Nagoya NA-771 or NA-24J, or even a magnetic antenna on the roof of the car like Diamond MRS75J or Nagoya UT-72.

More details

Download

Data sheet

Video CRT 4 CF handheld

CRT 4CF V2 Walkie Talkie Specifications

VHF / UHF mode: DOUBLE RECEIVER
Power 6 Watts VHF / 5 Watts UHF ERP
LCD display: blue, orange, purple
2200 mAh Li-ion battery
199 channels memory
Channel spacing 12.5 kHz - 25 kHz
Bandwidth 12.5K / 25K
No incrementation 2.5K / 5K / 6.25K / 10K / 12.5K / 20K / 25K / 30K / 50K / (+ 8.33K AM in aviation reception)
NEW NO FREQUENCY: + 8.33K in AM (aviation reception 118-136Mhz)
CROSS BAND REPETER: allows to transmit in UHF a frequency emitted in VHF and vice versa
FULL DUPLEX: allows to send and receive at the same time (with headset)
TONE BURST: tone used to open a relay 1750Hz / 2100Hz / 1450Hz / 1000Hz
SQUELCH: background noise suppression, adjustable in AM / FM
CTCSS / DCS (encoder / decoder) 51 CTCSS / 1024 DCS, DTMF (encoder) tone coded, to use a relay, 2TONS / 5TONS / MSK
VOX function: triggers the microphone to the sound of the voice (free hand)
TOT function: anti chat
CTCSS / DCS function SCAN Yes: code search
SCAN function: automatic search for busy channels
REVERSE function: the TX frequency changes to RX and vice versa
TALK AROUND function: allows to invert frequencies and encodings without passing through a relay or other
ALARM function: the unit will sound a siren sound and transmit this sound to the channel used
APO function: programmed automatic shutdown
SPEED SCAN function + dual reception + dual display + keypad lock and rotary switch + channel or frequency mode + UU / UV / VU / VV operation + transmit power setting
K Type Connectors
Antenna 144 / 430Mhz 18 cm
Antenna connection: SMA-Male
Dimensions 112 x 61 x 35 mm (with battery, without antenna)
Weight 285 gr (with battery, without antenna)
Warranty 2 years, CE Standards
