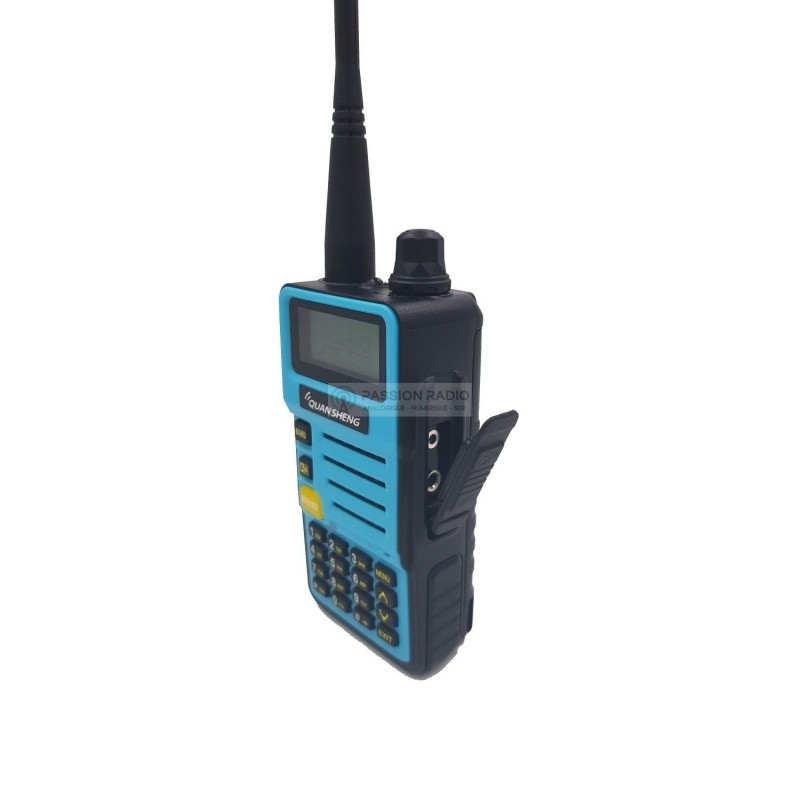

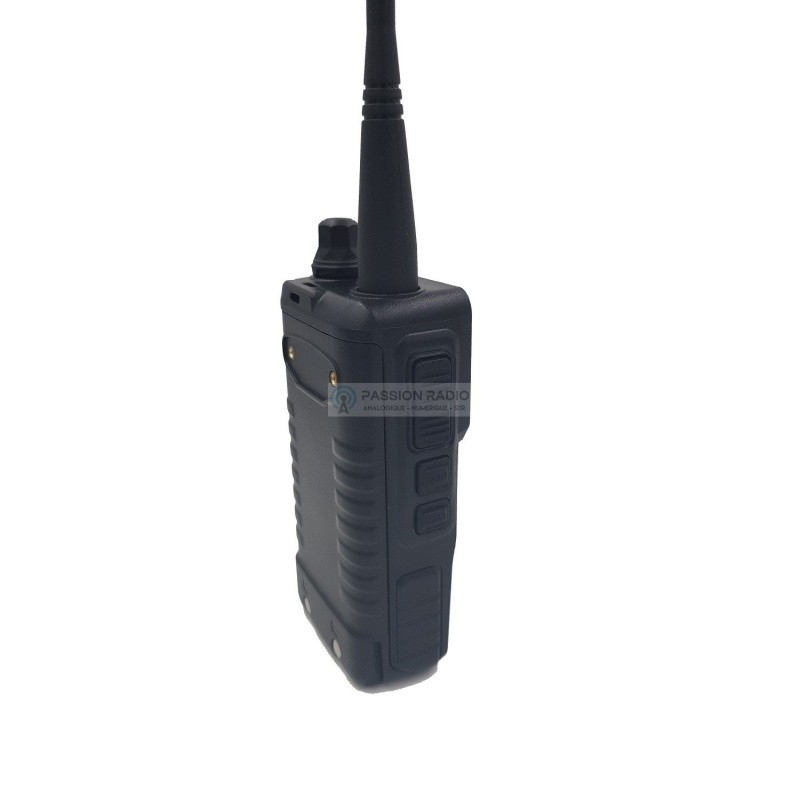

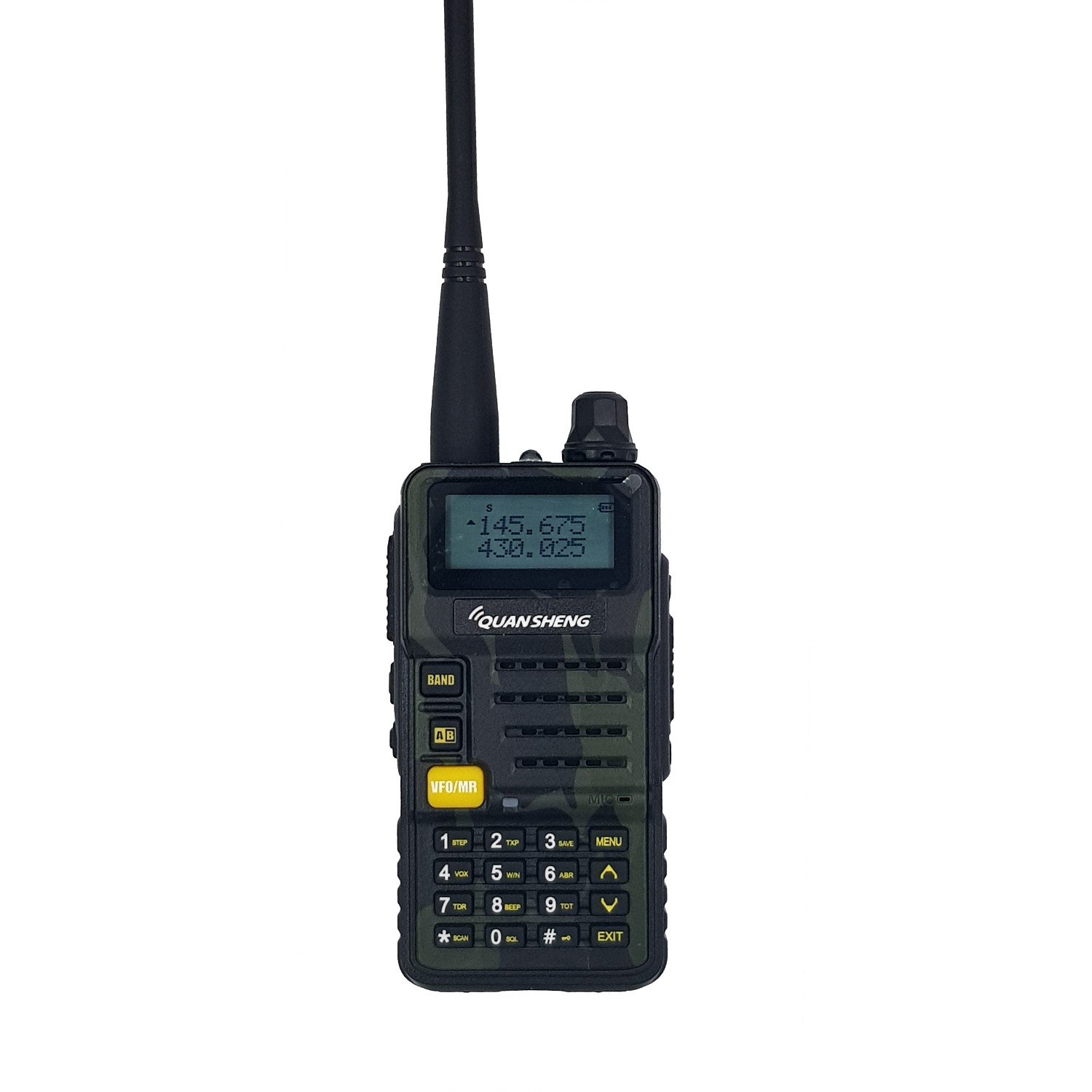

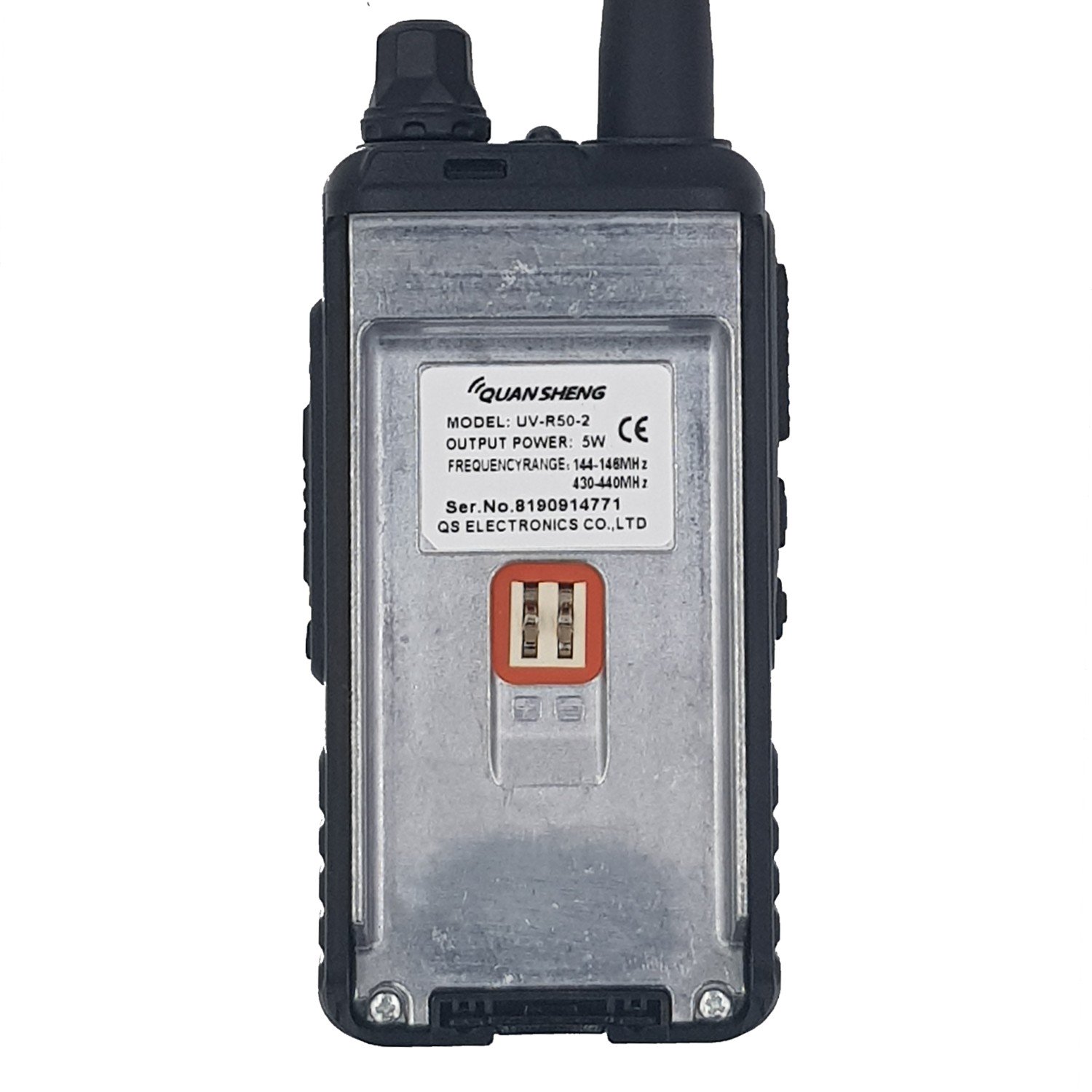

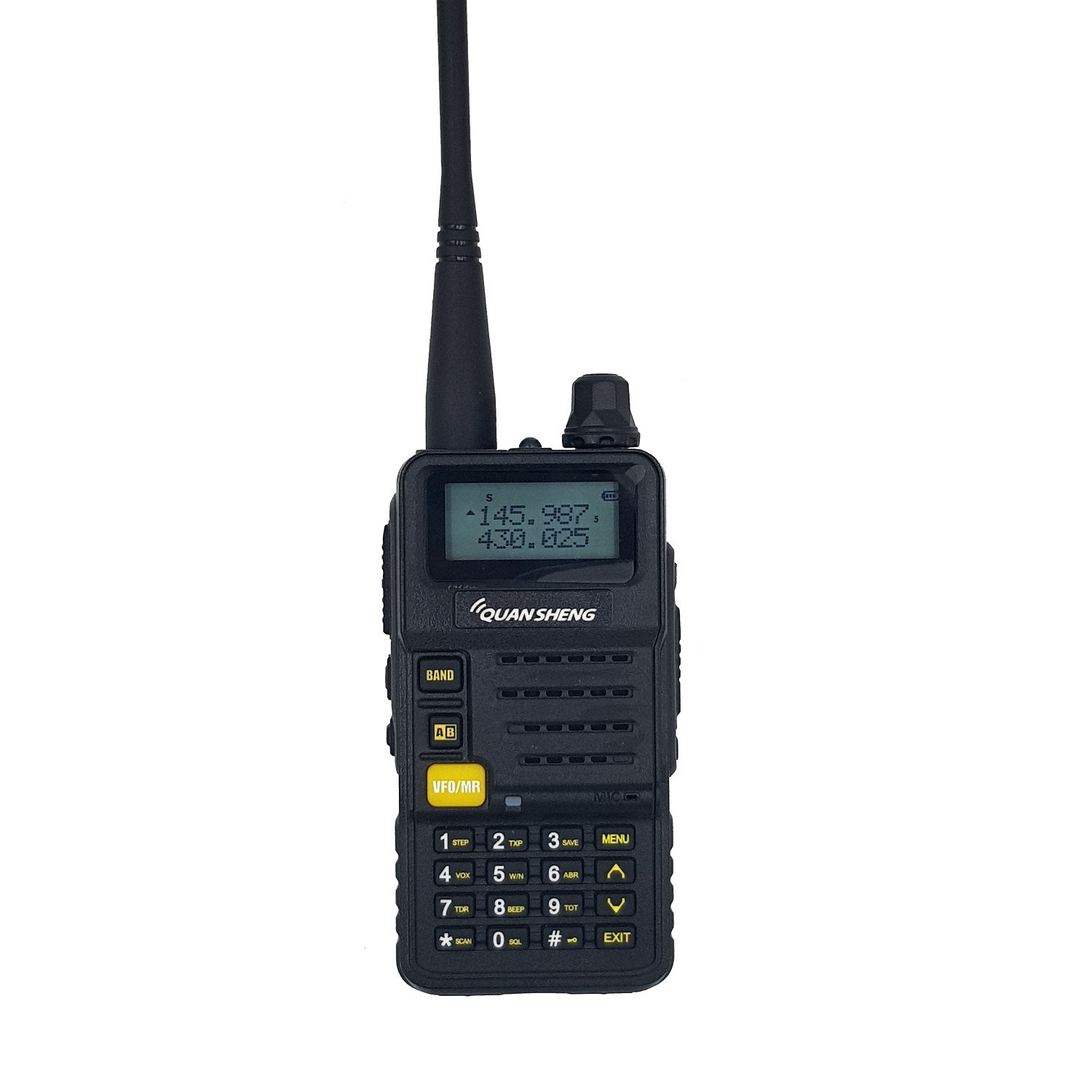

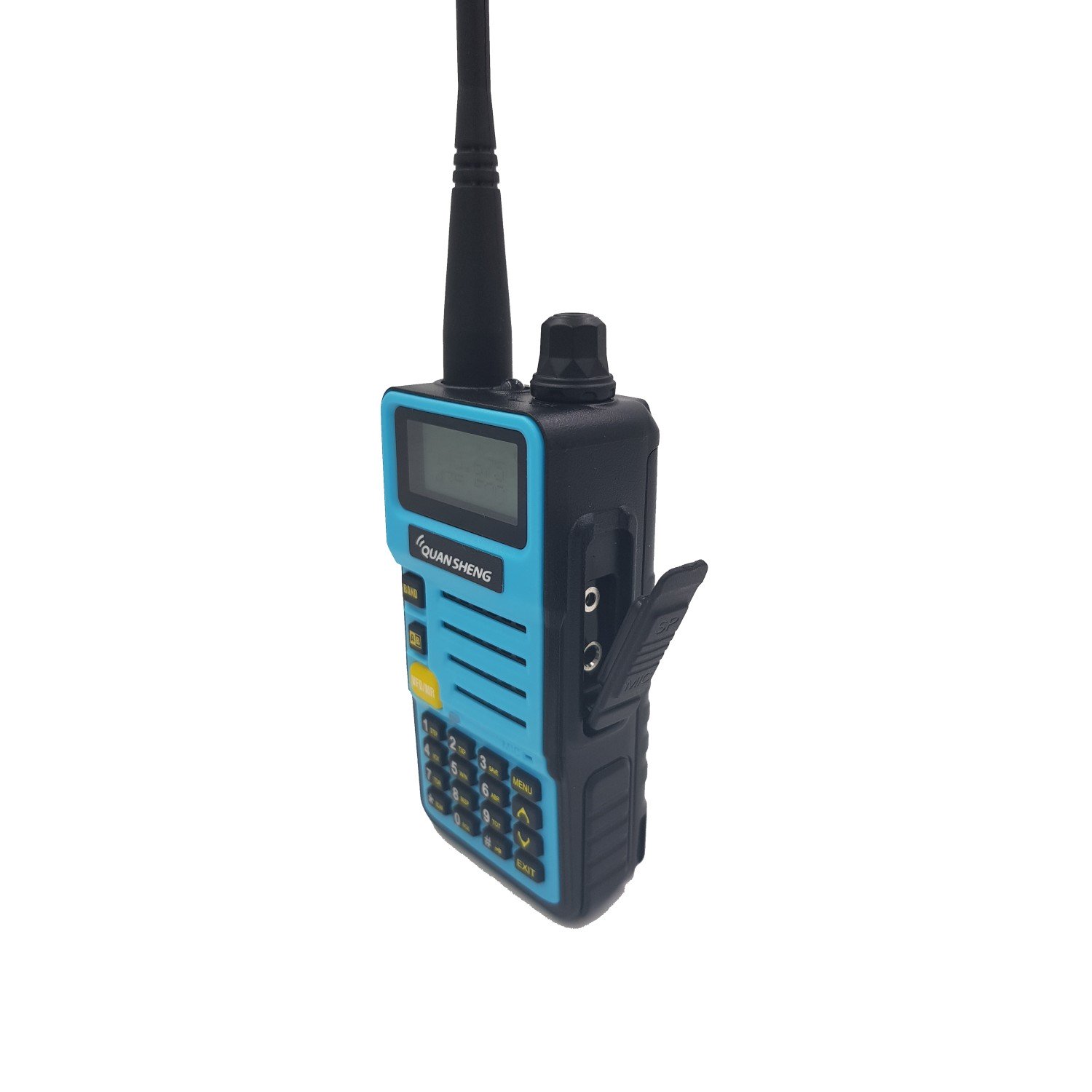

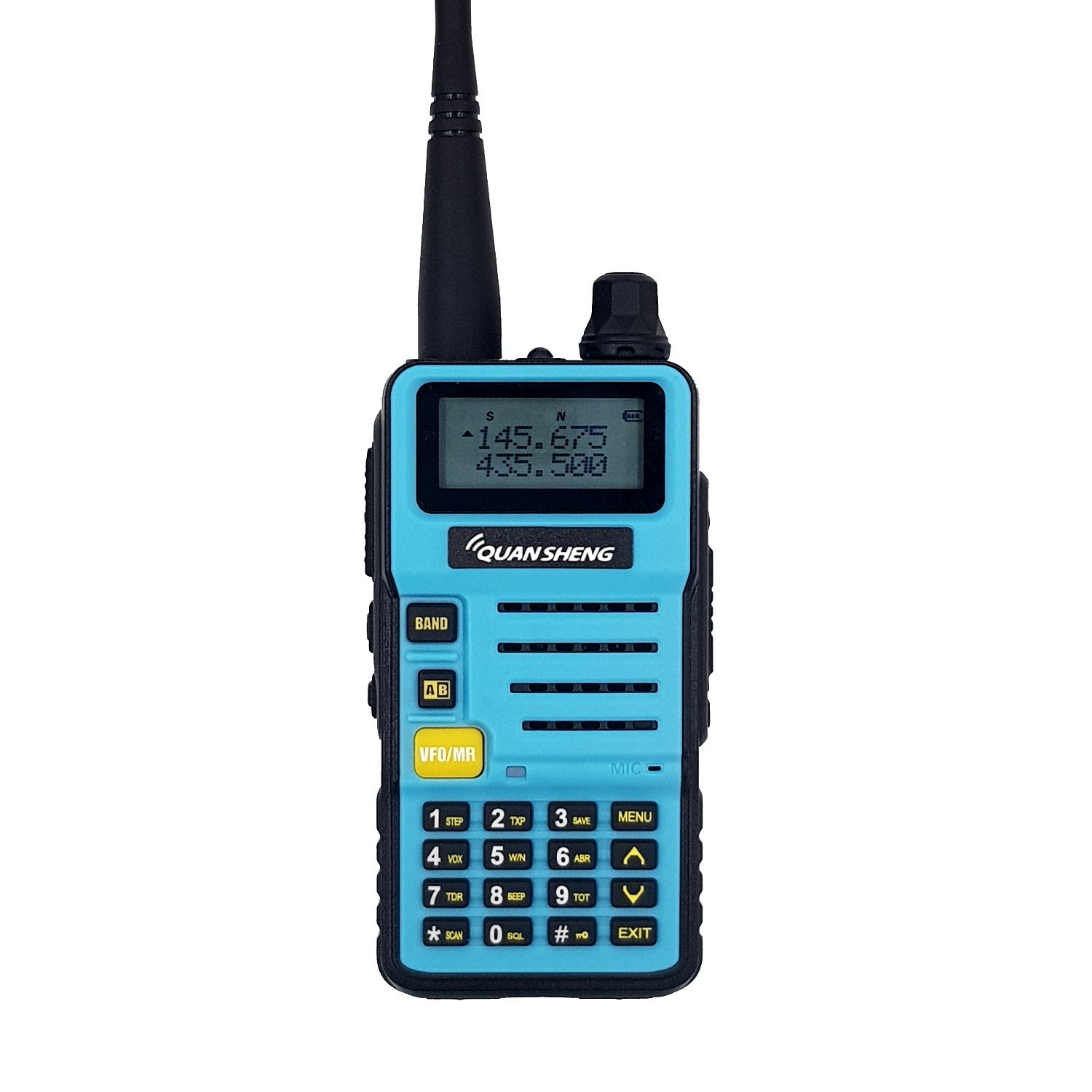

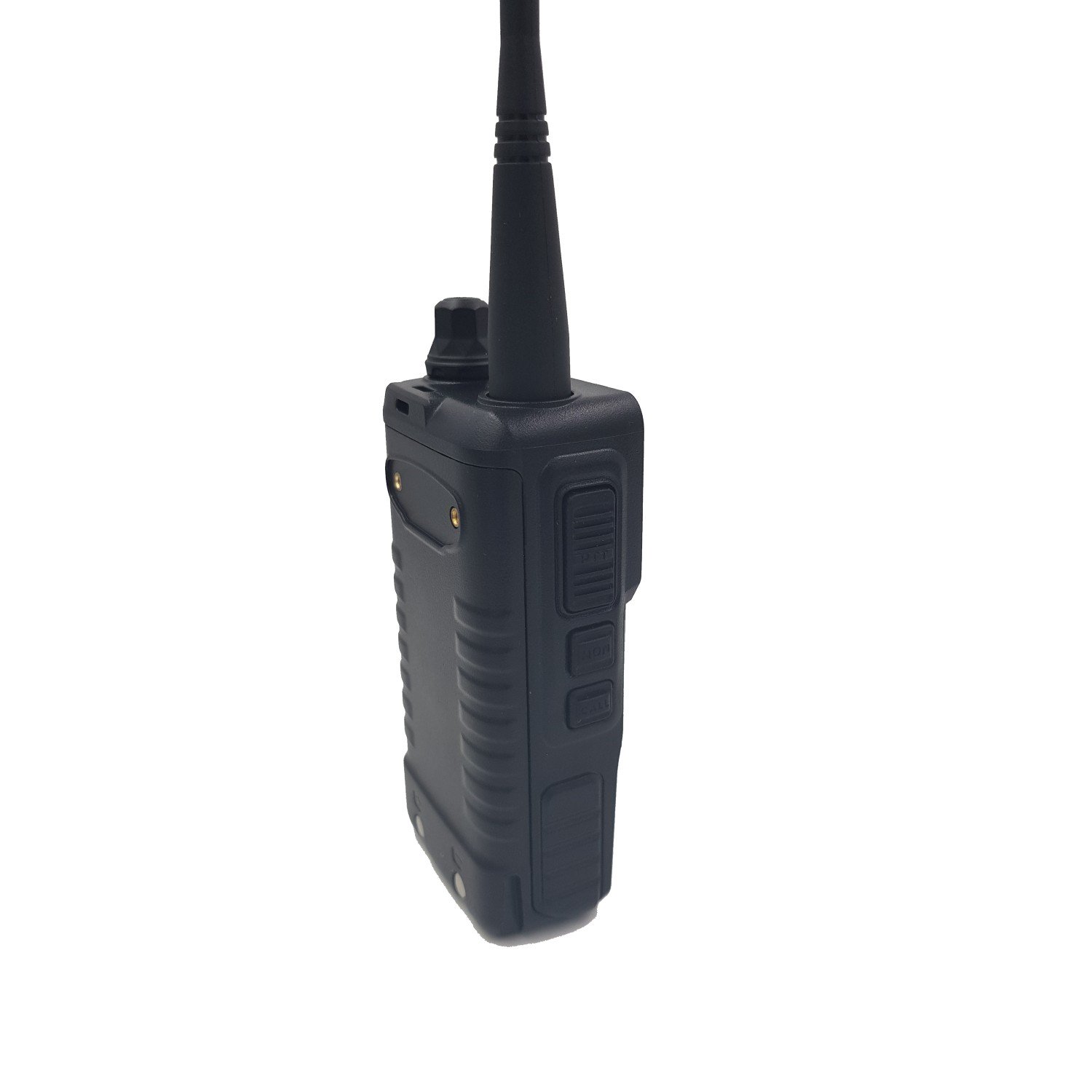

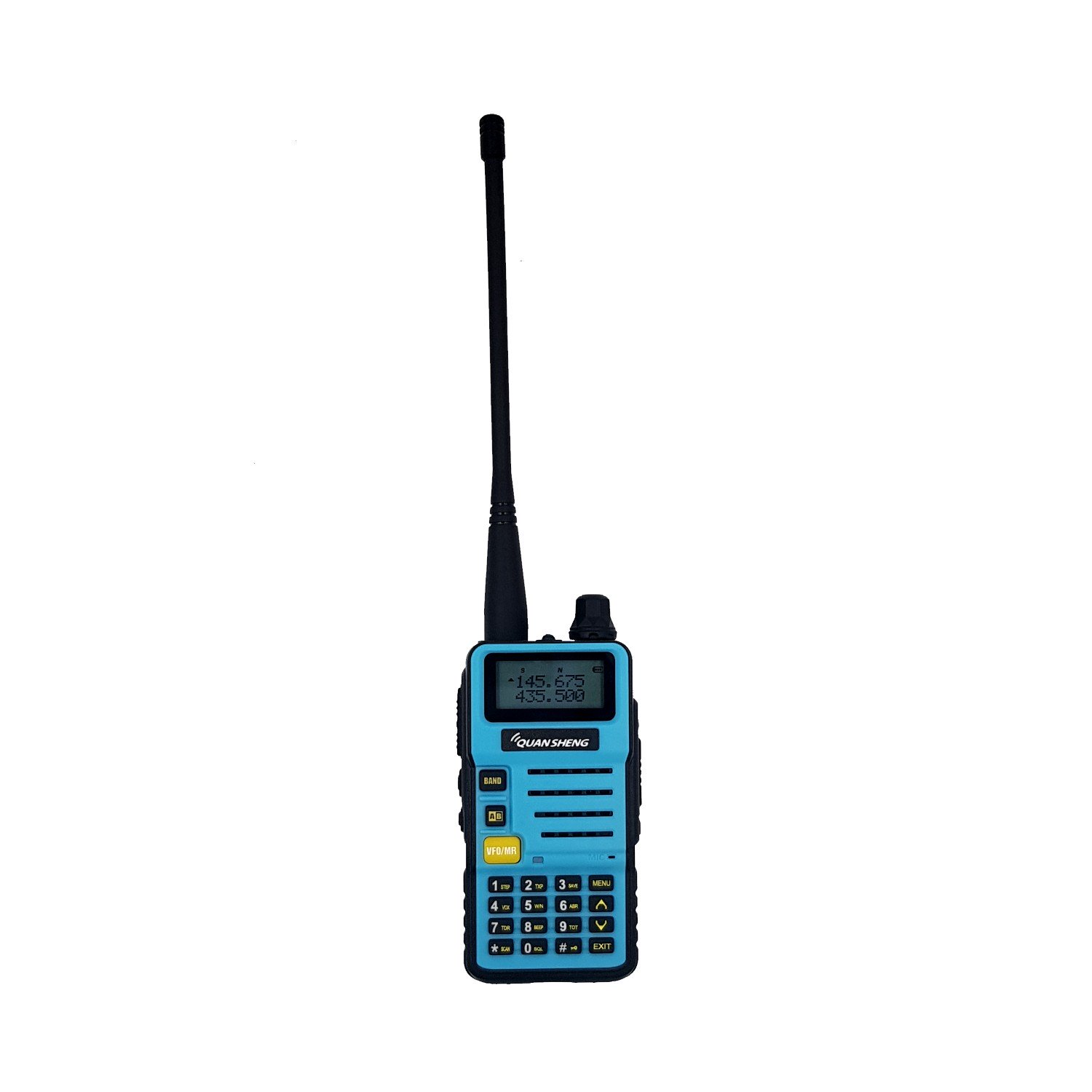

Walkie-Talkie QS UV-R50 (V2) 144-430Mhz 5W Dual-Watch

The new QUANSHENG (QS) UV-R50-2 is a 144-146Mhz and 430-440Mhz dual-band walkie-talkie in amateur radio version, with 5W max. in VHF and 4W max. in UHF.

The UV-R50 (Mark2) has the same features as the Baofeng UV-5R, with FM 88-108Mhz radio, LED lamp, VOX, 1750h, DTMF, Roger Beep and a 1500mAh battery, but a better sensitivity, which means better reception.

Optional programming cable and configuration software to download below.

Comes complete with: 1 QS UV-50-2, 1 220V desktop charger with EU plug, 1 1500mAh battery with belt clip, 1 VHF-UHF dual-band antenna, 1 strap and manual in English. 2 years warranty by Passion Radio.

More details

Download

Datasheet QS UV-R50 V2

Datasheet QUANSHENG UV-R50-2 1.53M

CPS Quansheng UV-R50

Quansheng official programming software for UV-R50 1.13M

Data sheet

Specifications QUANSHENG UV-R50 (2)

Dual band display and dual watch frequency
Frequency amateur band: 144-146Mhz and 430-440Mhz
Output power: 5W in VHF and 4W in UHF
128 channels, 50 CTCSS and 104 CDCSS
VOX, DTMF, Tone 1750Hz
Antenna connector: SMA Male (Antnene compatible are in SMA female)
FM Radio (88MHz-108MHz)
LED lamp
LCD screen
FM band: narrow 12.5KHz and wide 25KHz
Emergency alert function
2 simultaneous frequency monitoring (dual-watch)
No frequencies: 2.5 / 5 / 6.25 / 10 / 12.5 / 25KHz
Roger beep
Frequency stability: +/- 2.5PPM
Dimensions: 105 x 55 x 34 mm
Weight: 213.5g (with antenna and battery)
2 years warranty
CE RED, FCC and RoHS standards

Compatible female SMA antennas to increase distance: Diamond SRJ77CA (40cm), NA-771 (39cm) and NA-702 (30cm).

Tone 1750Hz for relays activation

To activate the 1750Hz tone and trigger the opening of an amateur radio relay, press the PTT button + the Band button.

Reminder: The use on the 144-146Mhz and 430-440Mhz amateur bands of the QUANSHENG UV-R50 walkie talkie requires a radio amateur license to be used in transmission.
