> Radio Antennas>Wide-band>GSM 700-2600Mhz magnetic antenna 9dbi
Magnetic antenna GSM 700-2600Mhz 9dbi Passion Radio Broadband ANT-GSM-39CM-314 View larger
Previous Next

RF KONNECT

ANT-GSM-39CM-314

New product

China

Online only

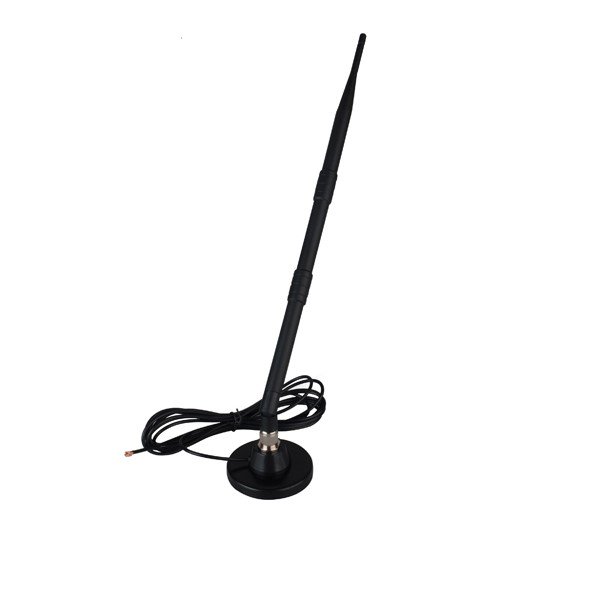

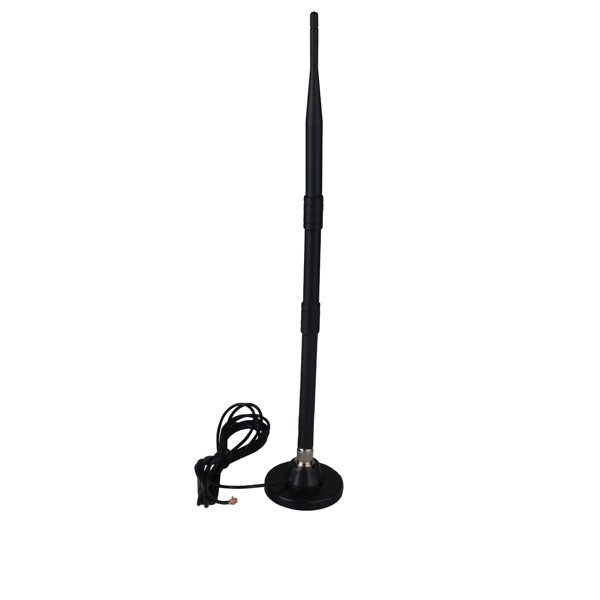

GSM 700-2600Mhz magnetic antenna 9dbi

rating Read the review
Average rating: 5/5 Number of reviews: 1

Broadband omni-directional magnetic antenna from 700Mhz to 2600Mhz, high efficiency with a gain of 9dbi, fitted with an SMA male connector and a 3-metre RG174 cable.

This antenna is particularly suitable for GSM use: GPRS / EDGE / UMTS / 3G / 4G

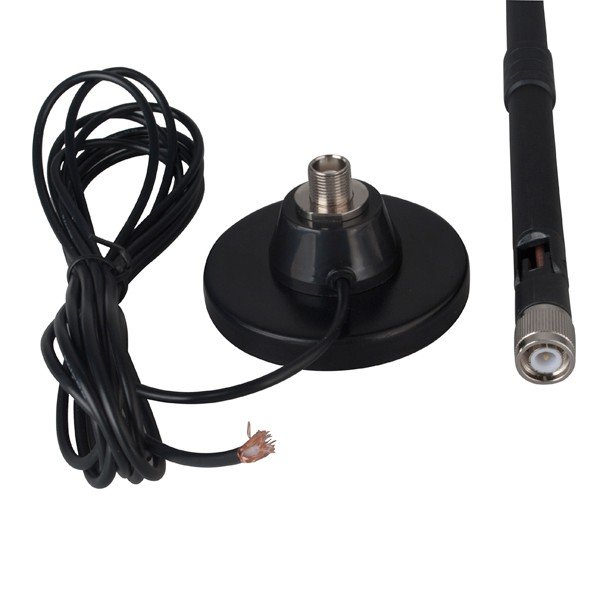

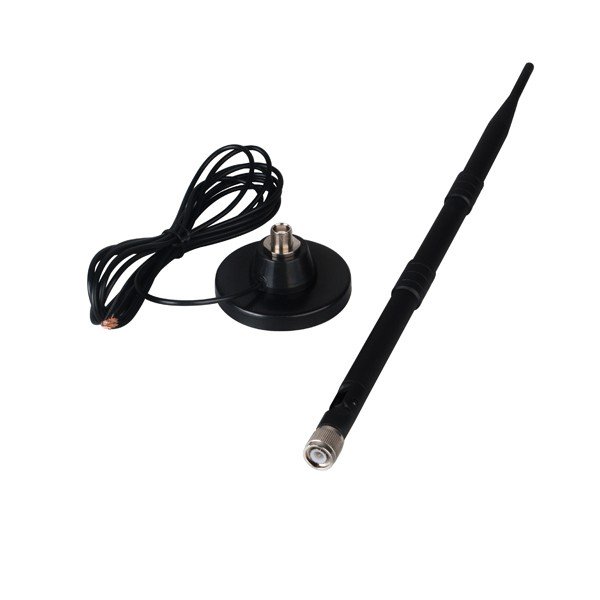

Supplied with: 1 antenna, magnetic base and cable with male SMA connector

More details

29,00 € tax excl.

In stock

   5 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

3G/ 4G / UMTS antenna specifications

Frequencies : 700 to 2600 Mhz
Gain : 9dBi
VSWR : ≤1.5

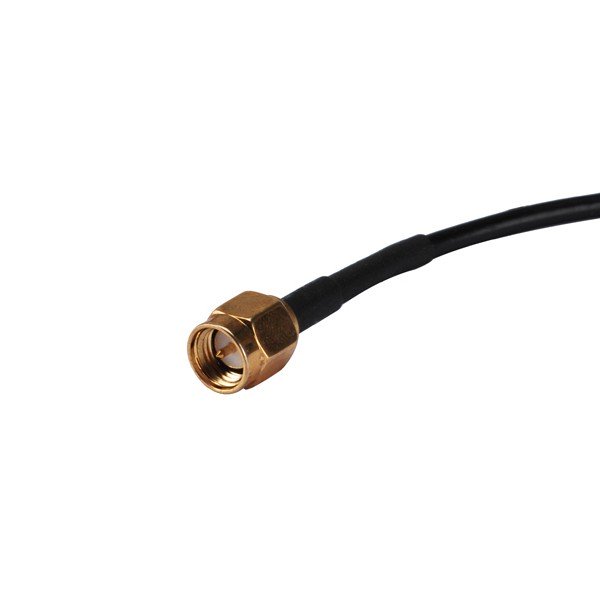

Connector : SMA male
Maximum power: 60W
Impedance: 50 Ohms
Polarisation type: Vertical
Length: 39cm
Cable length: 3 metres
Cable: RG 174 2.6mm

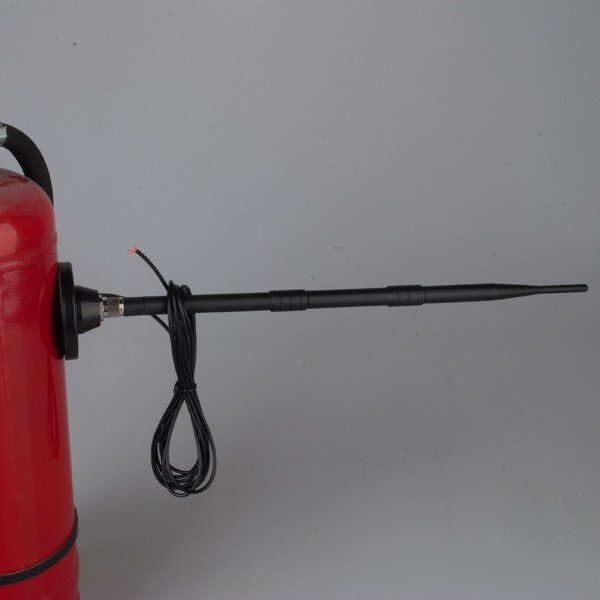

Magneticmagnetic mounting
Weight: 230g
