Nooelec RF Shield Kit for HackRF One Nooelec SDR accessory NOO-SHIED-HACK-BLANC-100624-313 View larger

Nooelec

NOO-SHIED-HACK-BLANC-100624-313

New product

Canada

Online only

Nooelec RF Shield Kit for HackRF One

rating No review at the moment

This RF shield Nooelec and component kit is specifically designed for HackRF One to eliminates EMI nearby.

Comes with: RF shield, shield frame, shield cover, GND clip testpoint, J10, and a 20 position female header for P30 (BANK2_AUX).

Delivered with: Nooelec official shield kit (Armature with metal cover, 20-position female connector).

This kit requires soldering basic skills.

More details

9,90 € tax incl.

8,25 €

tax excl.

In stock

   More than 10 Items

Order it before 10:00 of aujourd'hui and receive it between on Thursday 6th October and Friday 7th October with DHL Express 12

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

Data sheet

This kit requires basic soldering skills. Though these components are 'easy' to solder we don't recommend learning on your brand new HackRF!

The plastic enclosure included with HackRF slightly impedes the RF shield footprint area.

This can be rectified through minor modification of the plastic case, which can be done with a sharp hobby knife and a few minutes of time.

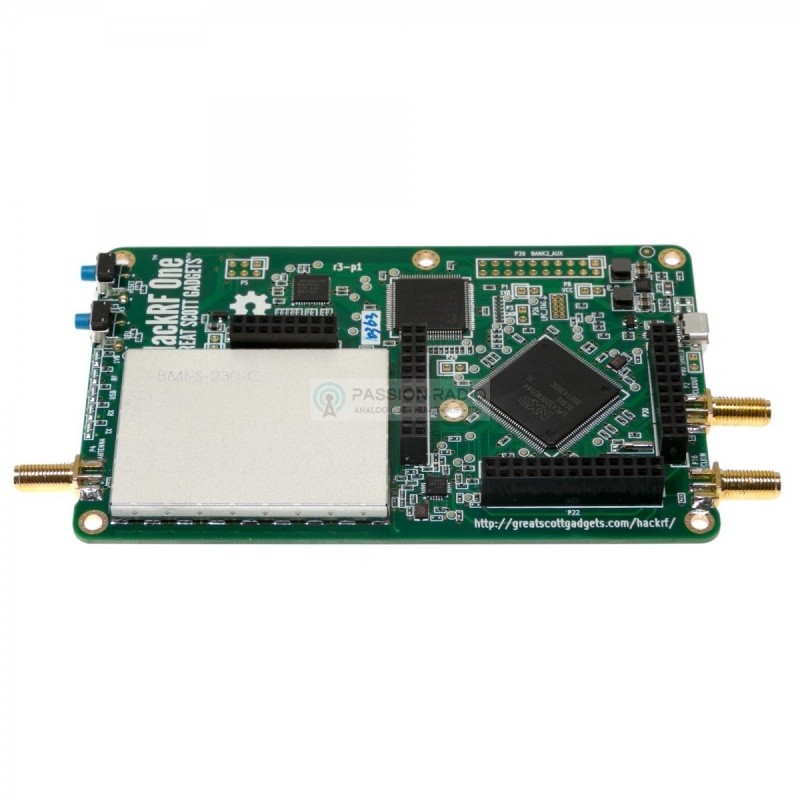

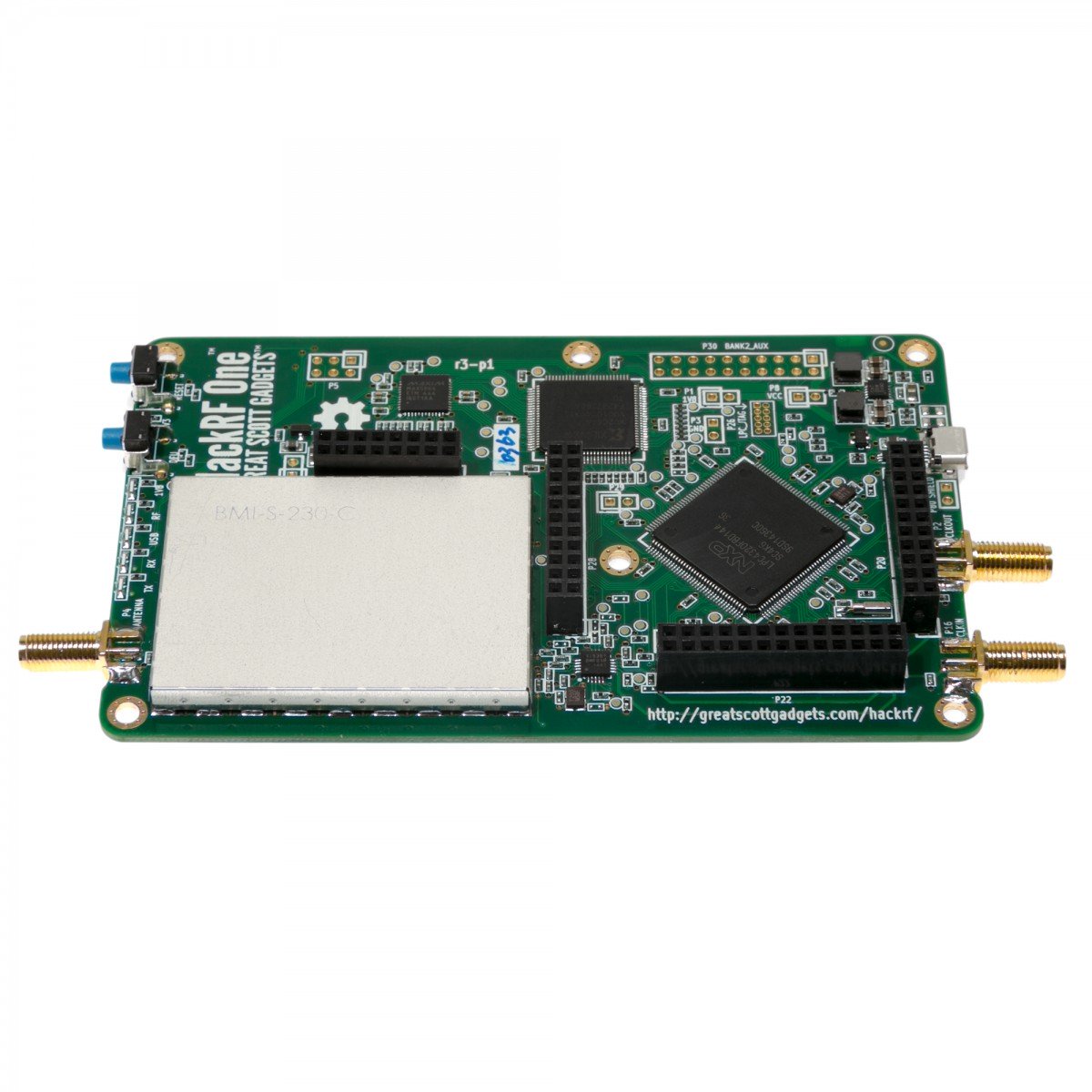

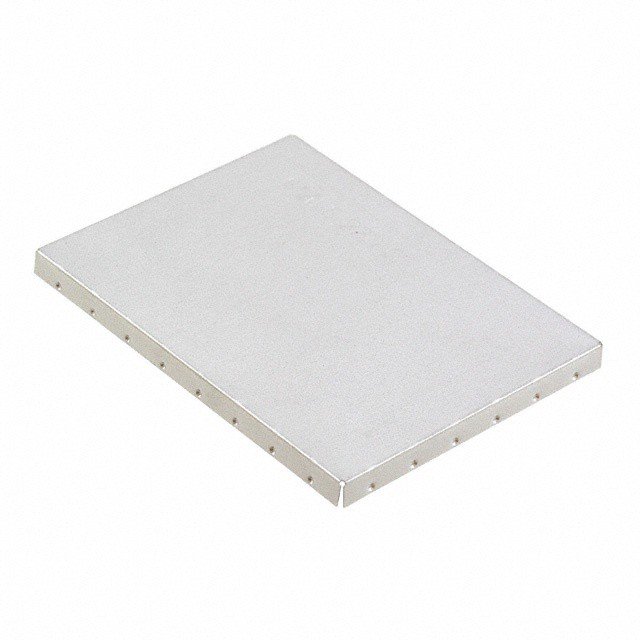

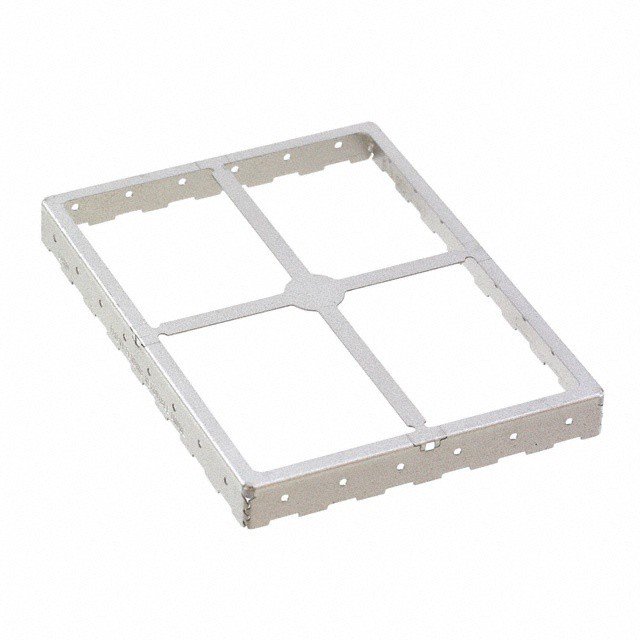

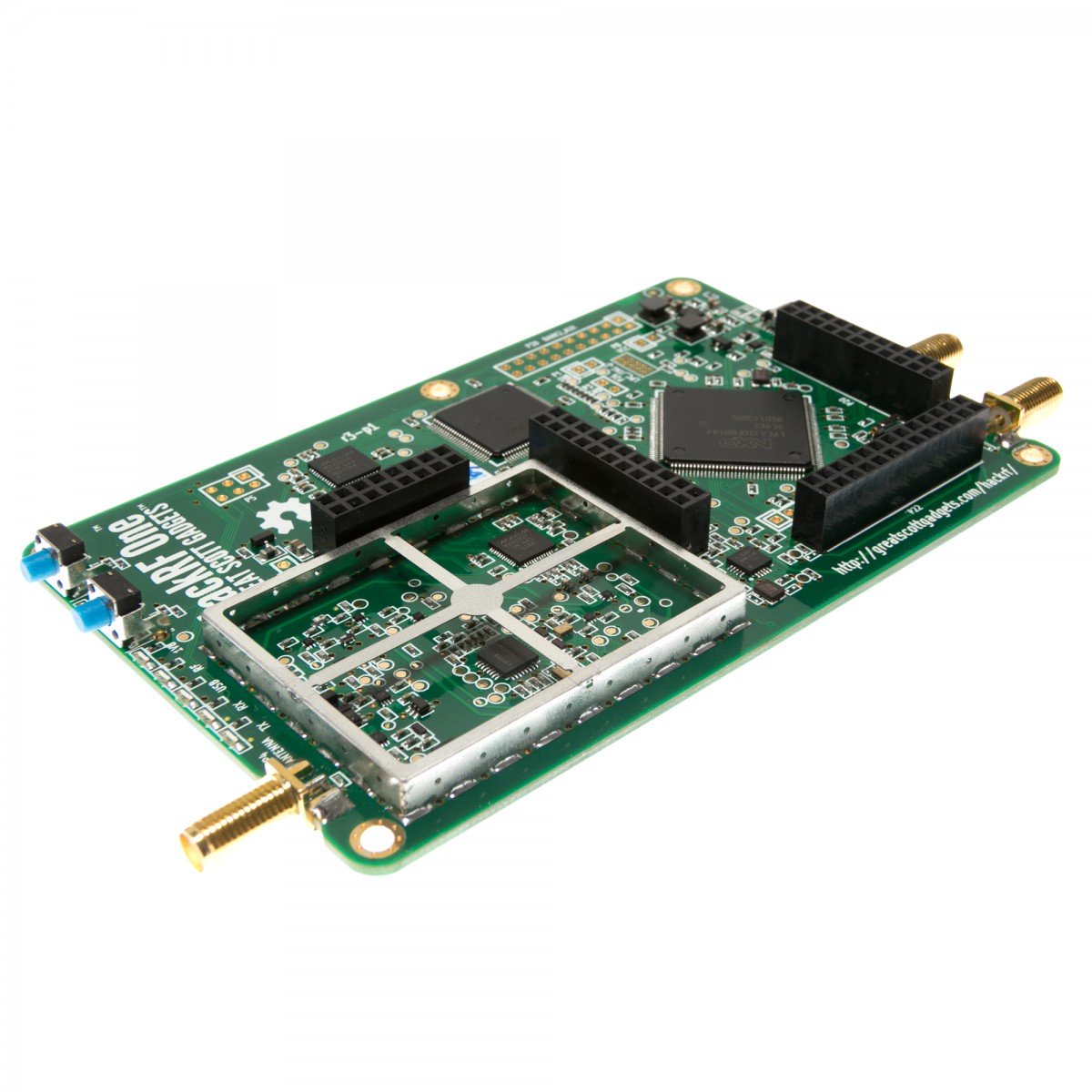

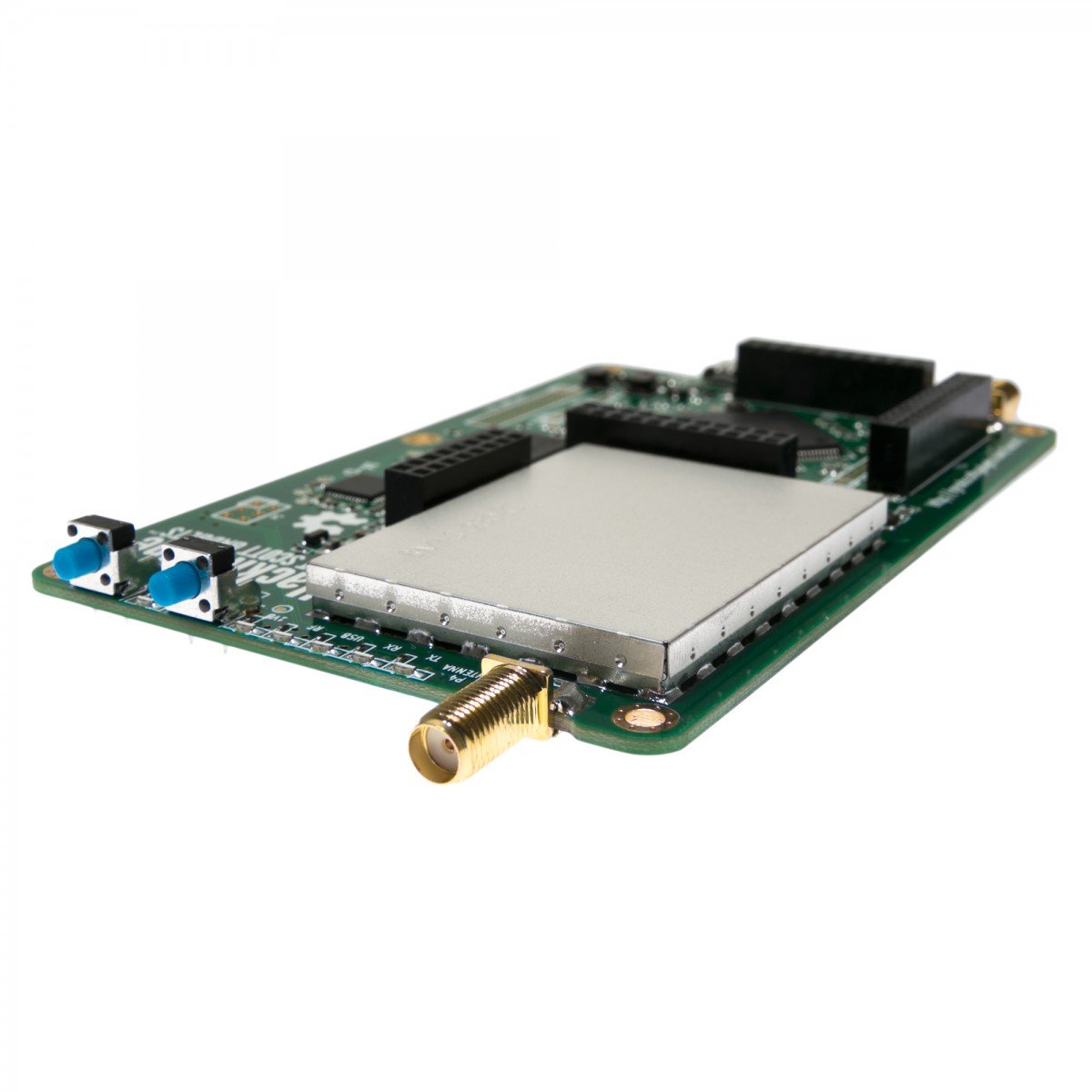

This kit contains the unpopulated RF shield for HackRF to help reduce stray EMI. The shield frame needs to be soldered to the board, and the shield cover mounts atop the frame.

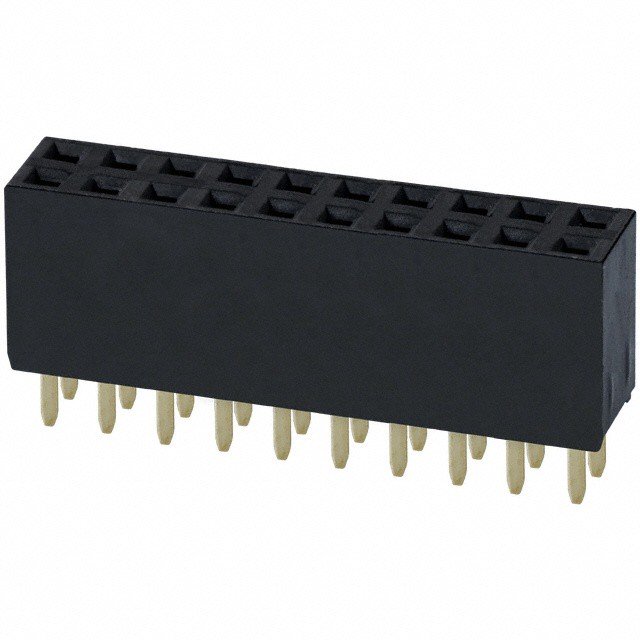

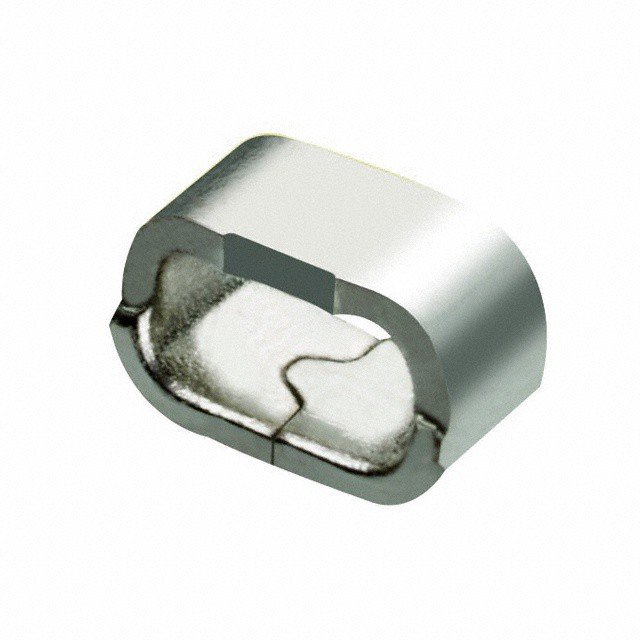

Also included is the GND clip testpoint, J10, and a 20 position female header for P30 (BANK2_AUX).
