Yaesu M-1 microphone with graphic equalizer View larger

YAESU

YAESU-M-1-1325

New product

Japan

Yaesu M-1 table microphone with graphic equalizer

rating Read the review
Average rating: 5/5 Number of reviews: 1

The Yaesu M-1 microphone is a very high fidelity dual element microphone with a nine band graphic equalizer.

The condenser microphone element produces a higher frequency response and crisp, clear audio characteristics perfect for being heard on crowd bands and in large DX pilots, while the dynamic microphone element provides rich tones in the low-midrange, favored for local QSOs.

Comes with: 1 TBC (Treble Boost Cowling), 1 microphone cable, 1 power adapter, two screwdrivers, and a user manual.

The M-1 microphone is compatible with Yaesu FT-450D, FTDX5000MP LTD, FTDX3000D and FT-818ND sets.

More details

562,50 € tax excl.

In stock

   1 Item

Download

Data sheet

The response of each microphone element can be adjusted independently using the internal nine-band graphic equalizer. Each element has a separate volume control for independent adjustment of output levels.

The output of each microphone can be selected separately or combined to produce the most pleasing tone. Both the condenser element and the dynamic element of the M-1 use the nine-band graphic equalizer (63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz). The frequency response of each element is independently adjustable. Two frequency response memories and a "pass-through" mode are provided for each element, and are easily switchable by one-touch buttons on the microphone base.

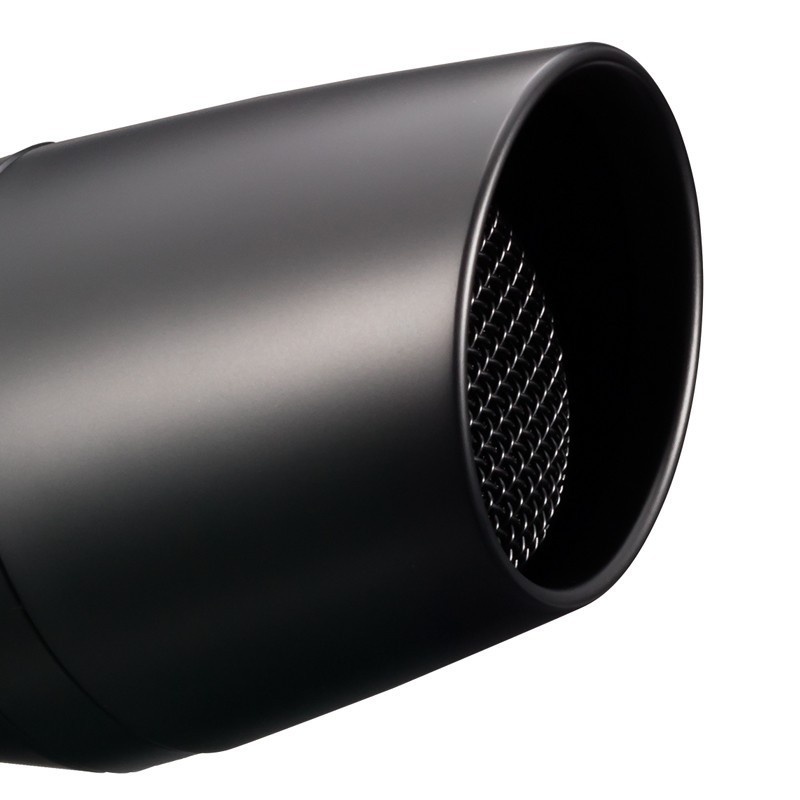

The included TBC (Treble Boost Cowling) hood improves vocal response in the wide range of 1 to 1.5 kHz.
The attachment of the cap creates a unique, condensed tonal texture that is pleasing to many.

The PTT key uses three Air-Cylinder tubes which provide a long, soft and comfortable touch. The non-contact magnetic switch ensures long life and stable operation.

Other features

Recording and playback capacity (20 seconds), to confirm audio tone,
Large red TX LED indicator,

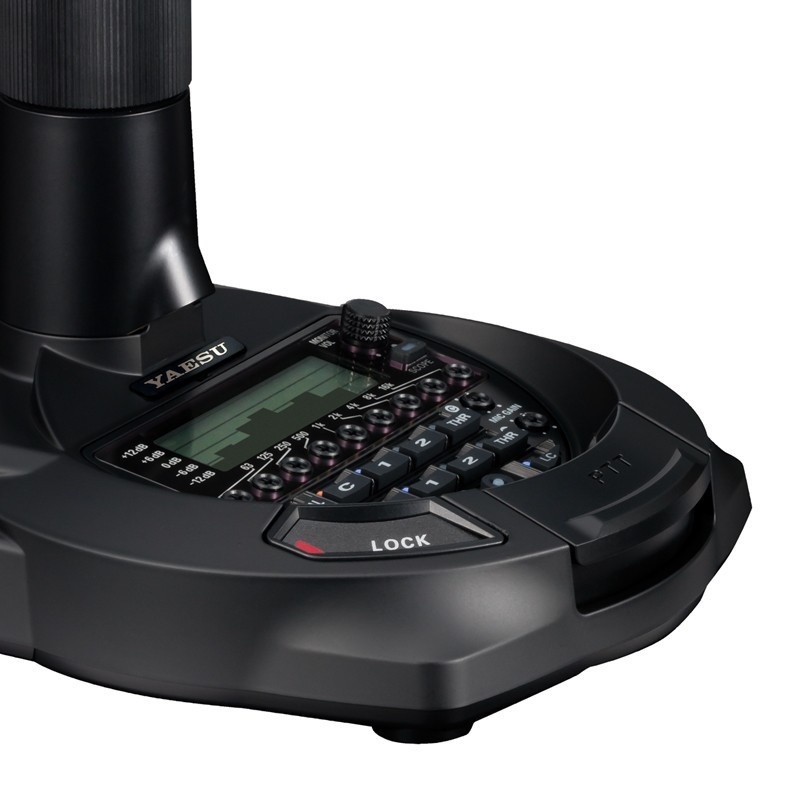

Large LCD display of graphic equalizer and frequency response oscilloscope with anti-reflective coating,
Headphone socket,
Tactile locking of the PTT key,
Built-in low cut filter to shape the low frequency response,
Cannon type output connector (XLR),
Audio output volume control for headphones.

Technical specifics

Microphone type: Dynamic microphone and condenser microphone,
Power supply voltage: DC 5.0V ± 5%,
Current consumption: 160mA ± 30mA (typical),
Frequency response: 30-17000Hz,
Sensitivity: -60dB (1kHz 0 dB = 1V / 1Pa),
Microphone impedance: 600 Ohms,
Headphone output impedance: 16Ohms (typical),
Headphone output level: 15mW (typical),
RX AUDIO IN (input level): 100 mVrms (typical),
Dimensions (W x H x D): 140 x 280 x 152 mm,
Weight: 960 g without cable.
