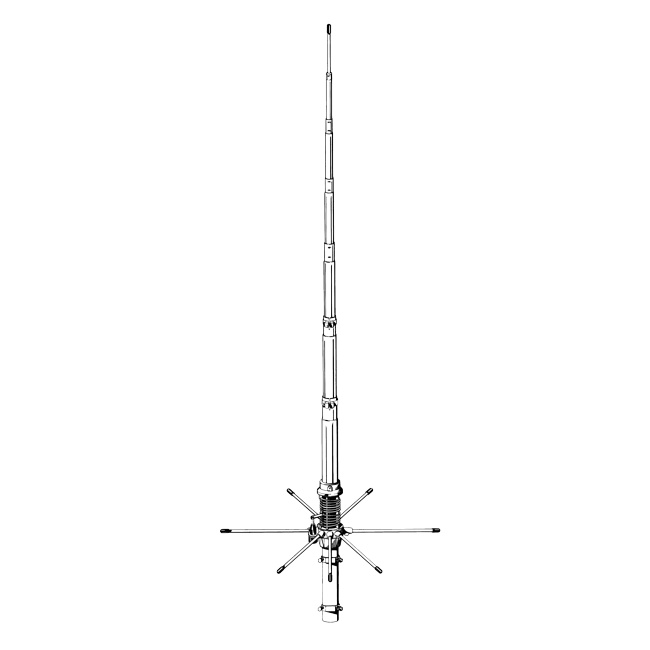

Sirio 827 5/8 wave CB antenna 26.4 - 28.4 MHz 6.7m

No review at the moment

Demander un devis

Sirio 827 CB Fixed Antenna, Omni-directional, 5/8λ, 26.4 - 28.4 MHz, length 6.7m maximum power 1000W continuous and 3000W short-time.

Connector: UHF-Female (SO-239).

Delivered with: 1 Sirio 827 CB antenna.

Delivery info: This antenna is considered a large package and the carriers apply an extra charge for shipping.

More details

Data sheet

CB 10m Base Station Antenna, Omnidirectional
Factory tuned to medium band
High power handling capability
Low beam angle for excellent DX
Equipped with an excellent multi-element ground plane
Made of 6063 T-832 aluminium alloy
DC-Ground static discharge protection
Optional radial reinforcement, NYLON noise ring (P/N 2511001.00)
Type: 5/8λ ground plane
Frequency range: 26.4...28.4 MHz tunable
Impedance: 50Ω unbalanced
Radiation (H-plane) : 360° omnidirectional
Polarisation: vertical linear
Gain: 1.5 dBd, 3.65 dBi
Bandwidth @ SWR ≤ 2: ≥ 2000 KHz (180 channels)
SWR @ resonant frequency: ≤ 1.1
Max power:
1000 Watts (CW) continuous
3000 Watts (CW) short-time
Power system / position: DC-earth transformer / base
Connector: UHF-female
Materials: Aluminium, Steel, Copper, Nylon
Wind load / resistance: 264 N at 150 Km/h / 130 Km/h
Wind surface area: 0.23 m² (0.4 sq. ft.)
Height (approx.) : 6700 mm
Weight (approx.) : 6000 gr
Radial length (approx.) : 1400 mm
Mounting mast : Ø 35-39 mm
