Bluetooth handheld microphone for QYT 8900 KT-780/980 PLUS QYT Accessories for car QYT-MICRO-BLUETOOTH-BT89-720 View larger

QYT

QYT-MICRO-BLUETOOTH-BT89-720

New product

China

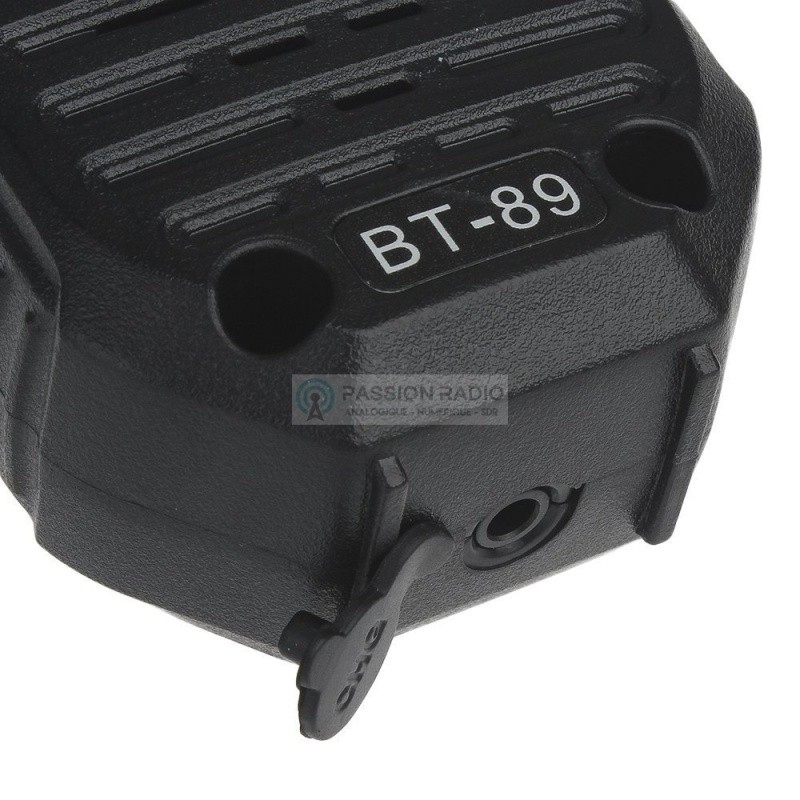

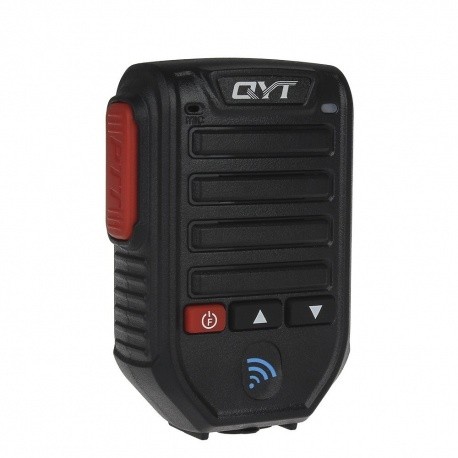

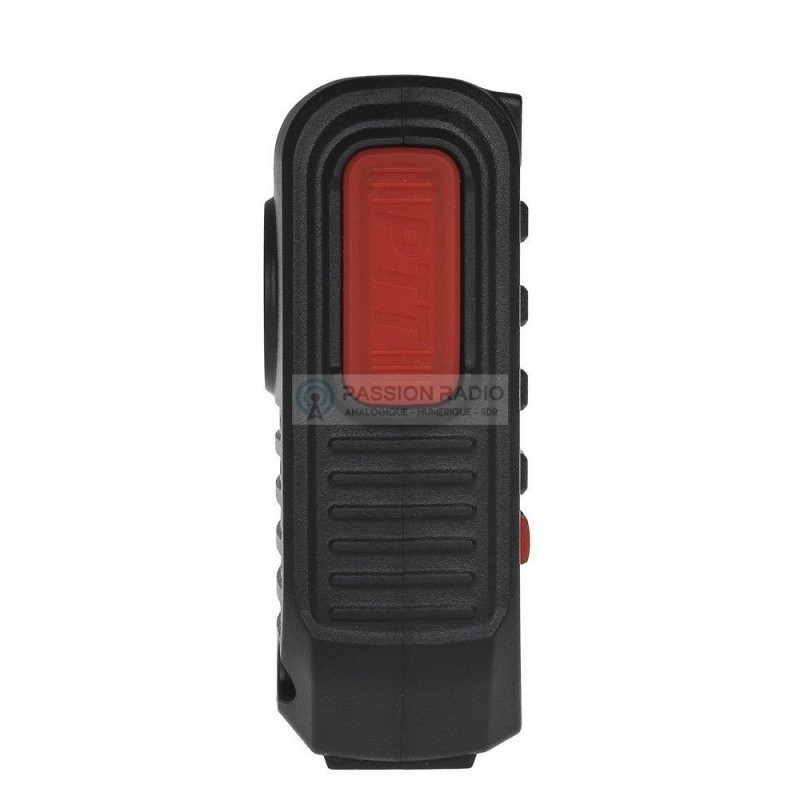

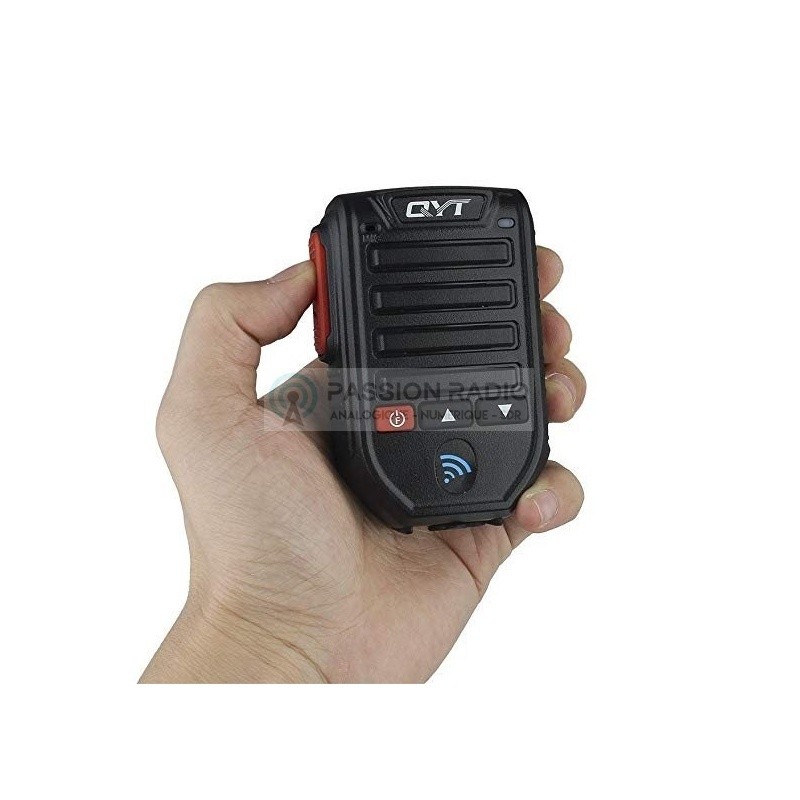

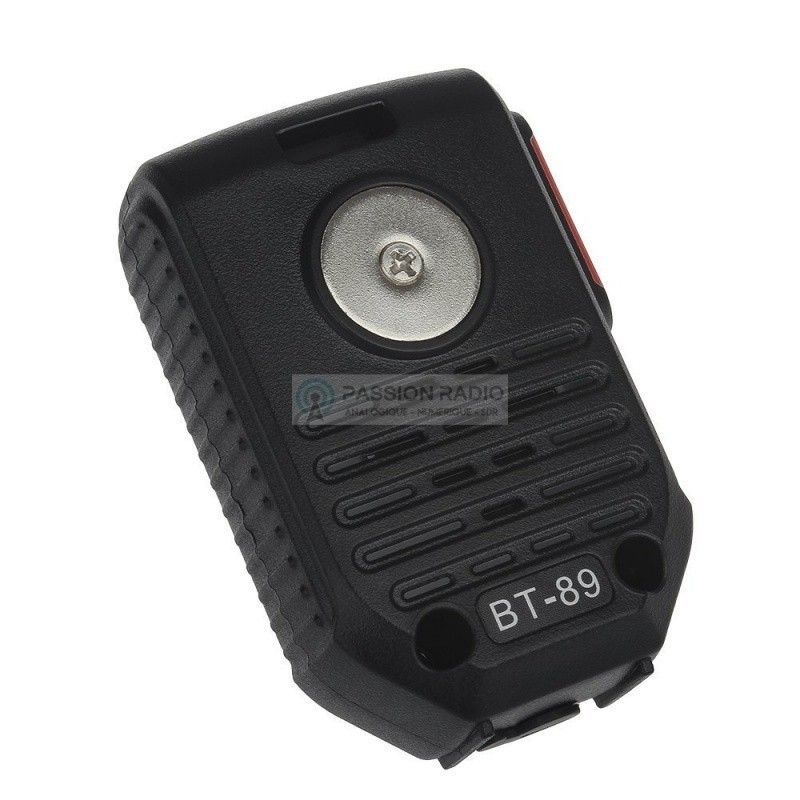

Bluetooth handheld microphone for QYT 8900 & ICOM IC-705

rating No review at the moment

This BT-89 bluetooth handheld microphone is compatible with QYT brand radios: KT-7900D, KT-8900D, KT-780 Plus and KT-980 Plus, and also with the ICOM IC-705 with which it has been tested in RX and TX audio with PTT

Reception range: 10 meters
Battery: 1400mAh
Battery life: 2 days to 1 week depending on use
Connection: Bluetooth
With speaker inside

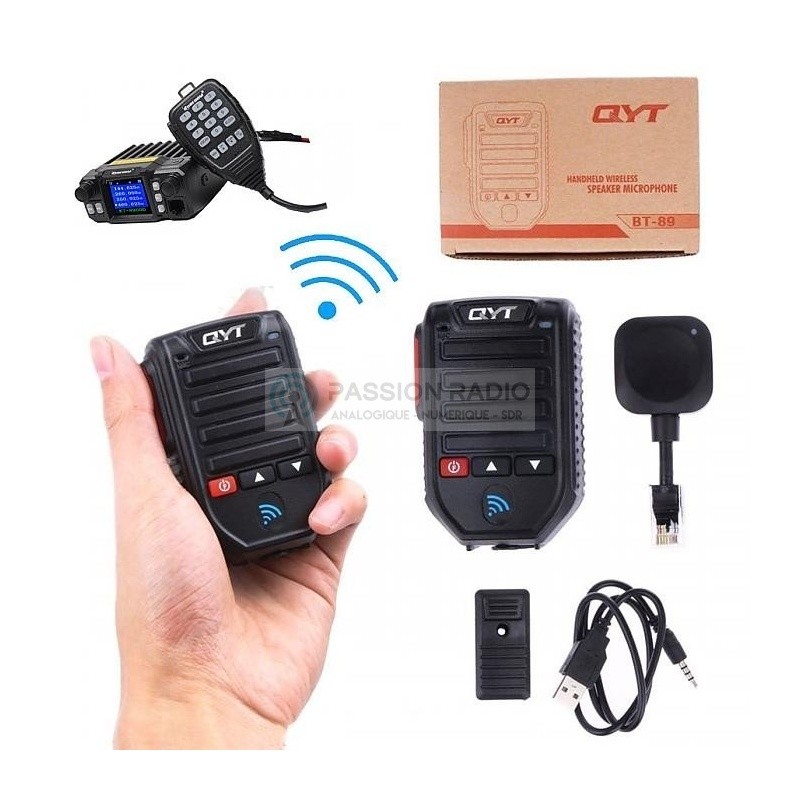

Delivered with: 1 QYT BT-89 bluetooth wireless microphone, 1 RJ45 adapter, 1 3.5mm jack and USB charger cable, 1 USB charger, 1 belt clip, 1 manual.

More details

This material is no longer available

Data sheet

How to put the sound of the bluetooth microphone speaker QYT BT-89:

KT-8900R MENU43 REP-M Choose: CARRI
KT-8900D MENU51 REP-M Choose: CARRI
KT-7900D MENU51 REP-M Choose: CARRI
KT-980PLUS MENU53 REP-M Choose: CARRI
KT-780PLUS MENU51 REP-M Choose: CARRI

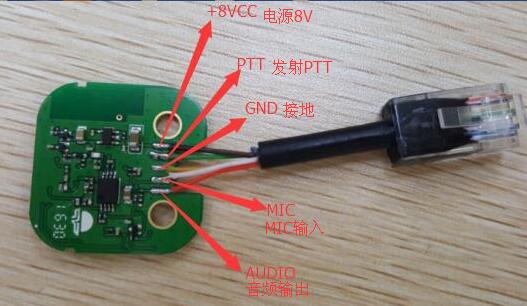

BT-89 bluetooth microphone wiring

wiring microphone qyt bt89 bluetooth

From the top:

1: + 8V VCC
2: PTT
3: Ground -
4: Micro
5: Audio
