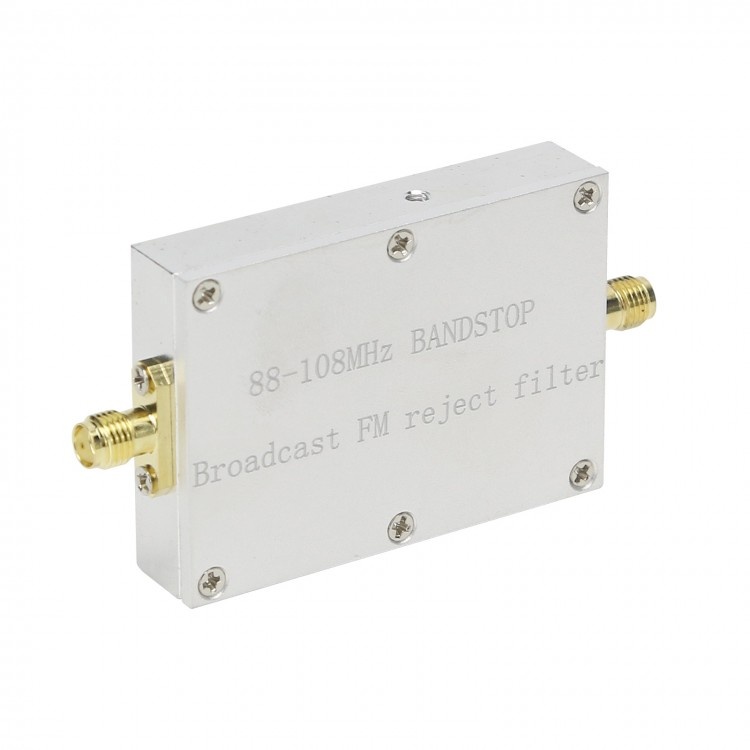

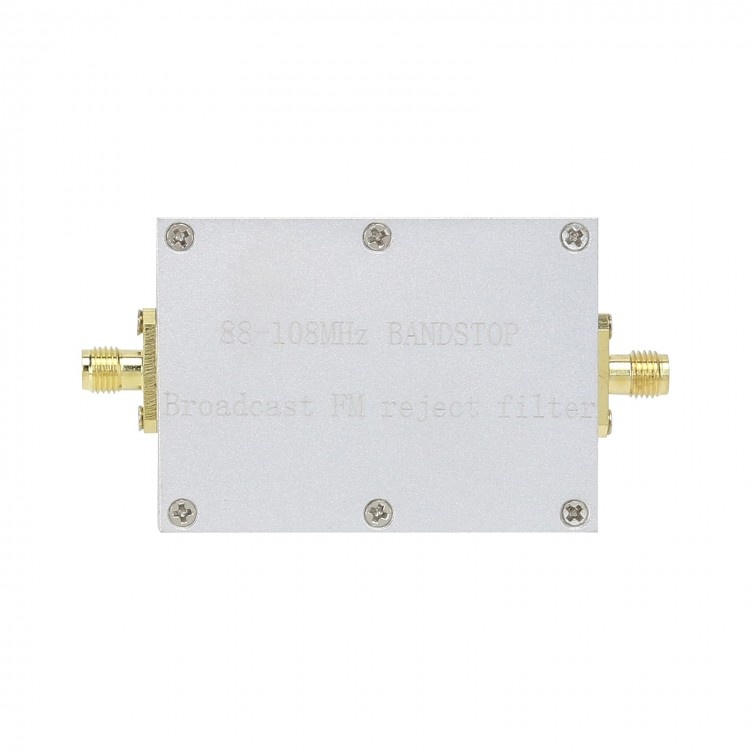

88-108 MHz bandstop filter for FM rejection View larger

RF KONNECT

RFKONNECT-FILTRE-81T611-2221

New product

China

88-108 MHz bandstop filter for FM rejection

rating No review at the moment

88 - 108MHz Band Stop Filter High Performance Band Stop Broadcast FM reject Filter with SMA Female Connector

- Blocks the broadcast FM band between 88 - 108 MHz with over 50dB of attenuation. It is designed for maximum attenuation between 88 and 108 MHz and 3dB roll-off points are at 76 MHz and 122 MHz.
- Insertion loss is less than 0.5 dB between 0 and 1 GHz. and generally less than 1.5 dB between 1 and 3 GHz.
- It uses SMA female connectors.

Note:
- RX filter only. Designed for SDR users, it can also be useful for TV users experiencing FM interference. However, TV users are advised to check spectrum analyser graphs and 3 dB attenuation points carefully to ensure that the filter will not block a TV signal of interest. For example, channels between 76 and 88 MHz could be attenuated enough to lose reception.

Included in the package:
- 1 x bandstop filter
- 1 x SMA male to SMA male adaptor

23,90 € tax excl.

29,88 €

In stock

   4 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.
