Broadcast AM Band Cut filter by RTL-SDR.com RTL-SDR.com SDR accessory FILTRE-RTLSDR-523 View larger

RTL-SDR.com

FILTRE-RTLSDR-523

New product

China

Broadcast AM Band Cut filter by RTL-SDR.com

rating No review at the moment

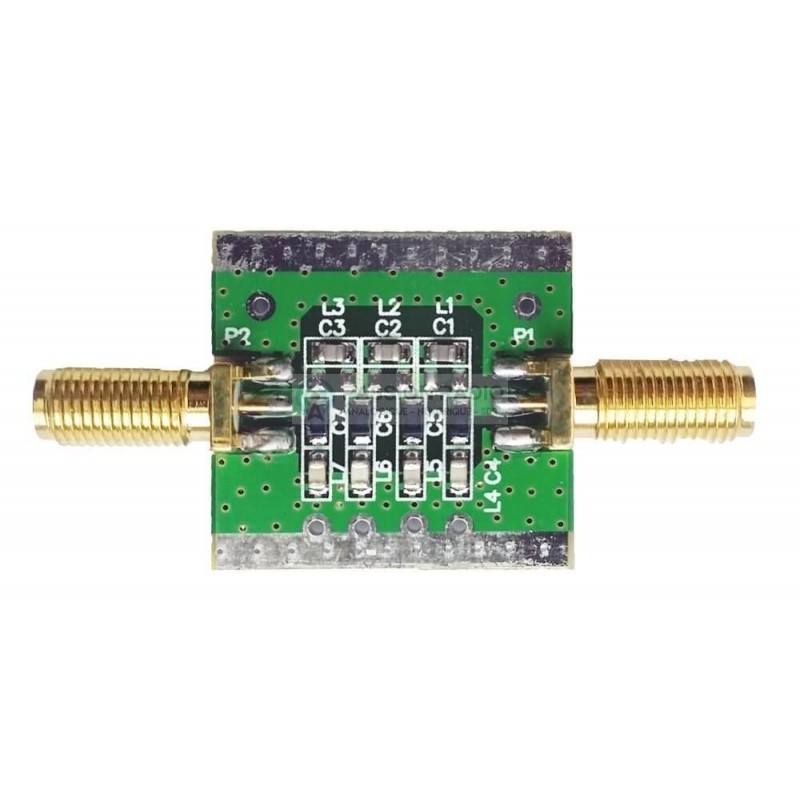

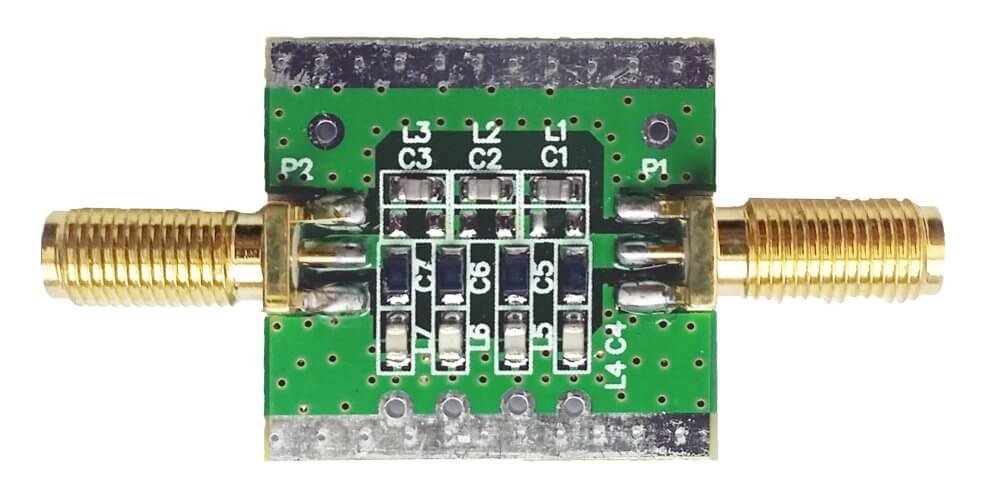

This high-pass notch filter is designed by RTL-SDR.com and rejects the AM broadcast from 500 kHz to 1.7 MHz, with attenuation of more than 50dB.

In fact, because of the attenuation, the filter is usable from 2.5 - 2.6 MHz and above.

This AM radio band rejector filter will be useful if you are subject to strong broadcast signals that disturb reception on other bands.

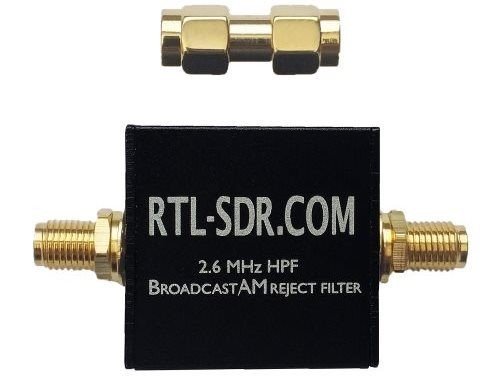

Comes with: 1 AM Band-Stop Broadcast Filter RTL-SDR and an adapter SMA-Male.

More details

22,90 € tax incl.

19,08 €

tax excl.

In stock

   More than 10 Items

Order it before 10:00 of demain and receive it between on Friday 7th October and Monday 10th October with DHL Express 12

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

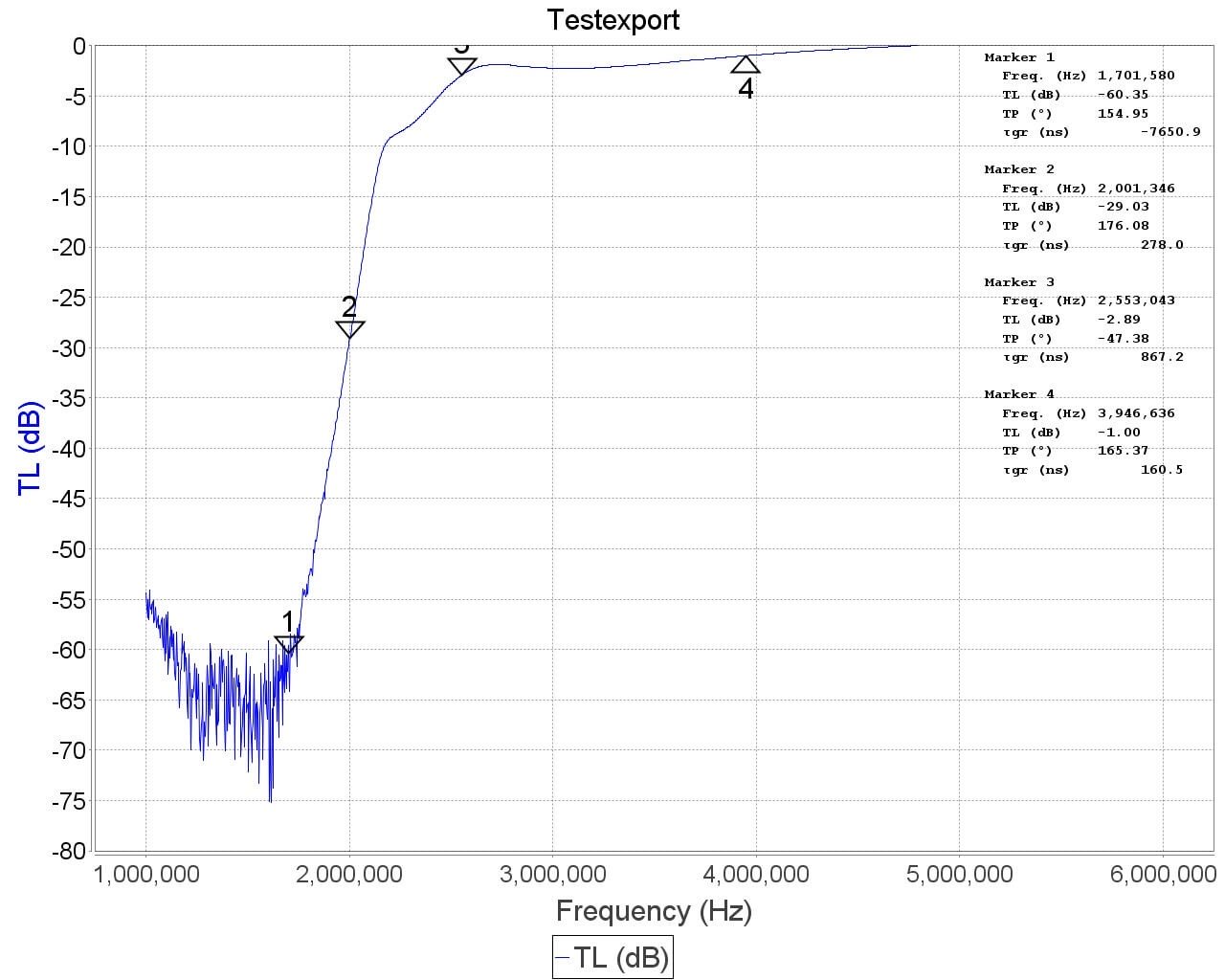

Data sheet

Filter Type: LC High Pass Filter
3 dB Cutoff: 2.5 – 2.6 MHz
Attenuation: ~60dB
Pass band I.L: Typically well below 2 dB
Power Levels: RX power only, cannot pass DC
