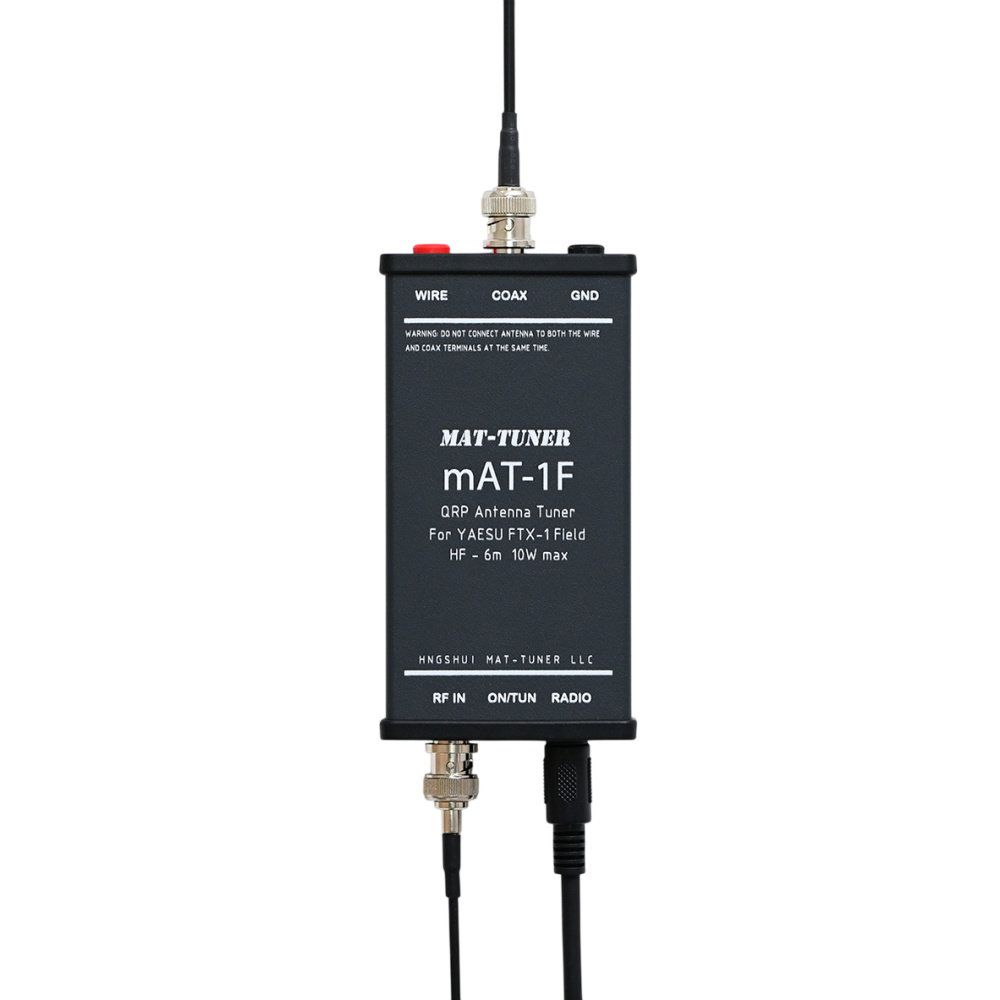

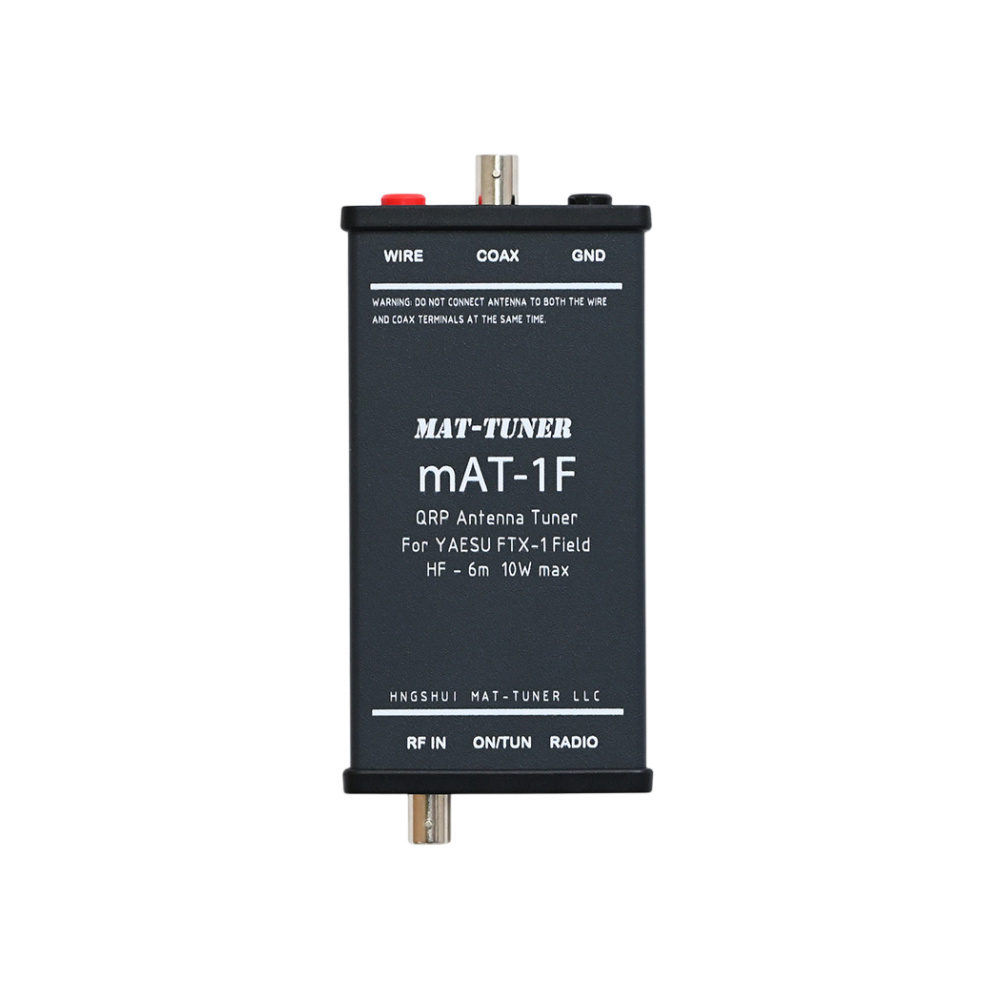

mAT-1F Dedicated Automatic Antenna Tuner Yaesu FTX-1 Field 1.8-54MHz 10W mAT-TUNER

The mAT-1F is the ideal tuning solution for Yaesu FTX-1 Field users looking for outdoor versatility and compactness. Entirely controlled from the station, it transforms your portable station into a system capable of adapting to any antenna configuration in the field.

Key features

• Total integration: Operated directly from the 'Tuner' button on the front panel of the Yaesu FTX-1 Field.

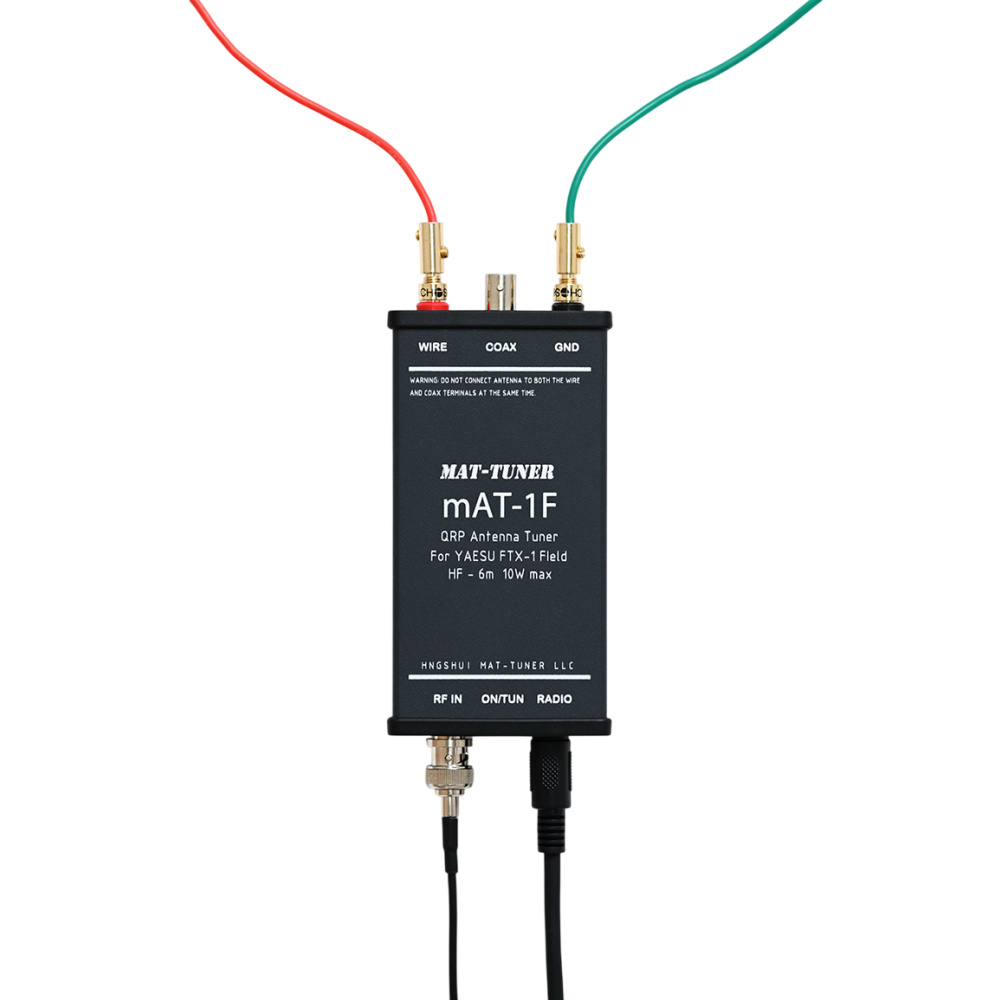

• Antenna versatility: Equipped with a BNC socket for coaxial and terminals for wire antennas, eliminating the need for an external balun.
• Massive memory: 16,000 memorized channels enable tuning in less than 0.1 seconds for frequencies already in use.
• Ultra-portable: At just 200g and compact in size, it slips easily into a field bag.
• Premium construction: Metal case with machined aluminum panel for added durability against the elements.

Technical specifications

• Frequency range: 1.8 MHz to 54 MHz
• Maximum power: 10W (SSB, CW, Digital Modes)
• Tuning impedance: 5 to 1500 Ohms
• Initial tuning time: 5 seconds or less
• Memory tuning time: &lt, 0.1 seconds
• Memory channels: 16,000
• Power consumption: 100mA max (supplied by transceiver)
• Operating temperature : -10°C to +50°C
• Dimensions: 142 x 67 x 28 mm
• Weight: 200 g

Compatibility

• Transceiver: Exclusively compatible with Yaesu FTX-1 Field.
• Antennas: Dipoles, verticals, V antennas, beams, long-wires and any antenna fed by coaxial cable or direct wire.

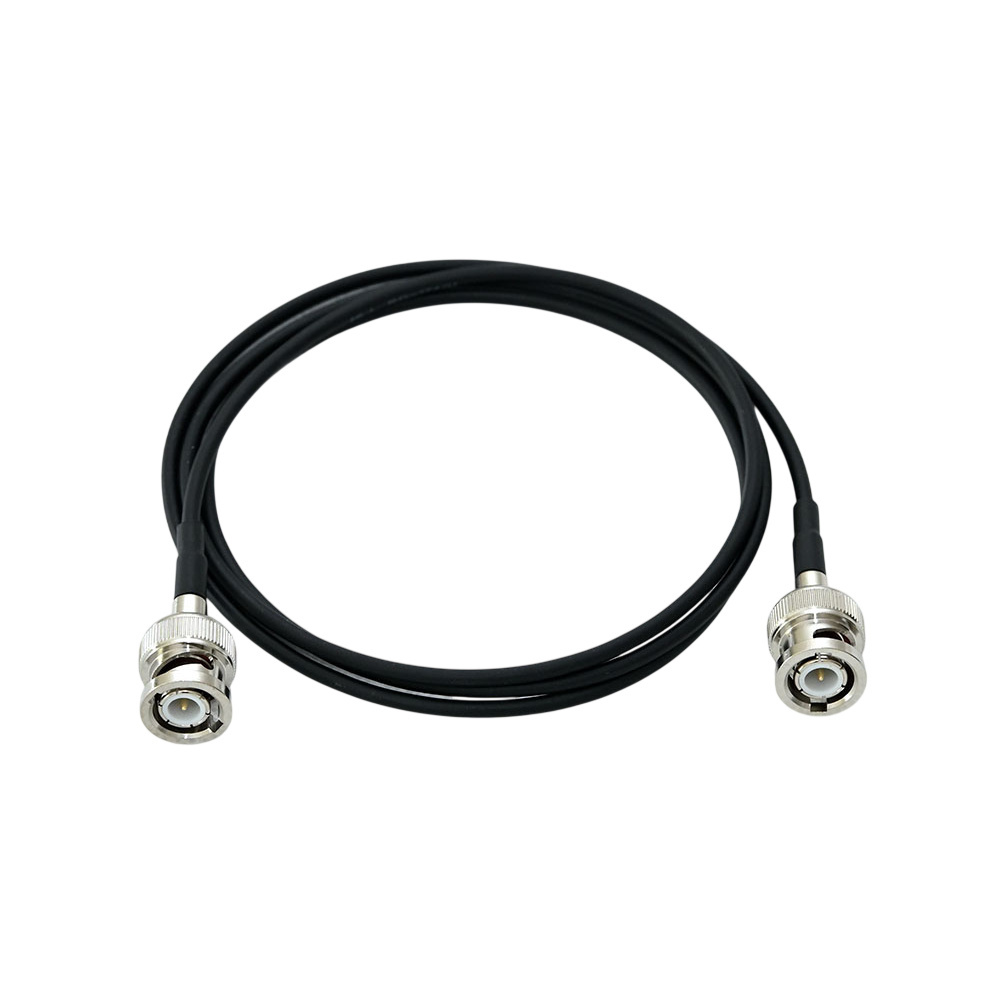

• Connections: BNC RF input, BNC antenna output or screw terminals.

FAQ

Why choose the mAT-1F Tuner?

• Ease of use: No manual configuration, the unit handles the entire tuning cycle automatically.
• Maximum flexibility: It's one of the few compact tuners with a native long-wire and BNC output.
• Energy efficiency: Thanks to its latching relays, it consumes power only during tuning, preserving your radio's battery.
• mAT-TUNER reliability: A brand recognized worldwide for the precision of its tuning algorithms and the manufacturing quality of its products.
