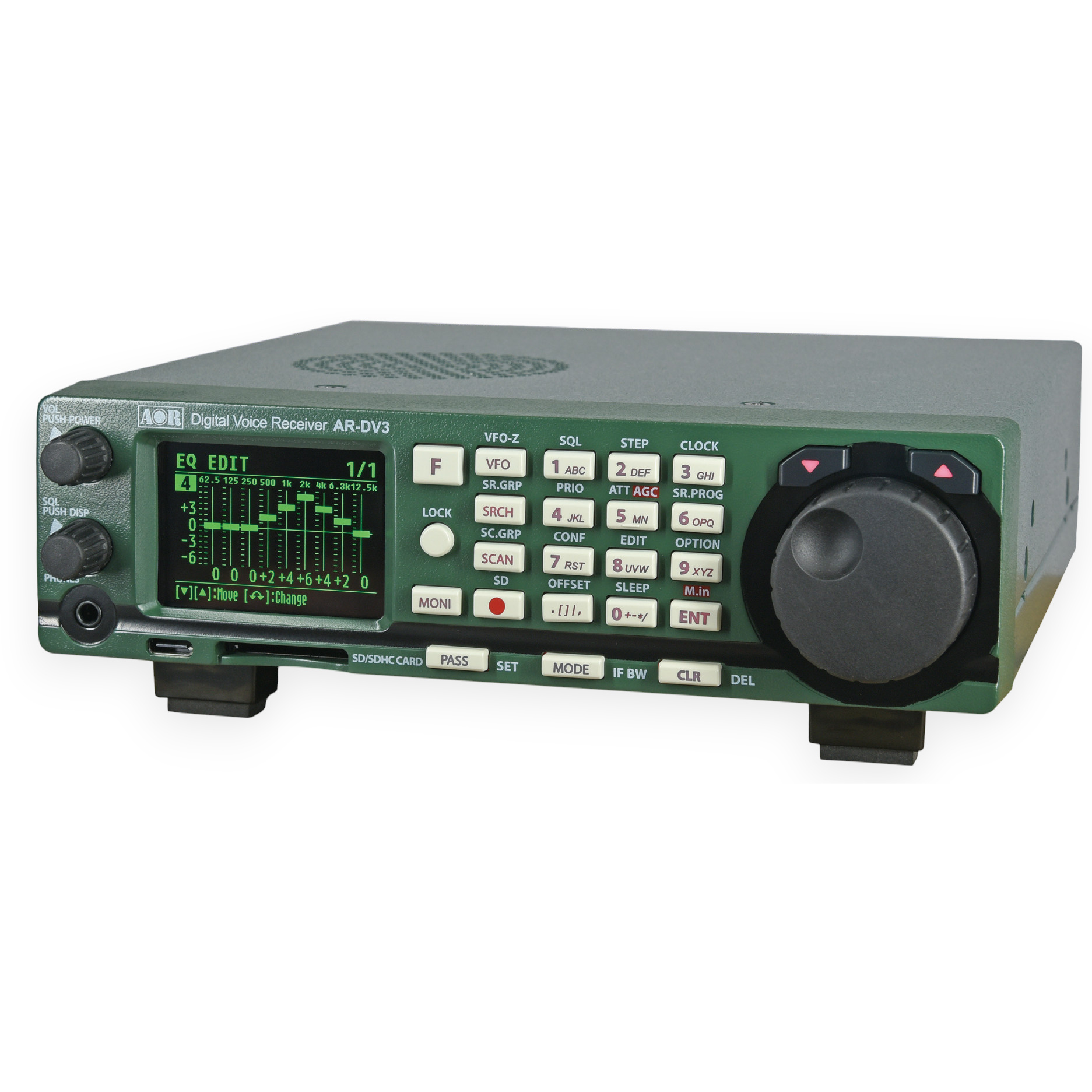

AOR AR-DV3 Digital Scanner Receiver, 100 kHz – 3 GHz, All-Mode, TETRA, DMR, P25, NXDN

The AOR AR-DV3 has established itself as the new benchmark for compact desktop receivers among monitoring enthusiasts and professionals. This model pushes the boundaries of its predecessor by offering extended coverage up to 3 GHz and unmatched search speed, while retaining the multi-mode decoding versatility for which the AOR brand is renowned.

Key Features

• Ultra-wide coverage: Scan from 100 kHz to 3 GHz, including the decametric, VHF, and UHF bands, as well as satellite and microwave frequencies.
• Digital Multi-Decoding: Automatically identifies and decodes most digital protocols (DMR, P25, NXDN, etc.) without the need for an optional card.
• High-speed performance: The Cyber Search function scans the spectrum at a rate of 600 steps per second, ideal for ensuring you never miss a brief transmission.
• Superior audio quality: Features a dedicated audio DAC and a configurable equalizer for optimal listening clarity, even in crowded environments.
• Advanced RF filtering: Uses an 11-channel bandpass filter and an IF SAW filter for excellent out-of-band interference rejection.
• Flexible Power Supply: Supports the USB-PD (Power Delivery) 15V standard via the USB-C port, making it easy to use with an external battery or a modern power adapter.

Technical Specifications

• Frequency range: 100 kHz to 3000 MHz (minimum step size of 10 Hz).
• Analog modes: AM, Synchronous AM, FM, NFM, WFM, SSB (USB/LSB), CW.
• Digital modes: TETRA (DMO/TMO), DMR (Tier 1/2), P25 (Phase 1), NXDN, dPMR, D-STAR, C4FM (Yaesu), Alinco (EJ-47U).
• Architecture: Direct-conversion SDR (0.1–18 MHz) / Double-conversion superheterodyne (18–3000 MHz).
• Scan speed: Cyber Search up to 600 steps per second.
• Memory: 2,000 programmable channels (50 channels × 40 banks).
• Frequency stability: ±1.0 ppm.

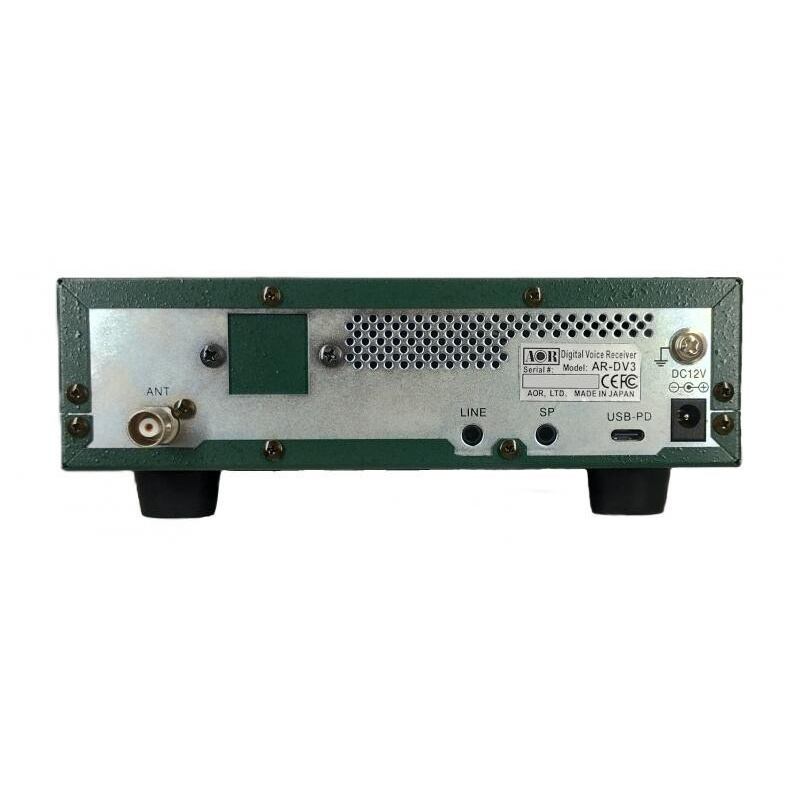

• Connectivity: BNC antenna (50 Ω), USB-C (Control/Audio), 3.5mm headphone output, line output, SDHC slot.
• Optional outputs: Digital I/Q output and 10.7 MHz IF output available as options.
• Dimensions: 178 x 50 x 180 mm.
• Weight: Approx. 1.5 kg.

Compatibility

• Protocols: Compatible with DMR Tier I &, II networks (MotoTRBO), TETRA networks (Direct and Relay), P25 Phase 1 systems, and D-STAR/C4FM amateur radio modes.
• Software: Controllable via CAT commands over USB-C port (compatible with various third-party SDR monitoring software).
• Antennas: Any broadband or specialized antenna with a male BNC connector.

FAQ

Why choose the AOR AR-DV3?

• It is one of the few receivers capable of instantly switching from HF SSB listening to decoding complex professional digital networks.
• AOR’s Japanese craftsmanship guarantees durability and surgical-level reception accuracy for even the most demanding users.
• Its compact size and USB-C power supply make it a versatile tool, performing equally well in a fixed station or in mobile operations.
