DV MEGA dual-band VHF-UHF D-Star DMR C4FM

No review at the moment

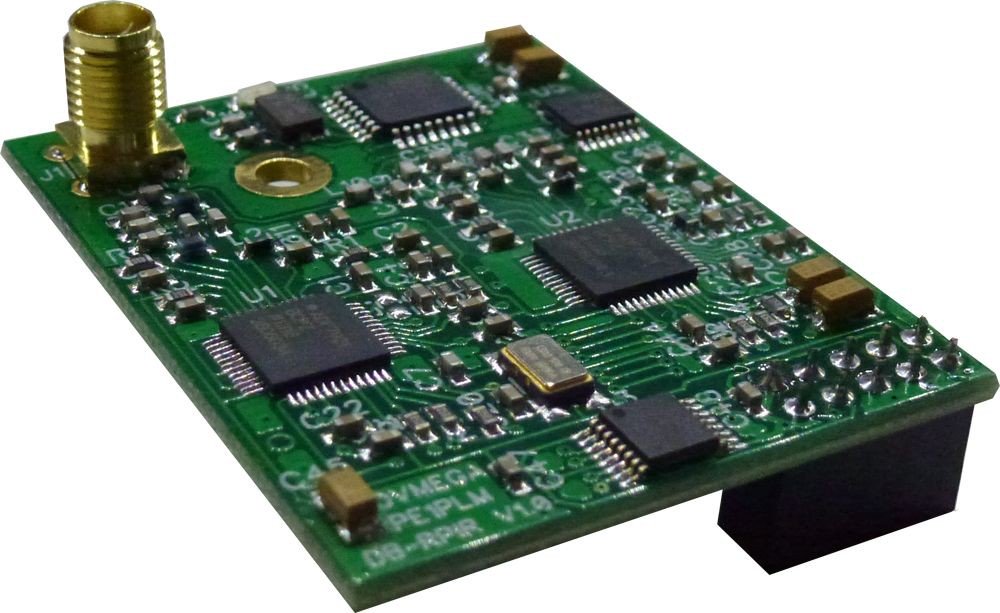

The radio module DVMEGA VHF & UHF, designed to work with a Raspberry Pi card (not included) or Bluestack Micro+ (not included), to make it a digital hotspot in GMSK mode for 144 to 148 Mhz and 430 to 450 Mhz.

Allow to, create a complete hotspot D-Star, DMR or C4FM (System Yaesu Fusion) for 2m and 70cm amateur bands, with an output power of 10 mW.

The DV MEGA Dual-Band for Raspberry comes ready to use with the last 3.26 firmware already configured to operate in the VHF-UHF amateur band.The wire to allow the firmware update mode is not set up on the map.

More details

Download

Manuel & doc DV MEGA

770.21k

Firmware Xloader DV

Windows software for DVmega firmware update 678.31k

Manual BlueDV Hotspot

DVMega Bluespot manual 345.25k

Firmware DVMega 3.18

25.8k

Firmware DVmega 3.26

DVmega Firmware 3.26 september 2018 48.94k

Data sheet

DVMega UHF Features

- Compatible with A and B Raspberry Pi
- Mono-band UHF, 430-450Mhz
- 10mW output power
- Mode D-Star DMR & C4FM (System Yaesu Fusion)
- Antenna connector SMA female
- Equipped with chip ADF7021 and ATMEGA 328
- Assembled and ready to use with firmware 3.26 installed

You can find documentation and manual to download below, the latest firmware and software to download here, images Raspberry Pi from G4KLX and and its programs ircDDBGateway, D-Star repeater, a forum is also dedicated to DV Mega products and a Yahoo group for support.

This material does not have the CE marking and must be used only in the context of experimentation in the Amateur Radio field and in compliance with applicable local law and regulation.
