DV MEGA board singleband UHF D-Star DMR C4FM

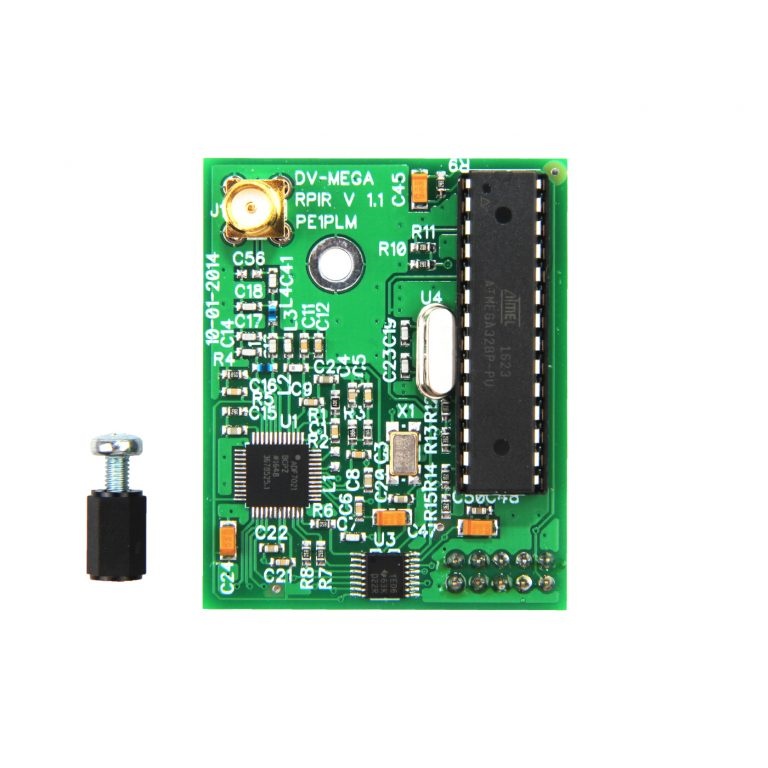

DVMEGA RPI UHF is a radio module, digital transceiver, in GMSK mode, singleband for 430 to 450Mhz and designed to work with a Raspberry Pi card (not included), for digital mobile radio D-Star, DMR and C4FM.

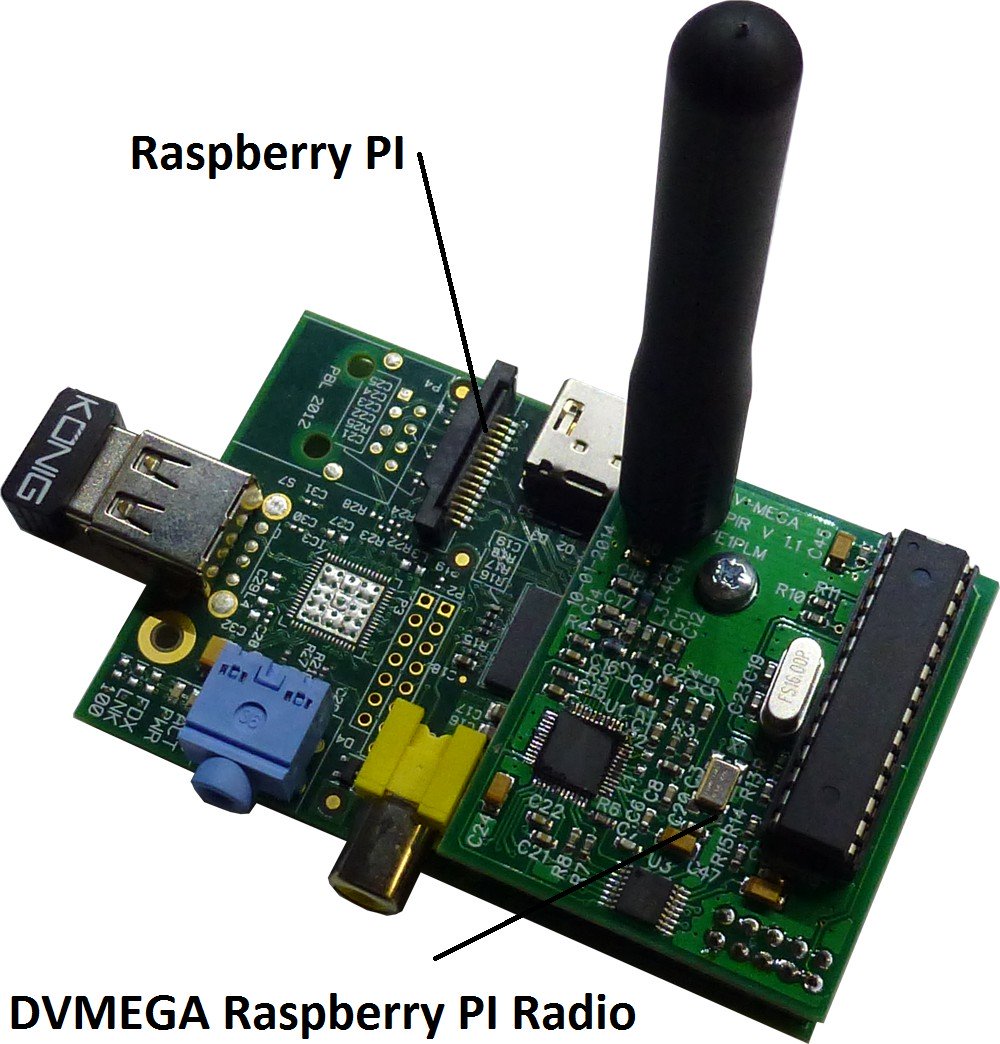

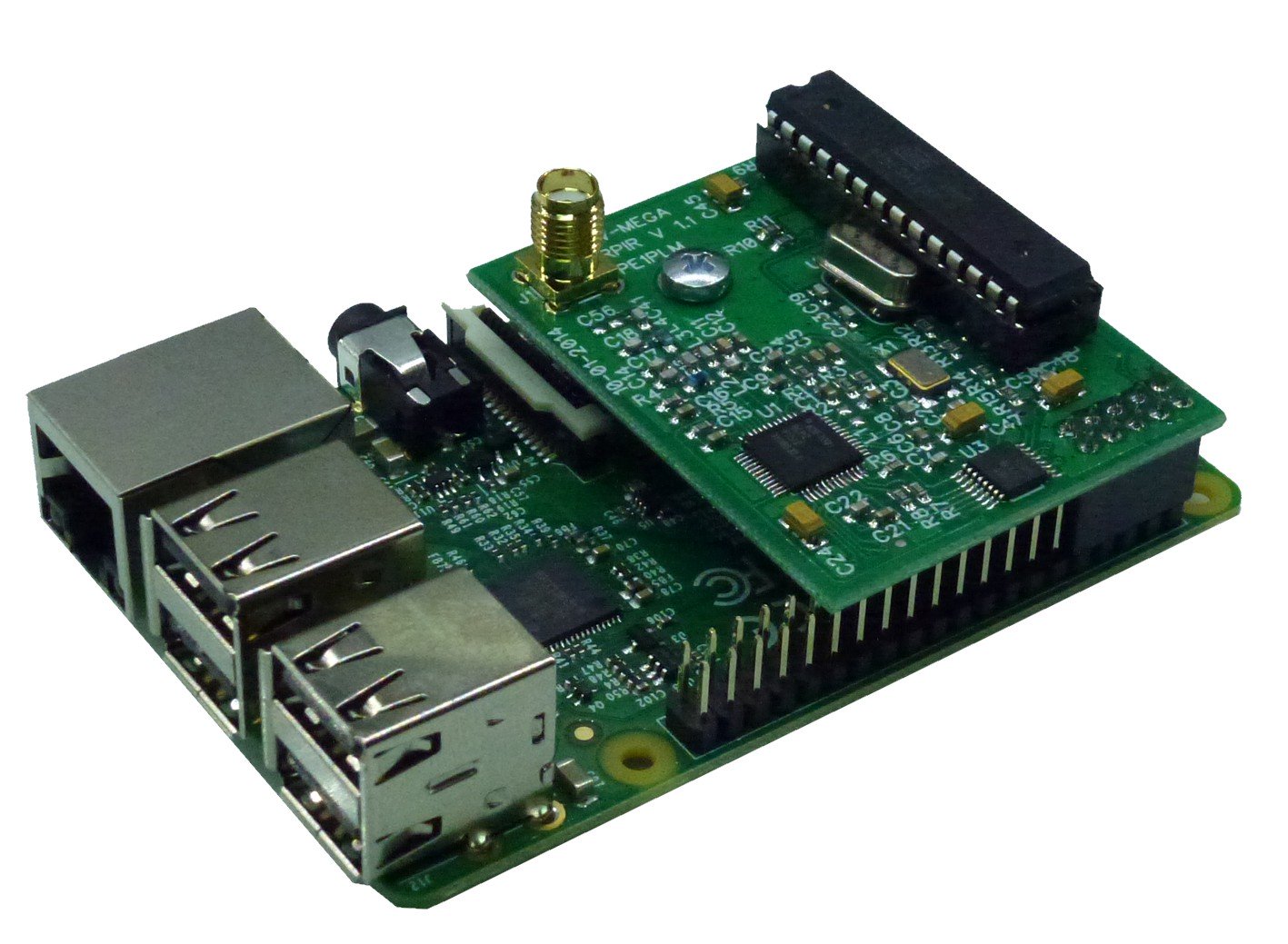

The association of this radio module with a Raspberry Pi, creates a complete hotspot in DMR or D-Star with an output power of 10 mW.

Oour RPI DVMEGA UHF radio module comes with the 3.26 firmware configured to operate in the UHF amateur band and ready to use in D-Star, DMR & C4FM. The wire to allow the firmware update mode is not set up on the board.

More details

Download

Manuel & doc DV MEGA

770.21k

Firmware Xloader DV

Windows software for DVmega firmware update 678.31k

Firmware DVMega 3.18

25.8k

Firmware DVmega 3.26

DVmega Firmware 3.26 september 2018 48.94k

More info

DV Mega UHF Features

- Compatible with A and B Raspberry Pi
- Mono-band UHF, 430-450Mhz
- 10mW output power
- Digital mode D-Star, DMR and C4FM
- Antenna connector SMA female
- Equipped with chip ADF7021 and ATMEGA 328
- Assembled and ready to use, the firmware 3.26 is pre-loaded

You can find documentation and manual to download below, the latest firmware and software to download here, images Raspberry Pi from G4KLX and and its programs ircDDBGateway, D-Star repeater, a forum is also dedicated to DV Mega products and a Yahoo group for support.

This material is provide as a kit and does not have the CE marking and must be used only in the context of experimentation in the Amateur Radio field and in compliance with applicable local law and regulation.
