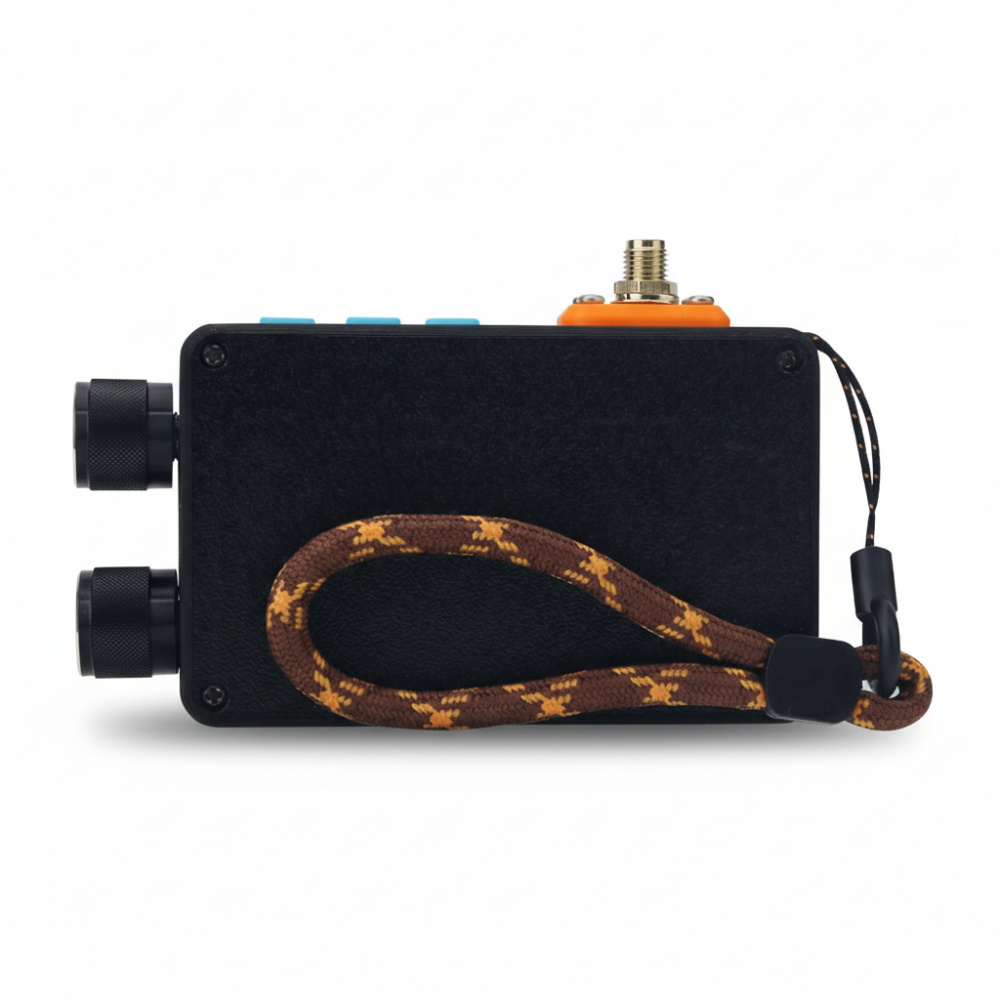

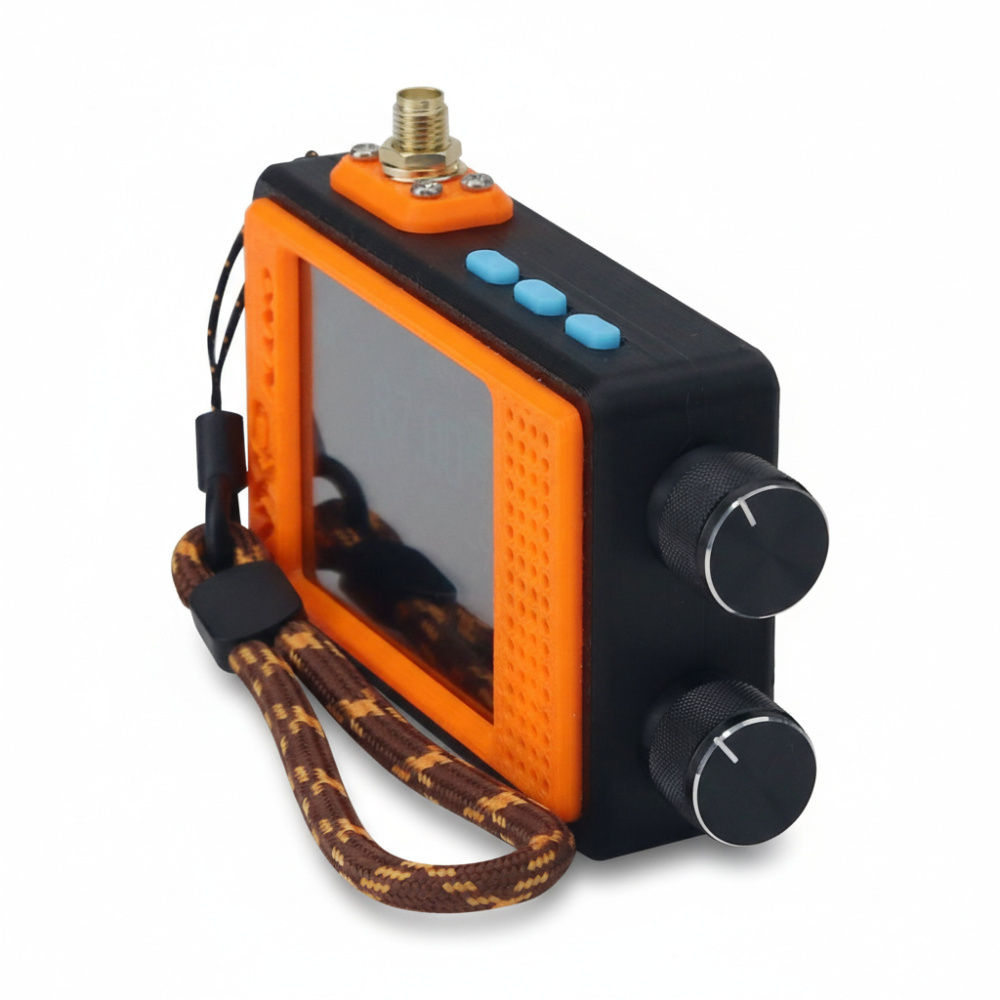

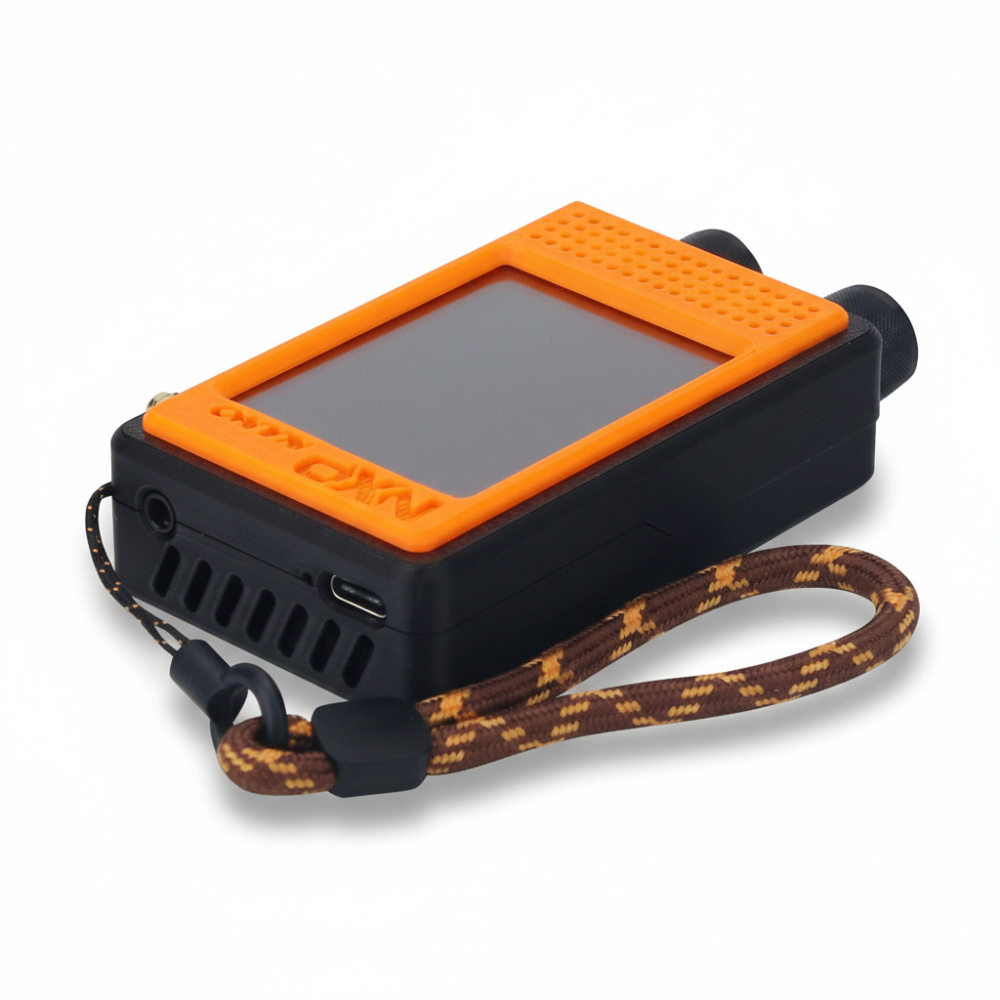

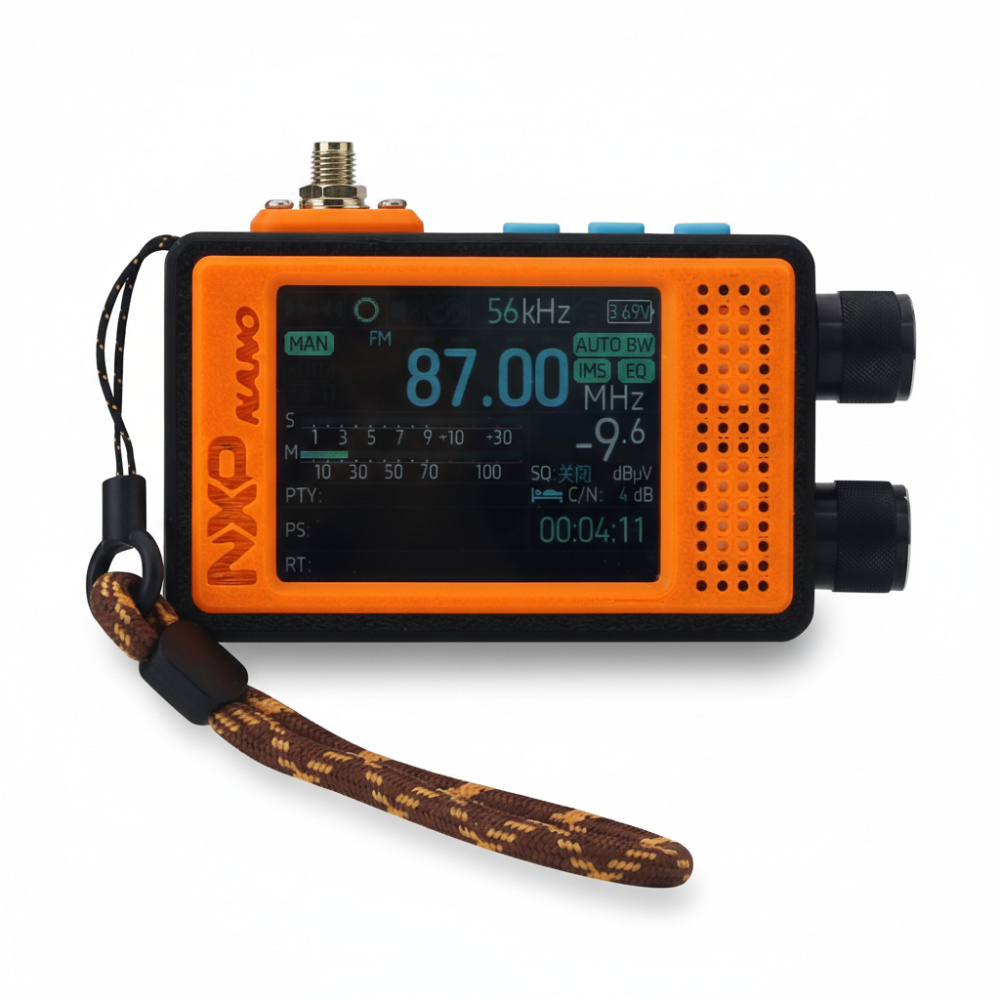

NXP-NANO HamGeek Portable Radio Receiver FM/LW/MW/SW TEF6686 ESP32 IPS Touchscreen
No review at the momentThe NXP-NANO from HamGeek is an ultra-compact portable radio receiver based on the TEF6686 automotive-grade chip and the ESP32 controller. Designed for mobile listening enthusiasts (EDC), it offers exceptional reception on FM, LW, MW, and SW bands thanks to its advanced DSP architecture and color touchscreen.
- TEF6686 Chip: Automotive-grade sensitivity and selectivity.
- 2.4' IPS Touchscreen: Clear display and intuitive navigation.
- Wide Coverage: FM (65-108MHz), Longwave, Mediumwave, and Shortwave reception.
- Enhanced Audio: Integrated MAX97220 headphone amplifier for rich stereo sound.
- Robust Design: Impact and scratch-resistant PETG housing.
- Battery Life: 2000mAh lithium battery rechargeable via USB-C.
- Portability: Compact format ideal for everyday carry.
Comes with: 1 NXP-NANO receiver, 1 telescopic antenna, 1 USB-C charging cable.
Data sheet
Summary
The HamGeek NXP-NANO redefines the portable radio for demanding enthusiasts. By integrating the famous TEF6686 DSP chip, usually reserved for high-end car radios, into a pocket-sized housing controlled by an ESP32, this receiver offers surprising reception performance. It is the ideal companion for DXing on the go, listening to shortwave, or simply enjoying the FM band with superior stereo quality.
Key Highlights
- Automotive DSP Performance: The NXP TEF6686 chip guarantees extreme sensitivity and weak signal management far superior to classic portable radios.
- Modern Touch Interface: No more imprecise dials, the 2.4-inch IPS touchscreen allows for direct frequency entry and clear information visualization, even at wide angles.
- Hi-Fi Headphone Amplification: Thanks to the MAX97220 chip, headphone listening reveals deep bass and immersive FM stereo, compensating for the compact size of the internal speakers.
- Durable Materials: The housing uses a PETG sandwich structure, a material more resistant to wear, impact, and aging than standard PLA.
- EDC (Everyday Carry) Design: With its contrasting black/orange look and blue buttons, it is designed to be taken everywhere without bulk.
- USB-C Fast Charging: Intelligent power management with a 2000mAh battery offering up to 6 hours of continuous listening.
Technical Specifications
- Chipset: NXP TEF6686 (Tuner) + ESP32 (Main Controller)
- Screen: 2.4-inch IPS Touchscreen (non-LCD TN, wide viewing angles)
- Frequency Ranges:
- FM: 65 MHz – 108 MHz
- LW (Longwave): 144 kHz – 519 kHz
- MW (Mediumwave): 522 kHz – 1710 kHz
- SW (Shortwave): 2300 kHz – 27000 kHz
- Audio:
- Speakers: Dual front sound chamber (optimized for mids/highs)
- Headphone Output: 3.5mm stereo Jack with MAX97220 amp (3W class AB)
- Battery: Integrated 2000mAh Lithium
- Connectivity: USB Type-C (Fast charging and updates)
- Housing Material: High-resistance PETG
- Dimensions: Ultra-compact pocket size
Compatibility
- Antennas: SMA Female connector (compatible with most portable and wire antennas on the market).
- Audio: Any wired headphones or earphones with a standard 3.5mm jack.
- Charging: Compatible with standard USB chargers and USB-C cables (5V).
FAQ
What is the difference between this model and a classic portable radio?
The major difference lies in the TEF6686 chip. It is an automotive-grade DSP tuner designed to maintain stable reception even while moving and effectively filter interference where classic radios saturate or lose signal.
Can the firmware be updated?
Yes, thanks to the ESP32 controller and the USB-C port, it is possible to update the firmware if new features are developed by the community or the manufacturer.
Is the touchscreen responsive?
Absolutely. Unlike old resistive screens, this IPS screen offers good responsiveness and, above all, allows you to type a frequency directly via a virtual numeric keypad, which is much faster than turning a knob.
What is the actual battery life?
With its 2000mAh battery, you can expect about 6 hours of listening at normal volume. Battery life may vary depending on screen usage and volume.
Is the integrated speaker powerful?
Given the ultra-compact size, the speakers are optimized for voice (mids/highs). For a rich musical experience with bass, we highly recommend using quality headphones to enjoy the integrated MAX97220 amp.
Why choose the NXP-NANO?
- Cutting-edge Technology: The alliance of the TEF6686 and the ESP32 offers some of the best FM/SW reception in this format.
- Value for Money: Performance close to much more expensive receivers for an accessible price.
- Touch Ergonomics: A modern user interface that simplifies band navigation.
- Robustness: A housing designed to last, ideal for travelers and outdoor listening.
- Passion Radio Support: Benefit from our expertise, a French warranty, and fast shipping from France.
