HamGeek ATS25 max HF receiver 0.1 to 30MHz FM AM SSB RTTY decoder FT8 CW

rating No review at the moment

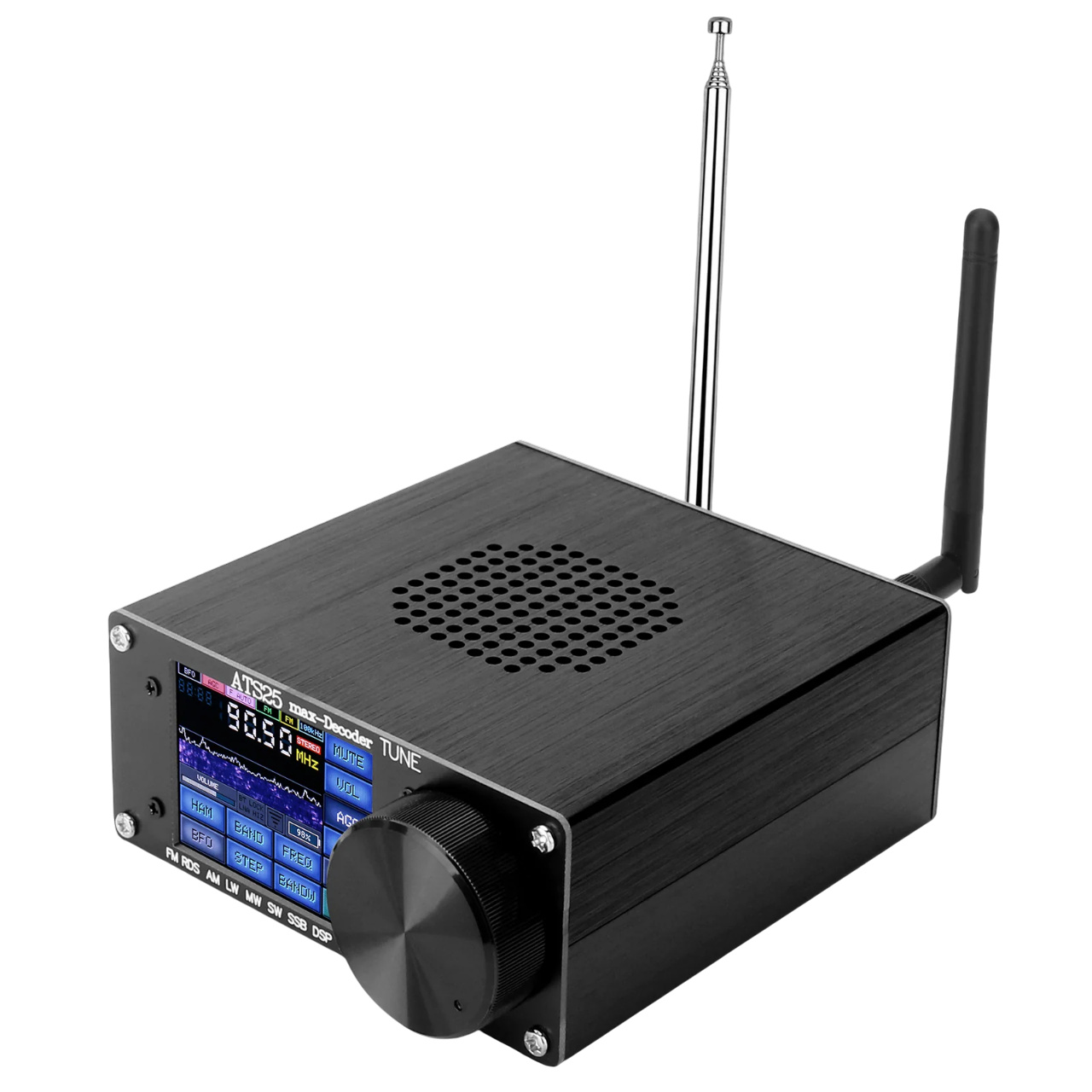

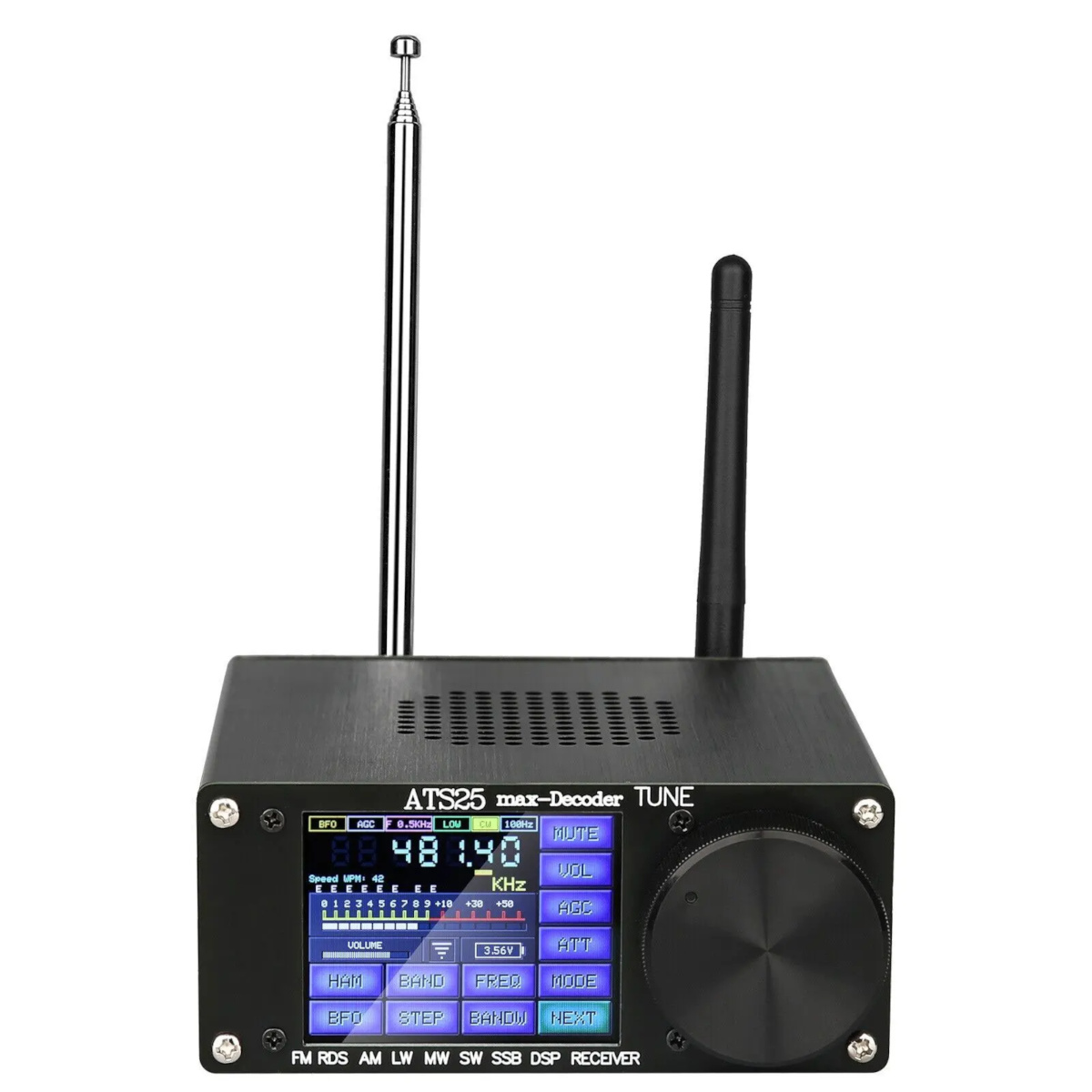

The HamGeek ATS25max-Decoder (official version with activated key) is a full-band DSP radio receiver based on the Si4732, equipped with a 2.4" touch screen and featuring advanced CW, RTTY, FT4 and FT8 modes thanks to the integrated digital decoder.

This official version includes the already validated activation key, giving access to all the extended functions without any further action.

With its aluminium casing, internal 3000mAh battery, Bluetooth, RDS and numerous firmware enhancements, it's a versatile receiver for SWL headphones, DXers and digital signal enthusiasts.

  • SI4732 full-band DSP receiver: FM, LW, MW, SW, SSB.
  • Decoders: CW, RTTY, F4/F8, FT4, FT8, DIGI, with buffer recording.
  • Optimised H-RADIO 4.16 AIR firmware: faster interface, display corrections, improved audio spectrum management.
  • 2.4" touch screen for easy control.
  • Integrated Bluetooth, quick settings via shortcut panel.
  • USB-C rechargeable 3.7 V / 3000 mAh Li-Ion battery (1.2 A max).
  • 3.5 mm audio output, BNC antenna input, 3.5 mm FM antenna support.
  • Robust aluminium case

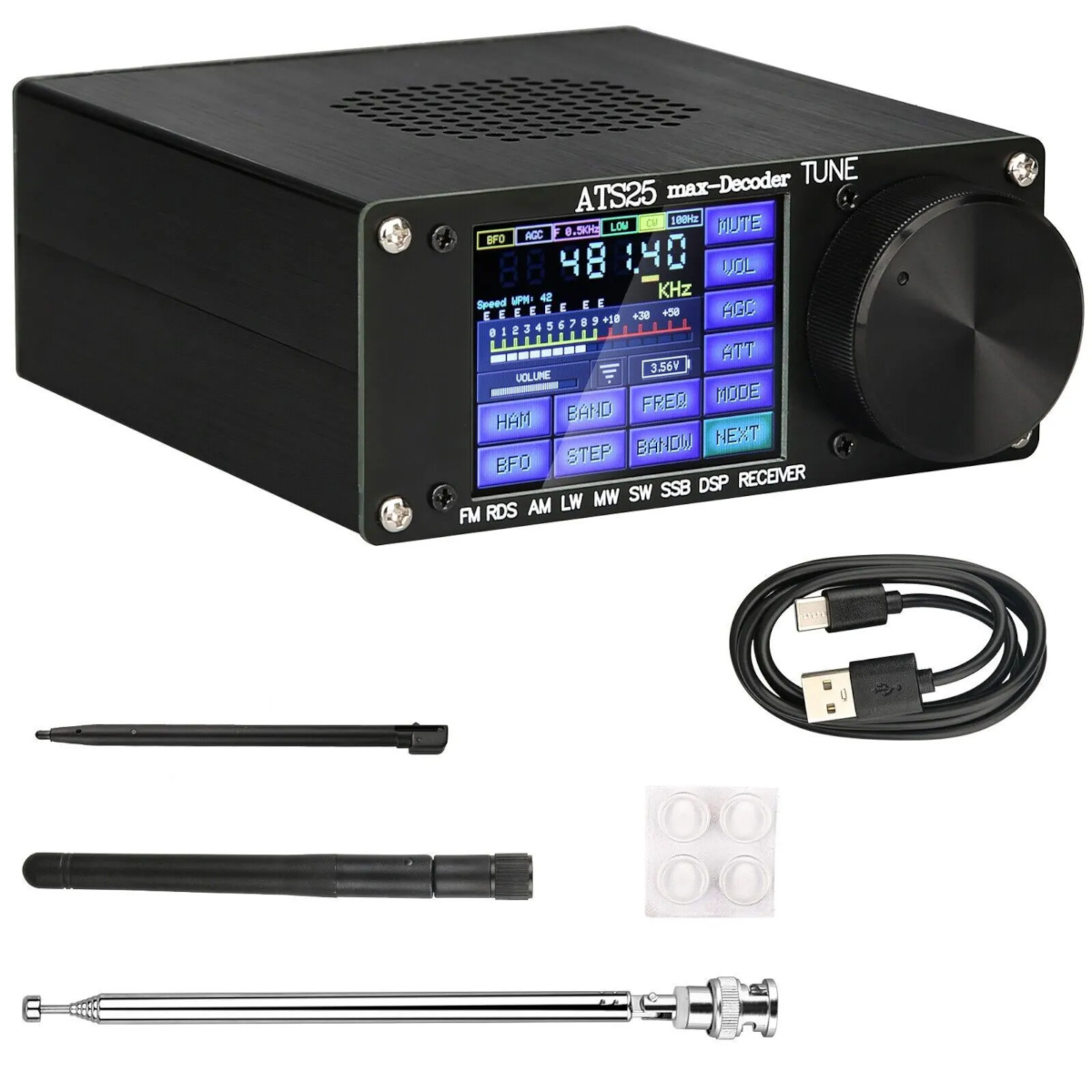

Supplied with: ATS25max-Decoder receiver (key activated), USB-C cable, FM antenna, documentation.

More details

144,72 € tax excl.

In stock

   5 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

Processor: Si4732 DSP full band
Housing: aluminium
Display: 2.4" touch
Internal battery: Li-Ion 3.7 V - 3000 mA
Charging: USB-C, max current 1.2 A
Audio output: 3.5 mm stereo jack

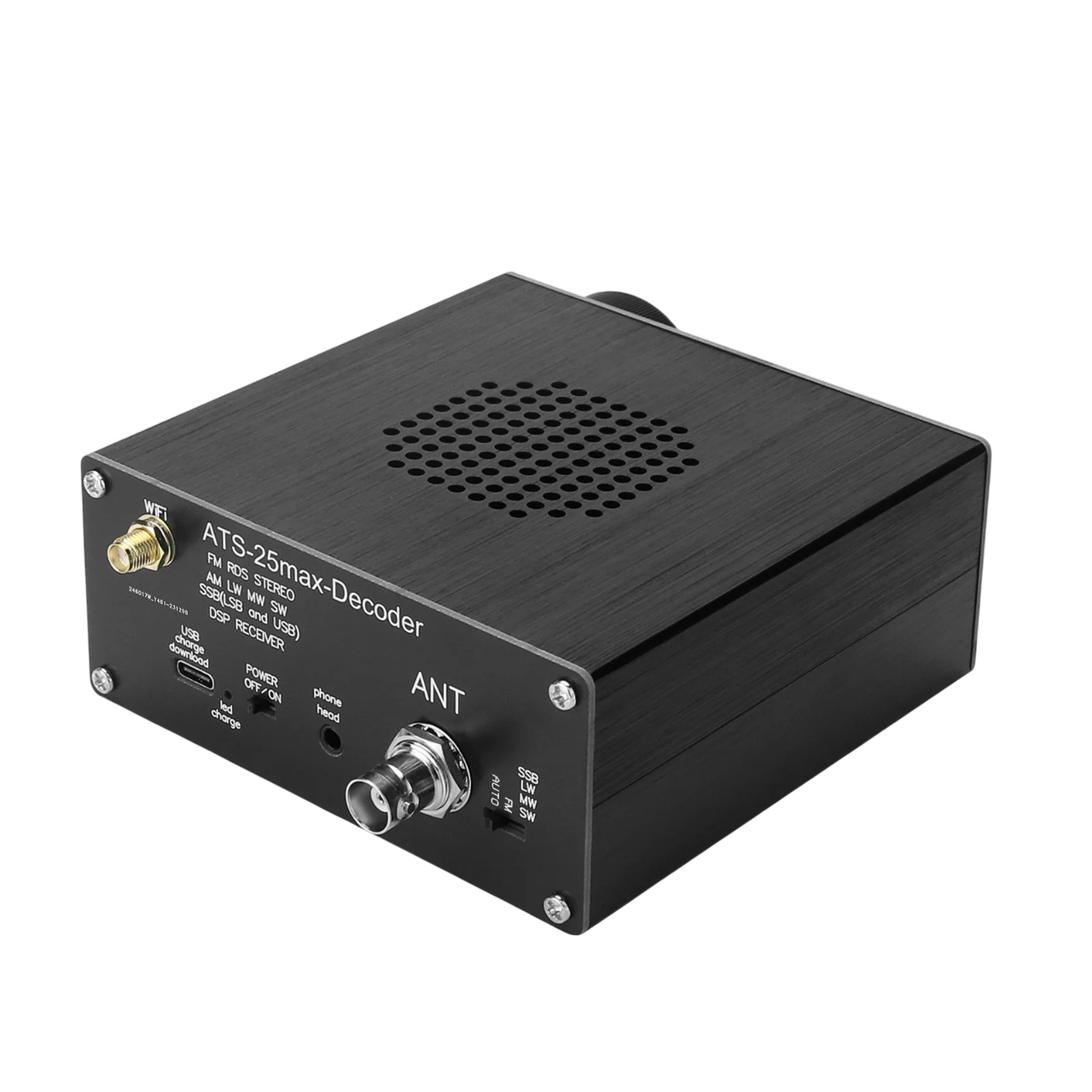

Main antenna interface: BNC
FM antenna interface: 3.5 mm jack
Audio power: 1.5 W

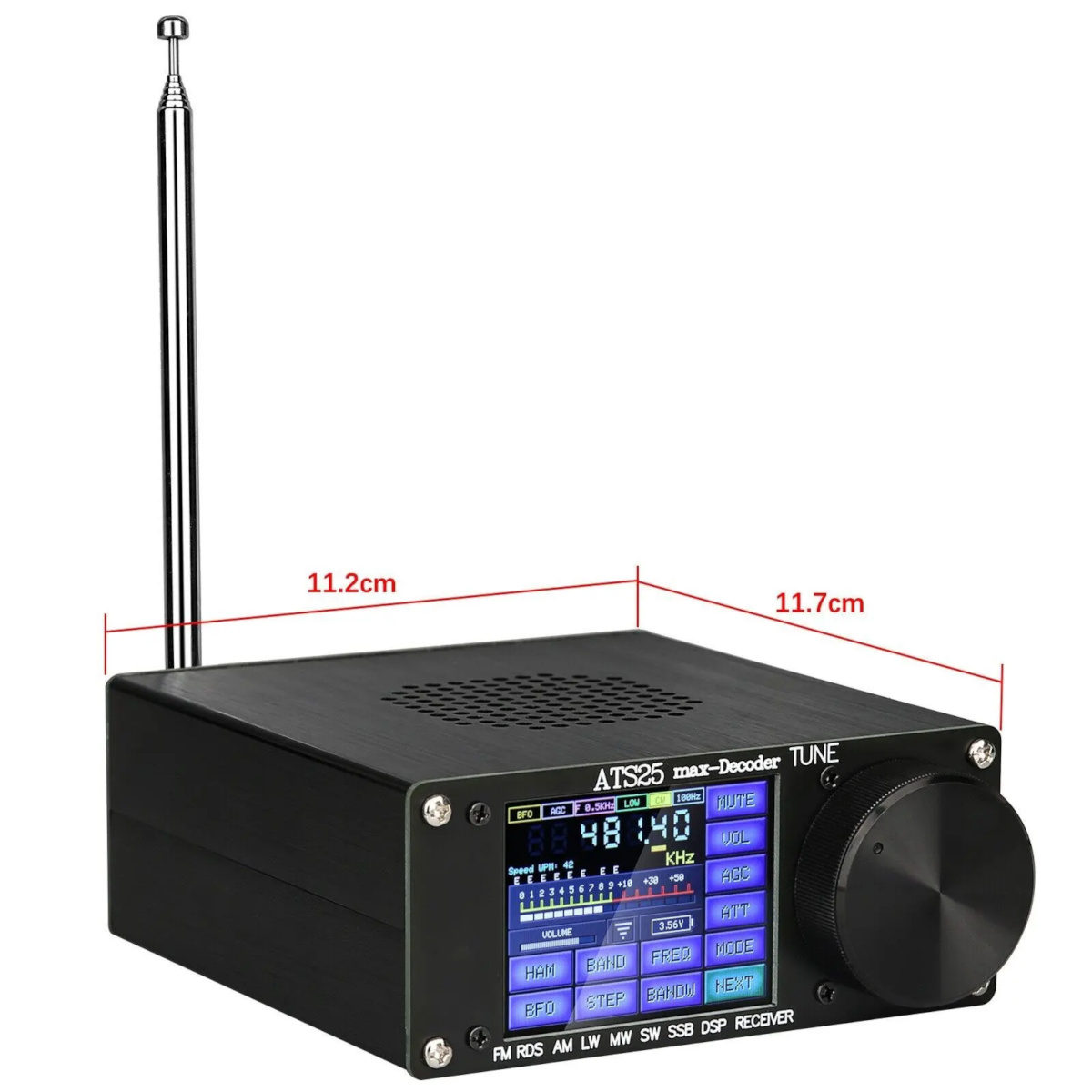

Dimensions : 120 × 115 × 48 mm (excluding protruding parts)
Frequency ranges
FM: 64 - 108 MHz (with RDS)
LW: 153 - 500 kHz
MW: 520 - 1710 kHz
SW: 1730 - 30 000 kHz
SSB: from 17030 kHz (USB/LSB)

Main functions

2.4" touch screen with optimised interface.
Automatic station search.
Direct frequency entry via numeric keypad.
Quick access to amateur radio bands.
Wide choice of AM bandwidths: 1-6 kHz.
SSB bandwidths: 0.5-4.0 kHz.

Integrated digital decoding:
CW
RTTY
FT4/FT8

DIGI with scrolling and saving in decoder.log
Integrated Bluetooth, antenna options, encoder lock.
Possibility of screen mirroring (invert mode).
Extensive firmware correction: display, spectrum, SCAN, synchro, RDS, etc.

Important notes

The key is already activated and remains permanently stored in the device.

Wi-Fi consumes a lot of power: use it only for activation or synchronisation, then deactivate it.
Access to the key: Info menu (12 digits).
Firmware updates without loss of licence.
