JPC-12 GP 7-50Mhz 100W HF portable antenna JNCRadio / Chelegance

No review at the moment

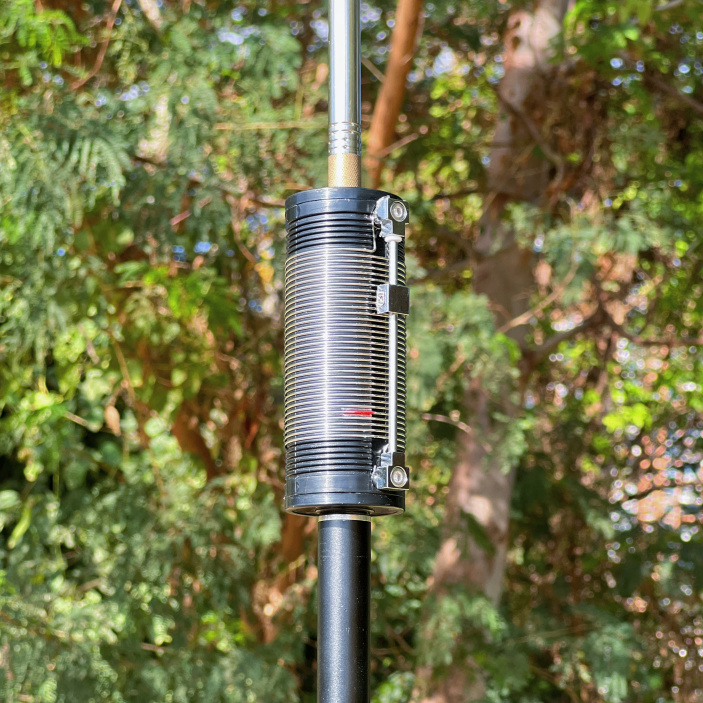

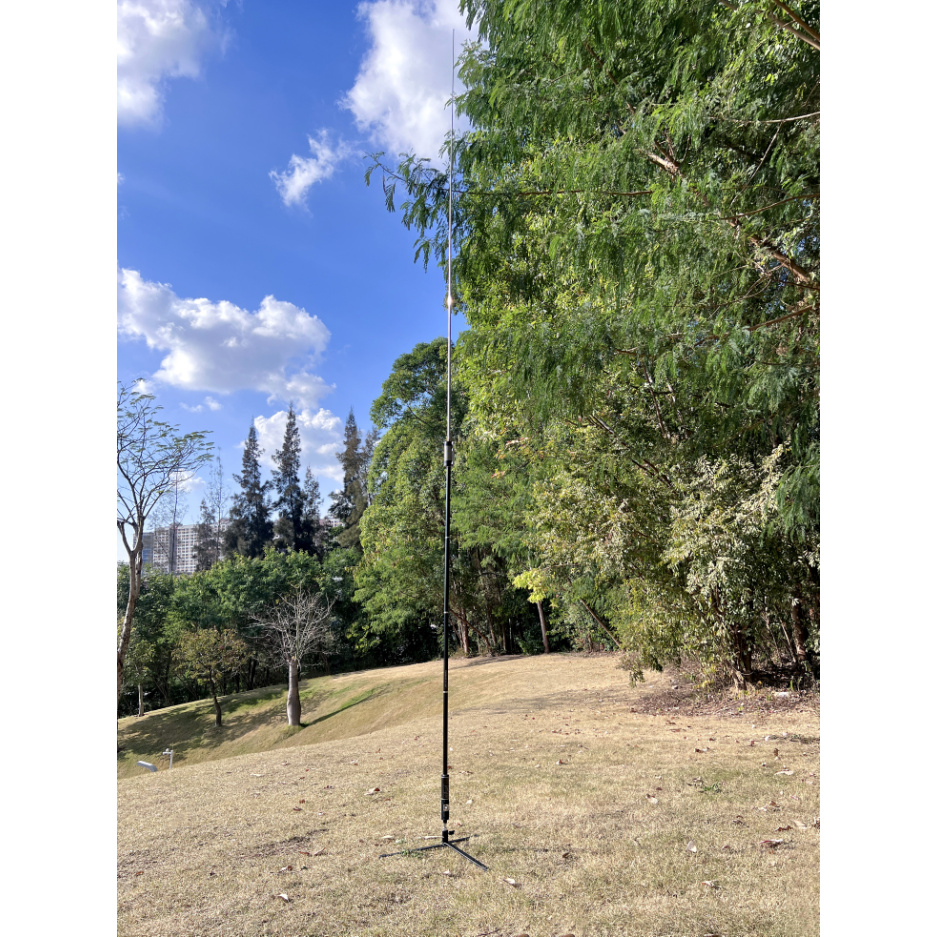

The JPC-12 from JNCRadio / Chelegance is a compact groundplane (GP) and portable shortwave antenna with a frequency range of 40m to 6m (7MHz to 50MHz). Its compact design allows the antenna to be stored in a small bag, while the easy installation process takes just 5 minutes.

Folded length: 34.5 cm
Extended length: 410 cm
Power: 100W
Weight: 1.4 kg
Frequency coverage: 40m to 6m (7MHz to 50MHz)
Connector: PL259
SWR: 1.1 (40m <1.3)

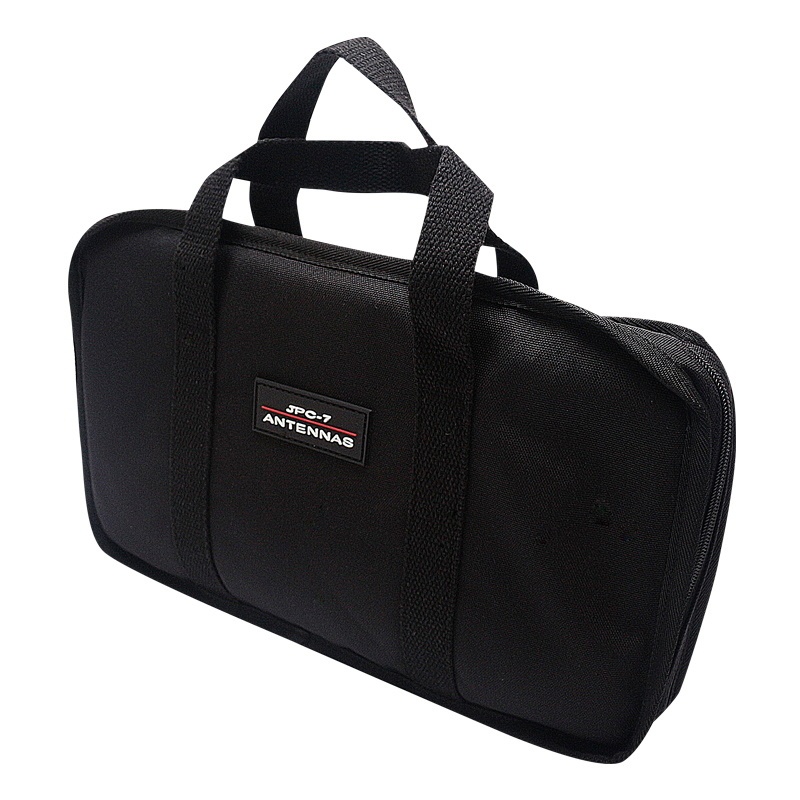

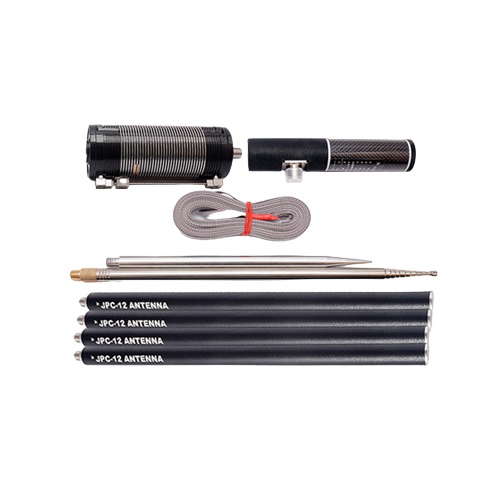

Supplied with: 1 telescopic whip, 4 aluminium arms, 1 multi-strip spool, 1 radial system (counterpoise) and 1 carry bag.

Download

Manuel JPC-12 (EN)

578.51k
