Outdoor antenna 860-930 MHz N Male 3dBi Helium HNT LoRaWan LoRa View larger
Nebra

NEBRA-ANT-3DB-NBR-0040-1535

New product

860-930 MHz 3dBi N Male Helium HNT LoRa 868MHz outdoor antenna for city use

rating No review at the moment

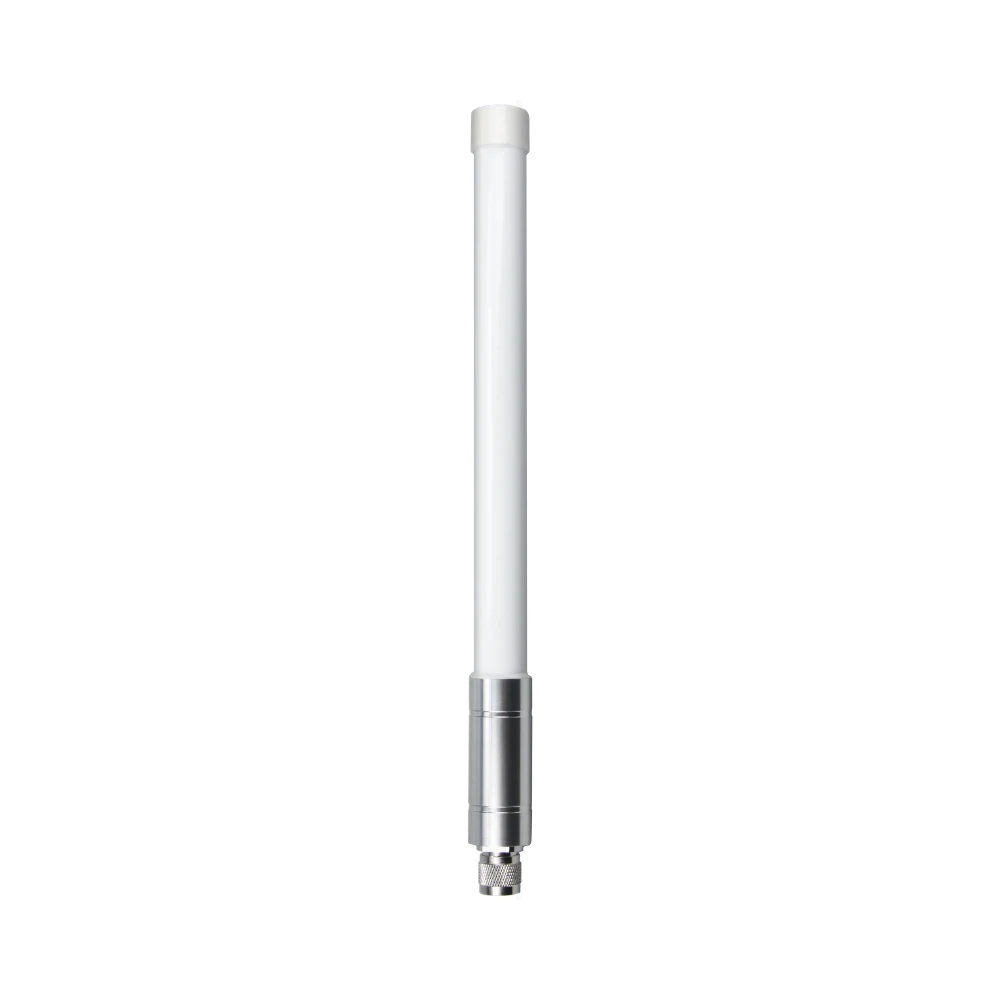

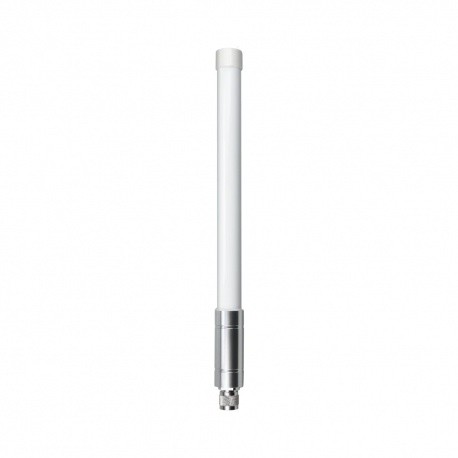

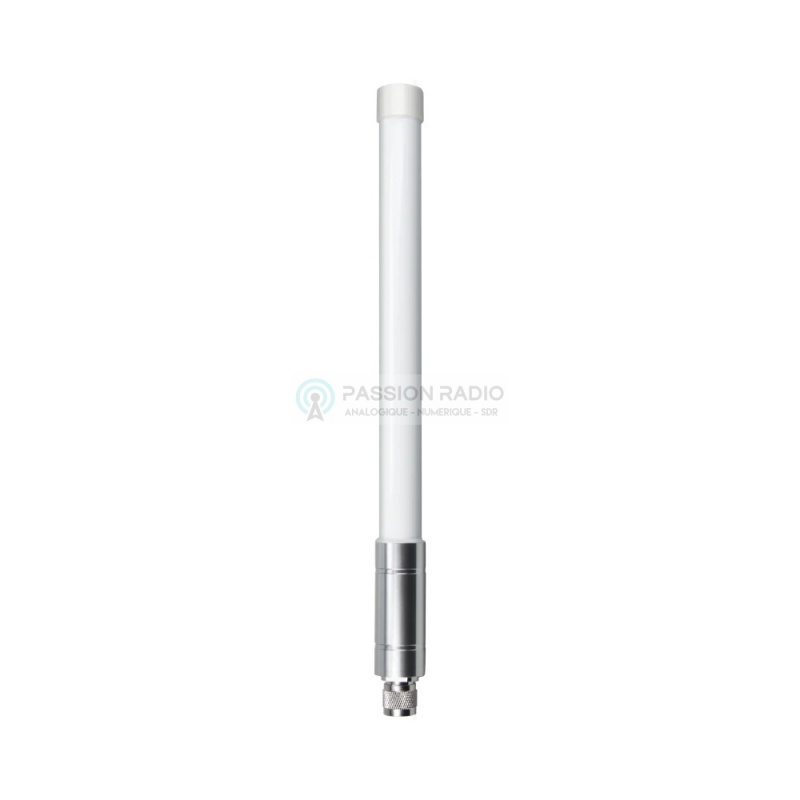

Omnidirectional vertical antenna for outdoor use, on frequencies from 860 MHz to 930 MHz, compatible in transmission and reception with the 868 MHz ISM band (e.g. LoRA / LoRawan, Helium hotspot, Sigfox), with a gain of 3dBi, a length of 30cm and a N Male connector at its base.

Recommended use: Urban, in city.

A mast support is included for installation on a 35-70mm diameter mast.

Supplied with: 1 fixed Nebra 3dBi antenna, with mounting bracket, 1 pigtail N Female to SMA Male and 1 pigtail N Female to IPEX.

Other recommended model for helium hotspot: Tuned HNT antenna 868 MHz 4.4dBi

More details

23,66 € tax excl.

This material is no longer available and we don't know if and when we will have it again.

Data sheet

  • Compatible frequency: 868 MHz and 915 MHz ISM band
  • Antenna type: Dipole
  • Bandwidth: 860-930MHz
  • UV resistant fiberglass radome
  • Color: Grey or white depending on availability
  • Connector: N male
  • Type of installation: 35-70 mm diameter mast with bracket supplied
  • Gain: 3 dBi
  • Recommanded use: Urban, in city
  • Length : 30cm
  • Operating temperature : -40°C to +60°C
  • SWR: ≤1.5
  • Polarization Type: Vertical
  • Maximum power: 20W
  • Impedance: 50 Ohms
  • Compatible: LoRawan (Lora), Sigfox, Zigbee and Helium HNT hotspot networks (Sensecap M1, Nebra, RAK miner, etc.)
  • 2 years warranty
