Ultra light and low loss AIRBONE 5 mm coaxial cable View larger

Messi & Paoloni

New product

Italy

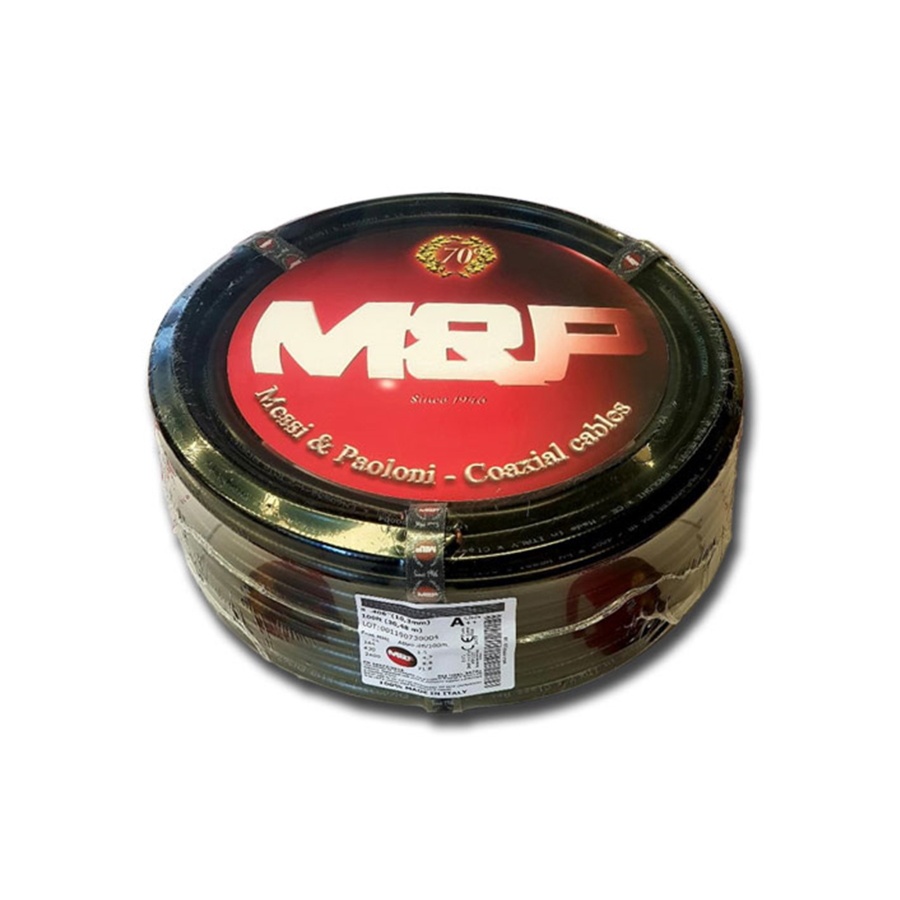

Ultra light and low loss AIRBORNE 10mm coaxial cable

rating No review at the moment

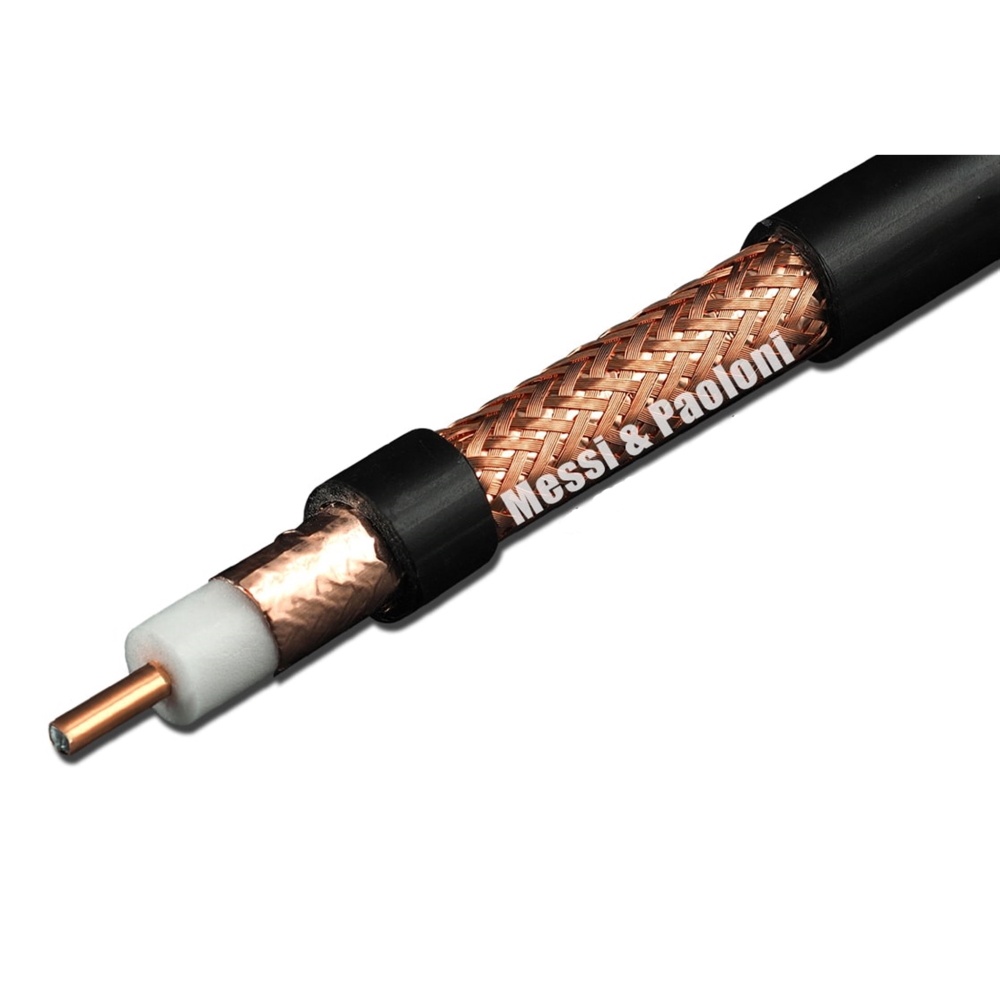

AIRBORNE 10 coaxial cable (Messi & Paoloni), high performance, very low loss, light, for use in frequencies from 0 to 12 000 Mhz (12 Ghz) and high powers.

This cable can be used buried, it is waterproof and resistant, recommended for DX HF VHF, UHF or SHF shipments.

Available in different sizes: 30m, 50m, 100m and 200m (choose below).

Impedance at 200Mhz : 50 Ohm
External diameter of the cable : 10.3mm
Minimum bending radius : 65 mm
Operating temperature : -45°C to + 70°C
Capacity: 74 pF/m ± 2
Velocity: 87%.
Class: A++
Internal conductor resistance: 4.4 Ohm/Km
Outer conductor resistance: 12 Ohm/Km
Voltage test (spark test): 8 kV
Maximum peak power: 14500 WATTS
CE and Rohs standards

Net weight on 100m : 7,1 Kg

PL259 (UHF-Male) or N-Male compatible connector, available in option, below.

More details

109,90 € tax incl.

91,58 €

tax excl.

In stock

   10 Items

  • 30m
  • 50m
  • 100m
  • 200m

Download

Data sheet

Main differences between HYPERFLEX and AIRBORNE type cables:

HYPERFLEX coaxial is more flexible with a PVC sheath with copper conductor, while AIRBORNE coaxial has a more rigid PE sheath, it is lighter, thanks to the aluminum conductor covered with copper.

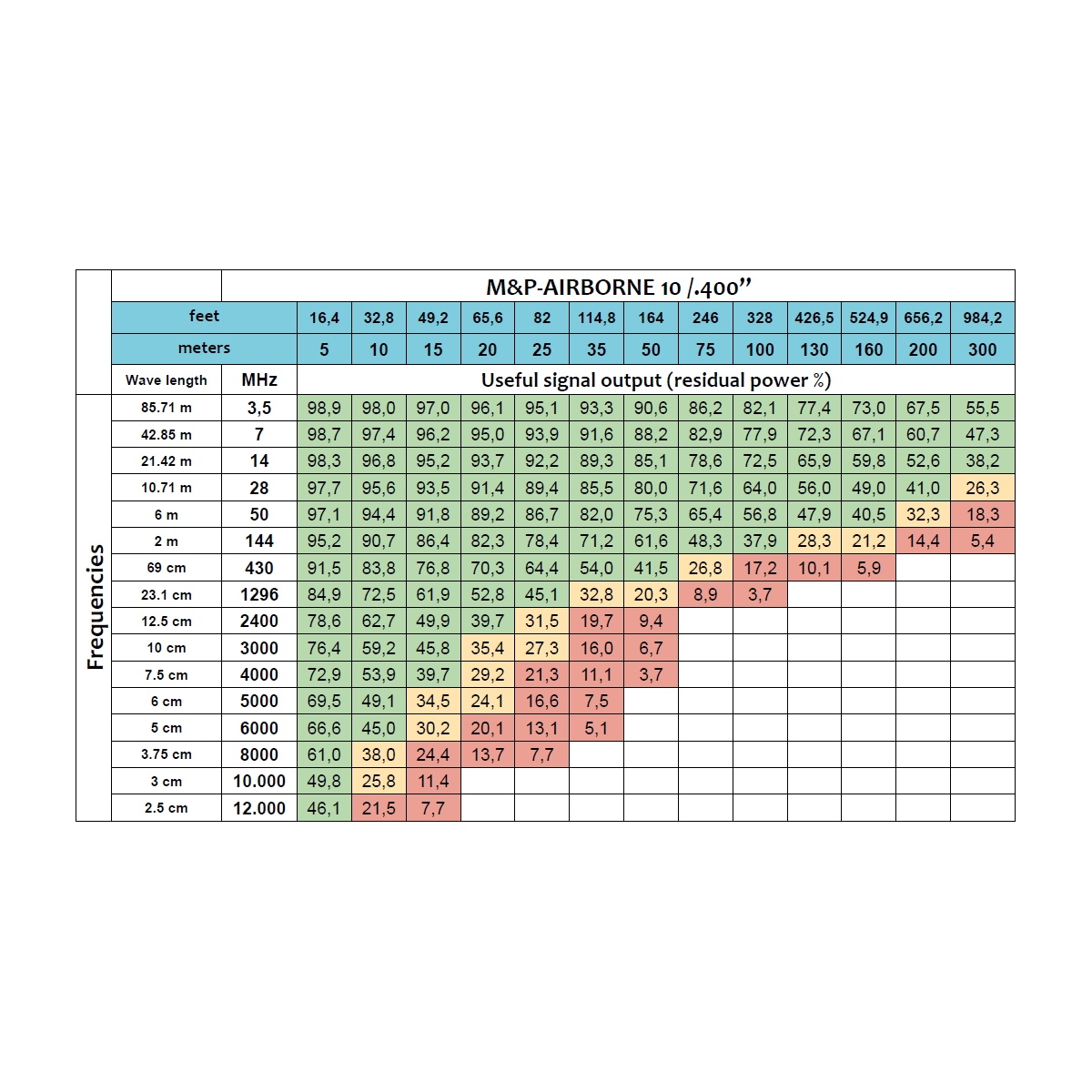

Attenuation at 20°C in dB/100m

1.8 MHz 0.6
3.5 MHz 0.8dB
7 MHz 1.0dB
10 MHz 1.2dB
14 MHz 1.3dB
21 MHz 1.7dB
28 MHz 1.9dB
50 MHz 2.4dB
100 MHz 3.5dB
144 MHz 4.2dB
200 MHz 5.0dB
400 MHz 7.2dB
430 MHz 7.6dB
800 MHz 10.4dB
1000 MHz 11.8dB
1296 MHz 13.6dB
2400 MHz 19.2dB
3000 MHz 21.6dB
4000 MHz 25.6dB
5000 MHz 29.2dB
6000 MHz 32.8dB
7000 MHz 35.6dB
8000 MHz 38.6dB
10,000 MHz 44.6dB
12.000 MHz 50,2dB

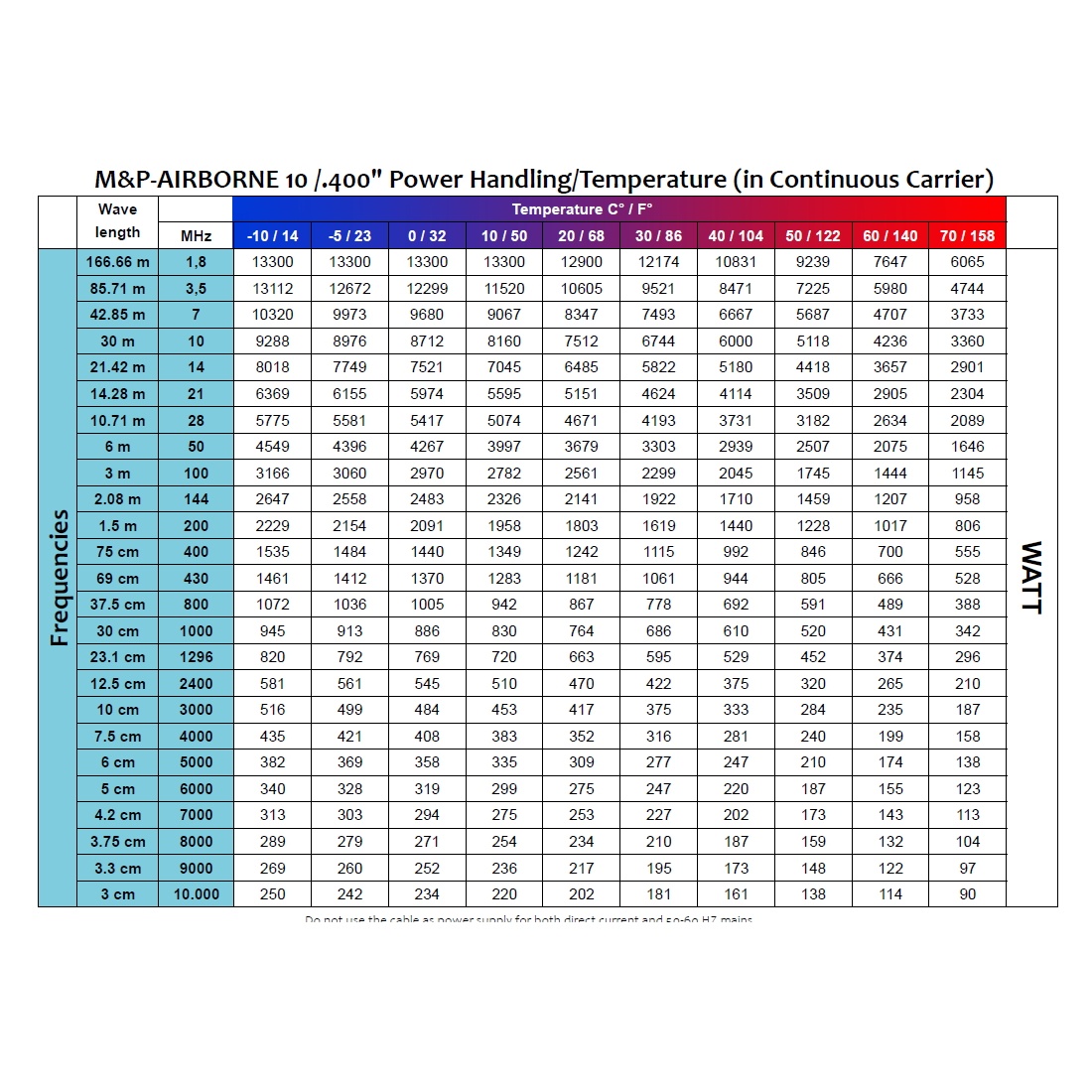

Maximum power at 40°C depending on frequency

3.5 MHz 8471 W
7 MHz 6667 W
10 MHz 6000 W
14 MHz 5180 W
21 MHz 4114 W
28 MHz 3731 W
50 MHz 2939 W
100 MHz 2045 W
144 MHz 1710 W
200 MHz 1440 W
400 MHz 992 W
800 MHz 692 W
1000 MHz 610 W
1296 MHz 529 W
2400 MHz 375 W
3000 MHz 333 W
4000 MHz 281 W
5000 MHz 247 W
6000 MHz 220 W
7000 MHz 202 W
8000 MHz 187 W
10,000 MHz 161 W
