> Radio Antennas>ISM 433-868 Mhz>PCB antenna 868 MHz Yagi for LoRa SigFox
PCB antenna 868 MHz Yagi for LoRa SigFox Kent Electronics ISM 433-868 Mhz WA5-ANT-YAGI-869-771 View larger
Previous

Kent Electronics

WA5-ANT-YAGI-869-771

New product

USA

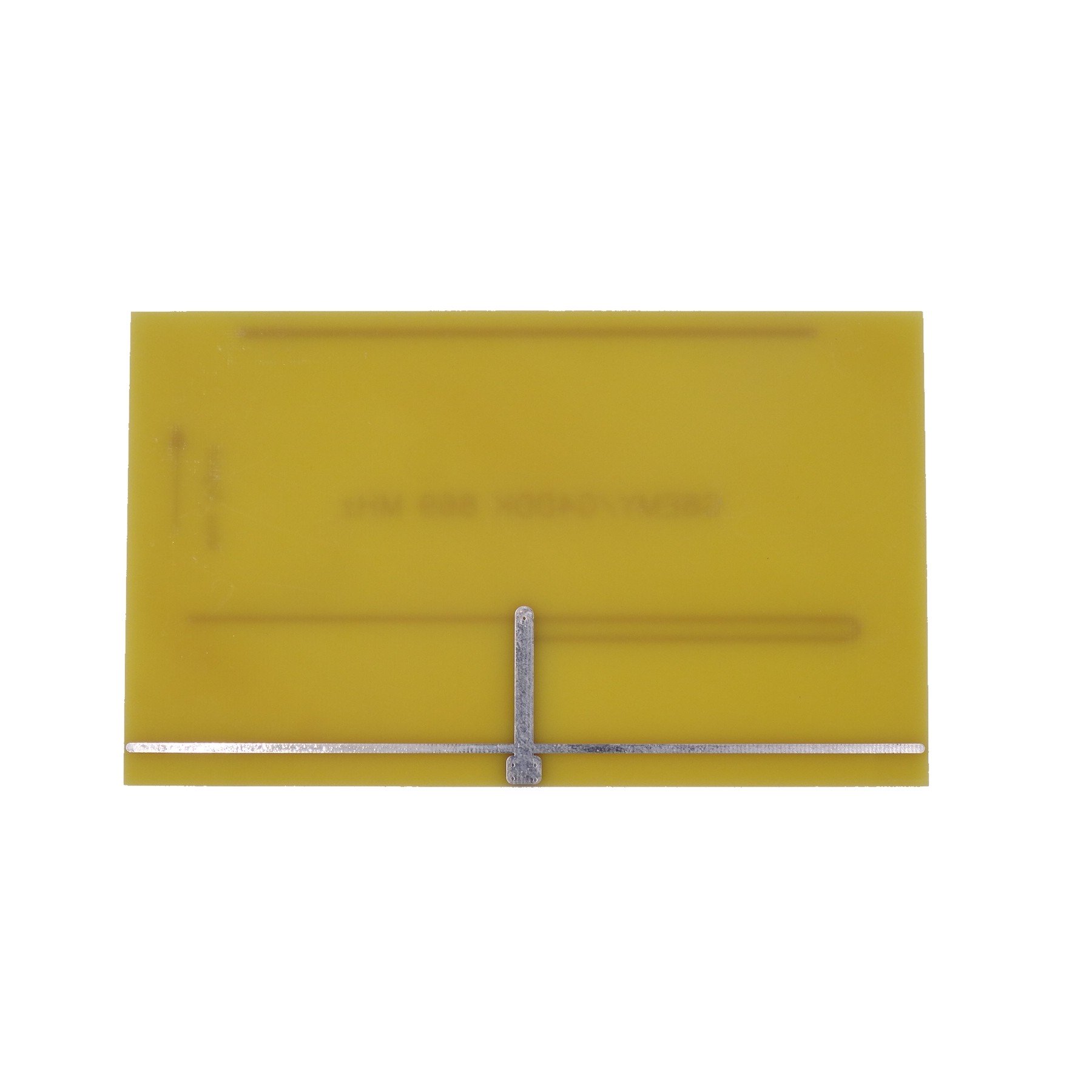

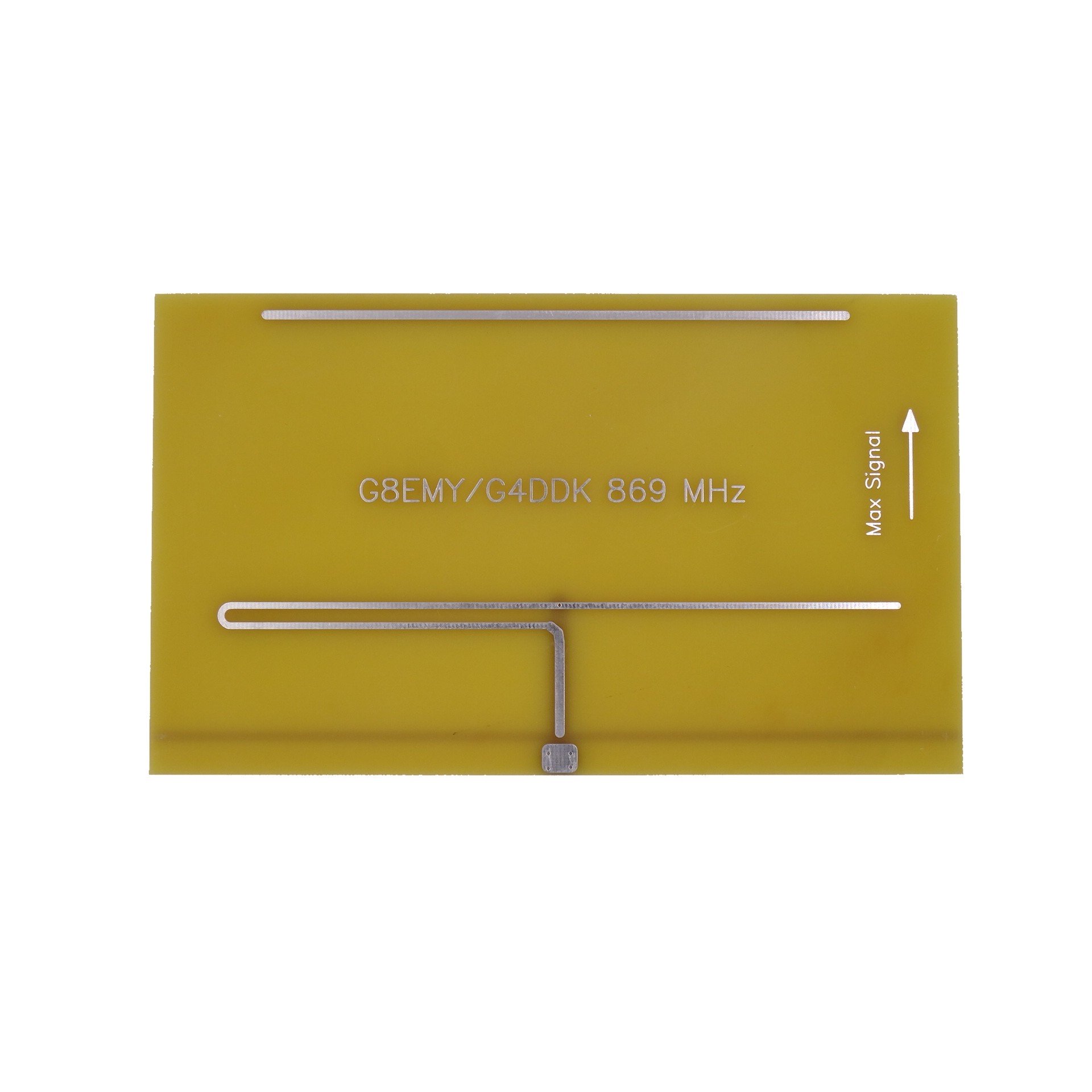

PCB antenna 868 MHz Yagi for LoRa SigFox

rating No review at the moment

PCB antenna Yagi 3 elements for 868MHz with a gain of 8dBi, for long-range use on the ISM 868Mhz frequency band and LPWAN / LoRaWan networks (Sigfox, LoRa), RFID UHF and Zigbee.

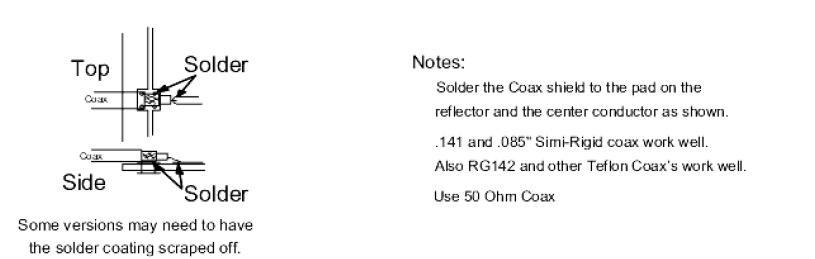

The antenna is delivered without connector (solder wire).

Frequency: 868-869MHz
Type: Yagi
Number of elements: 3
Gain: 8dBi
Impedance: 50 ohms
Compatible: Sigfox, LoRa, RFID UHF and Zigbee
Amateur radio design: G8EMY & G4DDK
Dimensions: 151x90mm
Weight: 39 grams

This material is no longer available

This material is no longer available and we don't know if and when we will have it again.
