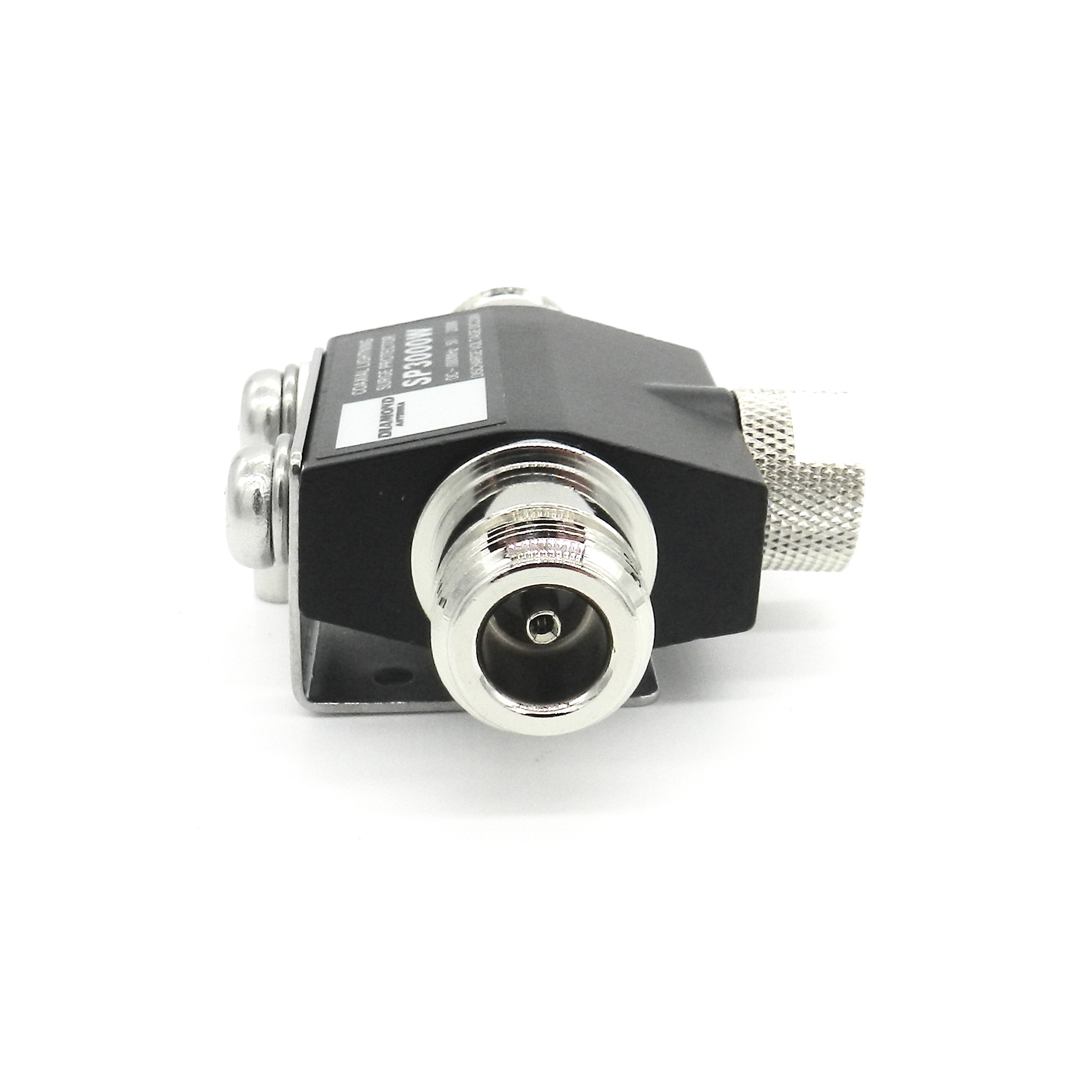

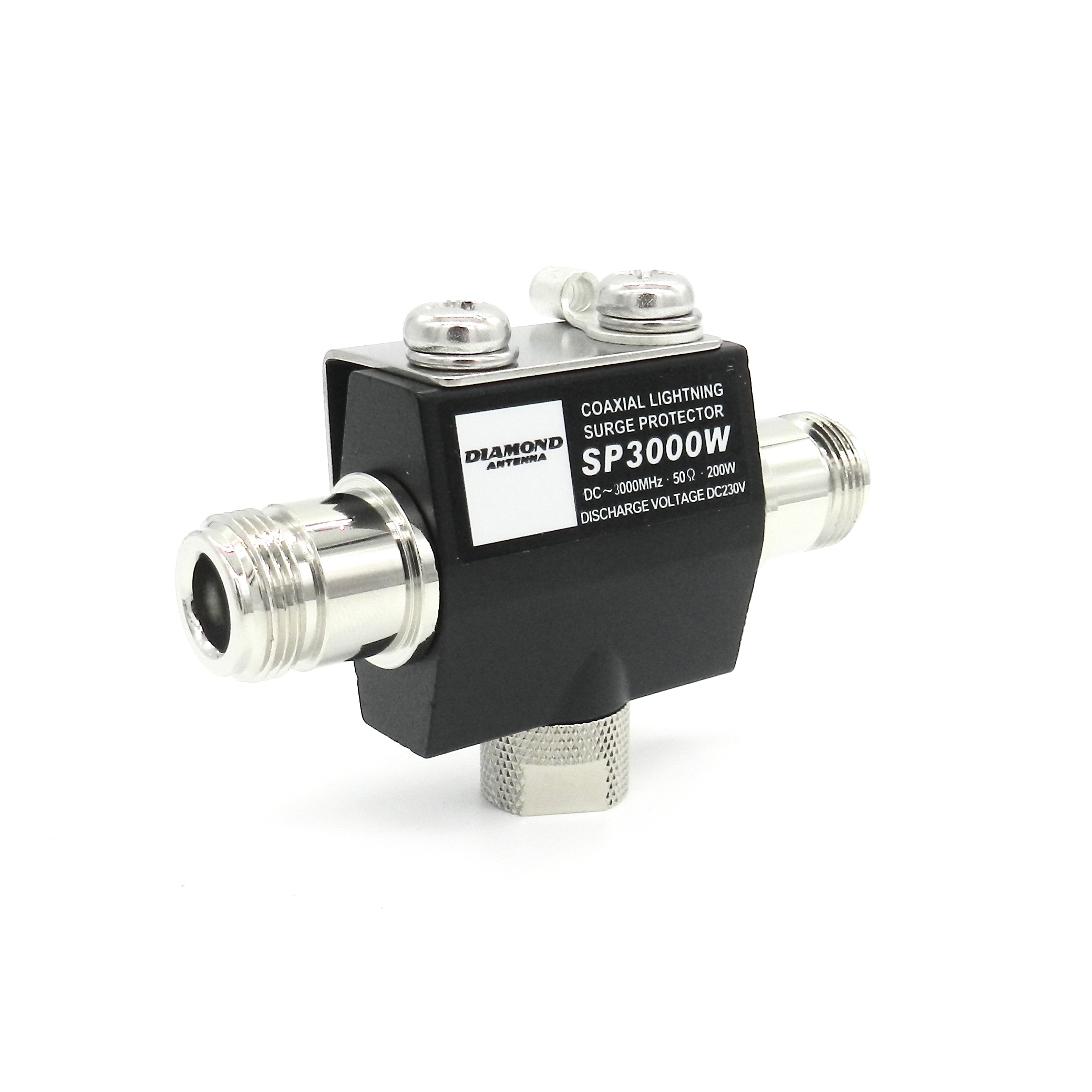

Diamond SP3000W surge protector N plug 200W 0-3000MHz

rating No review at the moment

The Diamond SP3000W surge arrester works for frequencies from 0 to 3000 MHz and for a maximum transmission power of 200W, it is equipped with an N female plug connector and offers a low insertion loss of -0.2 dB.

This equipment provides protection for the radio equipment in the event of a nearby lightning strike , but not in the event of a direct lightning strike on the antenna, in this case it is necessary to install a lightning rod, above the level of the lightning. 'antenna.

The SP-3000W must be grounded , by the shortest route, for safe operation. A stainless screw (M4) is available to connect a cable to earth.

It is recommended to place a surge arrester both at the level of the antenna, as well as at the level of the entry of the coaxial cable in the building.

The SP3000-W is not waterproof and must be protected for outdoor use.

More details

40,95 € tax incl.

34,13 €

tax excl.

45,50 € tax incl.

In stock

   6 Items

Data sheet

  • Frequency range: 0 - 3000 MHz
  • Impedance: 50 Ω
  • Maximum power: 200 W
  • Breakdown voltage: 1000 Volts
  • Maximum discharge current: 6000A
  • Waterproof: No
  • Insertion loss: <0.2 dB
  • Connector 1: Female N plug
  • Connector 2: Female N plug
  • Dimensions: 78 x 41 x 20 mm
  • Weight: 110g

This material is compatible for use on all amateur radio bands from 0 to 3GHz, as well as WIFI systems on 2.4 GHz and installations on the 433 MHz and 868 Mhz bands (IoT Helium network, TTN, Sigfox, etc.) .

Recommendation for the use of the lightning arrester:

  1. Do not share the earth line with other earth lines such as power lines. It is recommended to separate the earth line of the surge arrester from those of other systems
  2. Although the hardware is designed to protect radio equipment from high surges caused by lightning or static electricity, it cannot protect the equipment from high current and voltage caused by direct thunder clap on the antenna. . To protect the equipment from direct lightning strike, install a suitable lightning conductor separately
  3. To achieve maximum safety, the equipment uses an integrated pressurized gas tube surge arrester element to discharge and ground the electric current when it exceeds the predetermined discharge voltage.
