GOOBAY universal Single/Twin LNB PLL for Oscar 100 satellite and KU band

No review at the moment

Demander un devis

Universal PLL LNB head for reception of the Oscar 100 amateur radio satellite (QO-100) and all HD TV satellites DVB-S2, DVB-S, 4K, HDTV, in KU band.

With 1 or 2 Type-F connector outputs, this head has a noise factor of 0.1 dB for reception with stability provided by PLL of +/- 300Khz.

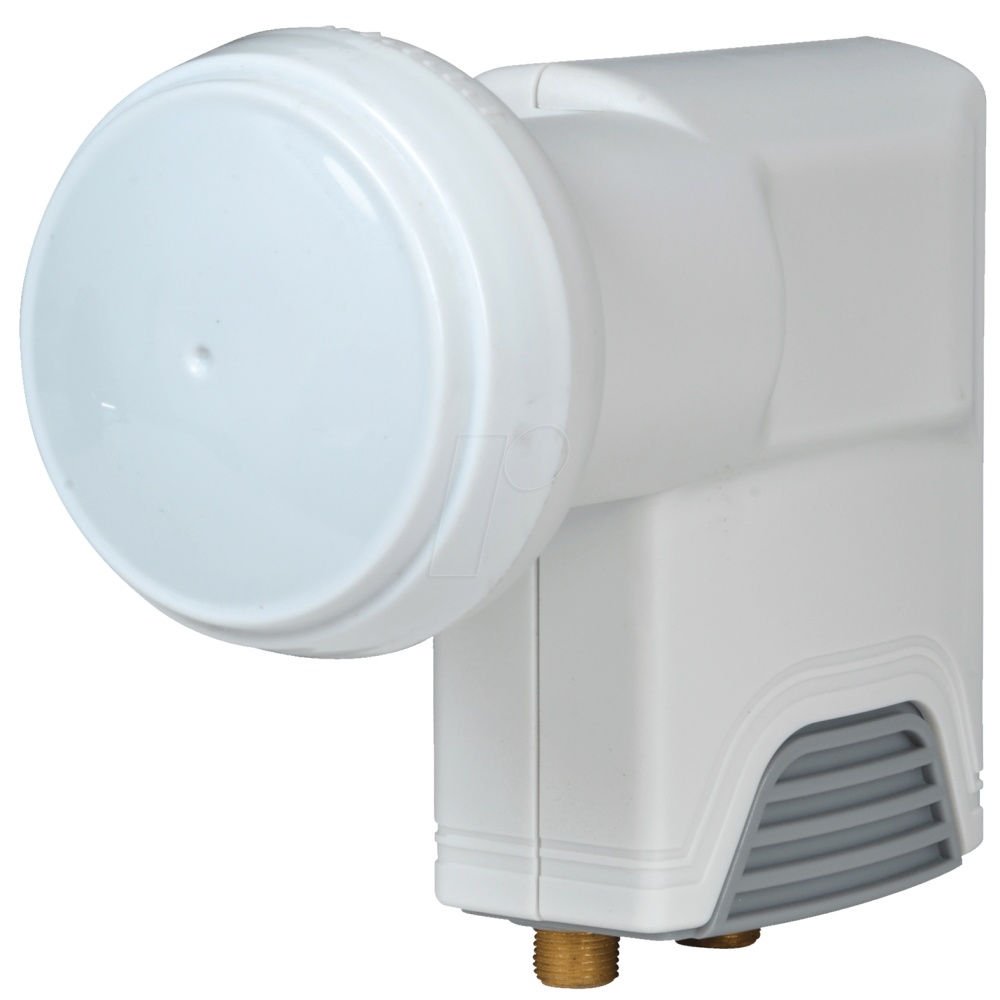

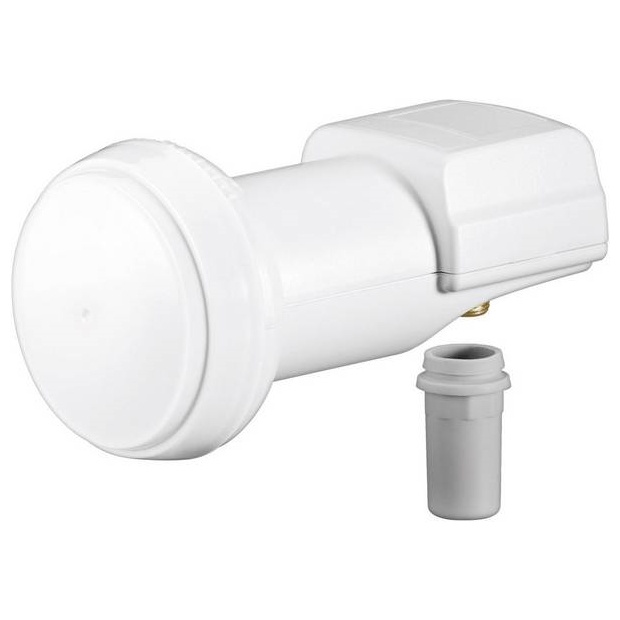

Supplied with: 1 GOOBAY 67269 (Single 1 output) or 67270 (Twin 2 outputs) satellite LNB head.

More details

Data sheet

Number of outputs: 1 or 2 (depending on the version Single or Twin)
LNB Type: Universal
Noise figure: 0.1 dB
Input frequency range: 10.7 - 12.75 GHz (Ku band)
Local Oscillator (OL) frequency: 9.75 - 10.6 GHz
Quartz: 25 Mhz
Fixing diameter: 40 mm
Conversion gain: 42 dB
Current consumption: 167 mA Max.
Operating temperature: -40°C to +60°C
Impedance: 75 Ohms
Connector: Type-F (Female)
Supply voltage for vertical polarization: 11.5 to 14V
Supply voltage for horizontal polarization: 16 to 19V
Compatible with ham radio satellite: Oscar 100 (QO-100) on Es'Hail2
Compatible with any KU band satellite TV: Astra, Canalsat, Eutelsat, Intelsat, etc.
2 years warranty
CE and Rohs standards

How to modify the Goobay LNB by adding a TCXO or OCXO to further improve stability for use on Oscar 100 amateur radio satellite, on the AMSAT-DL forum.
