HF pocket antenna EFHW 25W for SOTA QRP with waterproof 1:49 balun

rating Read the review
Average rating: 5/5 Number of reviews: 1

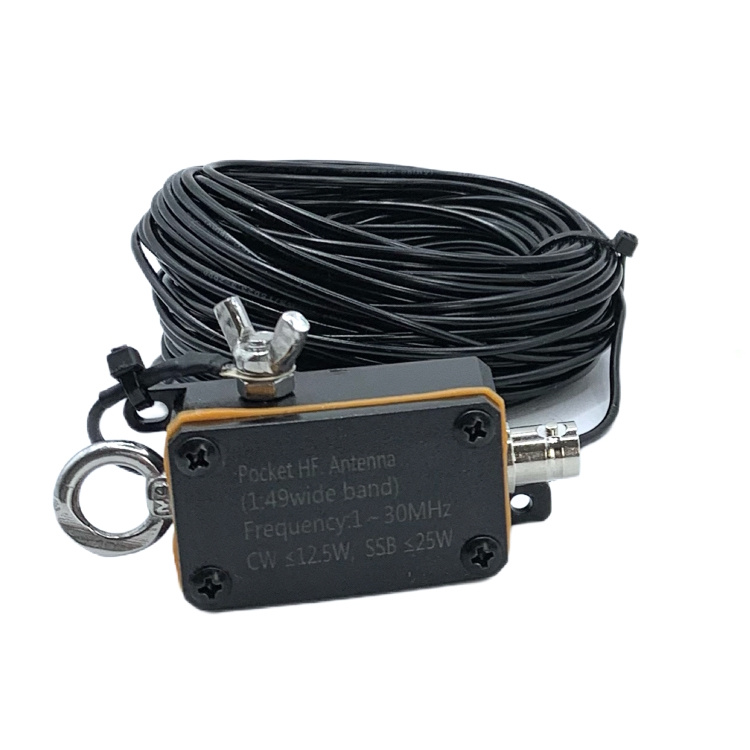

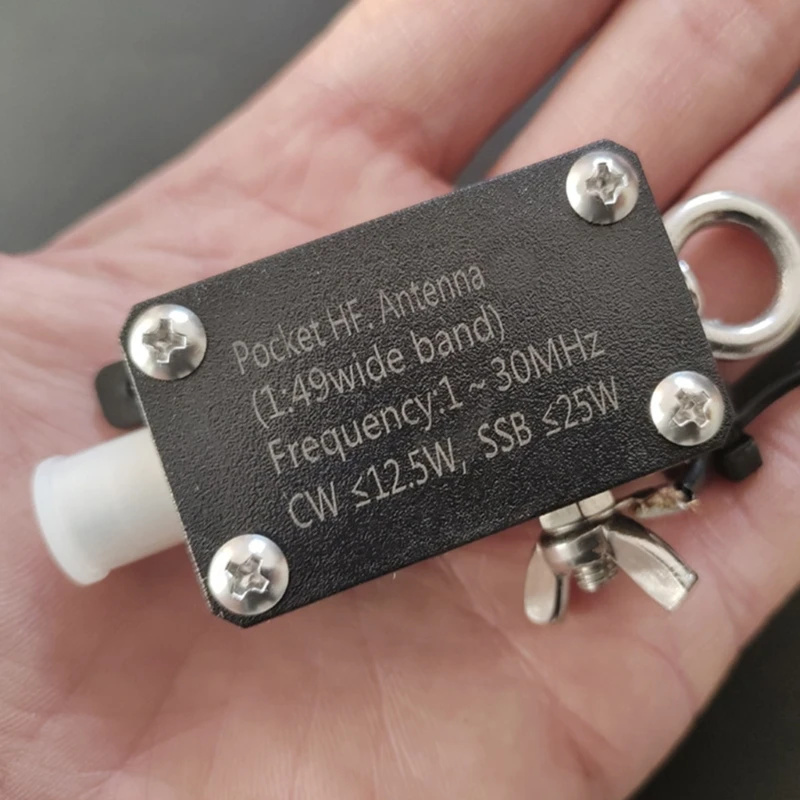

The Pocket HF A25W antenna is a portable HF wire antenna, waterproof, of the EFHW (End Fed Half Wave) type, fed at the end of the wire via a 1:49 impedance transformer (balun), for reception from 1 to 30 MHz and transmission on 40m, 20m, 15m and 10m.Compact, lightweight and housed in a waterproof case, it is designed for amateur radio activities on the go, QRP, hiking, SOTA/POTA, field or temporary installation.
  • Low power portable HF antenna for outdoor amateur radio traffic.
  • Type EFHW 1:49, easy to install as it is fed at one end.
  • Compatible for transmission on the 40m, 20m, 15m and 10m bands.
  • Wideband reception from 1 to 30 MHz.
  • Element length of approximately 20 meters, suitable for multi-band HF use.
  • Maximum allowable power: FT8: ≤ 5W, CW: ≤ 12.5W, SSB: ≤ 25W
  • SWR announced ≤ 1.5, for effective matching on the intended bands.
  • Reduced weight of 250 g, easy to carry in a radio bag.
  • Several possible deployment configurations: horizontal, inclined, partial vertical or inverted V.
  • Waterproof case for better ruggedness in outdoor field use.

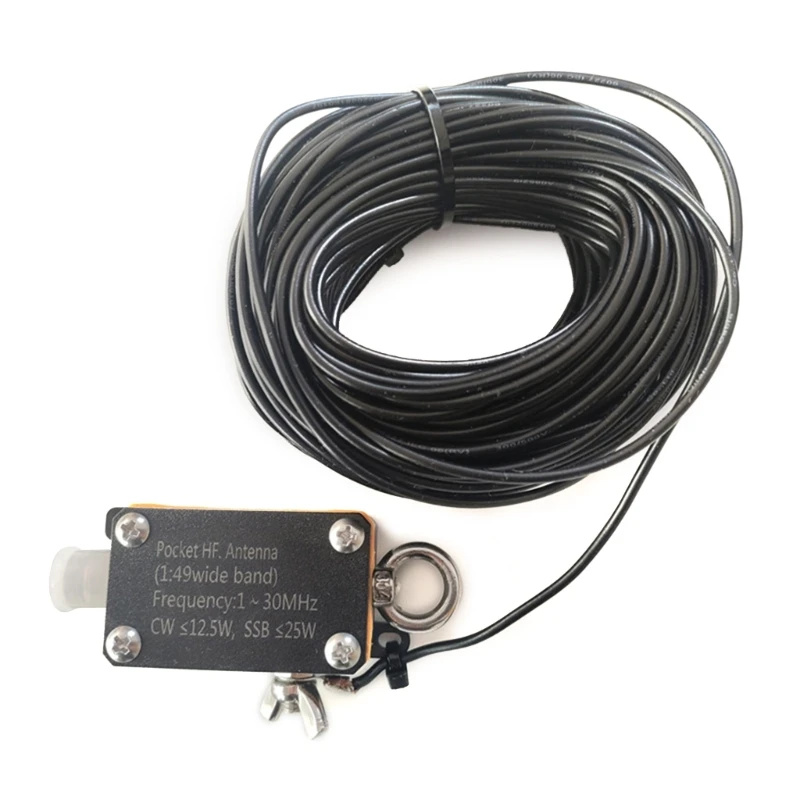

Included: Approximately 20 meters of Pocket HF Antenna A25W wire antenna, with waterproof 1:49 balun.

More details

36,56 € tax excl.

Out of stock. Available in 1 to 2 months.

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

  • Antenna type: EFHW - End Fed Half Wave
    • The Pocket HF Antenna A25W is an end-fed half-wave antenna.
    • An EFHW uses a resonant or near-resonant wire, fed at one end instead of being fed in the center like a traditional dipole.
    • This type of antenna has a high impedance at the feed point, hence the use of a 49:1 or 1:49 impedance transformer to match it to a 50 Ω coaxial radio output.
  • Operating principle
    • The radiating wire of about 20 meters corresponds to a typical length for an EFHW intended for the 40-meter band, with possible operation on certain harmonic bands.
    • Thanks to the 1:49 transformer, the high impedance at the end of the wire is lowered to allow connection to a 50 Ω HF transceiver.
    • This architecture allows for multiband use on the announced bands: 40m, 20m, 15m, and 10m.
    • As with any EFHW antenna, actual performance depends on height, clearance, ground, radio environment, and deployment quality.
  • Installation and deployment
    • Connect the 1:49 matching unit to the radio or coaxial line.
    • Deploy the radiating wire of about 20 meters without letting it coil on itself.
    • Install the end of the wire on an insulating support: tree, fiberglass mast, telescopic pole, high point, or cord.
    • Keep the wire away from metal structures, power lines, gutters, fences, vehicles, and other conductive elements.
    • Check the SWR before transmission, ideally with an antenna analyzer or the transceiver's SWR meter.
    • Respect the maximum power levels indicated according to the mode used.
  • Possible configurations
    • Horizontal: wire stretched between two high points, useful for temporary or semi-fixed installation.
    • Sloper / inclined: unit near the ground or at operator height, end of the wire raised towards a high point; very practical configuration for portable use.
    • Inverted V: center or high part of the wire placed on a mast, ends brought down towards the ground; useful when space is limited.
    • Partial vertical or rising wire: wire raised with a fiberglass pole or tree, useful in limited space, with particular attention to clearance and common mode currents.
    • Rapid field deployment: the antenna can be set up in a few minutes for a portable QRP station, provided there is a hanging point or a light mast.
  • Frequency range
    • Reception: 1 to 30 MHz
    • Transmission: 40m, 20m, 15m, and 10m
  • SWR
    • Announced SWR: ≤ 1.5
  • Maximum allowable power
    • FT8: ≤ 5 W
    • CW: ≤ 12.5 W
    • SSB: ≤ 25 W
  • Impedance
    • 50 Ω
  • Length of radiating element
    • About 20 meters
  • Weight
    • About 250 g
  • Construction
    • Waterproof unit
    • 1:49 matching transformer
    • Imported magnetic rings according to manufacturer information
    • Compact format for easy transport
  • Recommended uses
    • Portable HF amateur radio
    • QRP
    • SOTA / POTA
    • Camping, hiking, field use
    • Temporary or low-power emergency station
    • Wideband HF reception
  • Usage precautions
    • Do not exceed the maximum power levels indicated by mode.
    • Always check the SWR before prolonged transmission.
    • Avoid any contact or proximity with power lines.
    • Deploy the antenna as clear and high as possible to improve efficiency.
    • An antenna tuner may be useful depending on installation height, environment, and band used, even if the antenna is designed to operate with low SWR on the announced bands.
