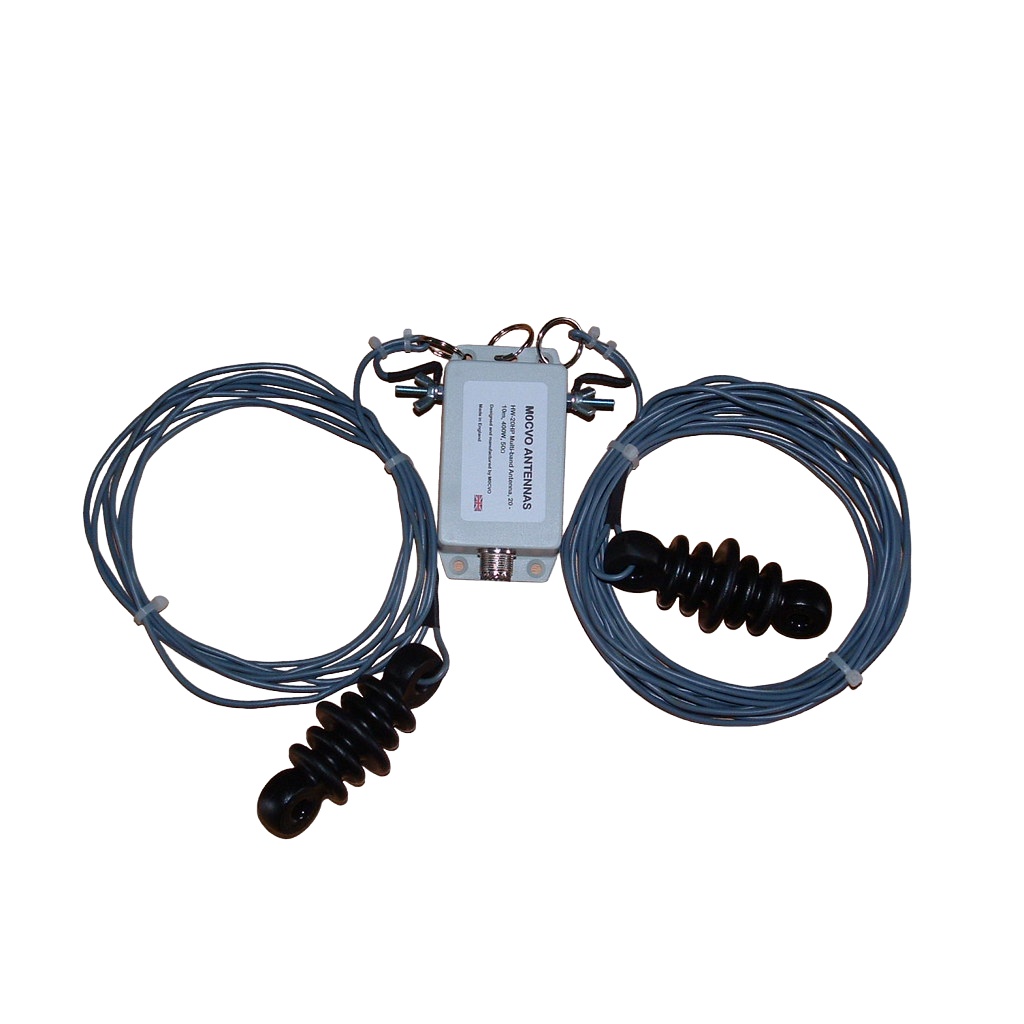

HW-20HP M0CVO dipole HF multiband antenna 20/17/15/12/10 and 6m 400W View larger
M0CVO Antennas

M0CVO-HW20HP-1872

New product

HW-20HP dipole HF OCFD antenna multiband 20/17/15/12/10m and 6m 400W PEP

rating Read the 11 reviews
Average rating: 5/5 Number of reviews: 11

The M0CVO HW-20HP is an OFCD type dipole antenna that incorporates the M0CVO 4:1 balun at the feed point, allowing direct feeding with 50 ohm coaxial cable.

At only 10.14 metres in length, it can be mounted horizontally, inverted V or sloped.

It covers 6 bands - 20, 17, 15, 12, 10 and 6m without the need for a tuner, offering high performance without losses.

It also works on the 30m band with an antenna tuner.

Supplied with: 1 M0CVO HW-20HP antenna.

More details

77,22 € tax excl.

In stock

   5 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Manuel HW-20HP M0CVO (FR)

261.57k

Manuel HW-20HP (EN)

51.5k

Data sheet

  • Frequency band: 20, 17, 15, 12, 10 and 6m
  • Type: OFCD multiband HF dipole
  • Impedance: 50 Ω
  • Length: 10.14m
  • Max power : 400W PEP (CW and SSB), 50-60W max for FT8, AM, RTTY
  • V.S.W.R. (VSWR) : 1.4 on 20m, 2.8 on 17m, 1.1 on 15m, 1.0 on 12m, 1.0 on 10m and 1.5 on 6m

IMPORTANT: Maximum power is indicated in PEP and is for amateur radio use in intermittent mode (CW or SSB) only.

Not suitable for AM broadcasting or constant carrier data modes (such as FT8 or RTTY) at high power (100W). For these modes, reduce power considerably (50W max recommended) to avoid overheating and damage to the balun. For full-power use in constant-carrier modes, opt for a QRO balun.



  • Customers also bought

    • Coaxial cable M&P 5.4mm HYPERFLEX 5 flexible low loss cable
      77,50 €

      Reference: MESSI-COAXIAL-UF7-AR30-1151

      ULTRAFLEX 7mm coaxial cable flexible and low loss

      Messi & Paoloni coaxial cable, with a diameter of 7 mm, M&P ULTRAFLEX 7, flexible, lightweight and offering better performance and lower attenuation compared to RG-58 and RG-213 coaxial cable.

      77,50 €
    • M&P 10.3mm coaxial cable with UHF-Male connector (PL-259) HYPERFLEX 10
      49,90 €

      Reference: MESSI-JUMPER-M-HYF10-1UM-1146_6

      Extension coaxial M&P 10.3mm HYPERFLEX 10 cable with UHF-Male (PL-259)

      This coaxial cable extension is ready to use, with UHF Male connector (PL-259) Messi & Paoloni, with a diameter of 10.3mm with M&P HYPERFLEX 10 cable, flexible and offering excellent

      49,90 €
    • UHF Male PL259 connector for 7mm cable ULTRAFLEX 7
      7,90 €

      Reference: MESSI-CO-UHF-7M-S-EVO-1141

      UHF Male PL259 connector for 7mm cable ULTRAFLEX 7

      UHF Male connector (PL-259) to soldering, Messi & Paoloni for 7mm coaxial cable M&P ULTRAFLEX 7.New design with double seal to ensure perfect protection against water infiltration, control and

      7,90 €
    • Adapter N Female UHF Male
      7,90 €

      Reference: ADAPT-N-F-UHF-M-251

      Adapter N Female UHF Male

      RF adapter for N female to UHF male connector (PL-259). Impedance 50 ohms, gold-plated.

      7,90 €

  • We also recommend

    • Long Wire HF 5 bands 80-10m DIAMOND W8010 Diamond Antenna Long Wire DIAMOND-W8010-113
      175,00 €

      Reference: DIAMOND-W8010-113

      Long Wire HF 5 bands 80-10m DIAMOND W8010

      Diamond W8010 is a efficient long wire dipole antenna for 5 HF bands: 80m/40m/20m/15m and 10m.       W8010 specificationsBand frequency: 3.5/7/14/21/28MHzLength:19.2mWeight:2.5kg Max.power:1.2kW

      175,00 €
    • G5RV wire antenna HF multiband Sigma Euro-Comm Long Wire CRT-G5RV-DEMI-406
      54,50 €

      Reference: SIGMA-G5RV-DEMI-406

      G5RV multiband HF wire antenna full size or 1/2 size

      Invented by G5RV amateur, R. Louis VARNEY published for the first time the technical documentation of its antenna in November 1966. The G5RV wire antenna have 2 versions: 1/2 half size, about 16

      54,50 €
    • DIAMOND WD-330 T2FD wire antenna
      195,00 €

      Reference: DIAMOND-WD330J-1126

      T2FD wideband HF antenna 2-30 Mhz DIAMOND WD-330J

      T2FD design antenna, very wide band from 2 to 30MHz for universal use (transmission / reception): amateur radio, headphones (SWL) and commercial services.Can be installed in a horizontal position, the

      195,00 €
    • COMET CCB-HFJ canvas transport pouch for HFJ-350M

      -20%

      Reference: CHA-ANT-EMCOMM3-1523

      CHAMELEON EMCOMM III wire & NVIS antenna from 1.8 to 30 MHz

      The EMCOMM III Portable antenna from Chameleon is a portable antenna from 1.8 to 30 MHz, specially designed for short to long range HF communications (DX). It is suitable for amateur radio bands and

Reviews

Click here to leave a review

rating 5
Good quality
Quality looks very good. Central box is of metal not plactic, and end insulators are very light. Had no time to try it jet, but looks very promising.
rating 5
Dipole HW-20HP
Utilisé uniquement en réception avec SDRplay en complément du long fil (Sigma LW20). Fonctionne parfaitement.
rating 3
pas encore testé
pas encore testé
rating 5
Satisfait globalement
Livraison en 3 jours en Grèce, aussitôt testée : QSO FT8 avec l\' Uruguay , l\'inde et les US ! Dipole posé en V grossier horizontalement sur le toit du QRA.
Une critique : les frais de livraison très chers (environ 55€ pour une antenne à 76 €...)
rating 5
évaluation
Pas encore essayé. Merci
rating 5
Premier essais
Je n\'ai pas eu l\'occasion de faire des QSO en 10m mais elle présente une bonne sensibilité en réception. Elle a un bon SWR autour de 28.500Mhz.
rating 5
très bien
reçue rapidement, placée en V inversé à 8 mètres de haut, fonctionne parfaitement sur les bandes annoncées et avec tuner externe sur le 6 metre.
rating 5
Parfait
Marchandise commandée par internet le mardi matin, et disponibles à TAHITI (18 000 KM) le jeudi à midi !! C\'est un record !Transporteur Chronopost Express
rating 5
Antenne HW-20HP
Bonne réalisation, conditionnement parfait, destinée à un ami OM QRM vidéo, elle reste à installer et à tester \"sur l\'air\".
rating 5
hw 20 hp
Satisfait de cette achat.
rating 5
Conforme à la description
D\'aspect sérieux j\'ai hâte de la tester.
