VNA SV4401A 4.4G 50kHz – 4.4GHz with 7” capacitive touchscreen & N connectors

rating No review at the moment

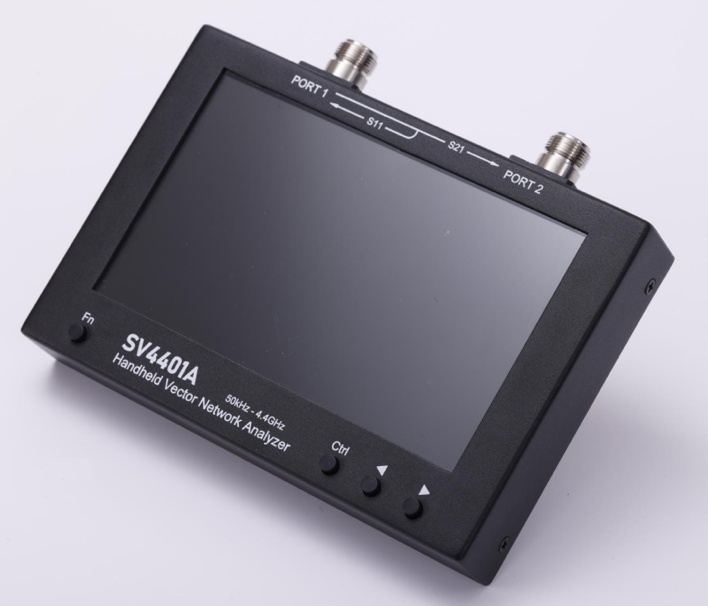

SV4401A is a handheld Vector Network Analyzer (VNA) with frequency range of 50kHz to 4.4GHz. It can be used for S11 and S21 measurements. The S21 dynamic range is 75 dB, while the S11 dynamic range is 50 dB.

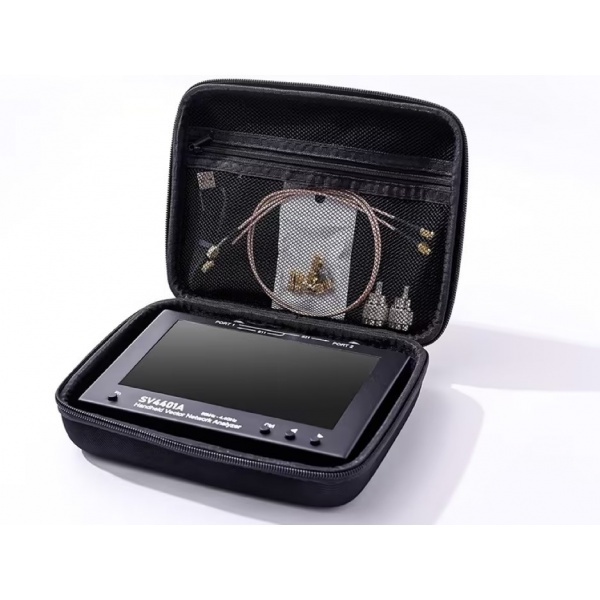

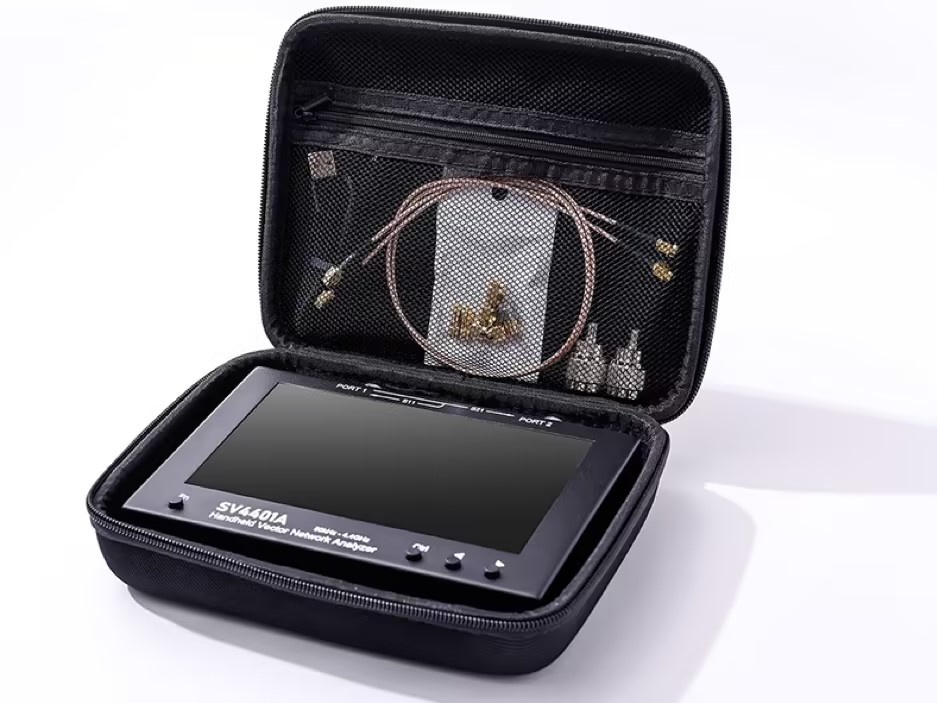

Come with : 1x sv4401a, 2x N-SMA adapter, 1x OSL calibration kit, 2x sma-male/sma-male connector, 1x sma-female/sma-female connector, 1x 50cm rg316 cable, 1x usb-type-c cable, 1x carrying case.

More details

432,50 € tax excl.

Out of stock, available in 2 to 3 weeks

Download

Data sheet

Parameter

Specification

Conditions

Frequency range

50kHz ~ 4.4GHz

RF output power

-42dBm ~ -12dBm

Step size: 1dB

Connector type

N-K

RF input power

0dBm (Max)

DC<5V

Frequency accuracy

<±1ppm

<140MHz

<±5kHz

>140MHz

S21 dynamic range

75dB

<3GHz

60dB

>3GHz

S11 dynamic range

50dB

<3GHz

40dB

>3GHz

Sweep points

1001

101-1001

Sweep time

400p/s

f>140MHz

IF bandwidth

12.5kHz(default)

6.25k/3.12k/1k/300Hz/100Hz/30Hz

Traces

7

Markers

8

Calibration Storage

12

Storage

8GB SDCard built-in

Display

7-inch IPS LCD

resolution:1024×600

Touch Screen

Capactive

Power consumption

5W

Battery

Built-in 2x18650

3.6V/3350mAh×2, 4 hours with 50% screen light

Charging/Data port

USB Type-C

Charging voltage

4.7V ~ 5.5V

a 5V/2A powersource is recommended

Power output

USB 5V/1A

Dimensions

190mmx130mmx30mm

Shell material

Iron

Weight

1.15kg

Device

1.65kg

W/ acc and package

Operating temperature

0℃-45℃

Application :

  • S11, S21 CHARACTERS
    • VSWR, SMITH CHART
    • LOGMAG
    • PHASE, DELAY
    • Q FACTOR, POLAR, LINEAR
    • ETC.
  • MEASUREMENT
    • ANTENNA
    • CABLE
    • AMPLIFIER
    • DUPLEXER
    • FILTER
    • ETC.
